5 Axis CNC Kit Nema 23 57mm 3Nm Closed Loop Stepper Motor, Driver & Power Supply Kit
5 Axis CNC Kit Nema 23 57mm 3Nm Closed Loop Stepper Motor, Driver & Power Supply Kit
Features:
Closed-Loop System: Nema 23 closed-loop stepper motors with 1000-line encoders.
Motor 57HB250-112B Torque: Each motor provides 3Nm of holding torque for industrial applications.

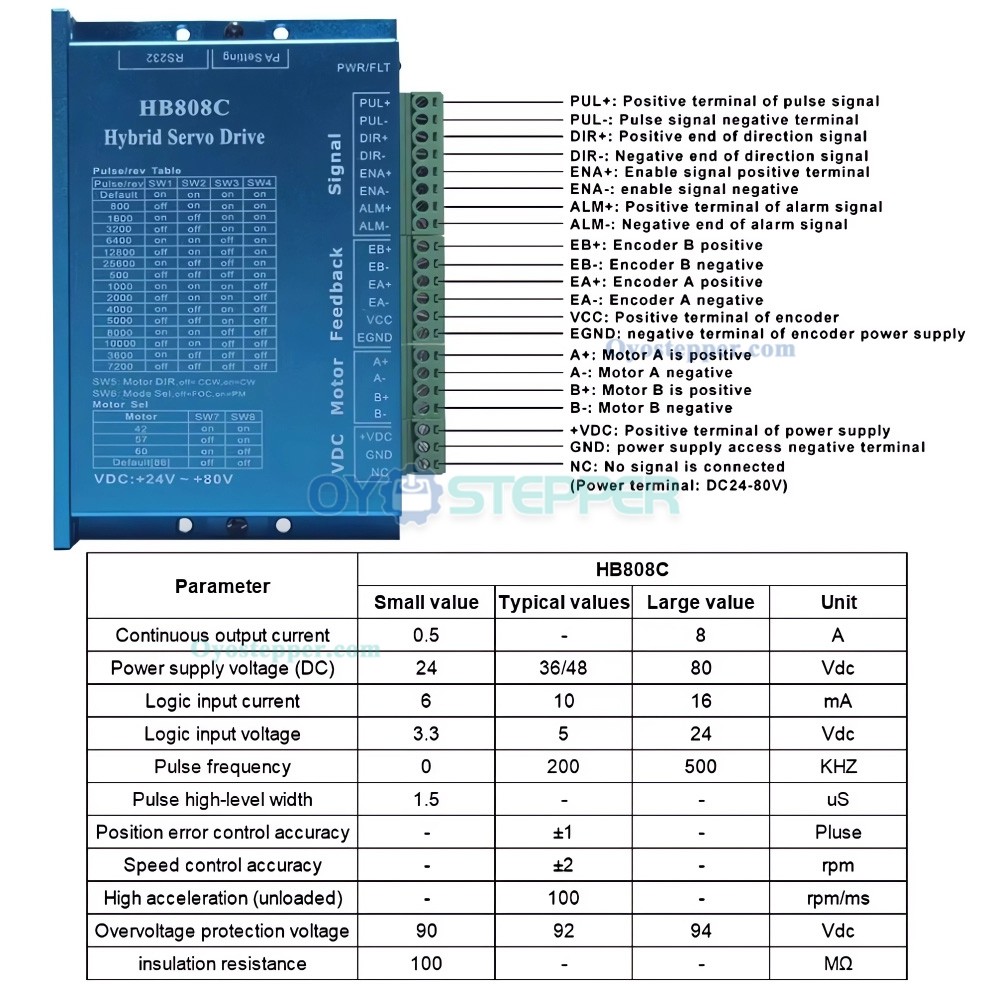

DSP Drivers: HB8080C drivers with a peak current of 13A and a response frequency of 200KHz for responsive control. Supports 24-80VDC input and PUL/DIR or CW/CCW signals. Offers 200 to 25,600 microsteps.

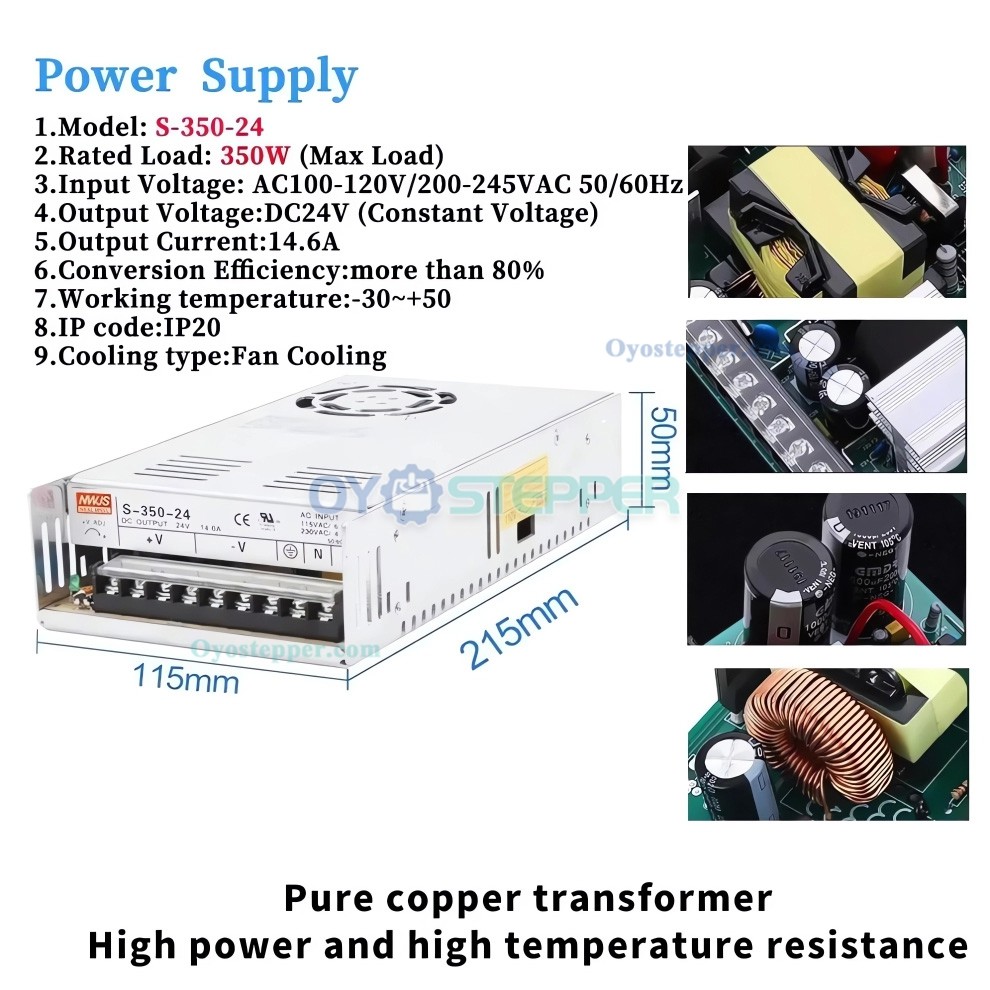

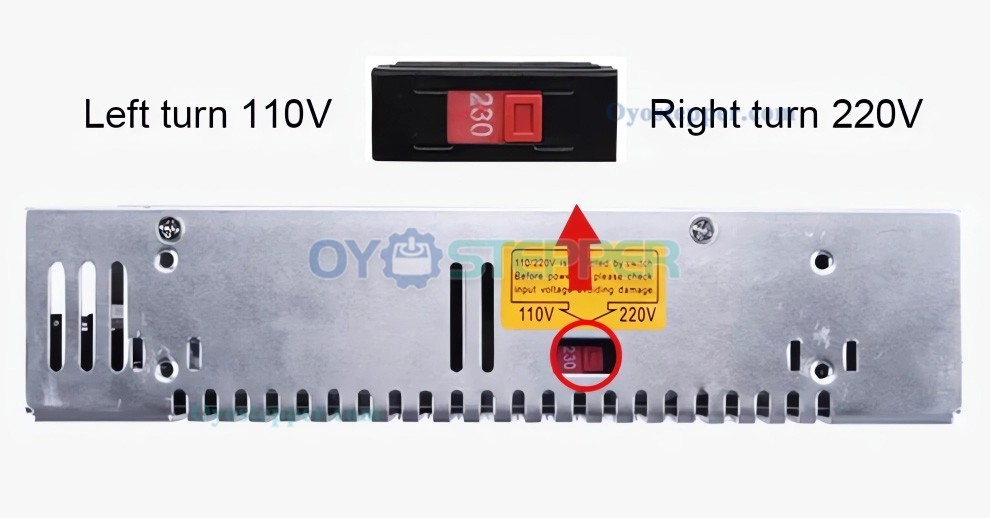

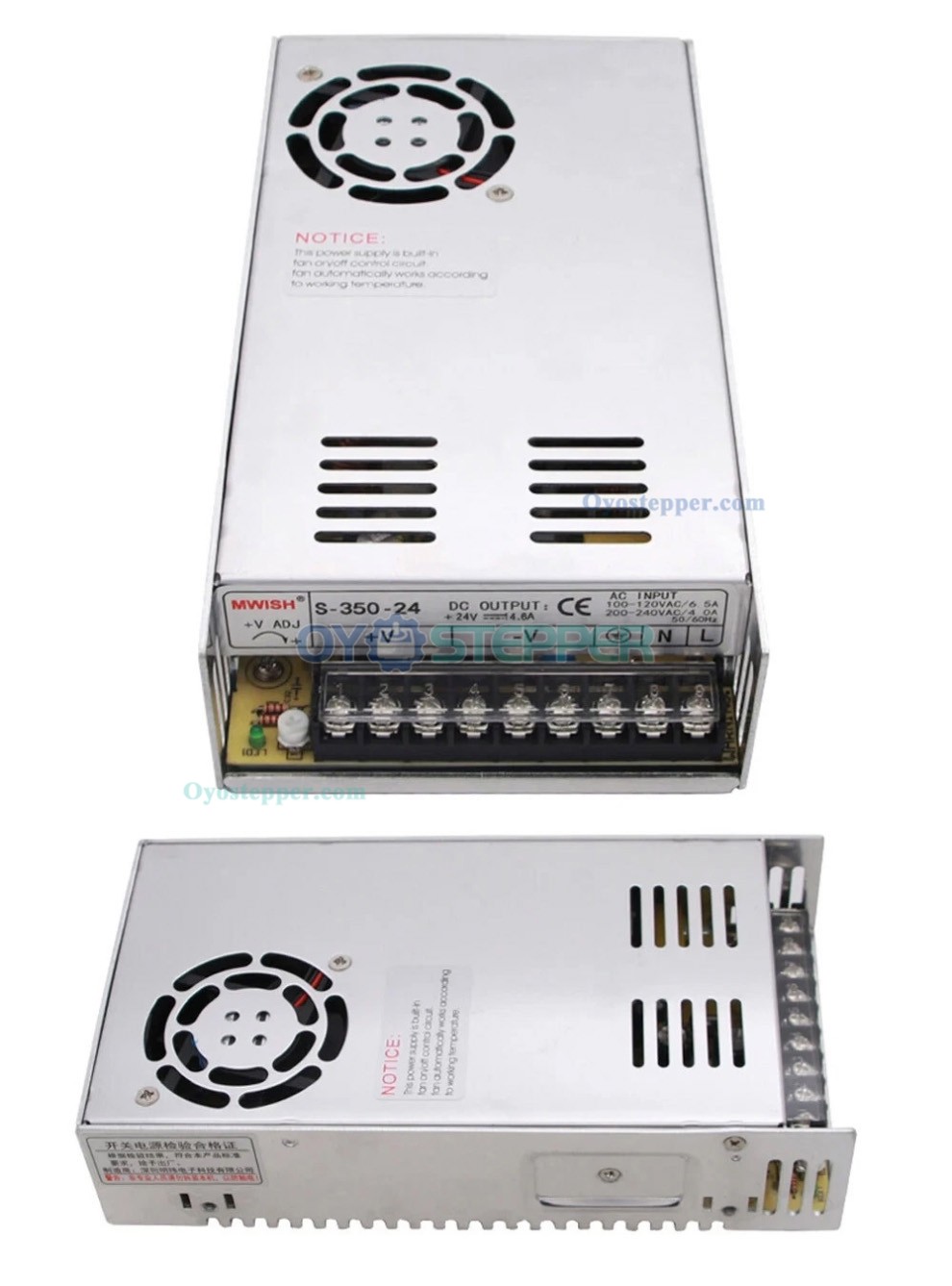

Power Supply: 350W 24V DC power supply with over-current, over-voltage, and load protection. Dual AC input (110V/220V switchable).

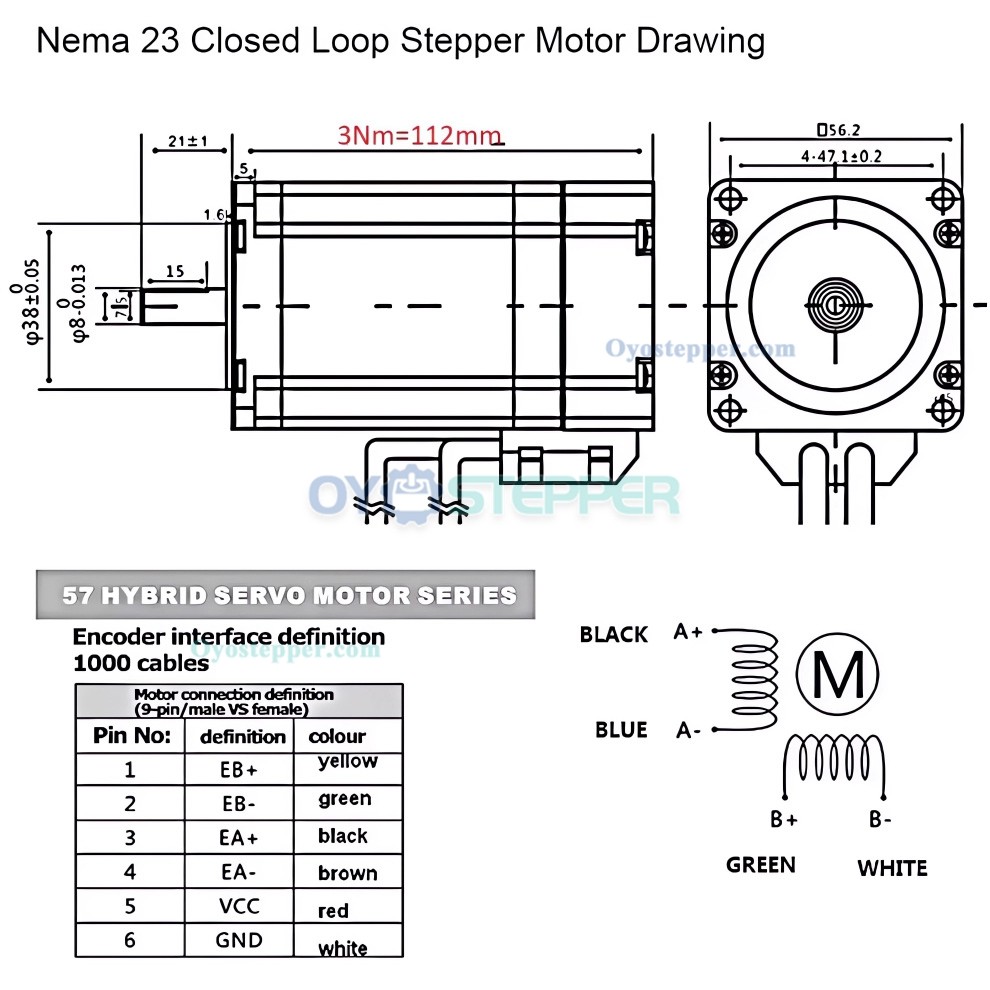

Motor Dimensions: Nema 23 closed-loop motor size: 3Nm (57×57×112mm).

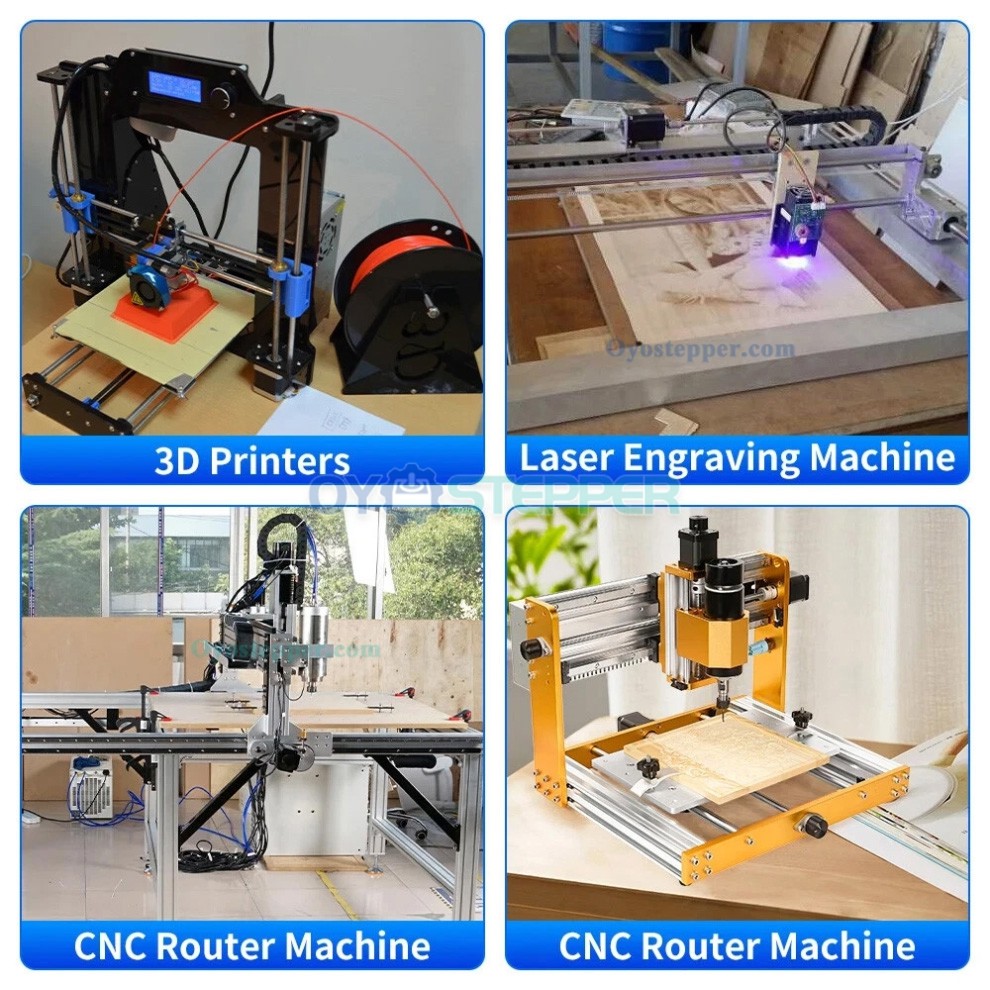

Applications:
CNC Machinery: Milling, engraving, cutting, and lathe operations.
Automated Manufacturing: Used in robotic arms, conveyor systems, and assembly lines.
3D Printing & Laser Cutting: Provides positioning for layer transitions.
DIY CNC Projects: For hobbyists upgrading motion control capabilities.
Industrial Automation: Used for packaging, textile machinery, and rotary indexing systems.

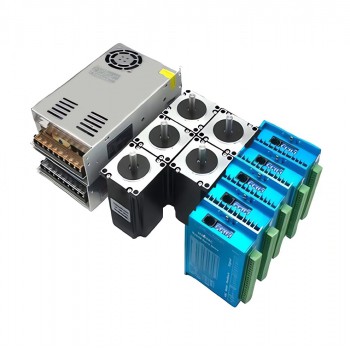

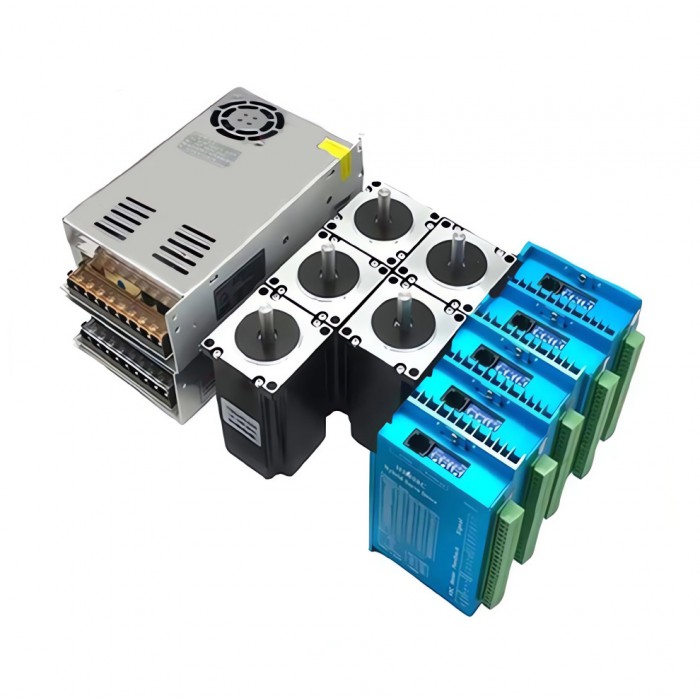

Kit Includes:
5 * HB8080C Driver
5 * Closed-Loop Nema 23 Stepper Motors (3Nm)
5 * 3M Encoder Cables
5 * 3M Power Cables
2 * 350W 24V Power Supplies
| CNC Kit Specification | |
|---|---|
| No of Axis | 5 |
| Open-loop/Closed-loop | Closed-loop |

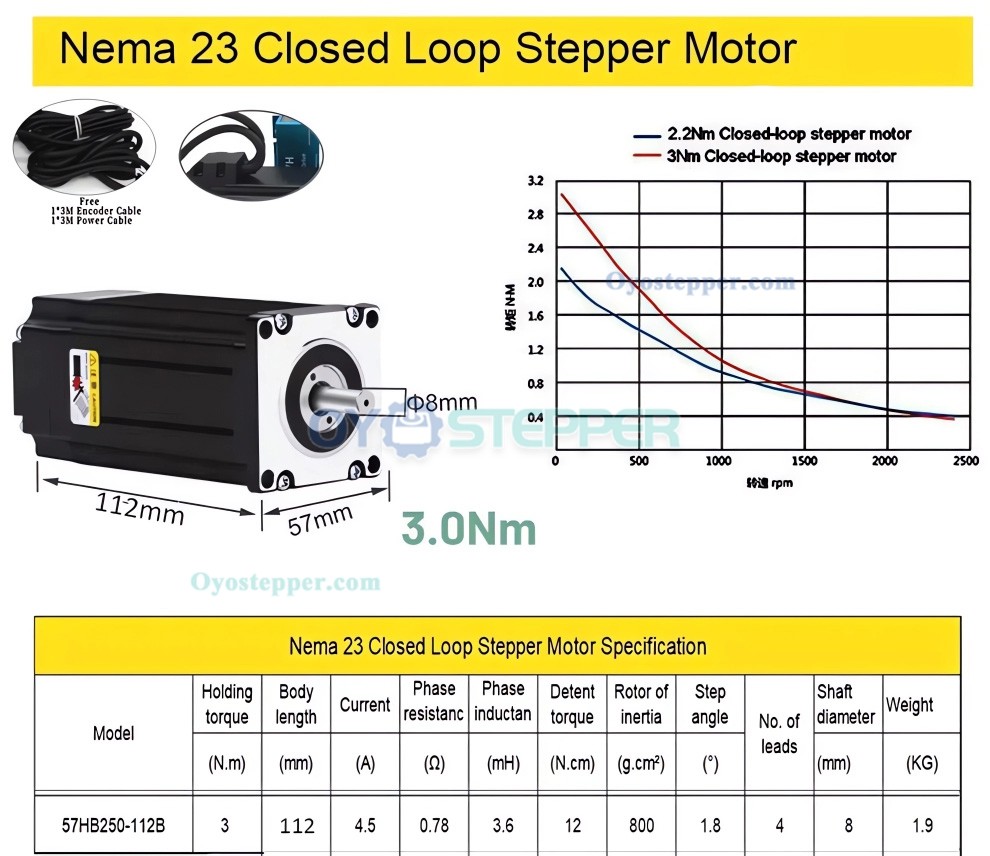

| Motor Specification | |
| Body Length(mm) | 112 |
| Holding Torque (Ncm) | 300 |
| Holding Torque (oz.in) | 424.83 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Encoder Specification | |
| Resolution(CPR) | 1000 |
