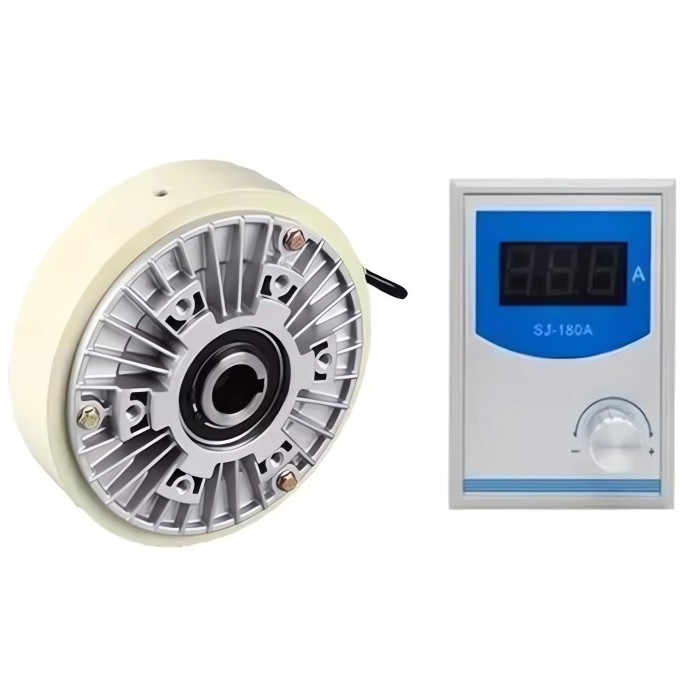

FZ-K Hollow Shaft Magnetic Powder Brake with SJ-180A Manual Tension Controller Kit

FZ-K Hollow Shaft Type Magnetic Powder Brake 6-200Nm 24V Magnetic Particle Brake

Features:

Adjustable torque range of 6-200N.m (0.6kg-20kg) with linear response for braking.

Millisecond-level response time for high-speed tensioning, winding, or overload protection. Industrial-grade alloy housing, operating temperature: -20°C to 80°C.

Sealed magnetic powder chamber designed to reduce maintenance requirements.

Works with 24VDC power supply and standard PLC/PWM control signals.

Overheat protection and fail-safe braking. Power consumption during activation.

Application Fields:

Printing & Packaging: Tension control for labelers, film winders, and sheeters.

Textile Machinery: Yarn winding, loom braking, and thread tension regulation.

Industrial Automation: Conveyor overload protection, robotic arm safety stops.

Testing Equipment: Dynamometers, torque calibration, and load simulation.

Film Production: Tensioning for coating, laminating, or slitting lines.

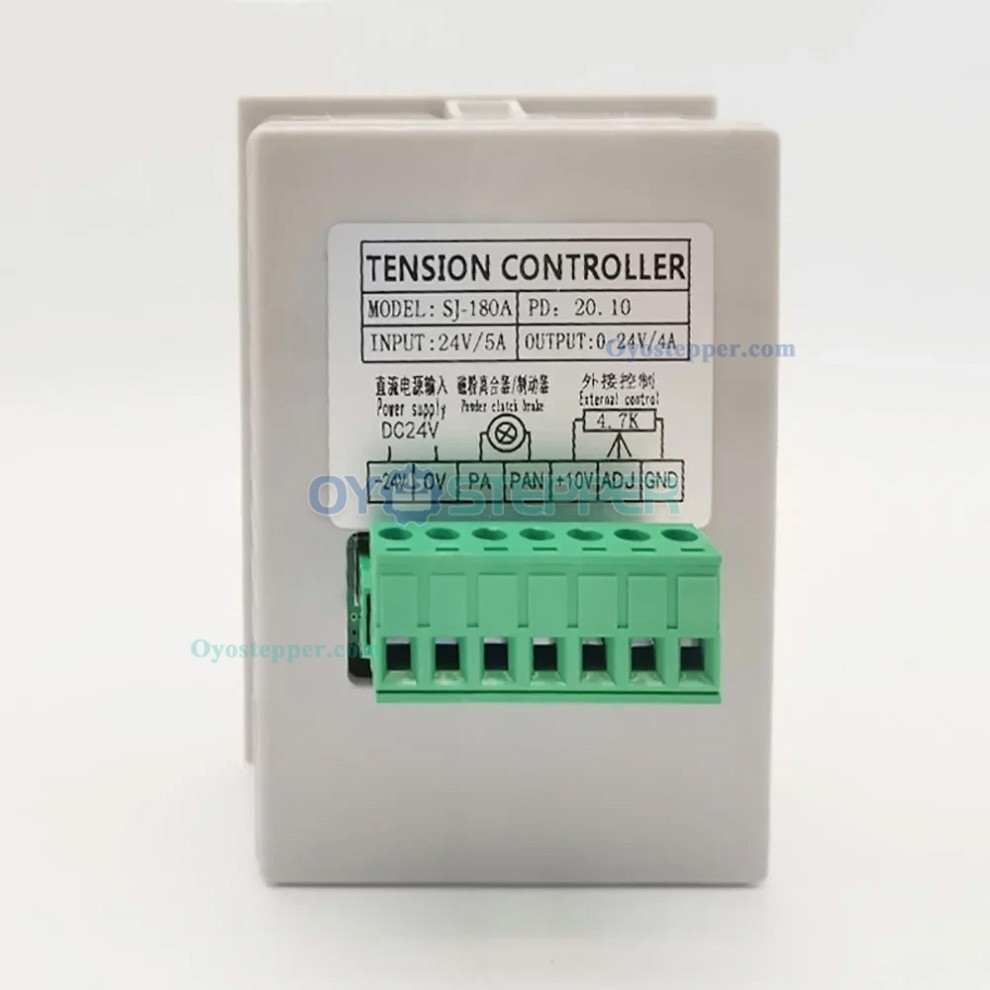

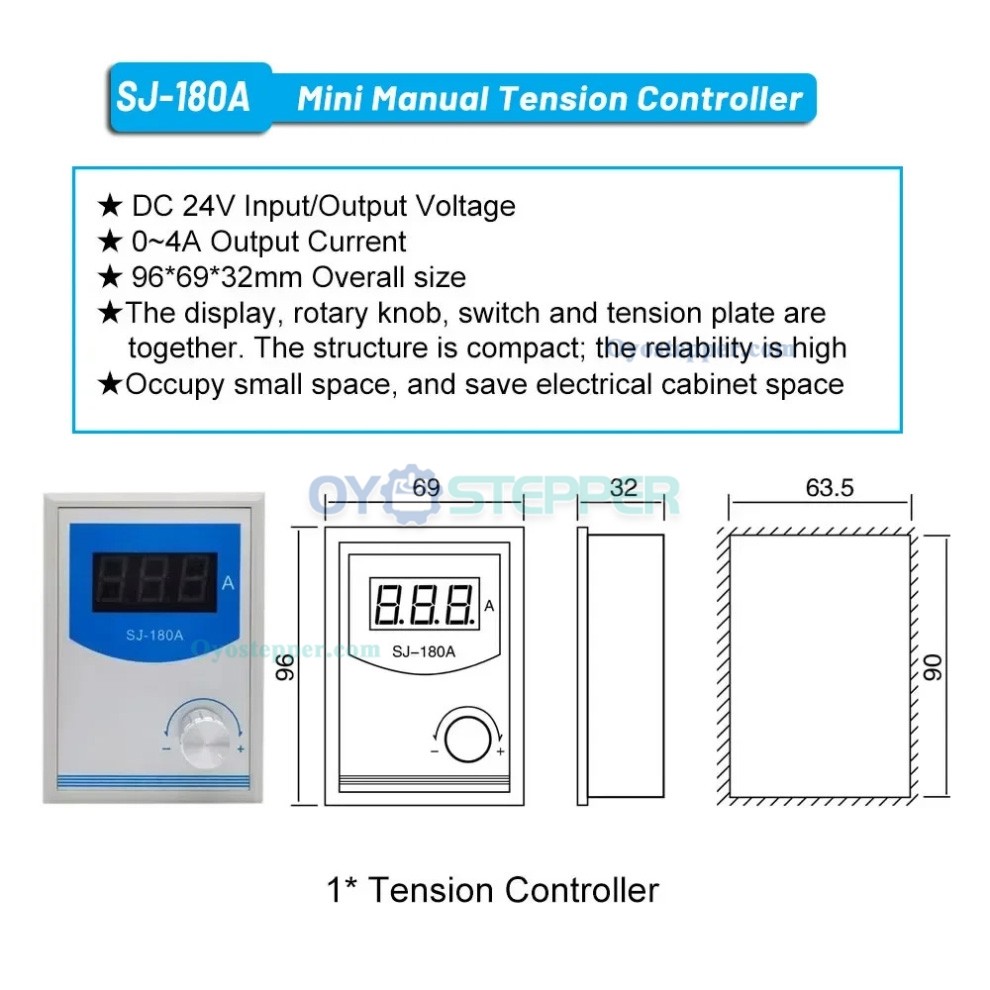

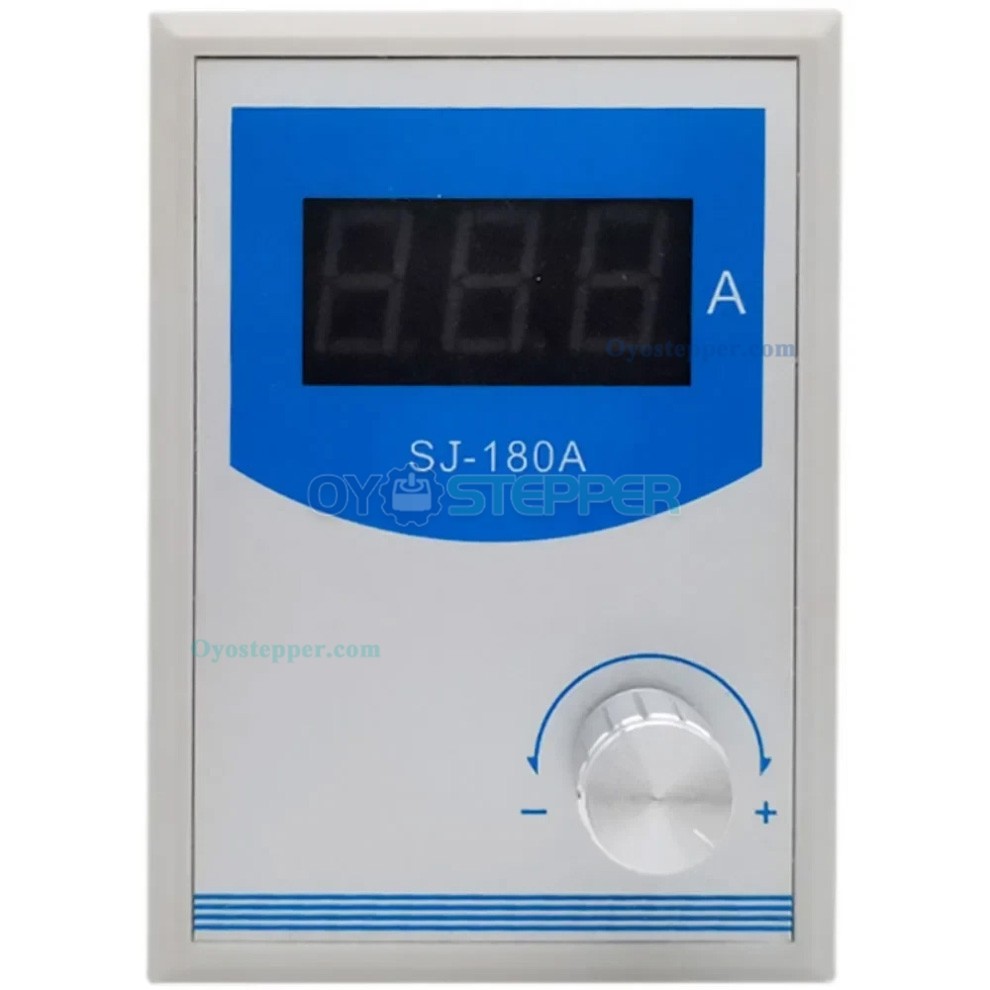

SJ-180A Small Tension Controller Parameters:

Model: SJ-180A

Input Voltage: DC24V

Output Voltage:DC24V

Out Current: 0~4A

Overall size: 96X69X32MM

Type: Manual controller / PLC / Potentiometer

Package List:

1x Magnetic Powder Brake

1 x Tension Controller
