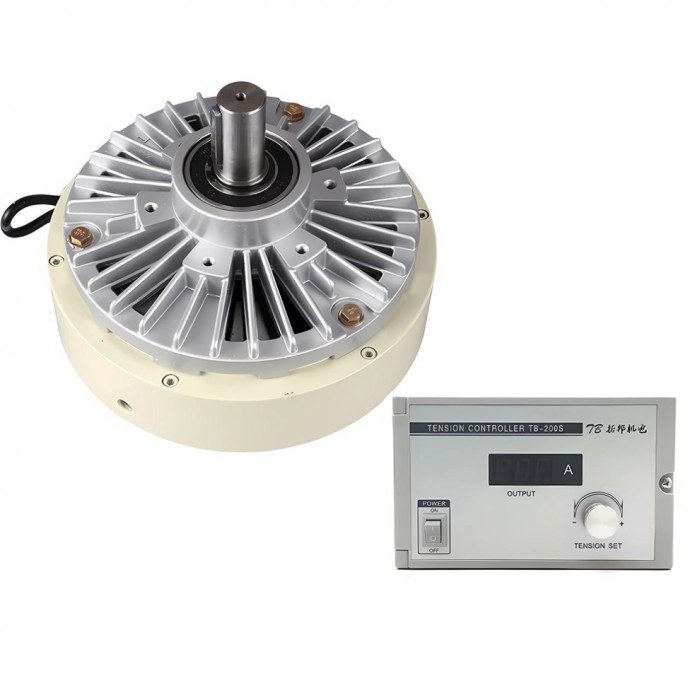

FZ-D Series Magnetic Powder Particle Brake with TB-200S Tension Controller Kit 6Nm-50Nm Single Shaft

FZ-D Single-Shaft Industrial Magnetic Particle Brake 6-50Nm 24VDC IP54 CNC Magnetic Powder Brake

Features:

Torque range: 6–200N·m (0.6–20kg)

Linear torque response

Response time: millisecond level

Housing material: industrial-grade alloy

Operating temperature: –20°C to +80°C

Sealed magnetic powder chamber

Power supply: 24VDC

Control signal compatibility: PLC, PWM

Customizable shaft sizes

Overheat protection

Fail-safe braking function

Power consumption during operation;

Applications:

Printing and packaging: tension control for roll-to-roll labelers, film winders, sheeters;

Textile machinery: yarn winding, loom braking, thread tension regulation;

Industrial automation: conveyor overload protection, robotic arm safety stops.

Testing equipment: dynamometers, torque calibration, load simulation

Film production: tensioning for coating, laminating, slitting lines.

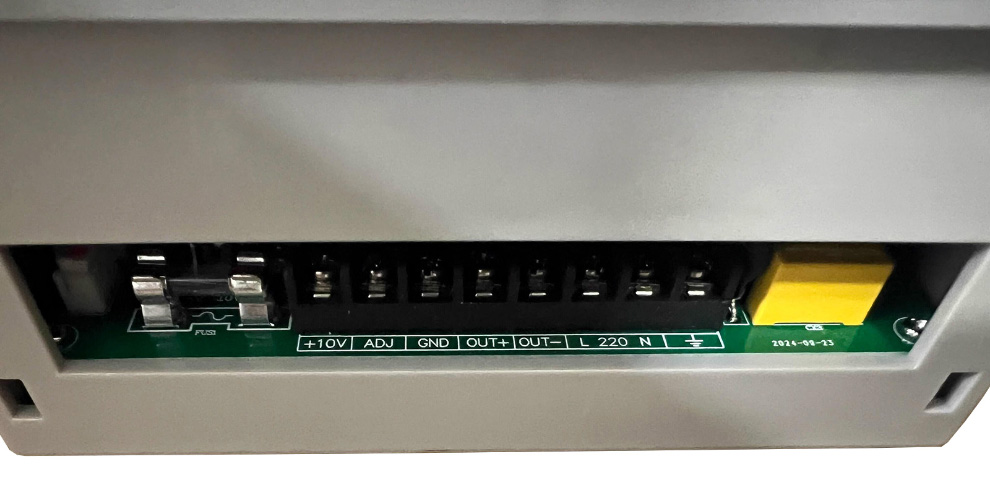

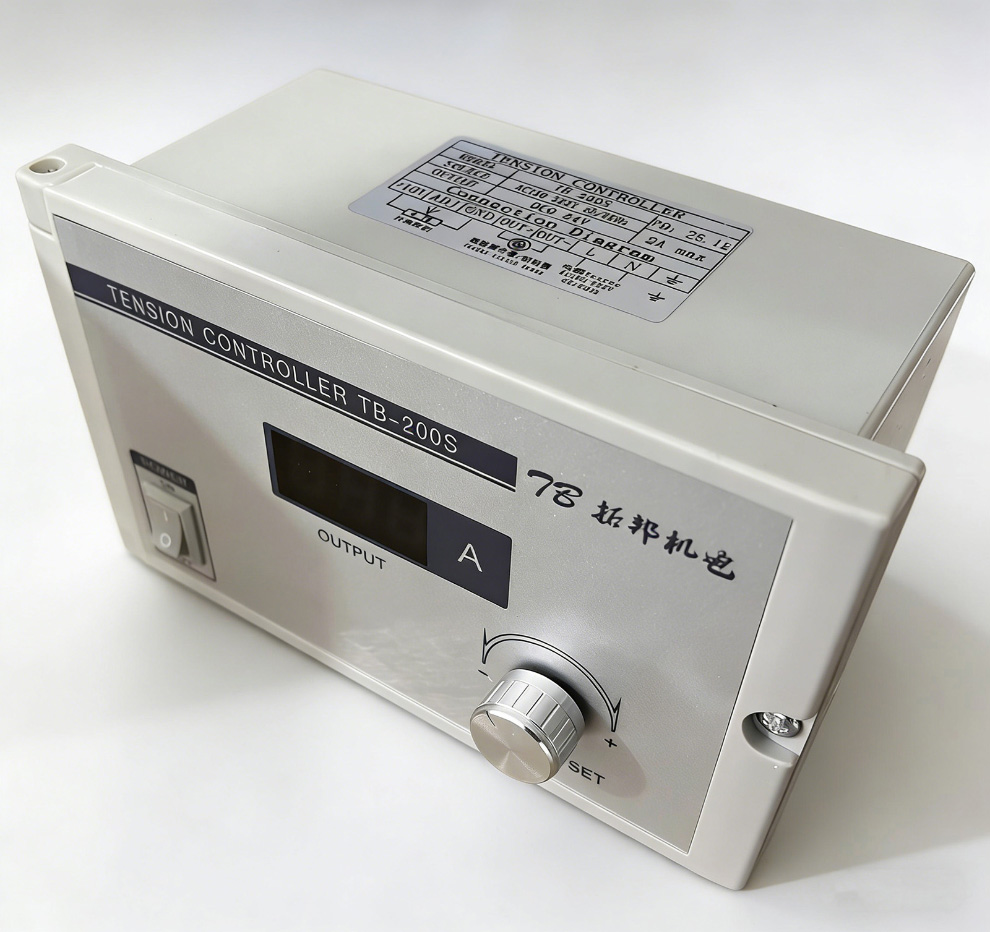

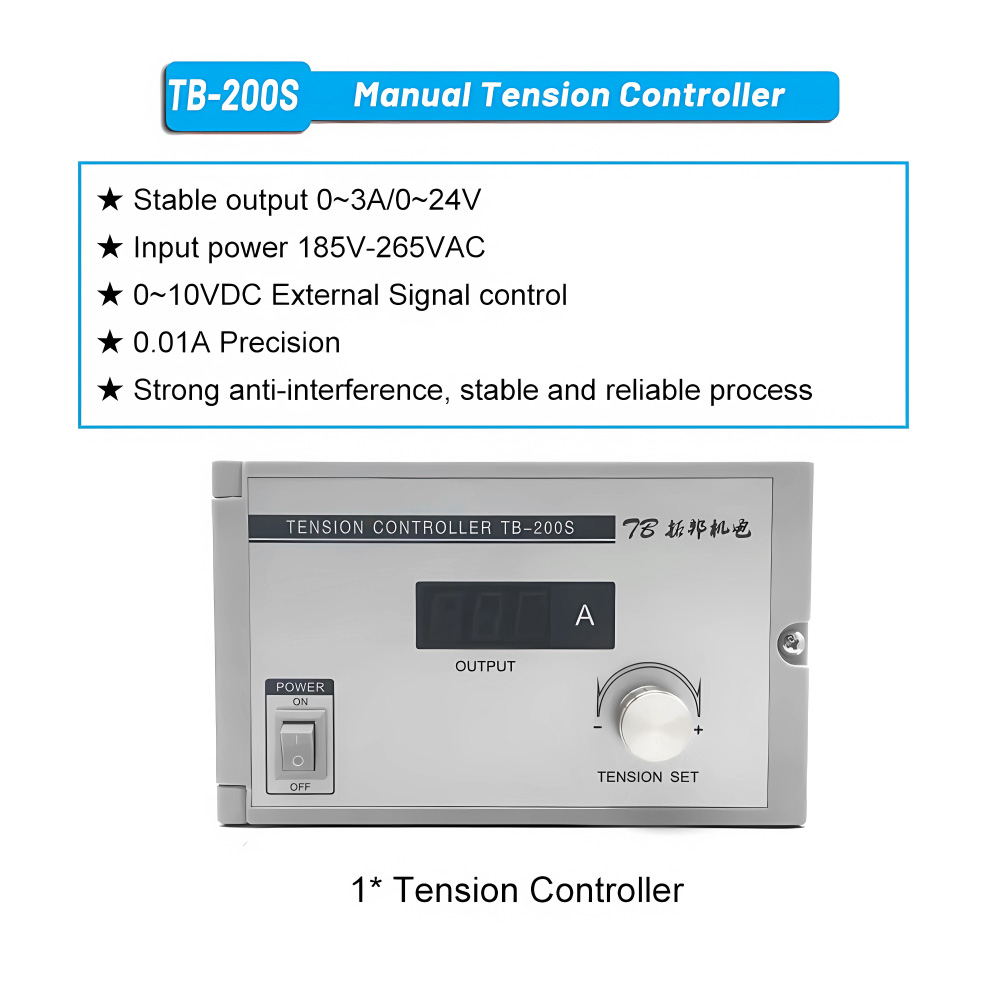

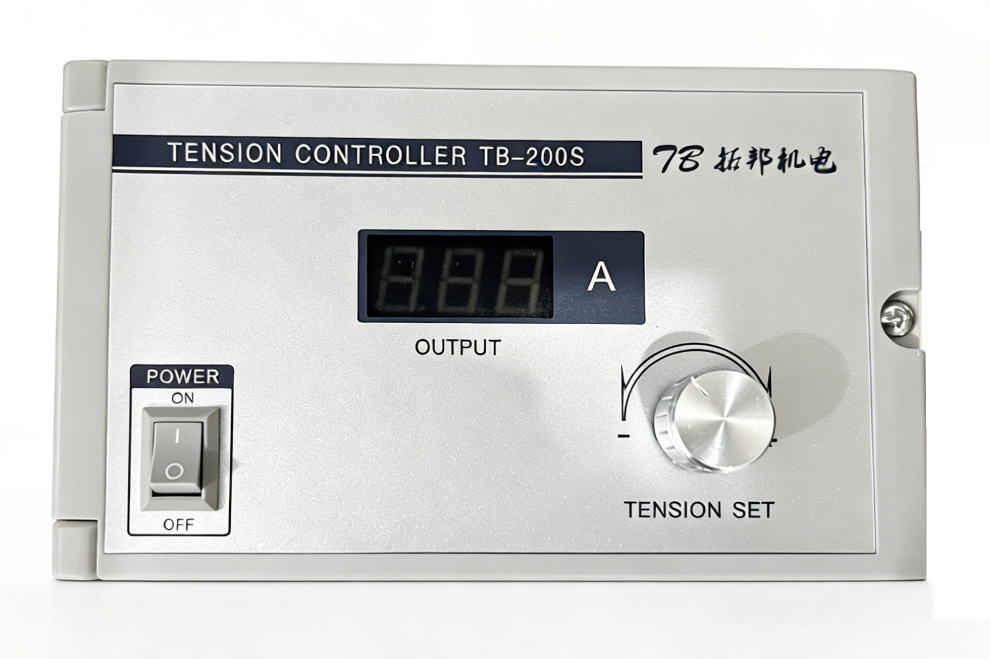

TB-200s Tension Controller Specification:

Input Voltage: AC 180V-265V, 50/60Hz

Output Voltage: DC 0-24V

Output Current: 0-3A

External Signal Control: 0-10VDC or 0-5VDC (switchable)

Precision: 0.01A

Control Type: Manual controller / PLC / Potentiometer

Overall Size: 160 x 100 x 70mm (width x height x depth)

Mounting Size: 163 x 103 x 70mm (width x height x depth)

Installation Methods: Wall-mounted, floor-mounted, or embedded

Control Method: Manual adjustment of switching power supply

Output Display: Digital display

Applicable Machines: Magnetic powder brake, magnetic powder clutch

Auxiliary Function: Fixed control current, short-circuit protection

Working Environment: Avoid exposure to corrosive gas, dust, or rainwater

Working Temperature: -10°C to 50°C

Working Humidity: Below 80%;
