KTC-812 Semi-automatic Tension Controller 24VDC 4A Magnetic Particle Tension Controller

KTC-812 Small Tension Controller Parameters:
Power Supply: 185V-265VAC 50/60Hz
Out Voltage: 0~24VDC
Output current:0-4A
External Signal control: 0~10VDC
Precision:0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade;

Parameter characteristics:
Manual/automatic operation
Encoder or Hall switch can be connected
It can store the parameters of 9 different materials
Constant tension/taper tension control
Output 0 - 2 4 V/4 A, automatic overcurrent protection
All parameters and states of the automatic memory system
Adjustable magnetic powder brake/clutch torque compensation;

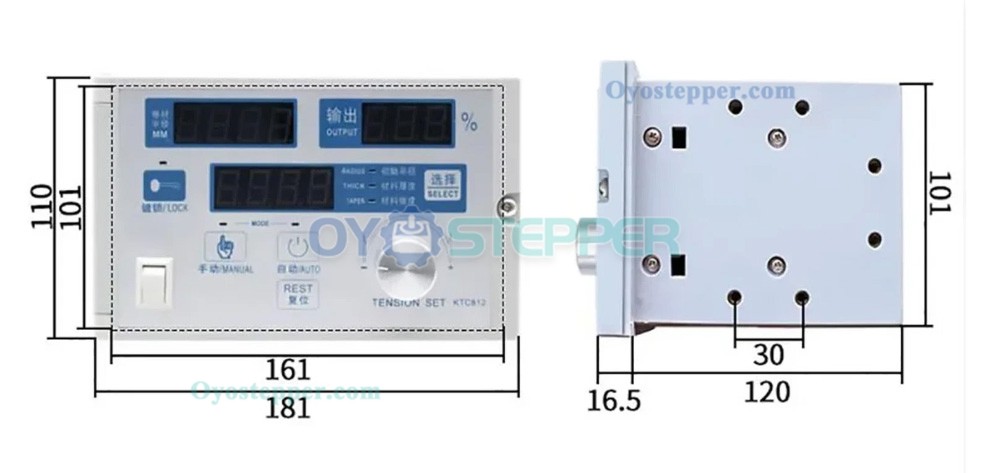

Size Chart Details:
