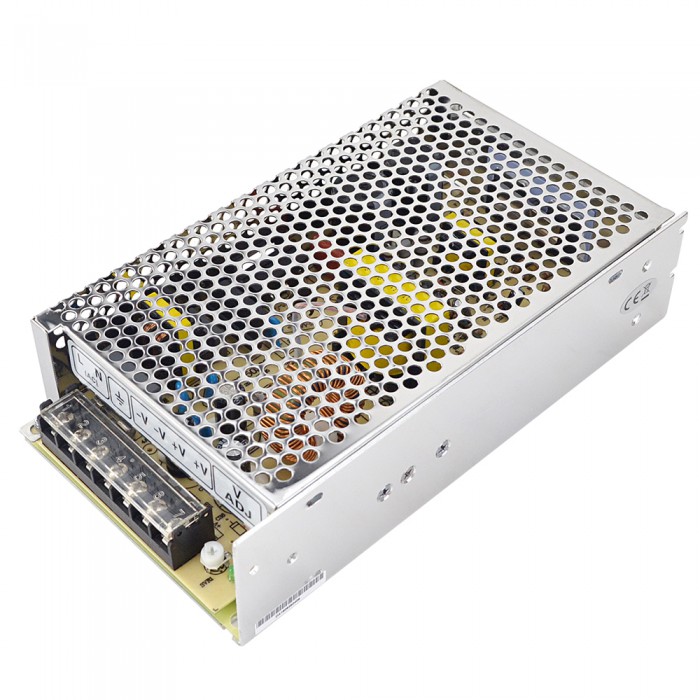

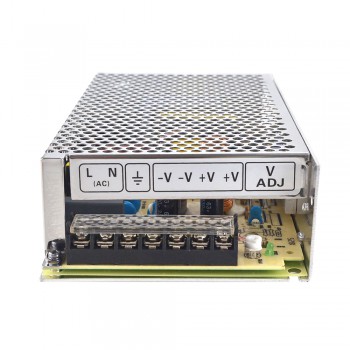

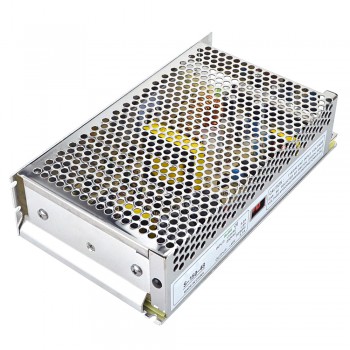

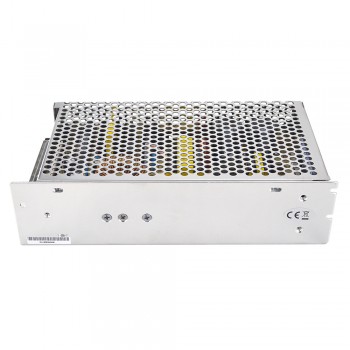

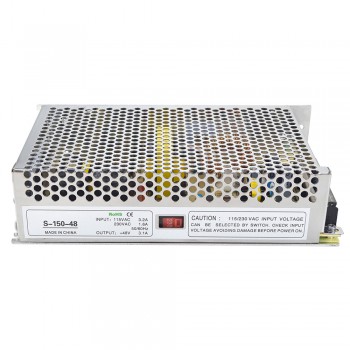

CNC Power Supply 150W 48V 3.1A 115/230V for CNC Stepper Motor / Servo Motor System
This professional 150W 48V 3.1A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System.
115V and 230V can be chosed by switch. Powerful functions(eg. PWM control) and professional designs ensure better efficiency and reliability of the power supply. Low cost also makes it more acceptable for general usage.
Key Features
48V DC 3.1 A output
AC input voltage range:92~132V/180~264VAC
115V/230V AC selected by switch
Free air cooling convection
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
200*110*50mm (L*W*H)
Resources
Full Datasheet: S-150-48.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Power Supply Specification | |
---|---|
Input Voltage(V) | 115/230 |
Max. Output Current(A) | 3.1 |
Output Voltage(V) | 48 |
Power(W) | 150 |
Physical Specification | |
Weight(g) | 850 |
