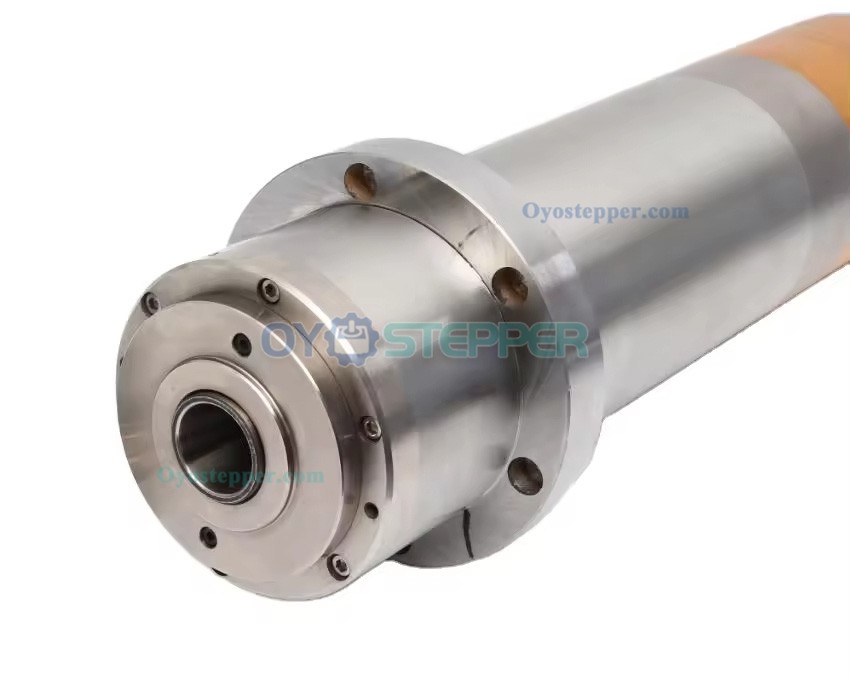

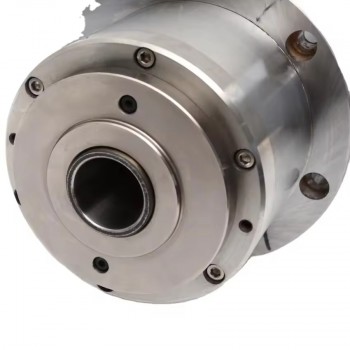

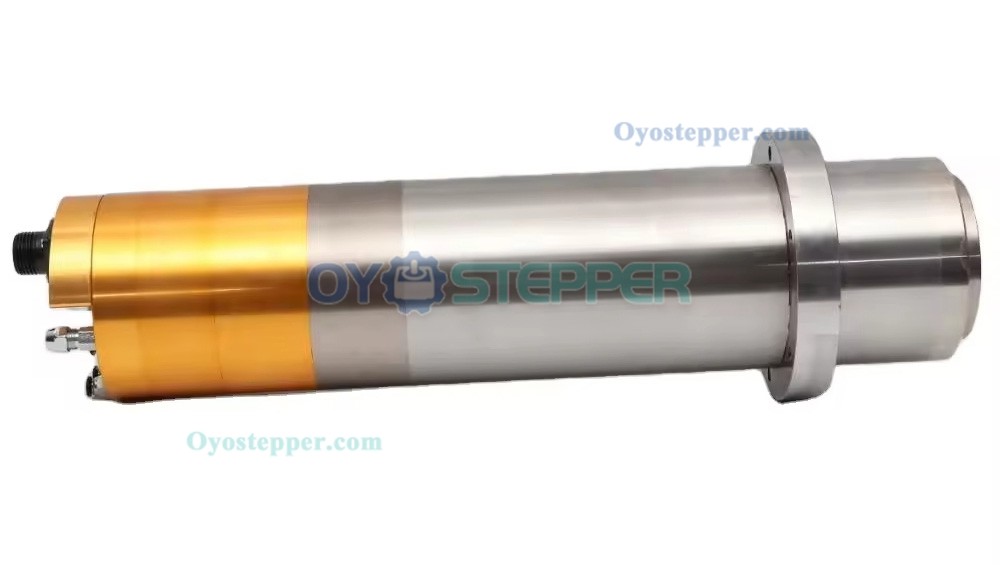

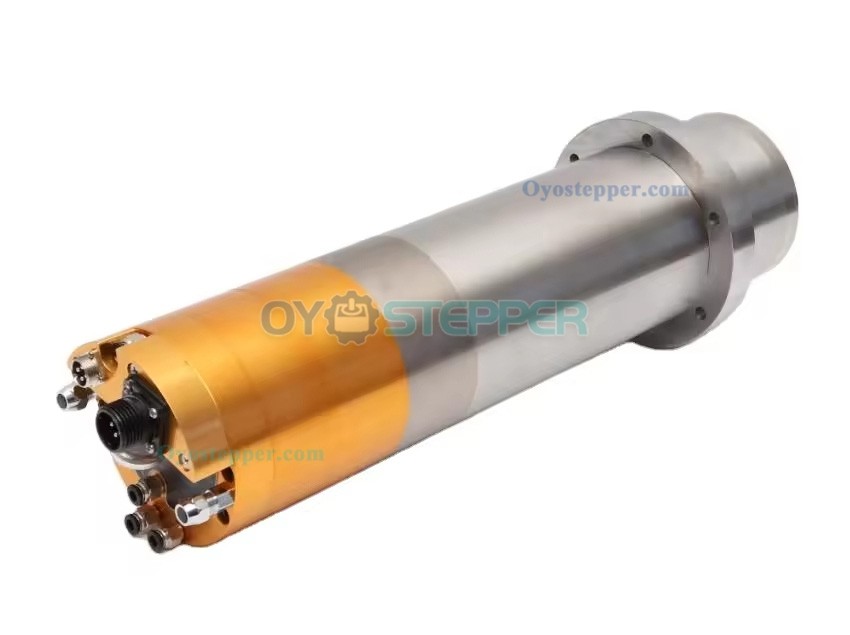

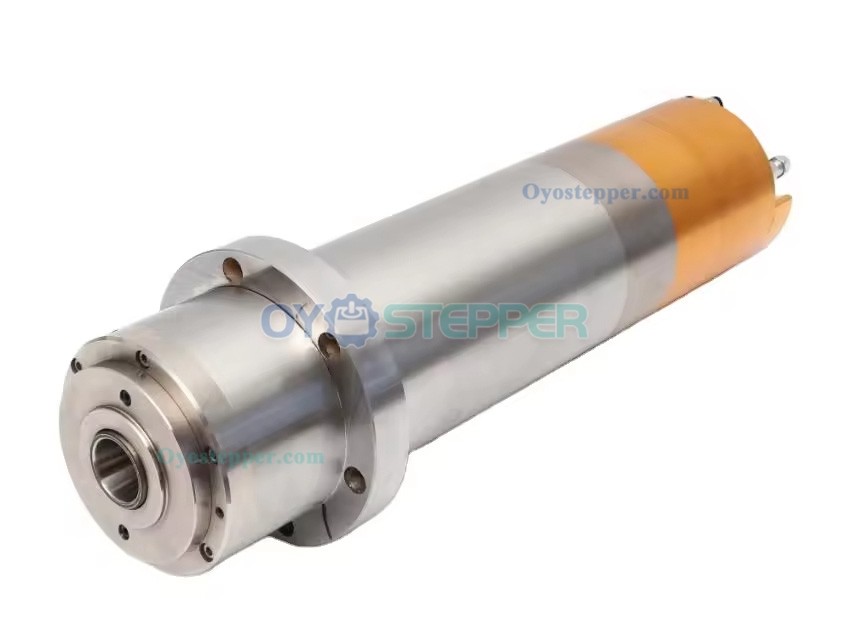

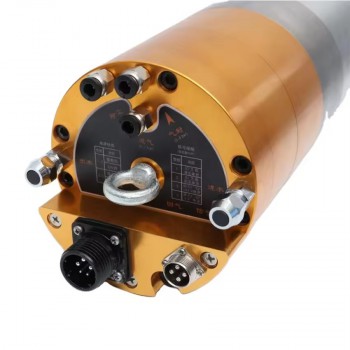

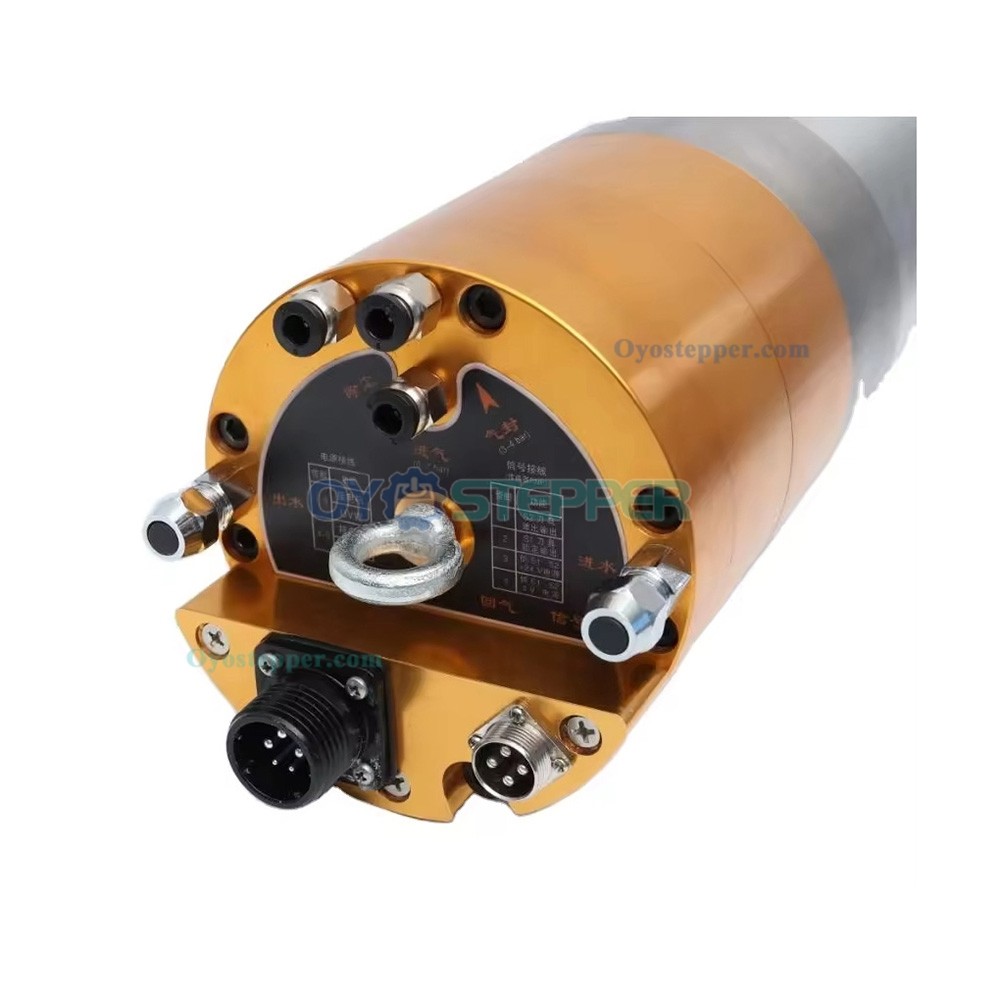

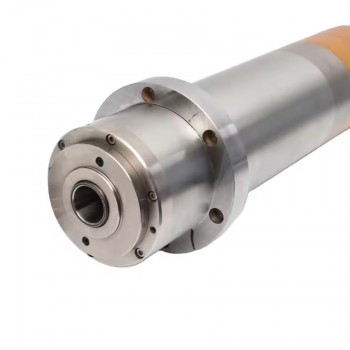

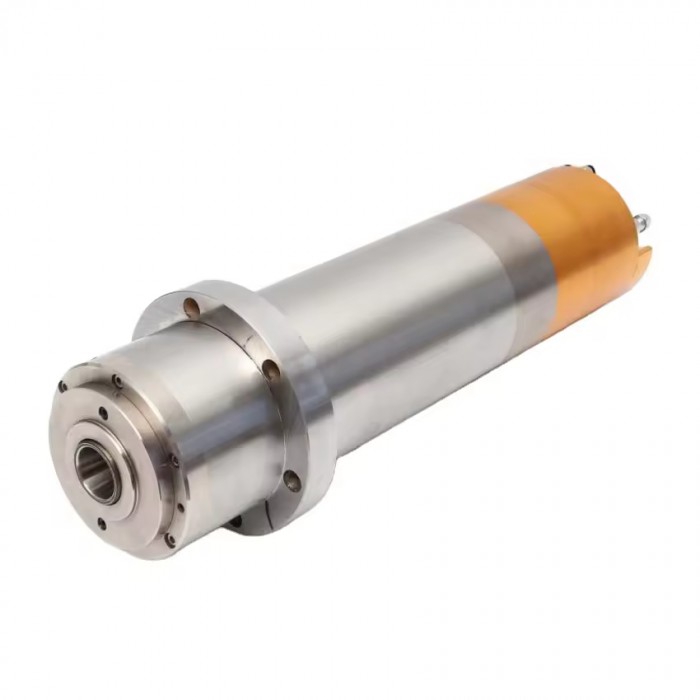

5.5K 380V 3-Phase ATC Spindle Motor Water Cooled ISO30 / BT30 12,000-24,000 RPM Automatic Tool Change Spindle Motor

5.5K 380V 3-Phase ATC Spindle Motor Water Cooled ISO30 / BT30 12,000-24,000 RPM Automatic Tool Change Spindle Motor

The JGLF-5.5K ATC spindle motor is designed for CNC applications including milling, drilling, grinding, and engraving. It features automatic tool-changing capability and is commonly used in woodworking, metalworking and mold-making.


Technical Specifications

Model: JGLF-5.5K

Rated power: 5.5 kW

Rated voltage: 380 V (3-phase)

Rated current: 14.8 A

Operating frequency: 400-800 Hz

Operating speed: 12,000-24,000 rpm

Maximum torque: 4.37 Nm

Tool interface: ISO30 / BT30

Cooling: water-cooled

Lubrication: grease lubrication

Weight: 40 kg
