1.5KW 24000RPM ATC Spindle Motor 220V/380V 0.6Nm ISO20 Water Cooling Automatic Tool Change CNC Spindle

1.5KW 24000RPM ATC Spindle Motor 220V/380V 0.6Nm ISO20 Water Cooling Automatic Tool Change CNC Spindle
NO.:JGL-80-1.5K
Post a review
Halloween Special Offer 2026:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$1590.00

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $1510.50 5%
10 $1494.60 6%
50 $1478.70 7%
100 $1462.80 8%
Add To Cart
Add To My Favorites
  • Share:

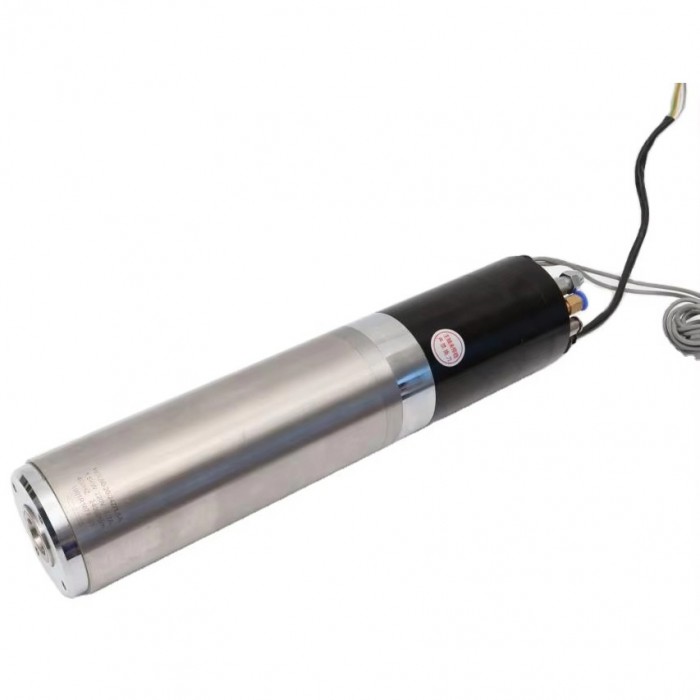

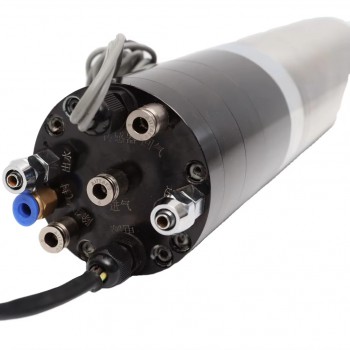

1.5KW 24000RPM ATC Spindle Motor 220V/380V 0.6Nm ISO20 Water Cooling Automatic Tool Change CNC Spindle



Technical Specifications:
Model Number:JGL-80-1.5K
Rated Power:1.5 KW
Rated Voltage:220V/380V
Rated Current:2.8/4.7A
Operating Frequency:400 - 800 Hz
Operating Speed:24,000 rpm
Maximum torque:0.6Nm
Joint of nose:ISO20
Diameter:80mm
Cooling Type:Water cooled
Lubrication:Grease
Weight:15kg



1.5KW 24000RPM ATC Spindle Motor 220V/380V 0.6Nm ISO20 Water Cooling Automatic Tool Change CNC Spindle

1.5KW 24000RPM ATC Spindle Motor 220V/380V 0.6Nm ISO20 Water Cooling Automatic Tool Change CNC Spindle

1.5KW 24000RPM ATC Spindle Motor 220V/380V 0.6Nm ISO20 Water Cooling Automatic Tool Change CNC Spindle



1.5KW 24000RPM ATC Spindle Motor 220V/380V 0.6Nm ISO20 Water Cooling Automatic Tool Change CNC Spindle
