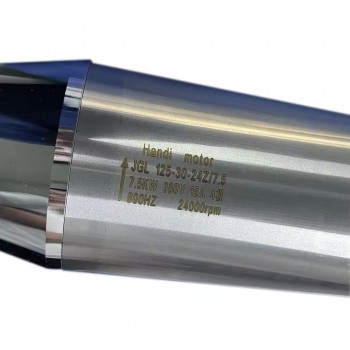

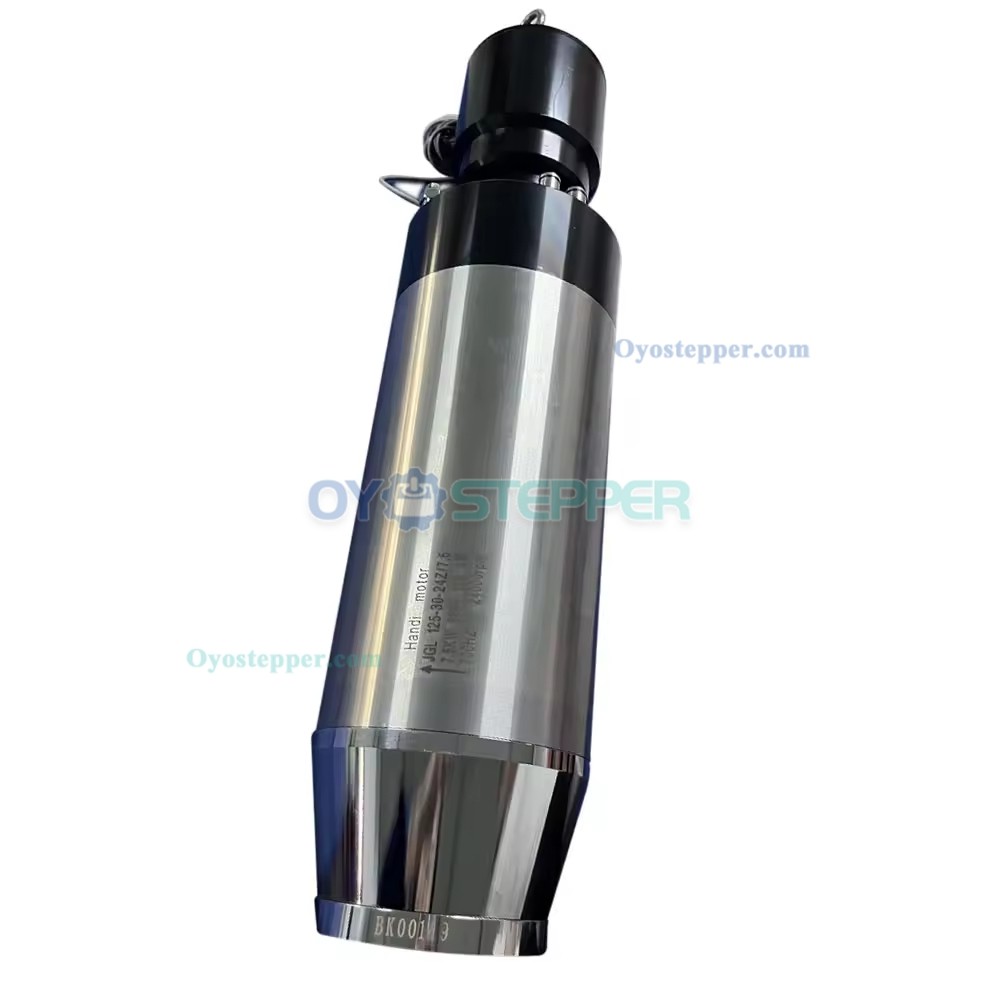

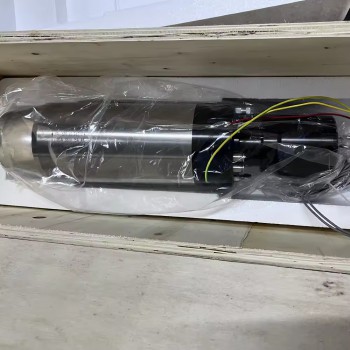

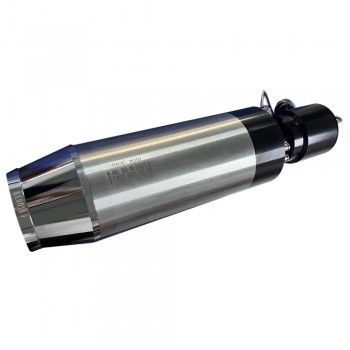

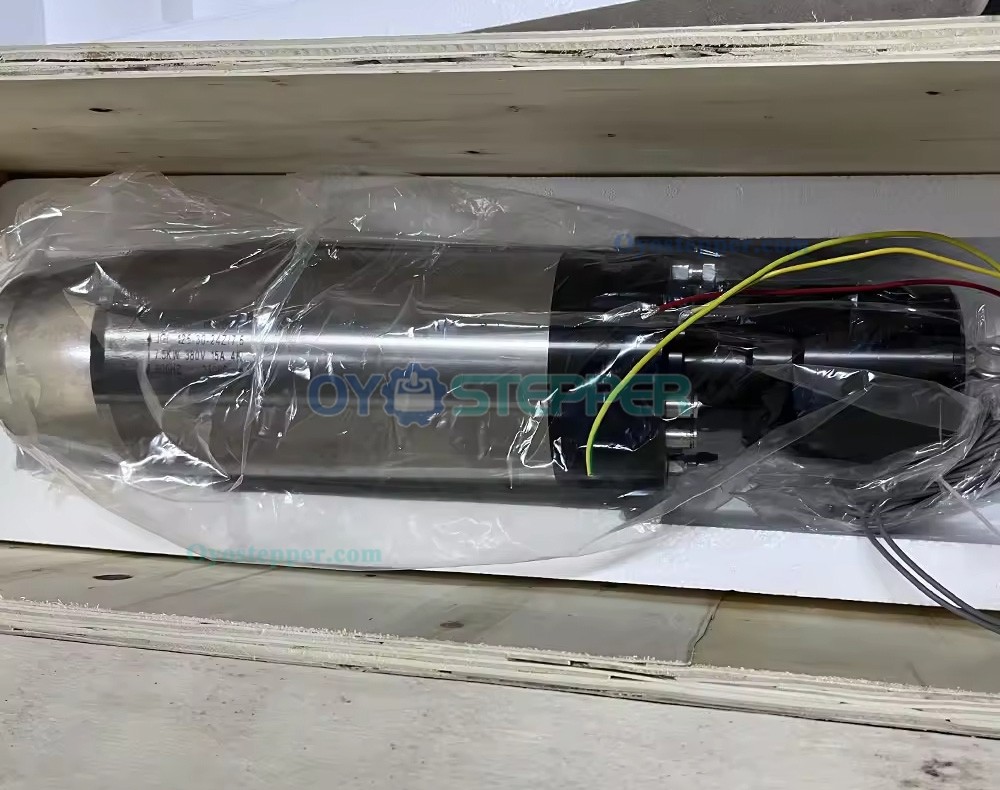

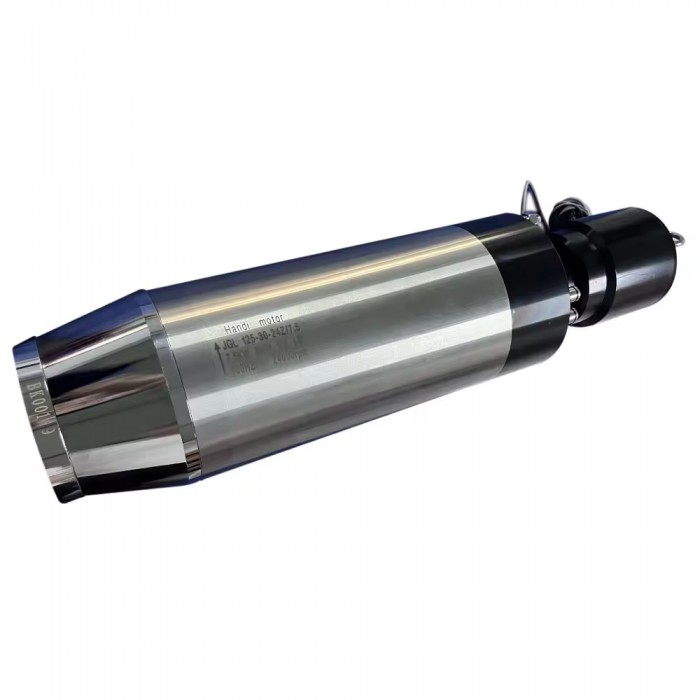

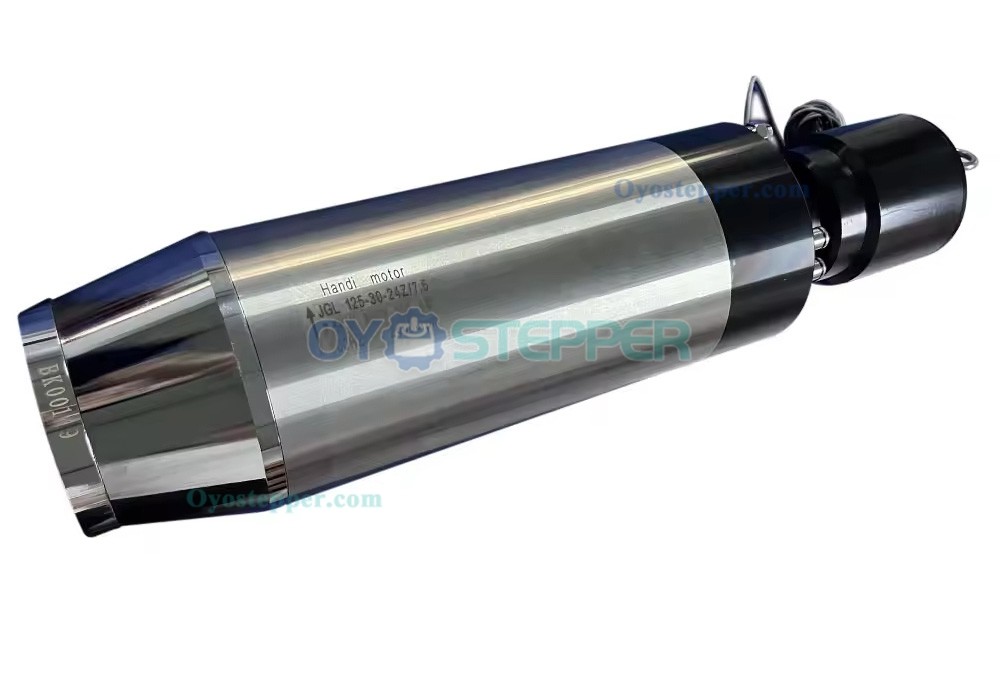

7.5KW Water Cooled ATC Spindle Motor 220V/380V BT30 24000RPM Motorized Spindle Motor

7.5KW Water Cooled ATC Spindle Motor 220V/380V BT30 24000RPM Motorized Spindle Motor
NO.:JGL125-30-24Z
Post a review
Halloween Special Offer 2026:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$2150.00
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $2042.50 5%
10 $2021.00 6%
50 $1999.50 7%
100 $1978.00 8%
Add To Cart
Add To My Favorites
  • Share:

7.5KW Water Cooled ATC Spindle Motor 220V/380V BT30 24000RPM Motorized Spindle Motor



Technical Specifications:
Model Number:JGL125-30-24Z
Poles:4
Rated Power:7.5KW
Rated Voltage:220V/380V
Rated Current:14.8/25.6A
Operating Frequency:400 - 800 Hz
Speed:24000rpm(800hz)
Joint of nose:BT30
Cooling Type:Water Cooled
Lubrication:Grease Lubrication
Diameter:125mm
Maximum torque:4Nm
Bearing:2*7008C P4+2*7006C P4
Weight:29.5Kg



7.5KW Water Cooled ATC Spindle Motor 220V/380V BT30 24000RPM Motorized Spindle Motor

7.5KW Water Cooled ATC Spindle Motor 220V/380V BT30 24000RPM Motorized Spindle Motor



7.5KW Water Cooled ATC Spindle Motor 220V/380V BT30 24000RPM Motorized Spindle Motor
