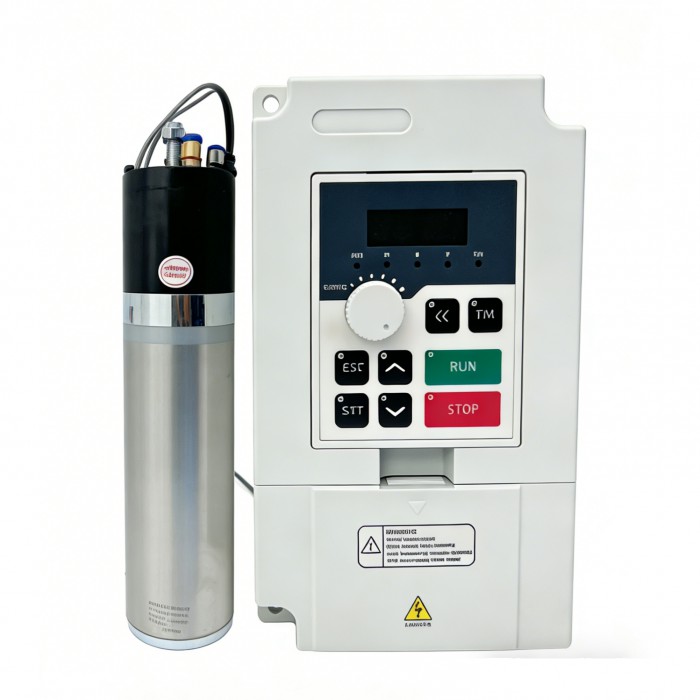

2.2KW ATC Spindle Motor Kit ISO20 24000RPM 220V/380V with 2.2KW VFD Frequency Inverter

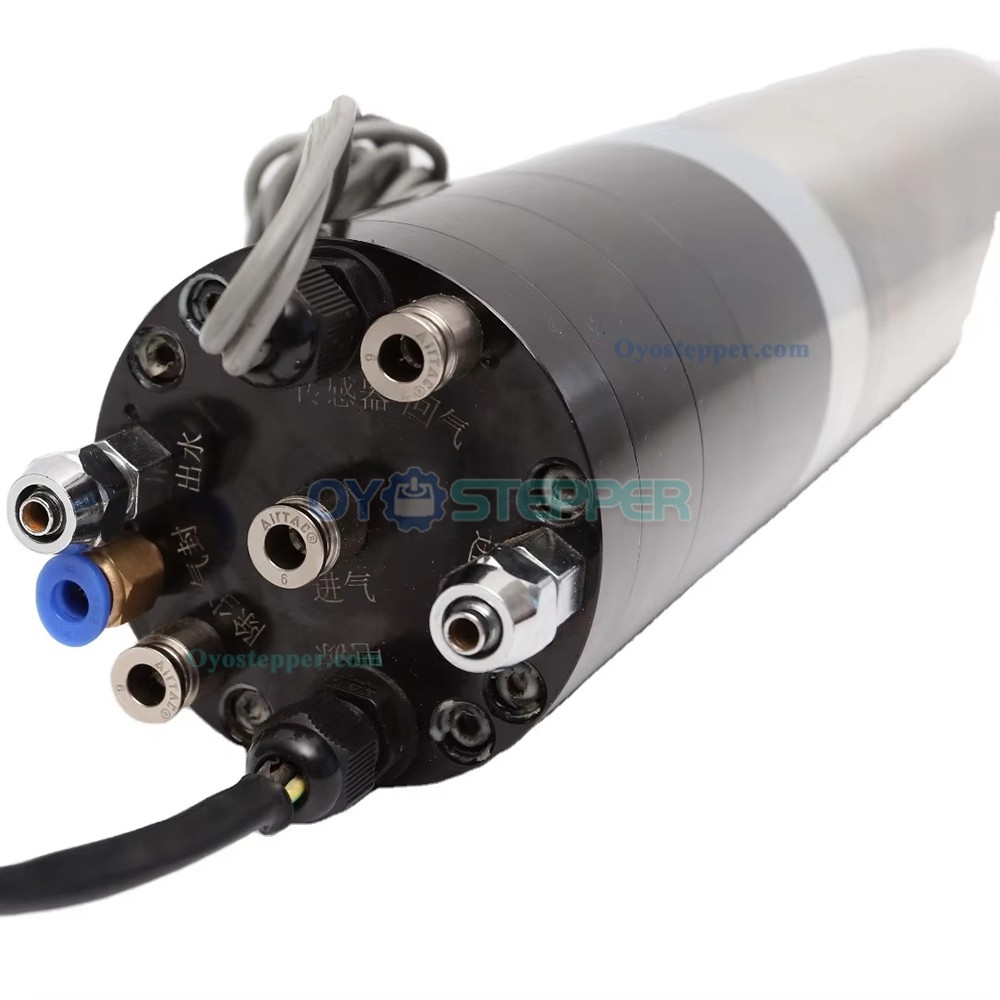

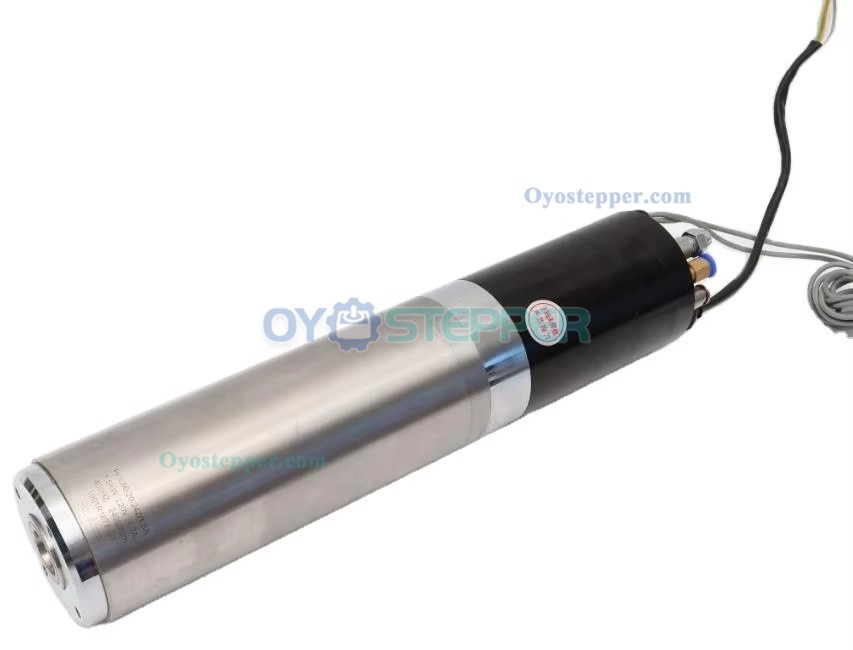

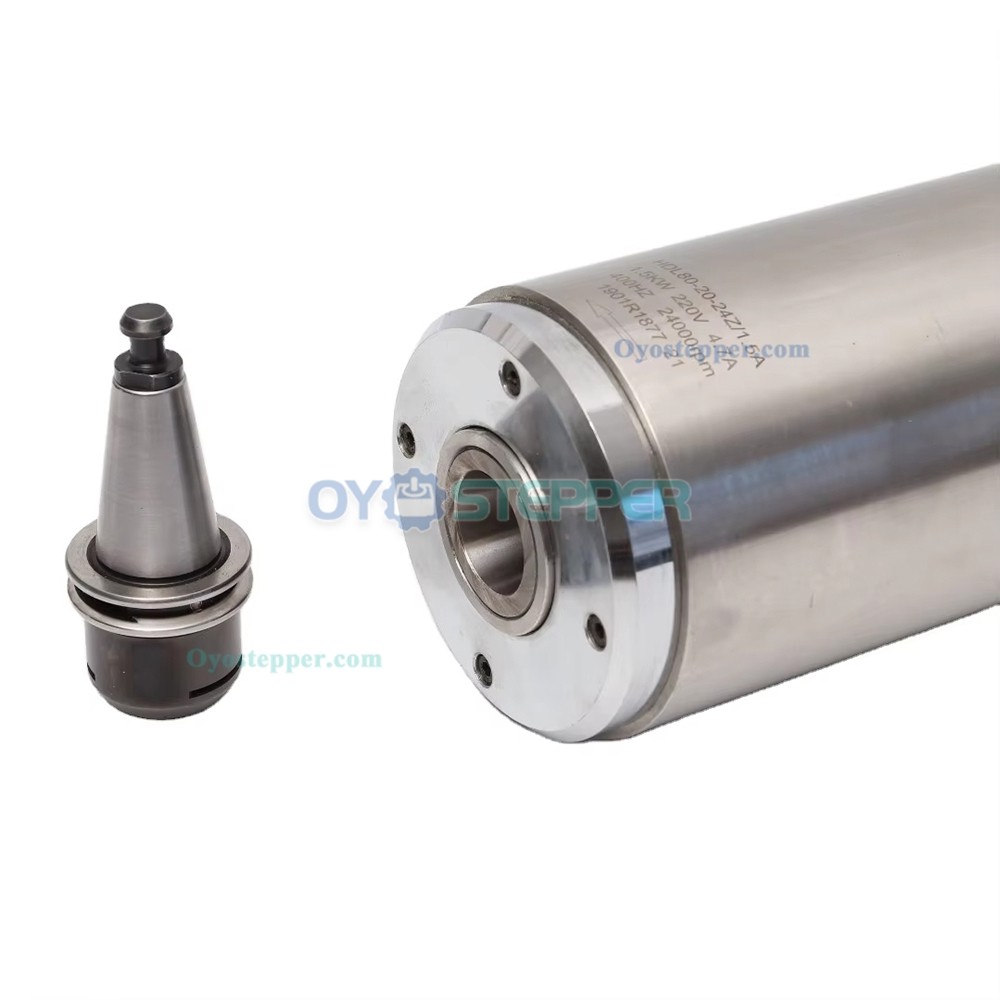

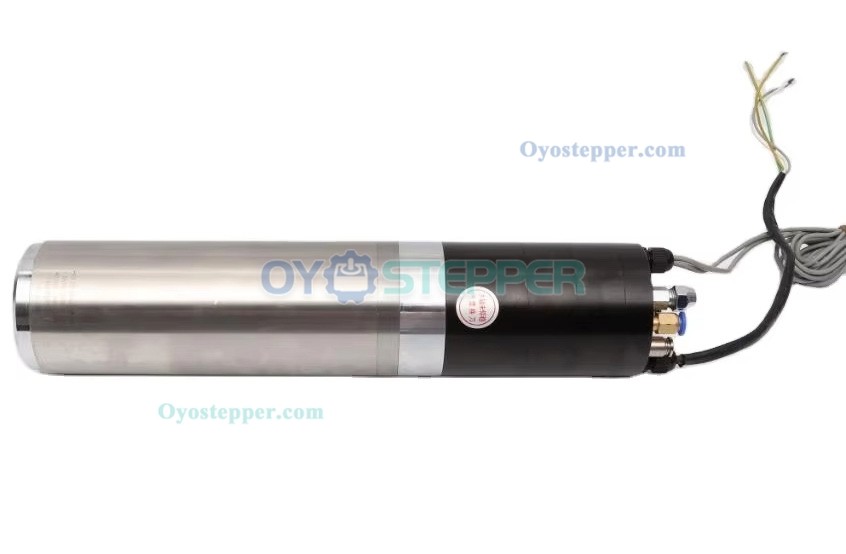

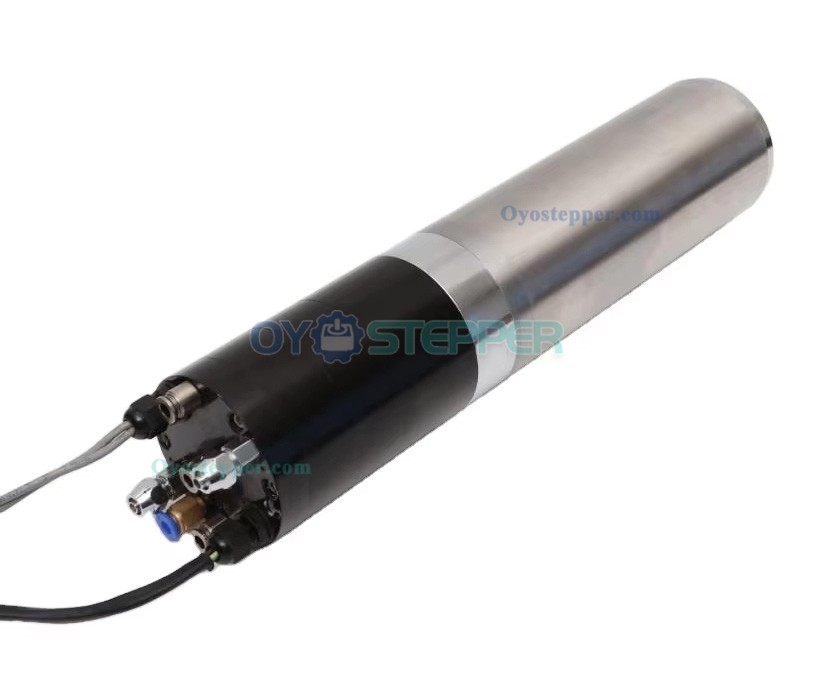

JGL80-20-24Z/2.2 2.2KW ATC Water Cooling Spindle Motor ISO20 24000RPM 0.88Nm 220V/380V CNC Spindle

Technical Specifications:
Model Number:JGL80-20-24Z/2.2
Rated Power:2.2KW
Rated Voltage:220V/380V
Rated Current:8A/4.6A
Operating Frequency:400 - 800 Hz
Operating Speed:24,000 rpm
Poles:2
Joint of nose:ISO20
Cooling Type:Water Cooled
Lubrication:Grease Lubrication

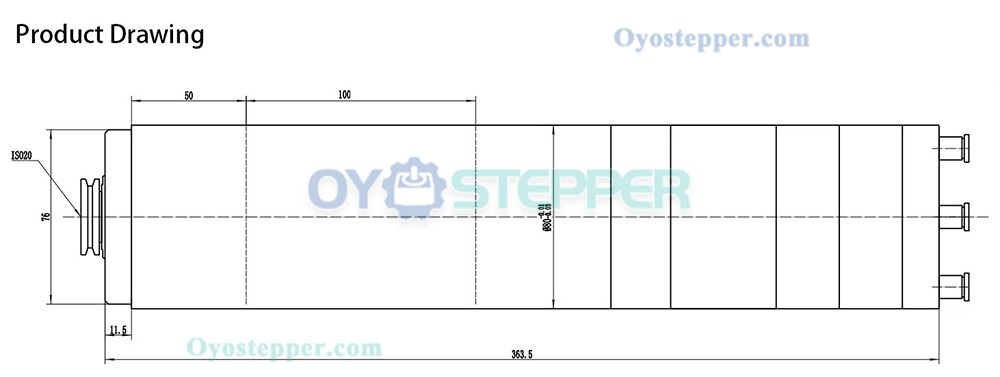

Diameter:80mm
Maximum torque:0.88Nm
Weight:15Kg

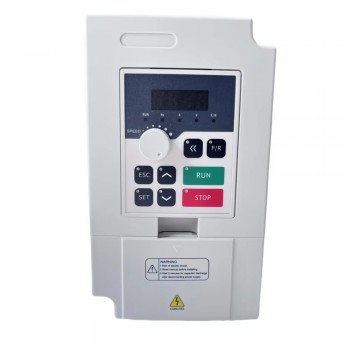

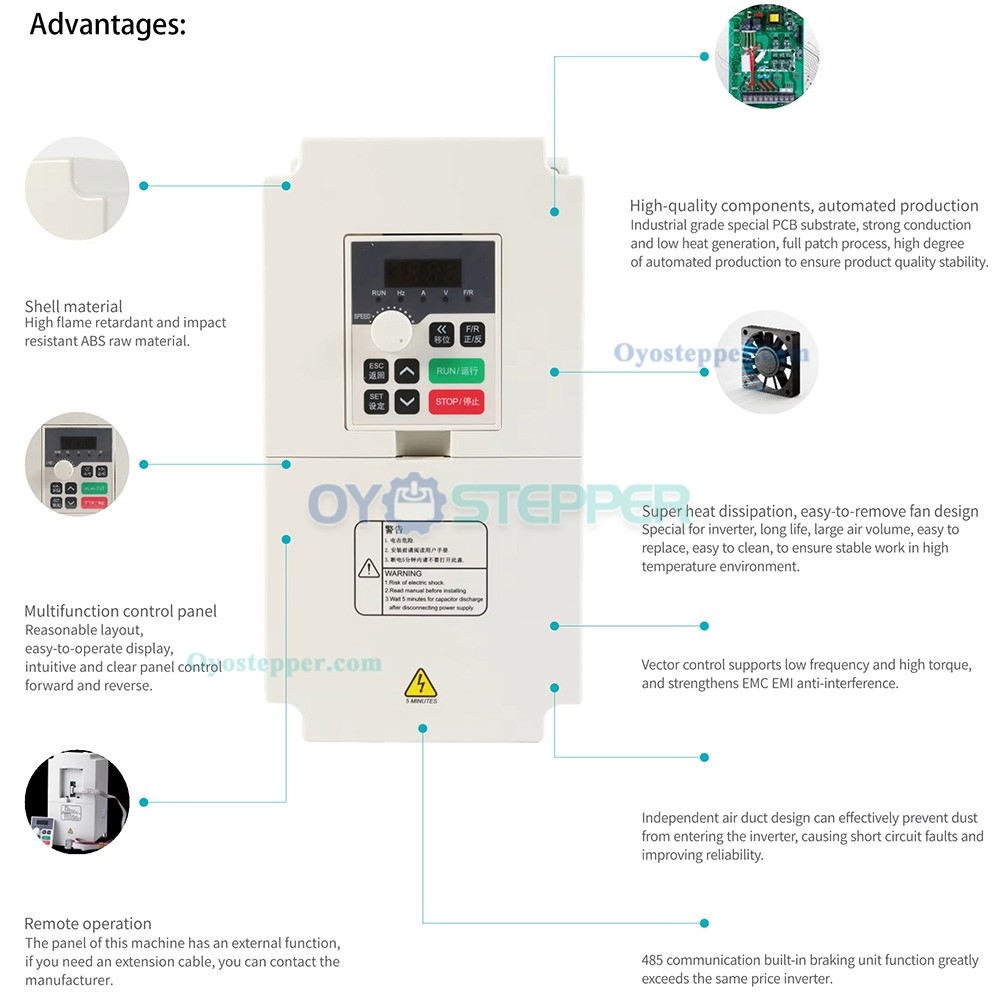

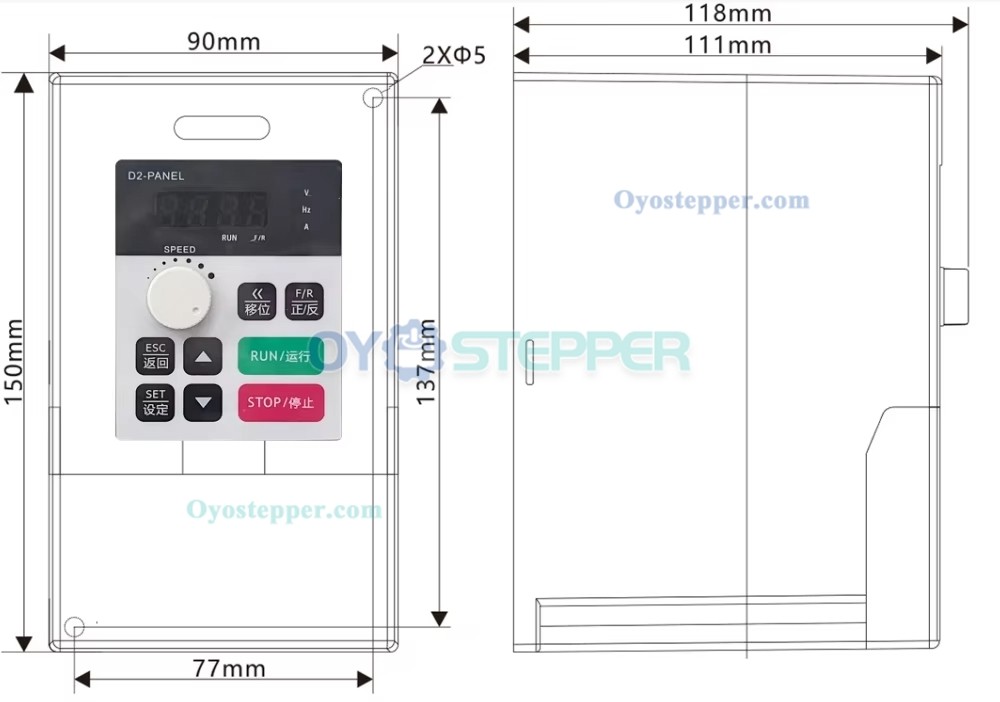

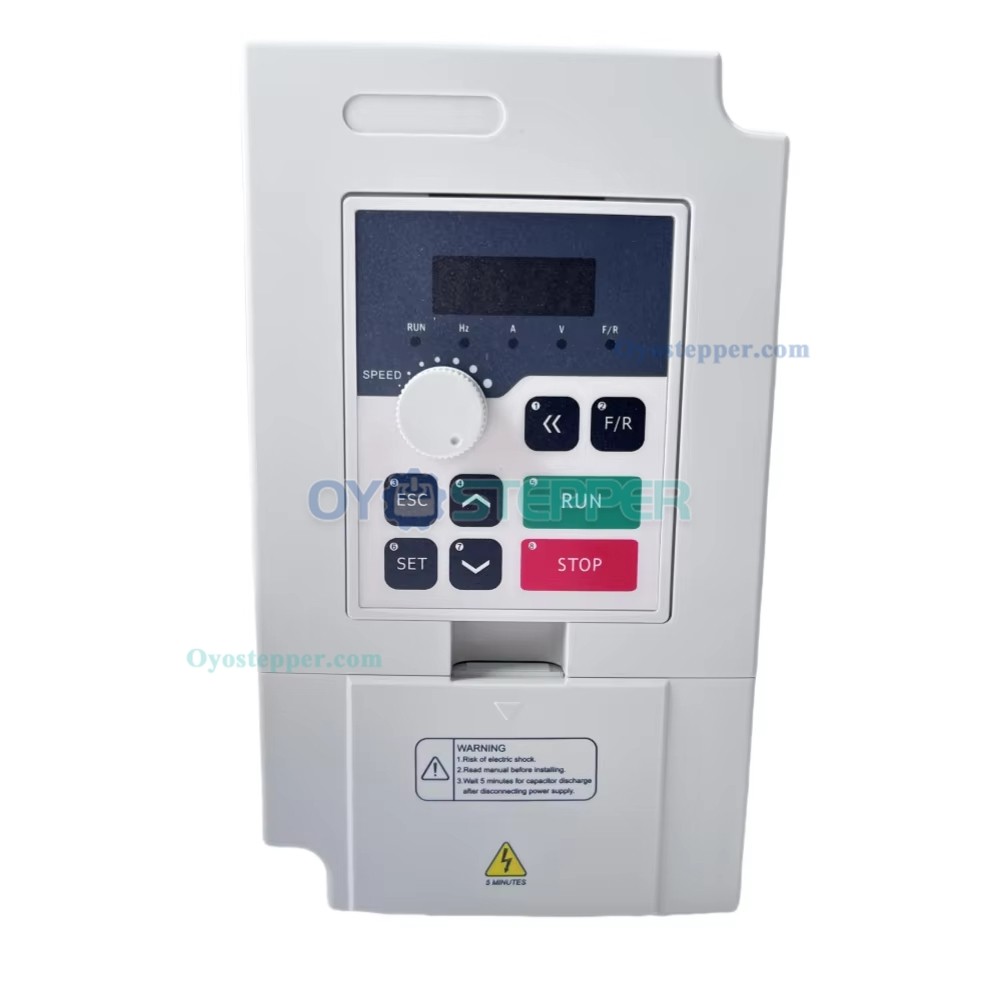

VFD Inverter Specifications:

Model: H100-2.2

Type: DC/AC Frequency Inverter

Power Rating: 2.2 KW

Input Voltage: 220V/380V

Input Phase: Single Phase

Rated Input Frequency: 50Hz / 60Hz

Output Phase: Triple Phase

Output Voltage: 0-220V AC

Output Frequency Range: 0-1000 Hz

Output Current: 11A

Control Interface: Modbus Network

Certification: CE

Weight: 1.5 kg
