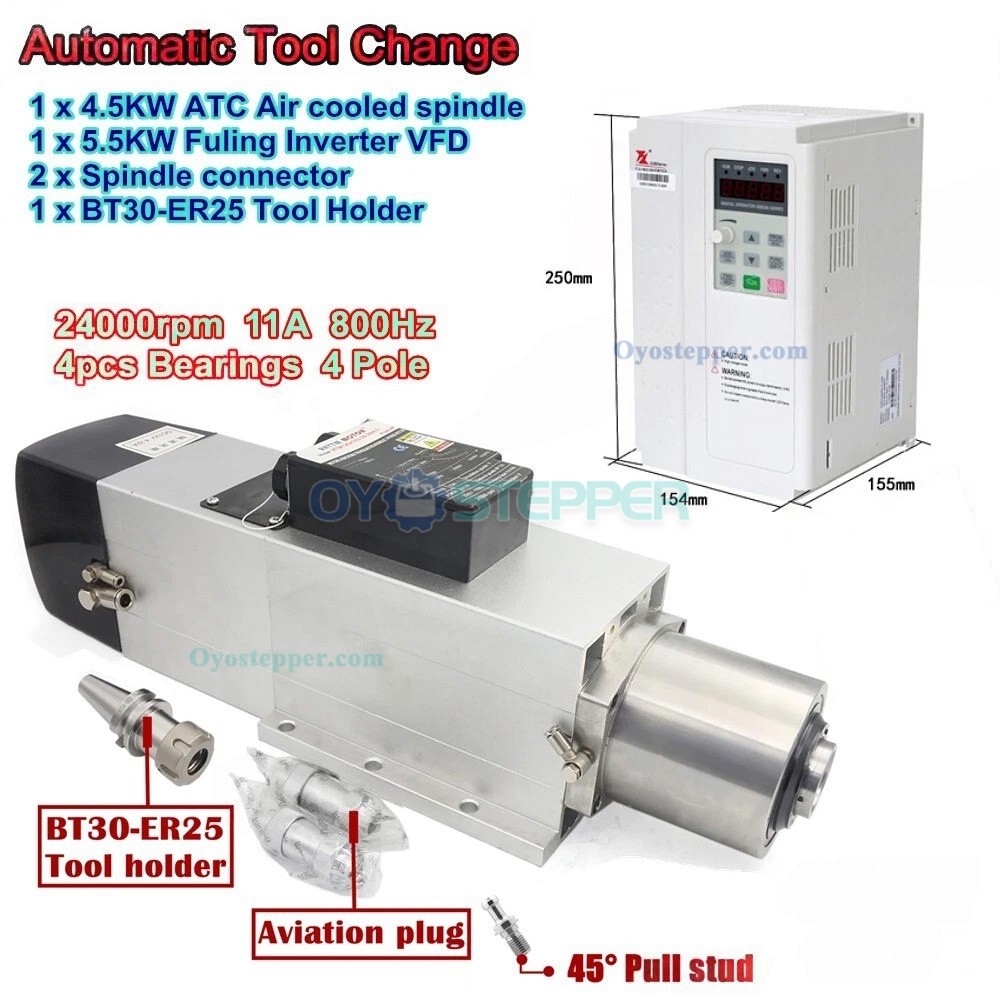

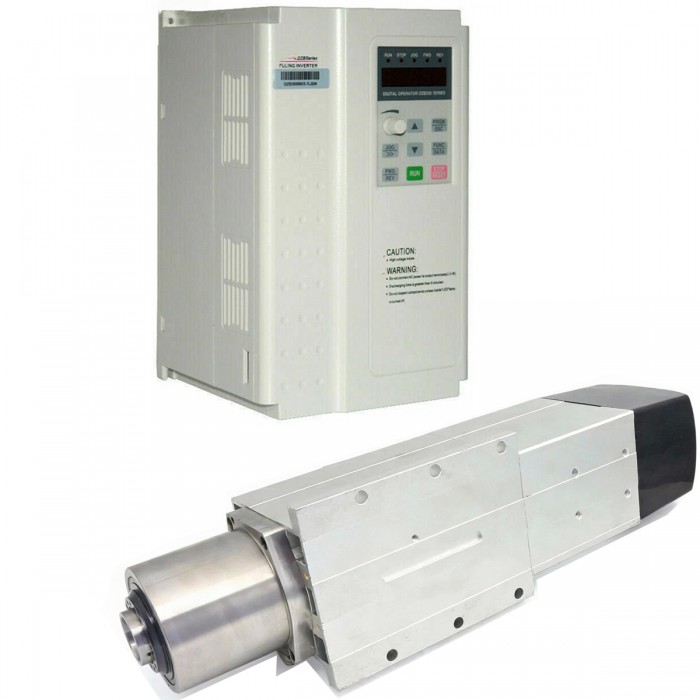

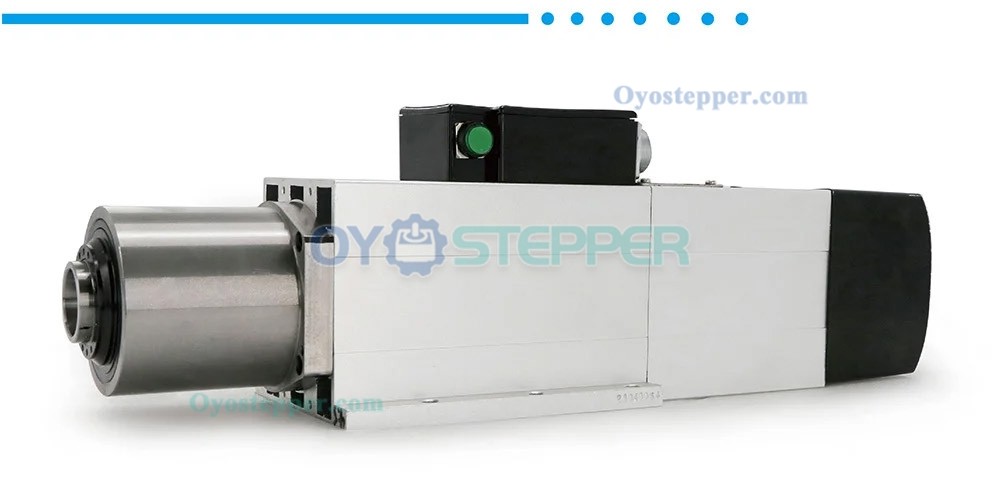

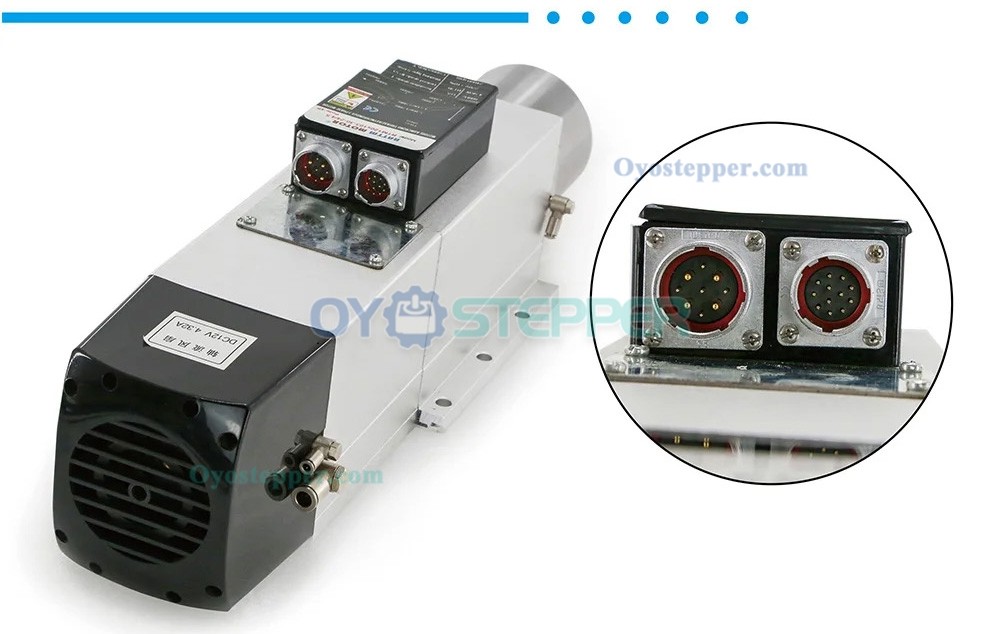

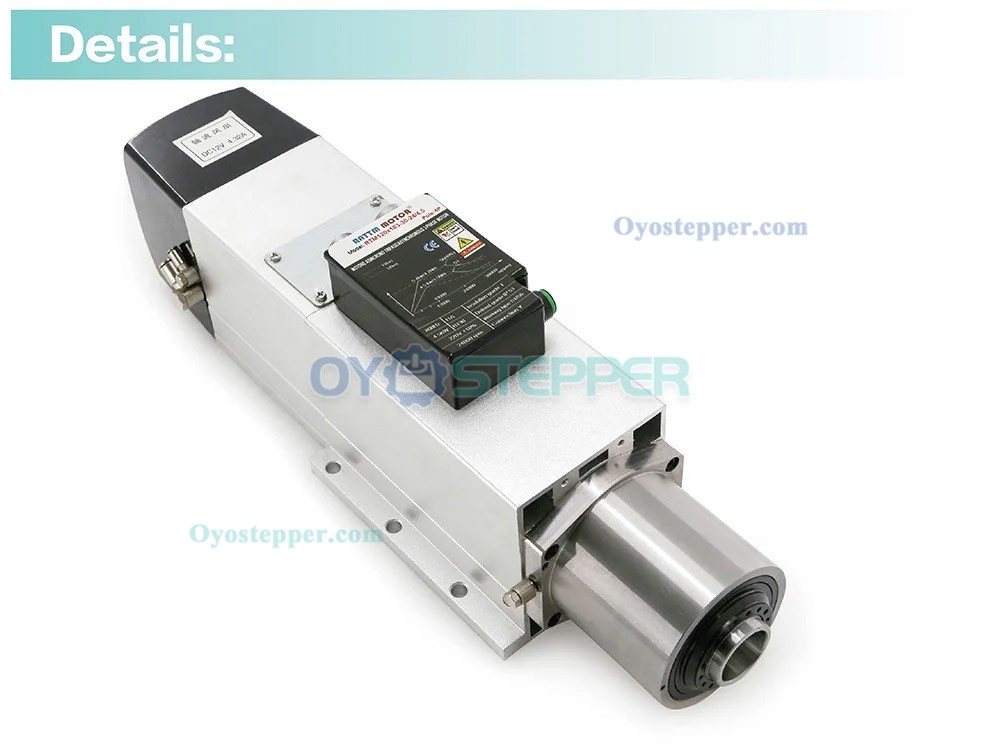

4.5KW BT30 ATC Spindle Motor & VFD Kit Air Cooled Spindle with 5.5KW Variable Frequency Drive

4.5KW BT30 ATC Spindle Motor & VFD Kit Air Cooled Spindle with 5.5KW Variable Frequency Drive

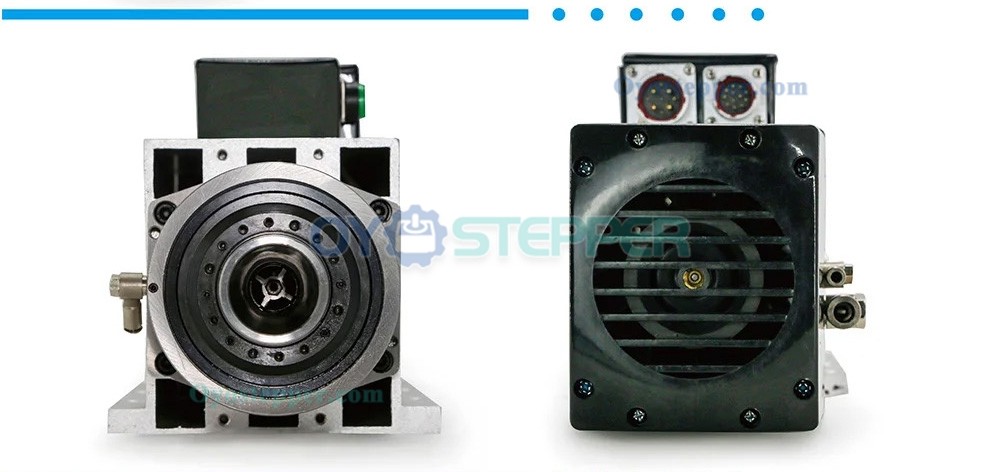

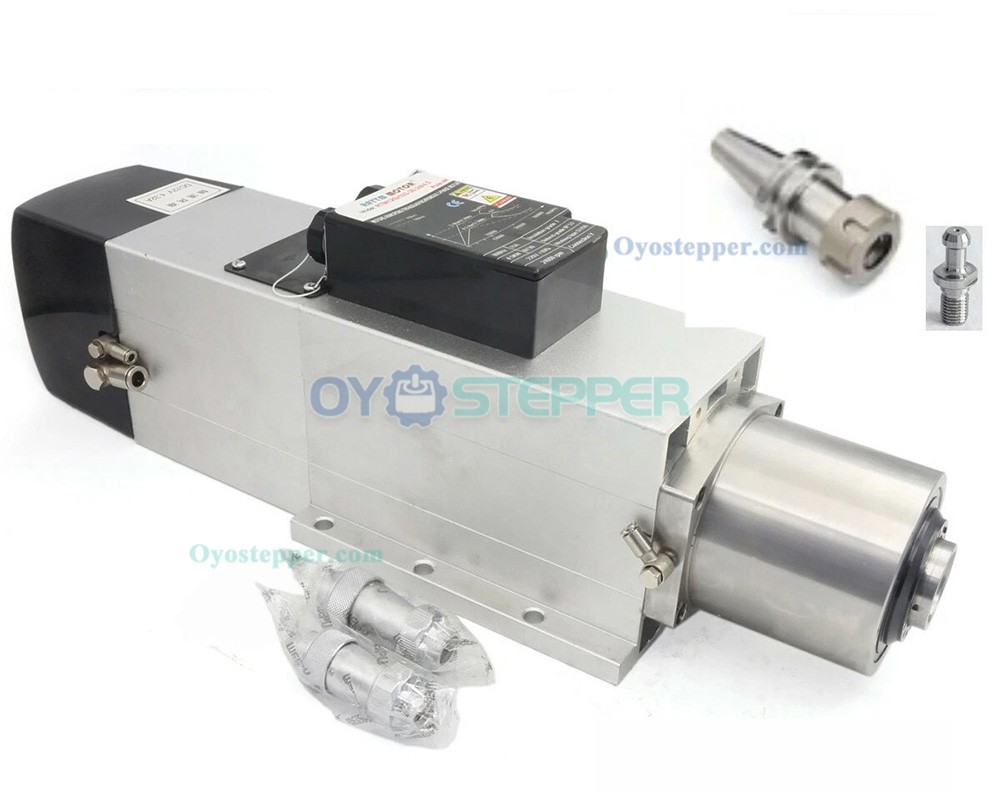

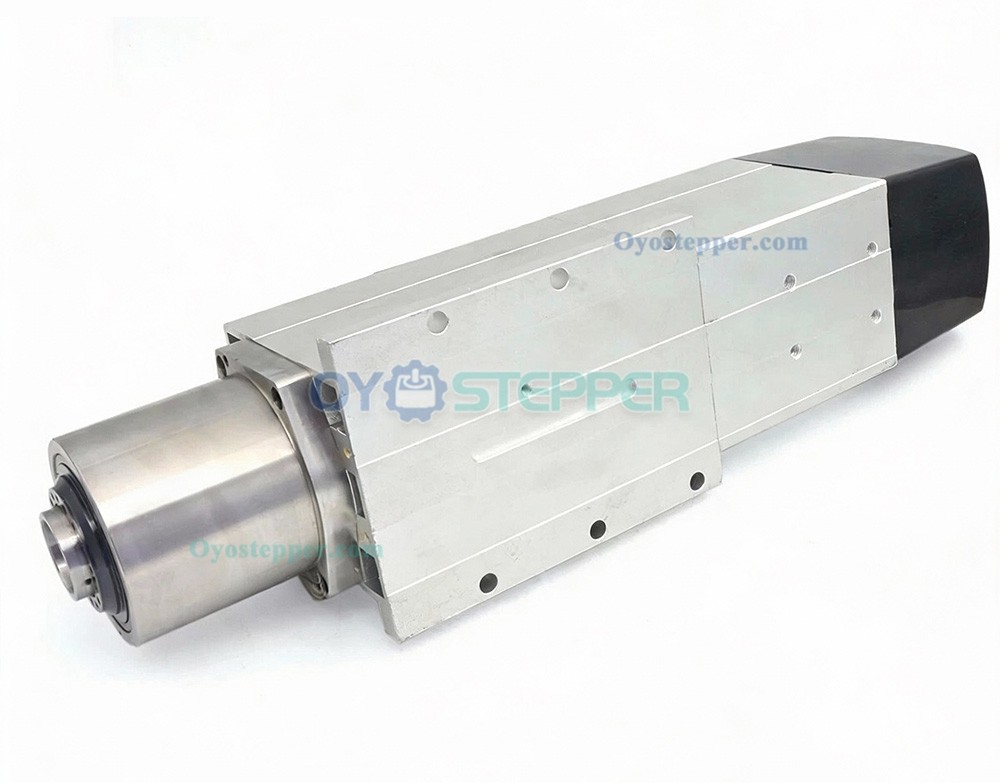

Specification:

Model: GDZ120X103-30-24Z/4.5

Voltage: 220V

Maximum Speed: 24000 rpm

Maximum Frequency: 800 Hz

Electric Current: 15 A

Motor Poles: 4 Pole

Rated Power (S1): 4.5 KW

Peak Power (S6): 5.4 KW

Rated Torque: 3.5 NM

Peak Torque: 4.2 NM

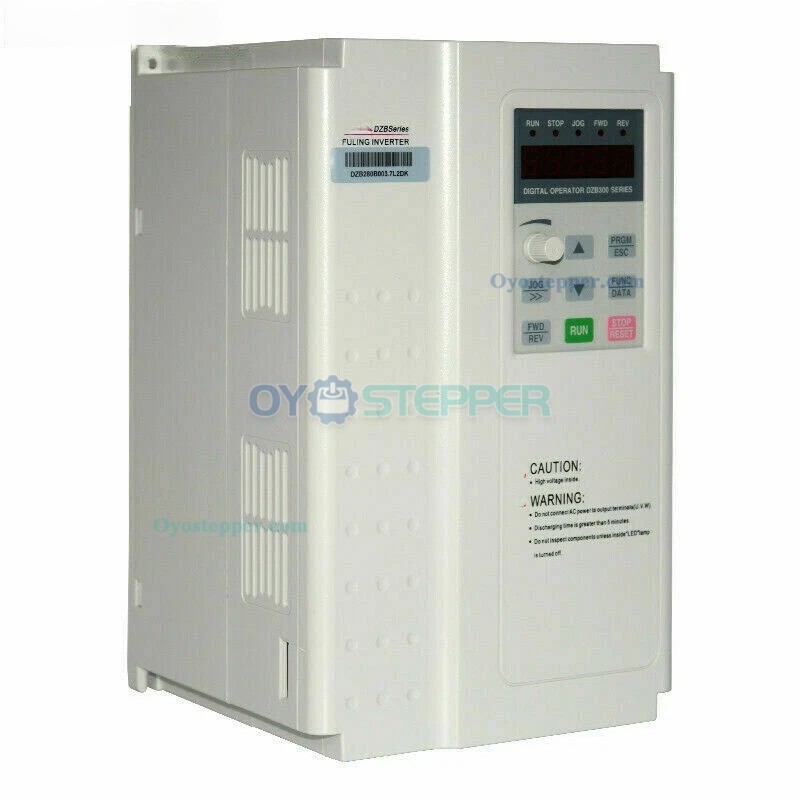

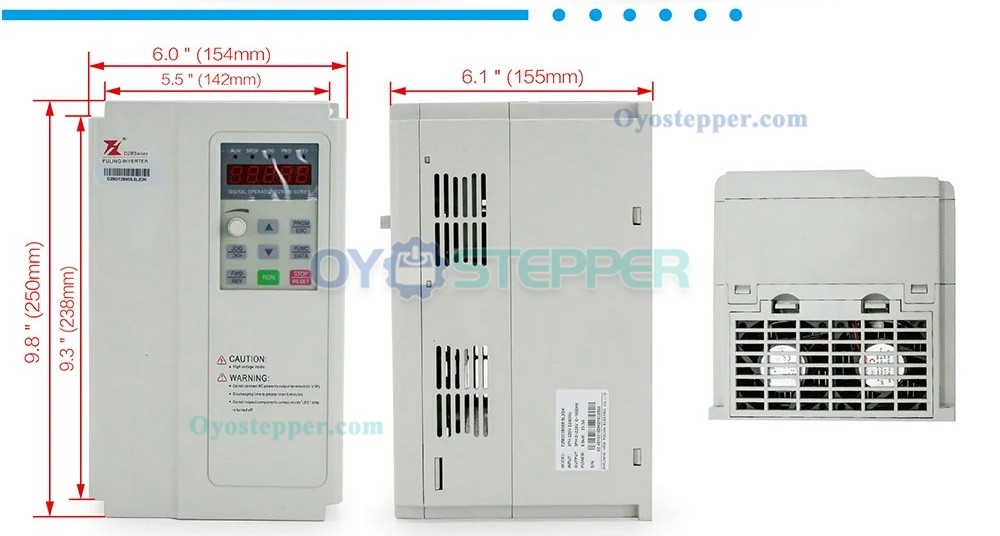

5.5KW 220V Fuling VFD Frequency Inverter Variable Frequency Driver


Technical Specifications

Input Voltage (Single-Phase): 220 V AC ±15% (Connect to two phases R, S, T)

Output Voltage (Three-Phase): 220 V AC

Output Frequency Range: 0 - 1000 Hz

Input Frequency: 47 - 63 Hz

Power Factor: ≥ 0.95

Control Modes: V/F Control, Open-loop Vector Control

Command Sources: Keypad, Control Terminals, RS485 Communication

Frequency Reference Sources: Keypad, Analog Input, RS485, Multi-Step Speed, PID

Overload Capacity: 130% rated current for 60s; 150% rated current for 3s

Carrier Frequency: 1.0 - 15.0 kHz

Frequency Resolution: Digital: 0.01 Hz; Analog: 0.1% of Max. Frequency

Torque Boost: Manual adjustment, 0 - 30%

Jog Operation: Configurable frequency and acceleration/deceleration time (0 - 3600 s)

Multi-Step Speed Operation: Up to 8 preset speeds

Voltage Regulation (AVR);
