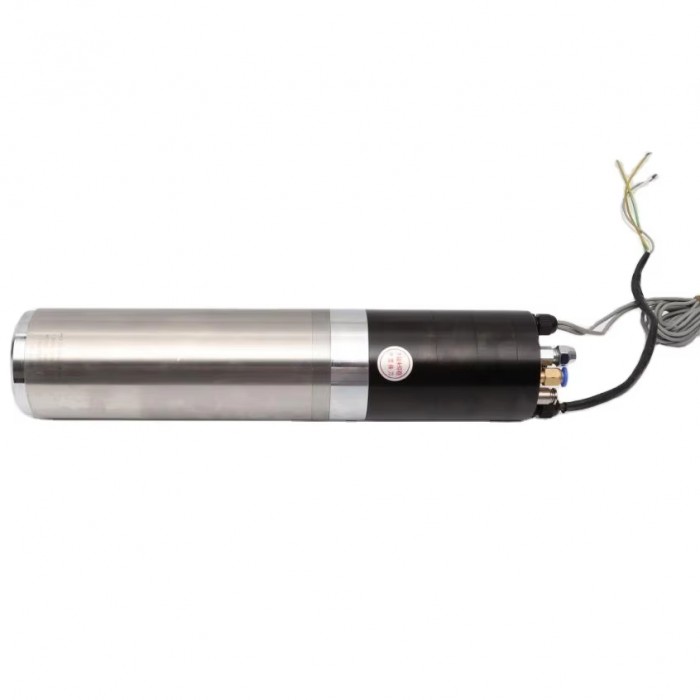

2.2KW ATC Water Cooling Spindle Motor ISO20 24000RPM 0.88Nm 220V/380V CNC Spindle

JGL80-20-24Z/2.2 2.2KW ATC Water Cooling Spindle Motor ISO20 24000RPM 0.88Nm 220V/380V CNC Spindle


Technical Specifications:
Model Number:JGL80-20-24Z/2.2
Rated Power:2.2KW
Rated Voltage:220V/380V
Rated Current:8A/4.6A
Operating Frequency:400 - 800 Hz
Operating Speed:24,000 rpm
Poles:2
Joint of nose:ISO20
Cooling Type:Water Cooled
Lubrication:Grease Lubrication
Diameter:80mm
Maximum torque:0.88Nm
Weight:15Kg
