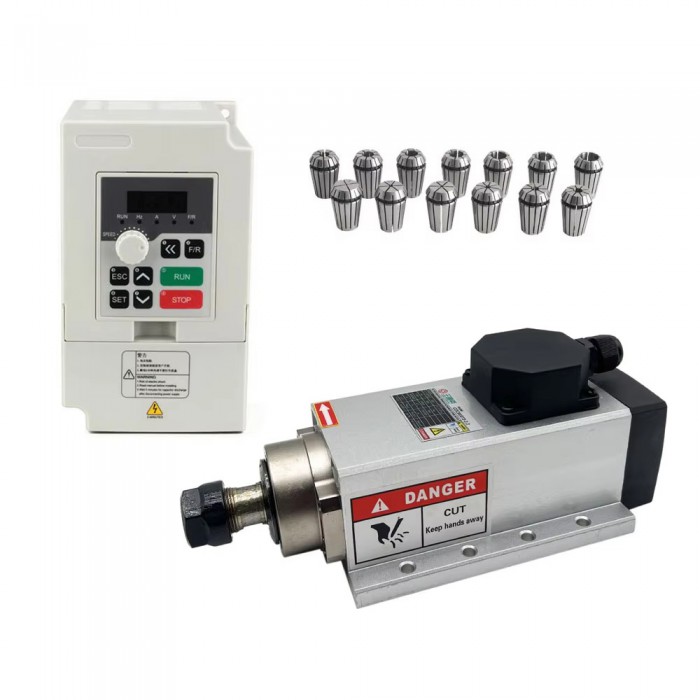

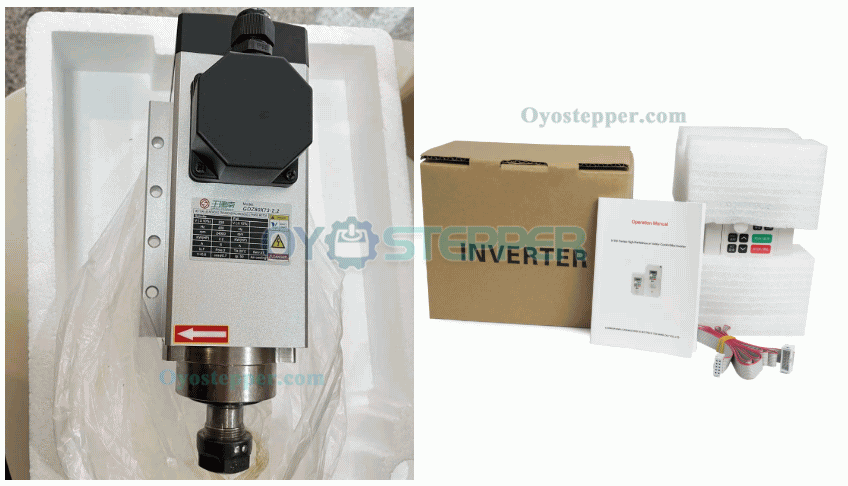

2.2KW 220V/380V VFD & Air Cooled Spindle Motor Kit ER20 24000RPM CNC Spindle & VFD Set

2.2KW 220V/380V VFD & Air Cooled Spindle Motor Kit ER20 24000RPM CNC Spindle & VFD Set

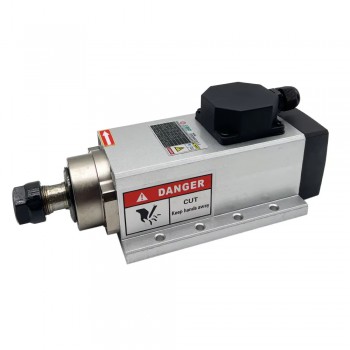

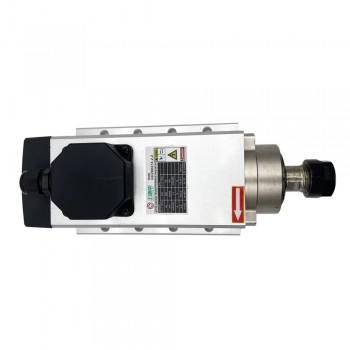

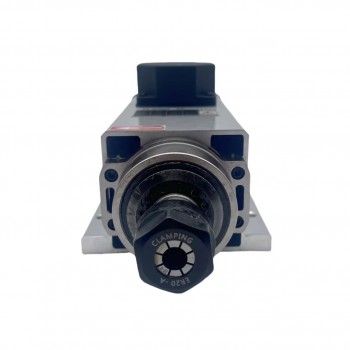

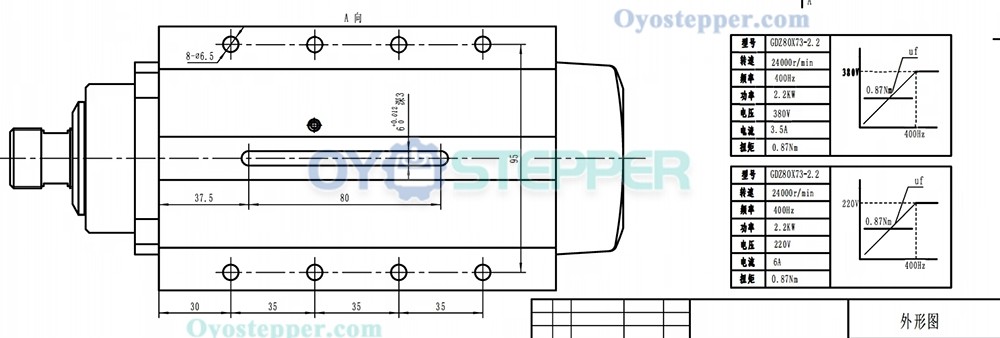

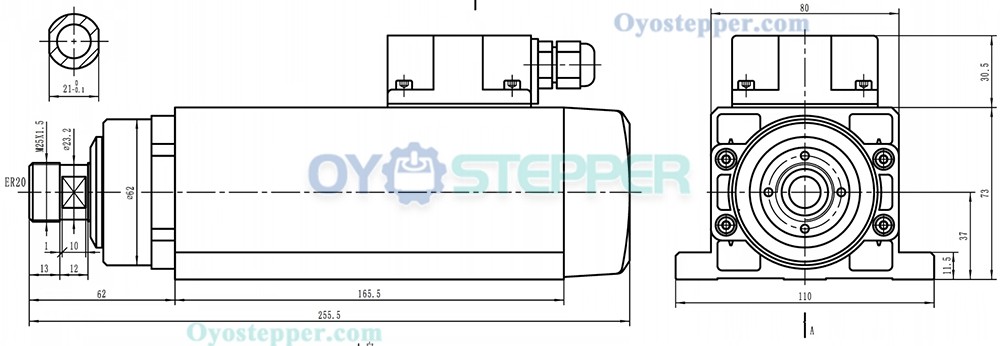

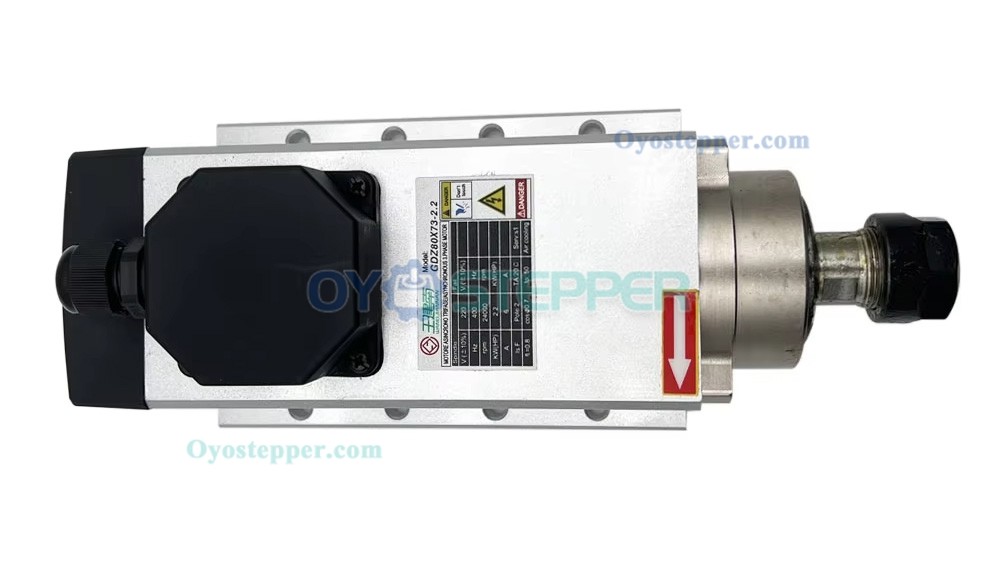

Spindle Motor Specifications:

Model: GDZ80X73-2.2

Power: 2.2 kW

Operating Speed Range: 1 - 24,000 r/min

Voltage: 220V / 380V (Dual Voltage)

Current: 6A @ 220V / 3.8A @ 380V

Frequency: 400 Hz

Cooling Type: Air Cooling

Shaft Connection: ER20 Collet

Weight: 5.5 kg

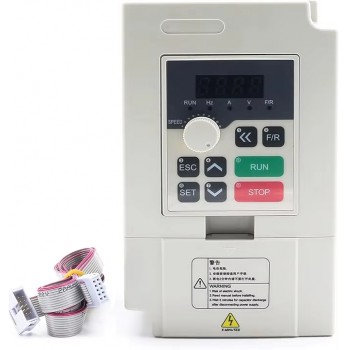

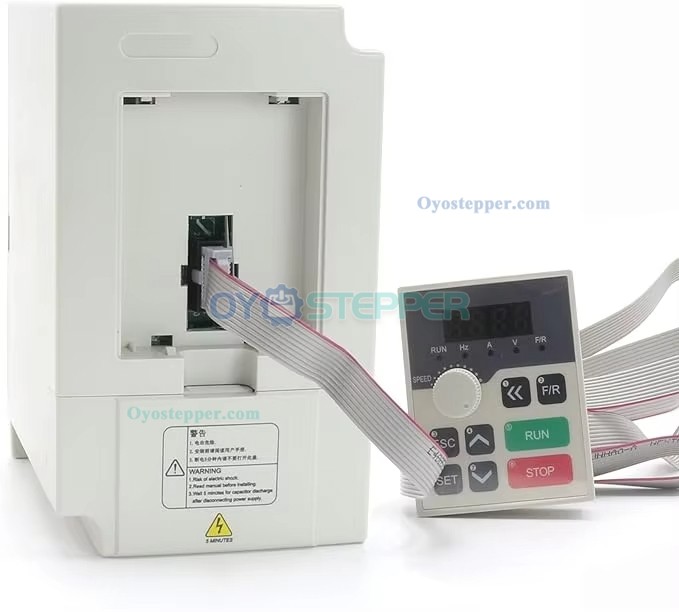

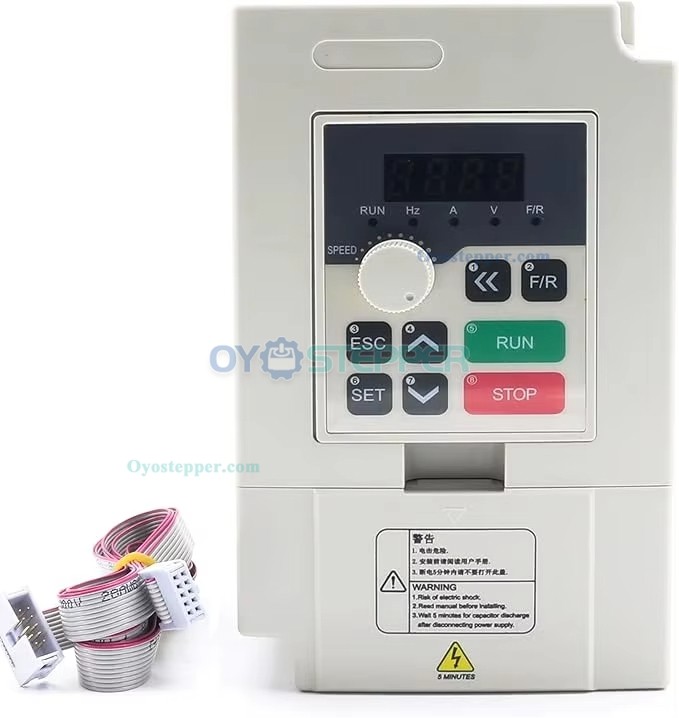

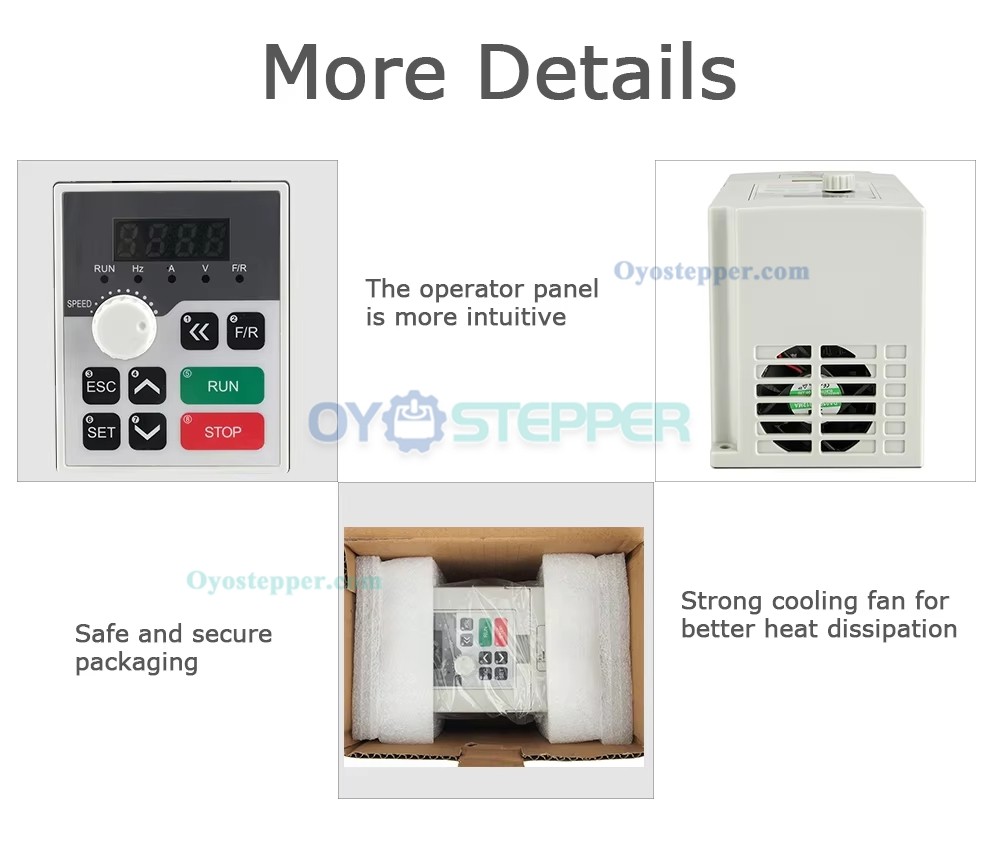

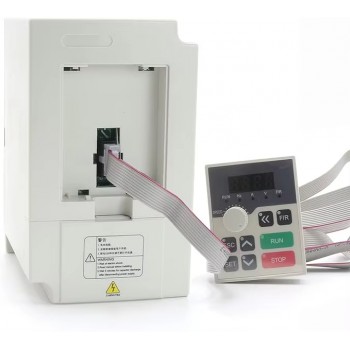

Variable Frequency Drive Specifications:

Model: H100-2.2S2 / H100-2.2T4

Power: 2.2 kW

Input: AC 1-Phase, 220V 50/60Hz or 380V 50/60Hz

Output: AC 3-Phase, 220V 0-1000Hz or 380V 0-1000Hz

Current: 11A

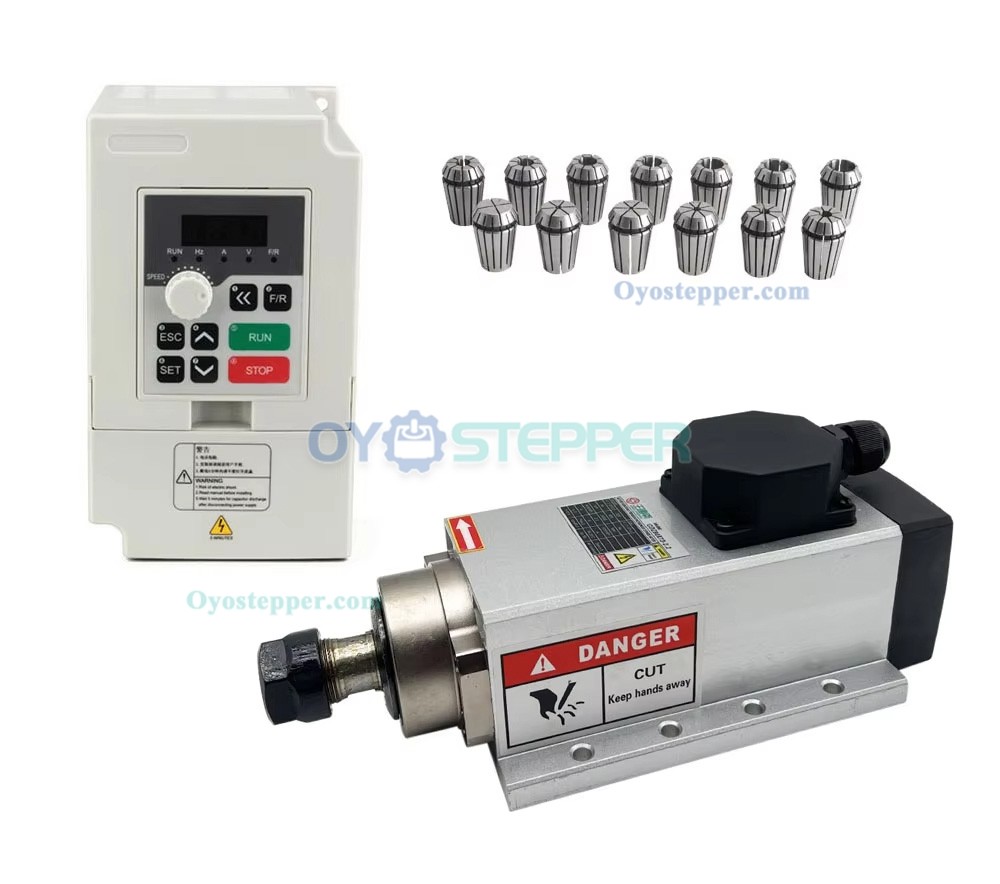

Included Accessories:

Collet Set: 13 PCS ER20 Collets

Sizes (mm): 2, 3, 3.175, 4, 5, 6, 6.35, 7, 8, 9, 10, 11, 12
