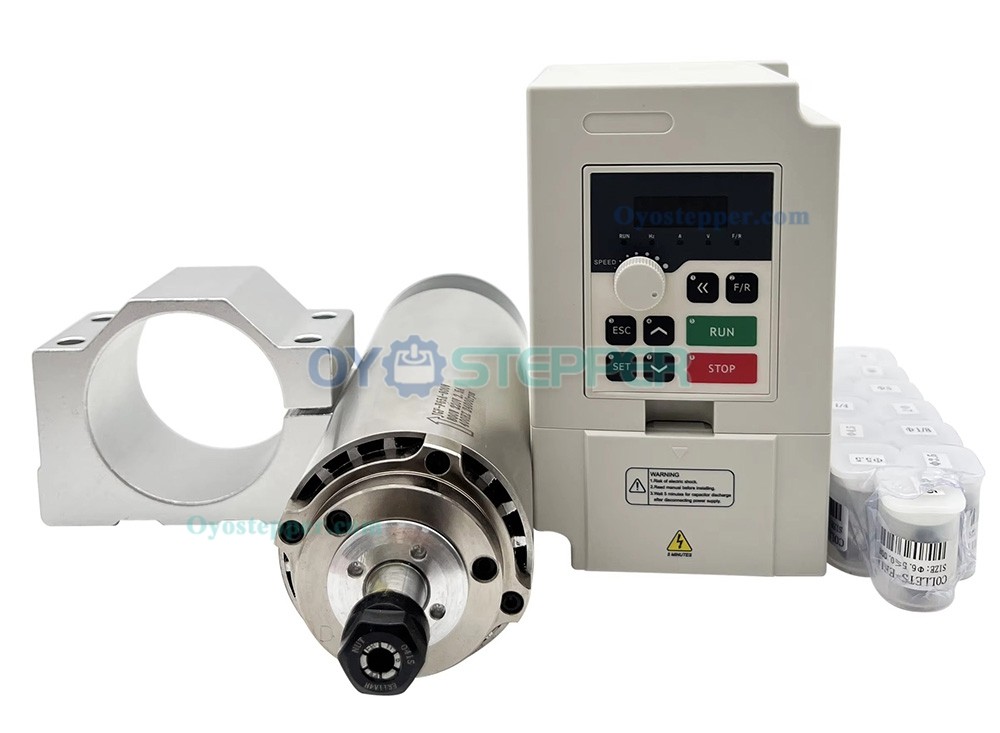

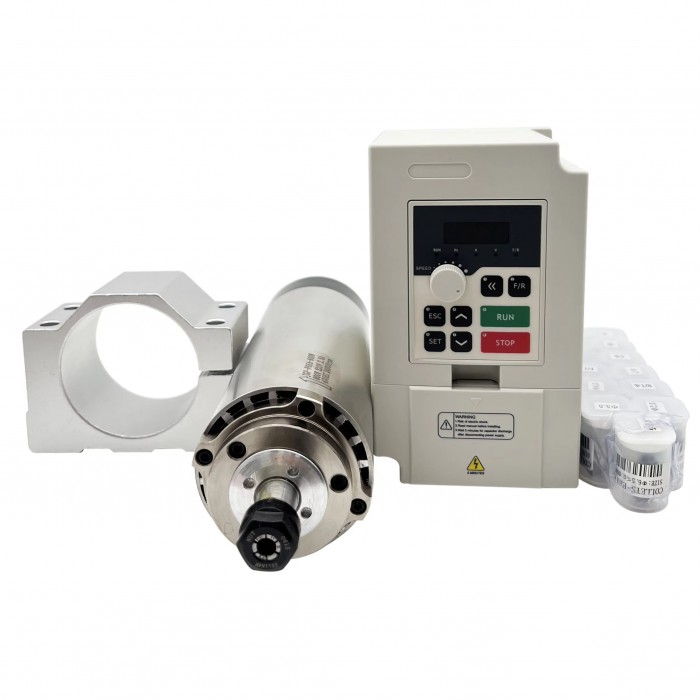

0.8KW Mini Air Cooled CNC Spindle Kit ER11 with 0.75KW VFD Frequency Inverter

0.8KW Mini Air Cooled CNC Spindle Kit ER11 with 0.75KW VFD Frequency Inverter

Description:

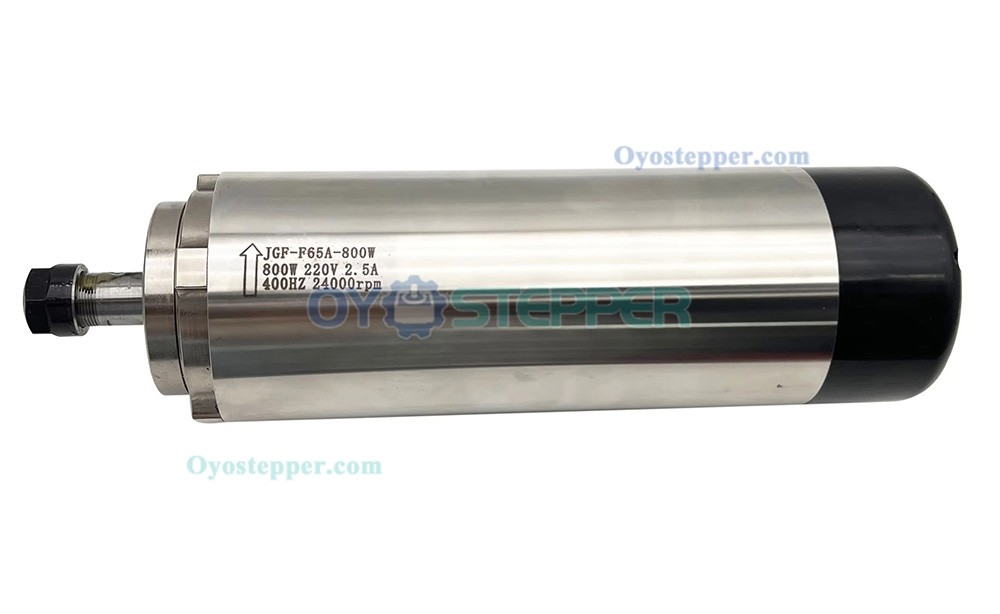

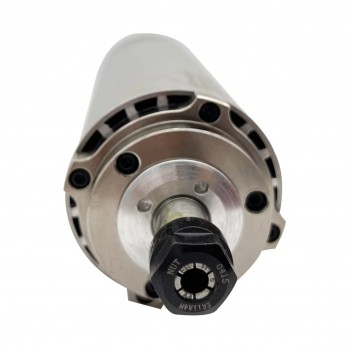

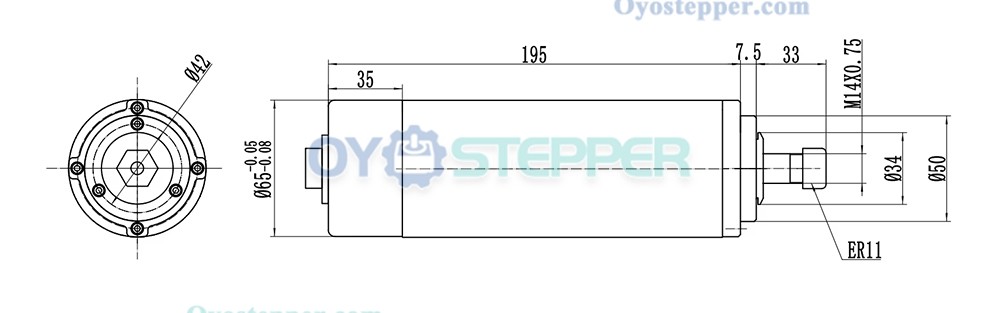

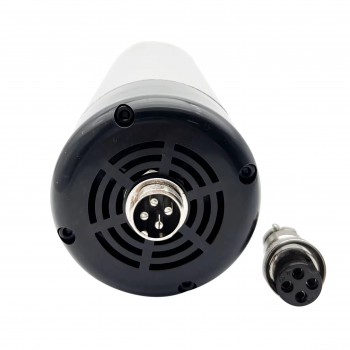

Spindle Motor Specification:

Model: JGF-F65A-800

Motor Power: 0.8KW / 800W

Operating Speed Range: 1 - 24,000 RPM

Voltage: 110V / 220V (Dual Voltage)

Frequency: 400Hz

Current: 2.5A

Collet Type: ER11

Cooling Method: Air Cooling

Weight: 2.8KG

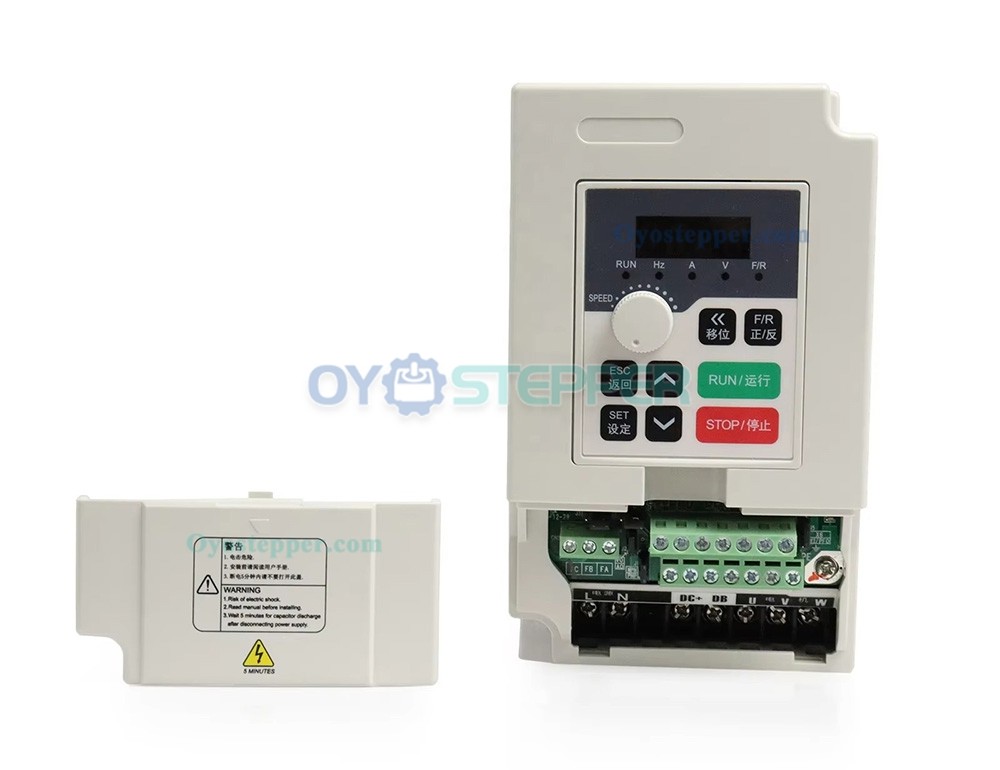

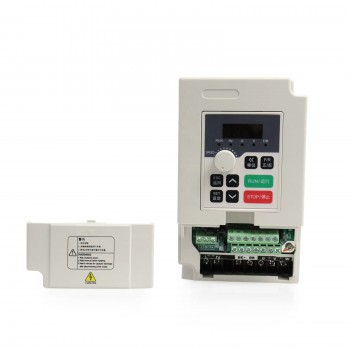

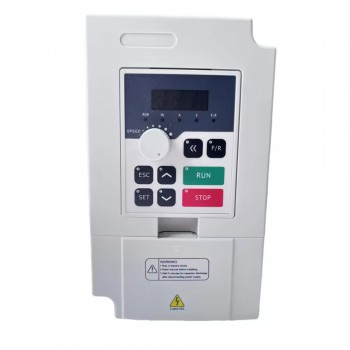

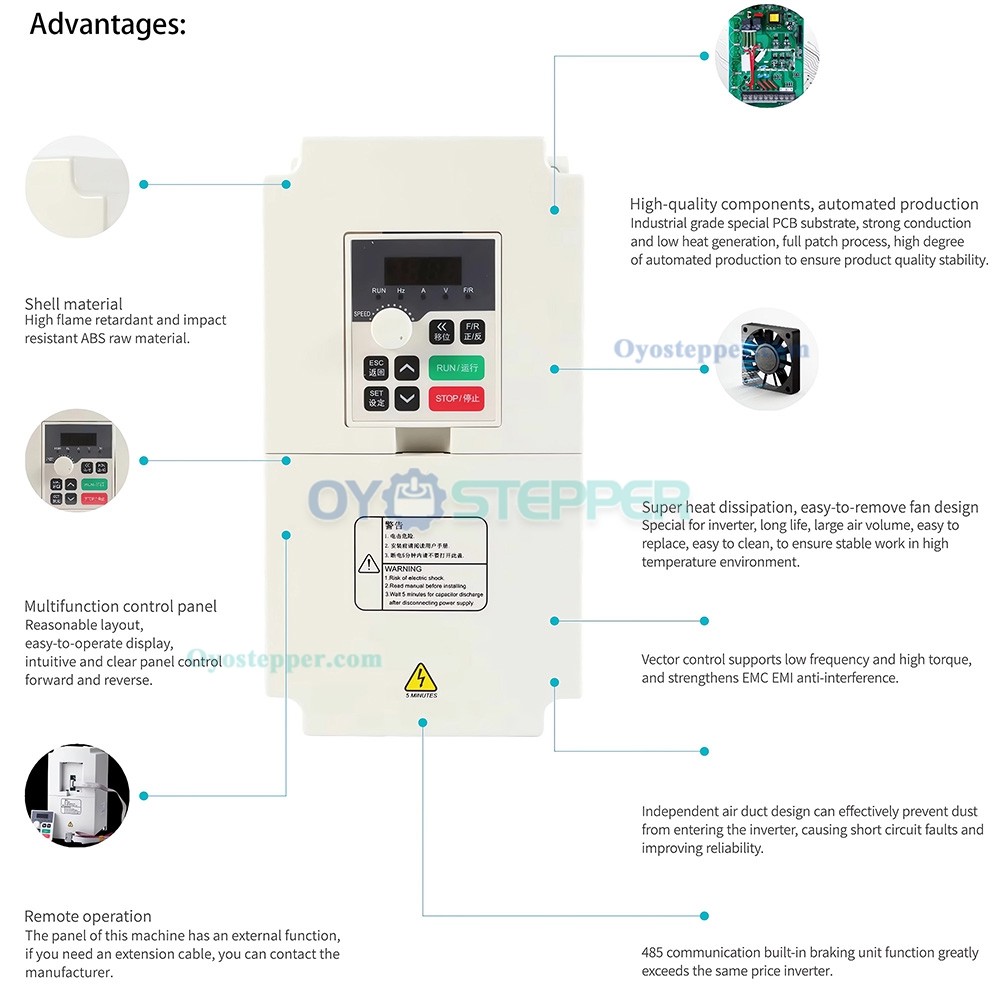

VFD Specifications:

Model: H100-0.75C2 / S2

Input: 110V / 220V, 50Hz / 60Hz

Output: 110V / 220V, 0 - 1000 Hz

Rated Power: 0.75 KW

Rated Output Current: 10A

Dimensions (L x W x H): 89 x 149 x 110 mm

Weight: 1.3 kg


Included Accessories:

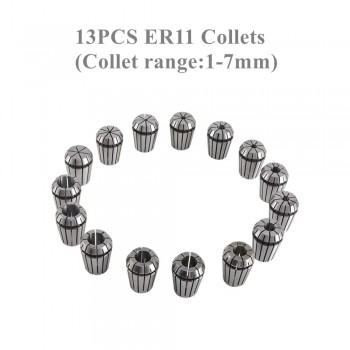

Collet Set: 13-Piece ER11 Collet Set

Sizes Included: 1mm, 2mm, 3mm, 3.175mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.35mm, 6.5mm, 7mm;
