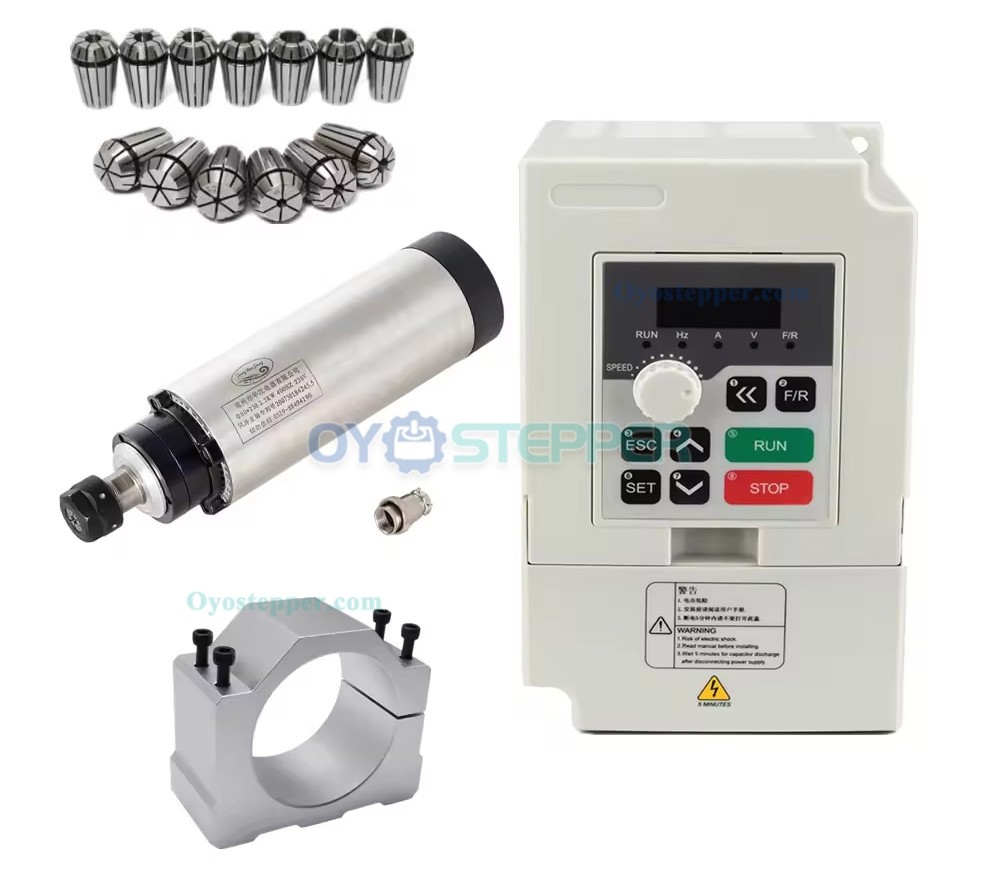

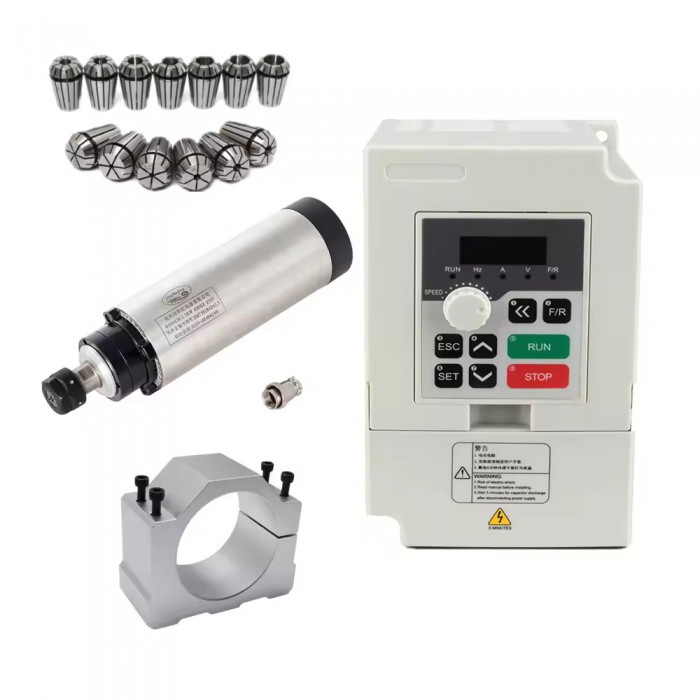

2.2KW CNC Spindle Motor Kit 80mm ER20 Air Cooled Spindle 24000RPM with 2.2KW VFD Inverter

2.2KW CNC Spindle Motor Kit 80mm ER20 Air Cooled Spindle 24000RPM with 2.2KW VFD Inverter

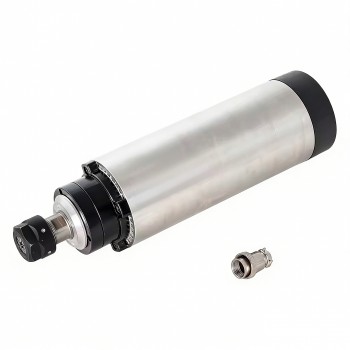

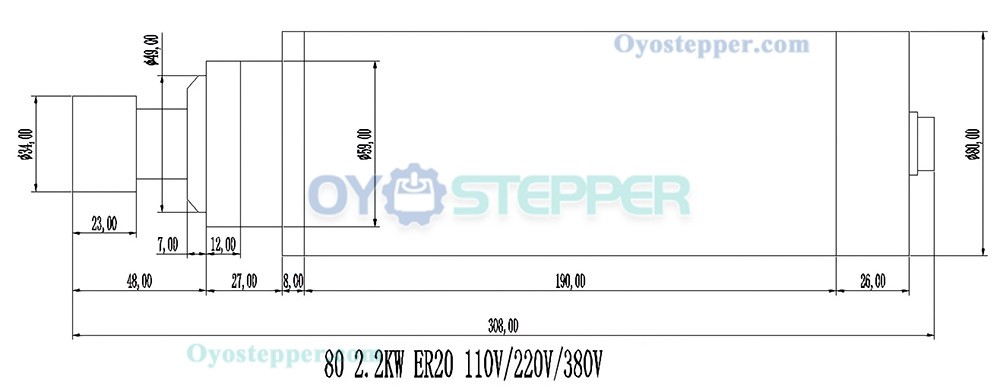

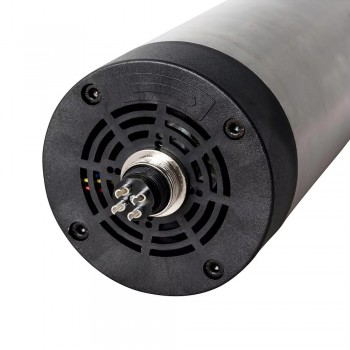

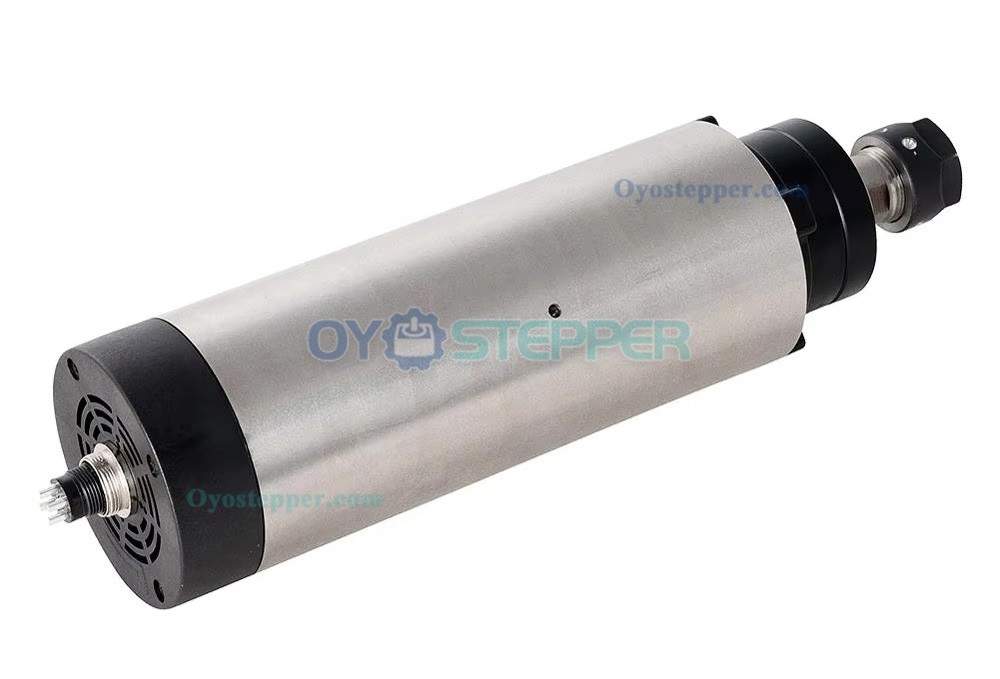

Spindle Motor Specifications:

Rated Power: 2.2 KW

Operating Voltage: 110V / 220V

Current: 8.5 A

Frequency: 400 Hz

Collet Type: ER20

Cooling Method: Air Cooling

Weight: 6.0 KG

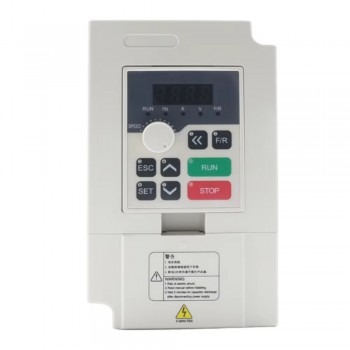

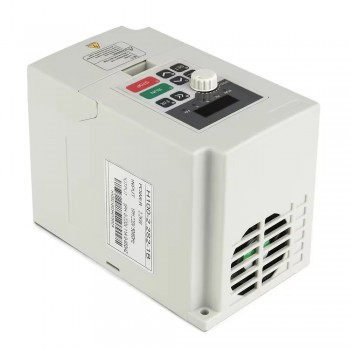

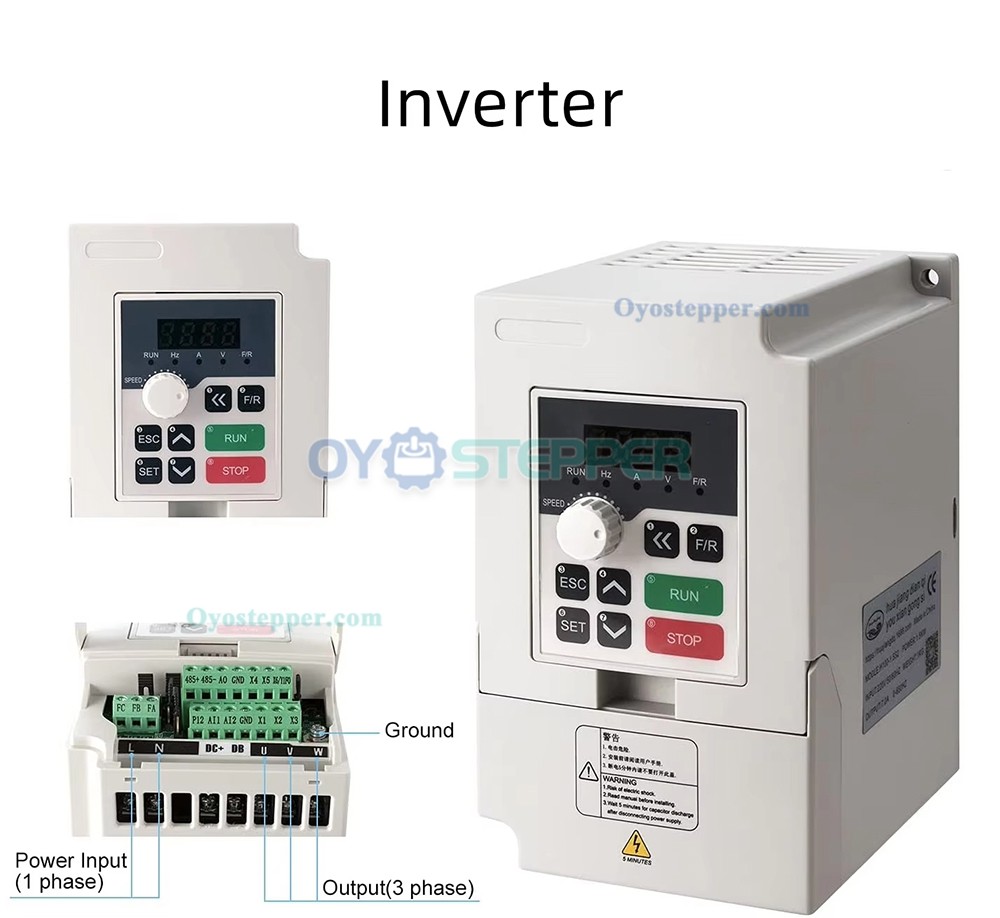

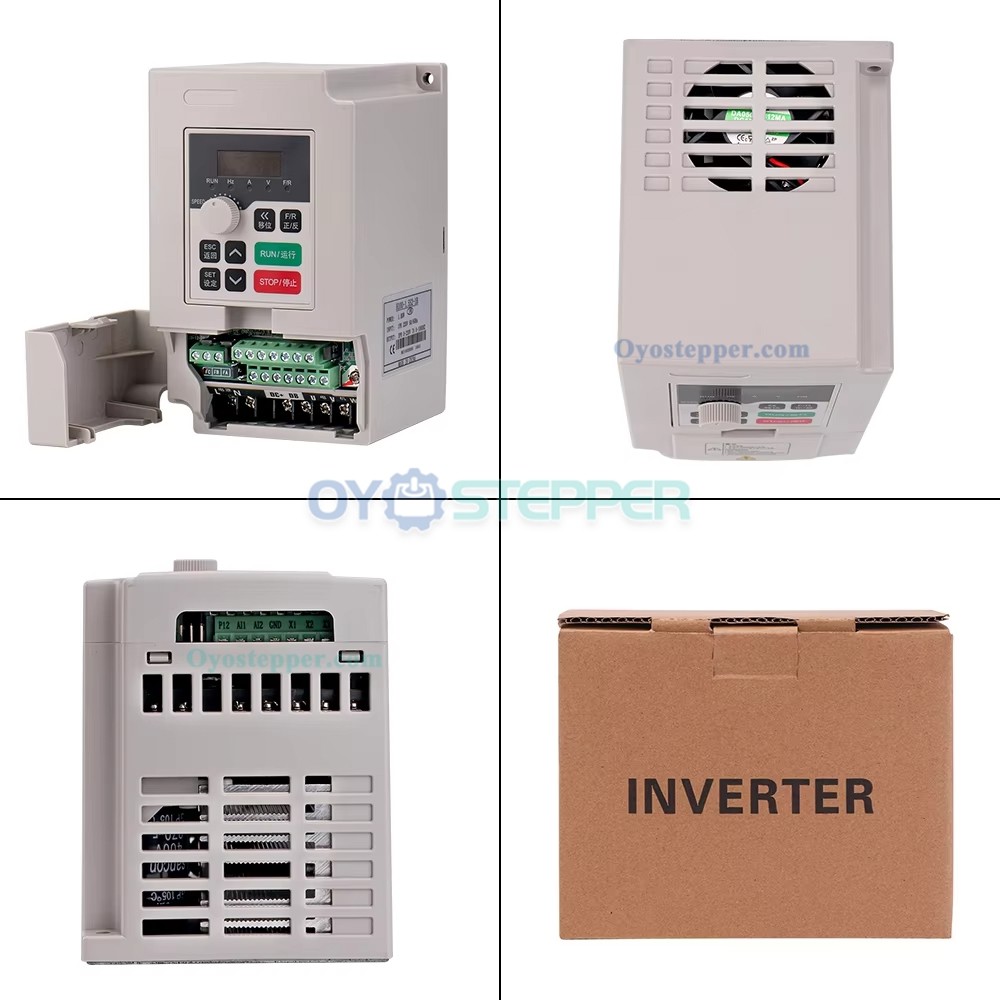

VFD Frequency Inverter Specifications:

Model: H100-2.2C2 / H100-2.2S2

Rated Power: 2.2 KW

Output Current: 11A

Input Option 1: 1 Phase, 110V, 50/60 Hz

Input Option 2: 1 Phase, 220V, 50/60 Hz

Output Option 1: 3 Phase, 110V, 0-1000 Hz

Output Option 2: 3 Phase, 220V, 0-1000 Hz

Control Interface: Modbus Network

Weight: 1.5 kg


Included Accessories:

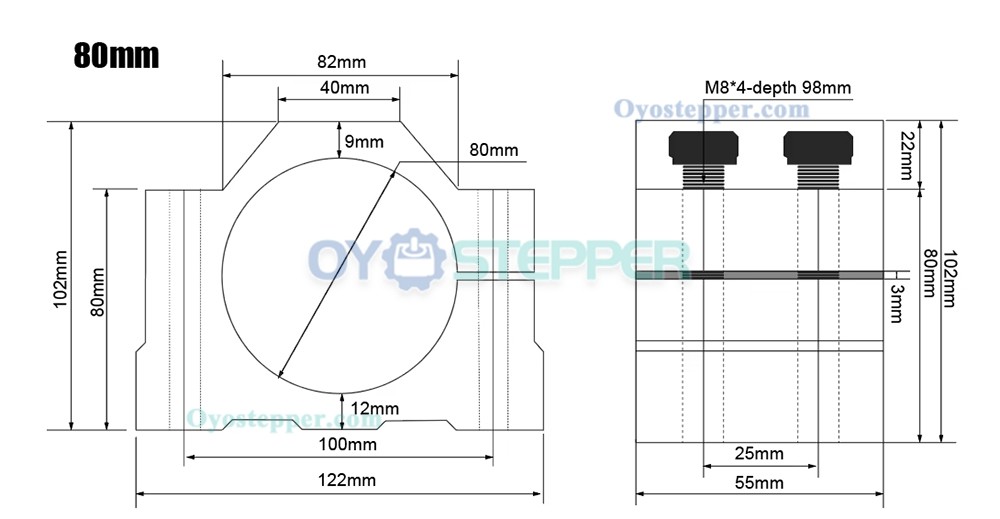

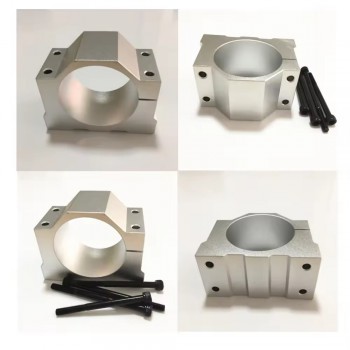

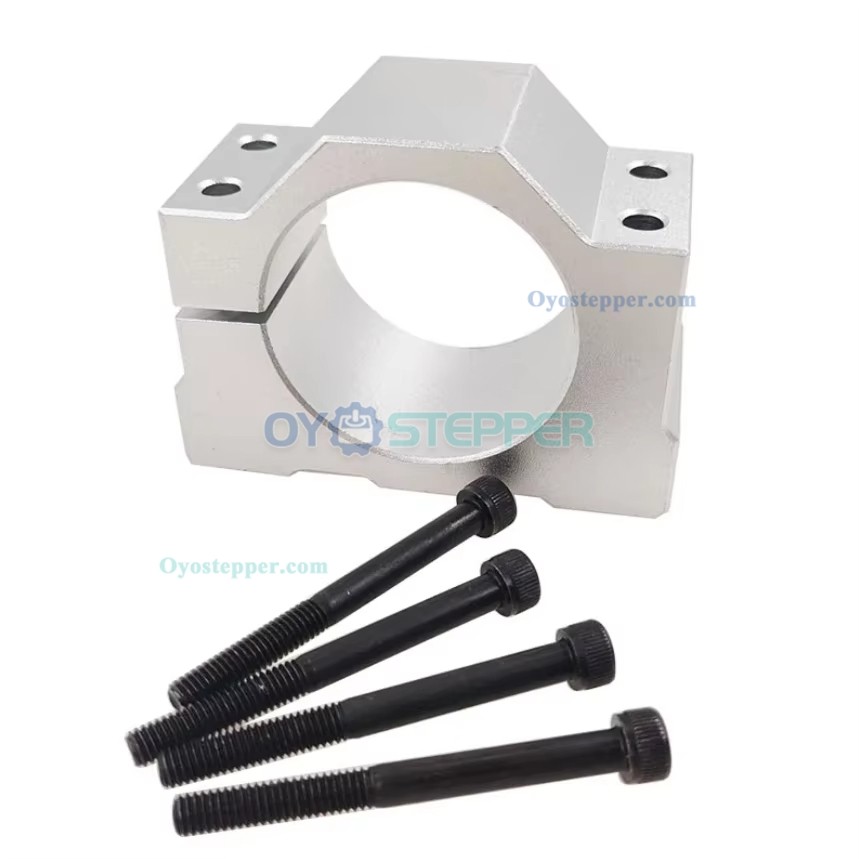

Spindle Clamp: 80mm Clamp with 4 Screws

Collet Set: 13-Piece ER20 Collet Set

Collet Sizes: 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm;
