2.2KW Water Cooled CNC Spindle Motor 65mm ER11 Kit with VFD Inverter & Pump for CNC Machine

2.2KW Water Cooled CNC Spindle Motor 65mm ER11 Kit with VFD Inverter & Pump for CNC Machine

This 2.2 kW air‑cooled spindle runs at 400 Hz, uses ER20 collets, and is available for 110V, 220V, or 380V input. Includes a matched VFD with single‑phase input and three‑phase 0–1000 Hz output.

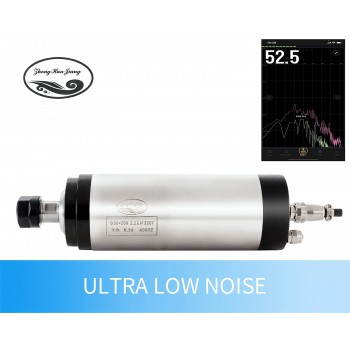

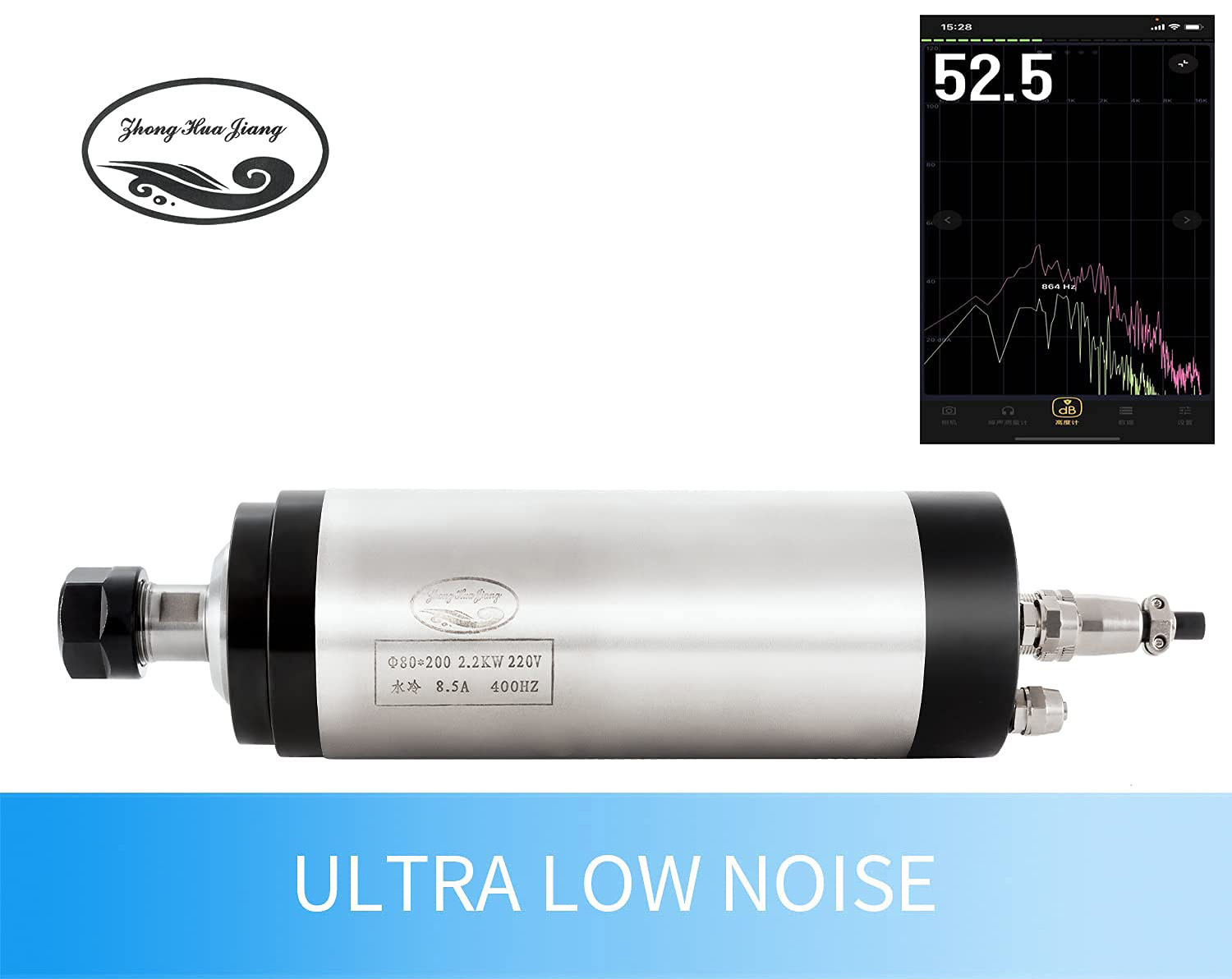

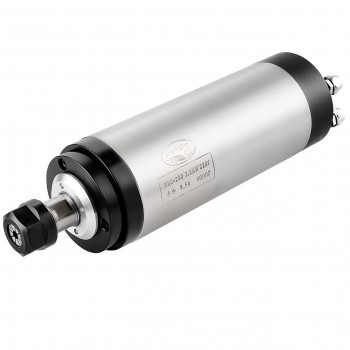

Spindle Motor Specifications:

Model : 80*2.2KW ER20 Air Cooling

Rated Power: 2.2 KW

Operating Voltage: 110V / 220V / 380V

Current: 8.5 A

Frequency: 400 Hz (High-Speed Operation)

Collet Type: ER20

Cooling Method: Water Cooling

Weight: 6.0 KG

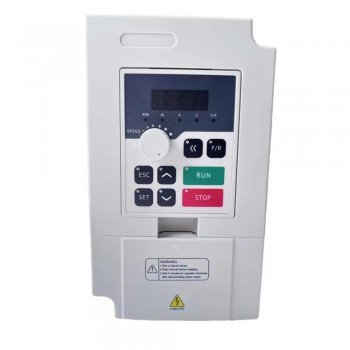

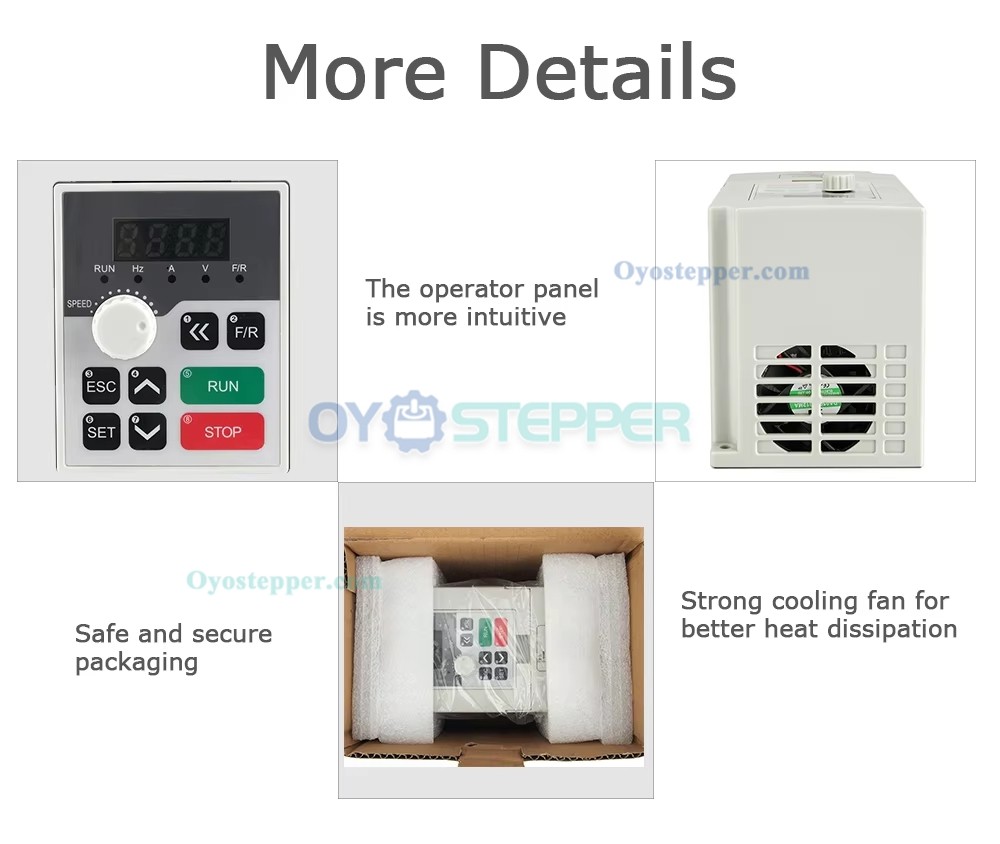

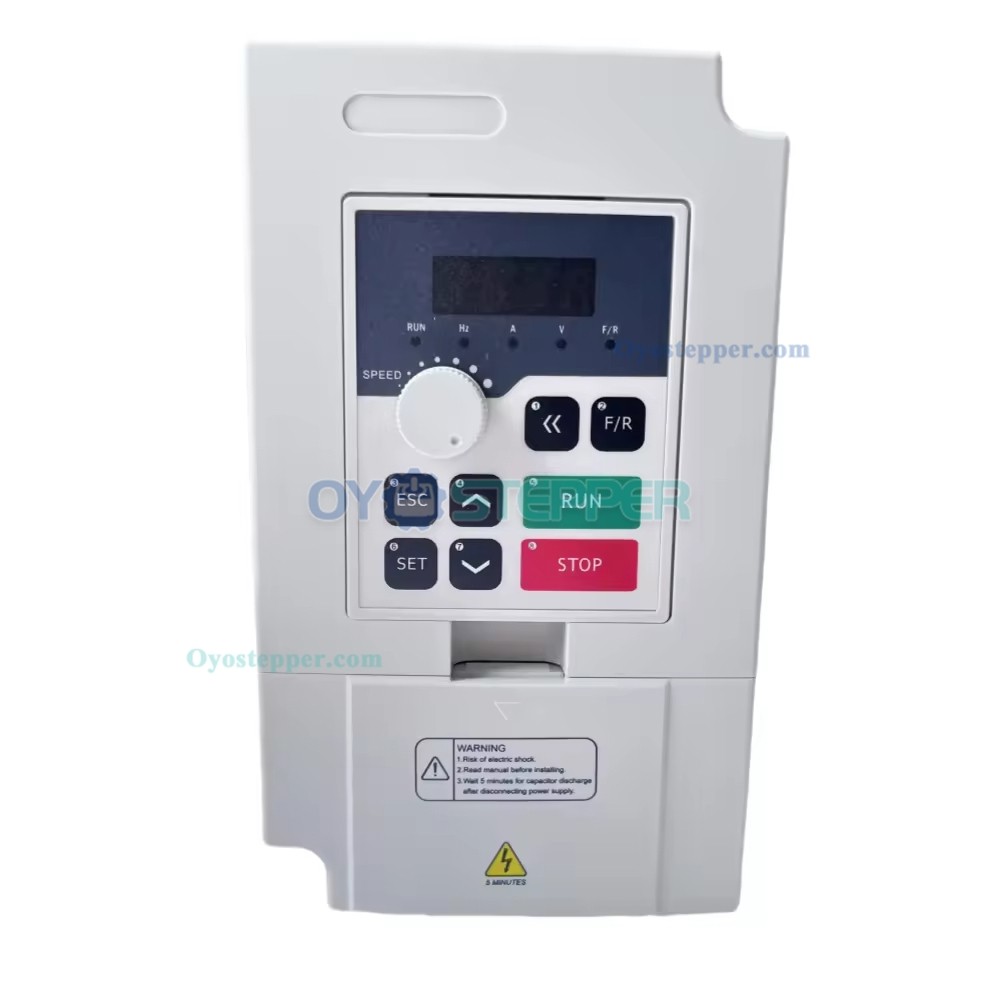

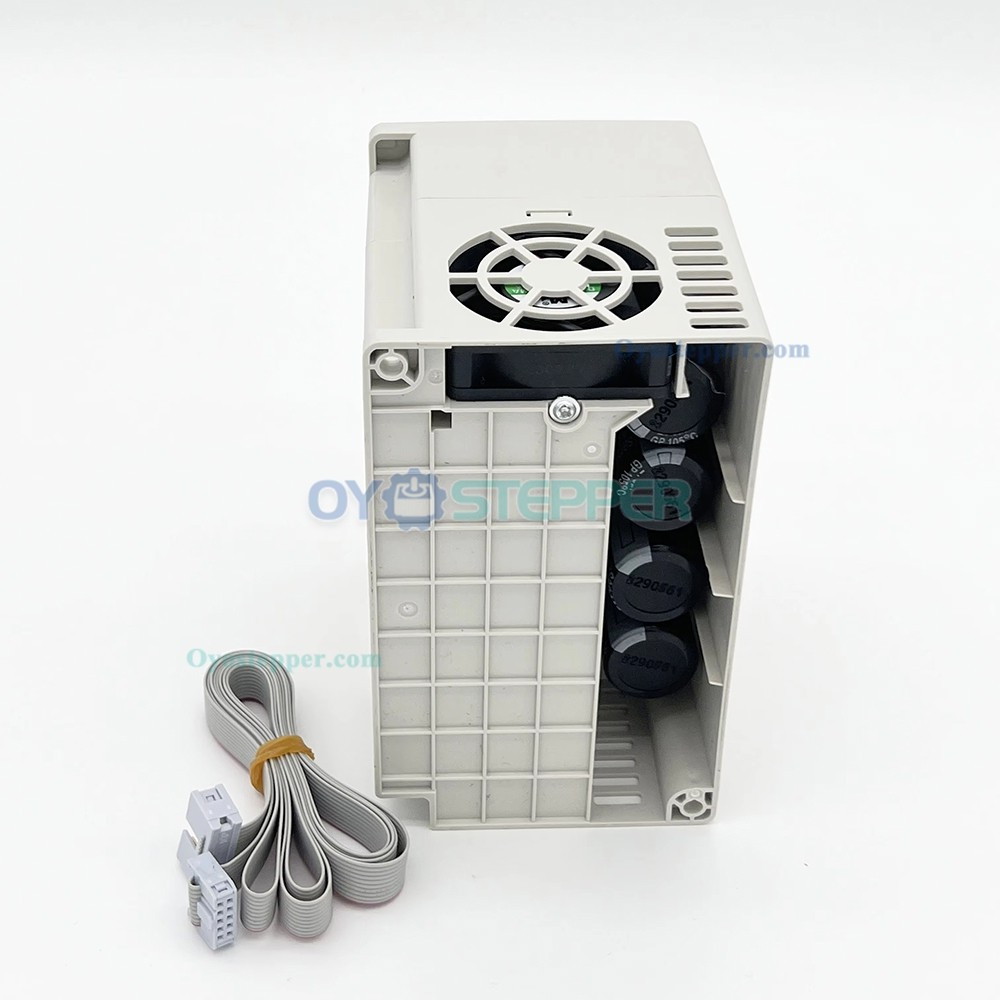

Frequency Inverter (VFD) Specifications:

Model: H100-2.2C2 / H100-2.2S2

Rated Power: 2.2 KW

Input (Selectable): 1 Phase, 110V or 220V, 50/60 Hz

Output: 3 Phase, 0-1000 Hz

Output Voltage: Matches Input (110V or 220V 3-Phase output)

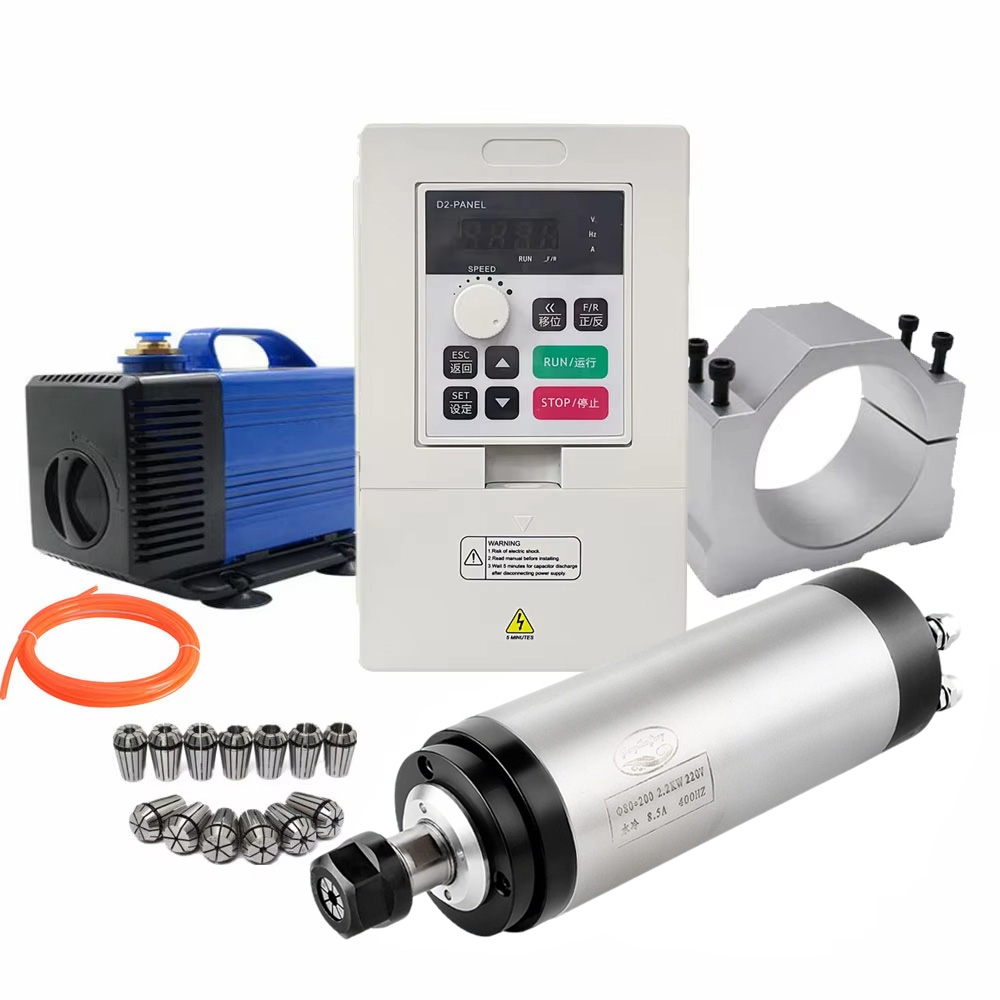

Included Accessories:

Spindle Clamp: 80MM Diameter Clamp with 4 Screws for secure mounting.

Collet Set: 13-Piece ER20 Collet Set.

Collet Sizes (13 pcs): 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 6.35mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm.
