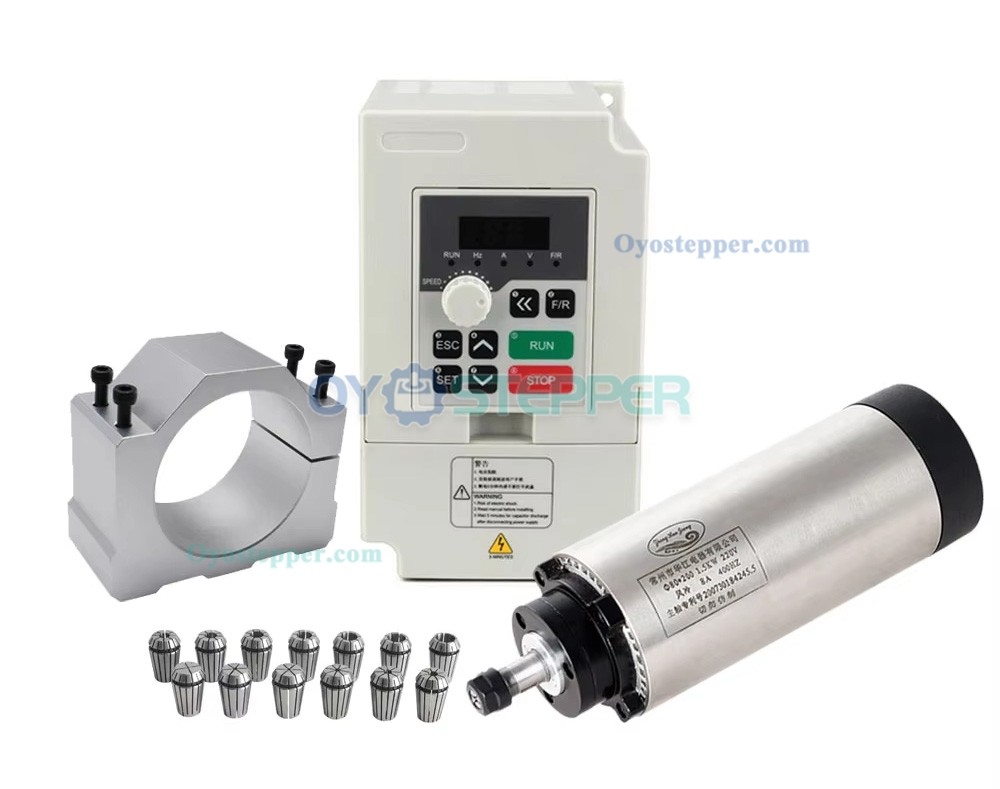

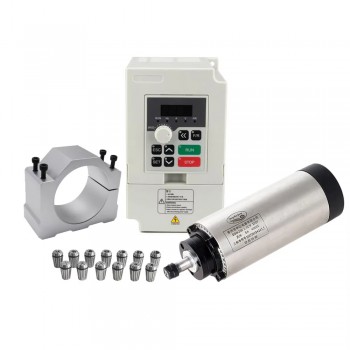

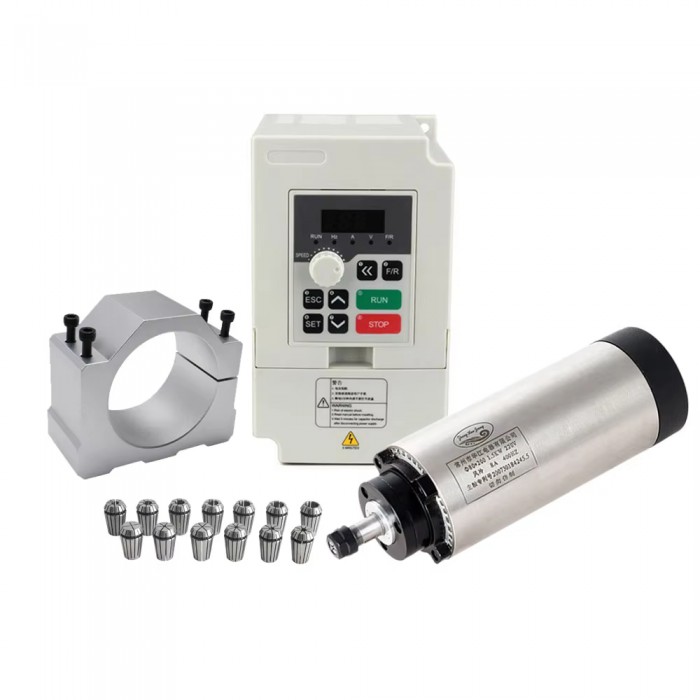

1.5KW CNC Air Cooled Spindle Motor with VFD Inverter Kit 24000RPM ER11 Collet for CNC Machine

1.5KW CNC Air Cooled Spindle Motor with VFD Inverter Kit 24000RPM ER11 Collet for CNC Machine

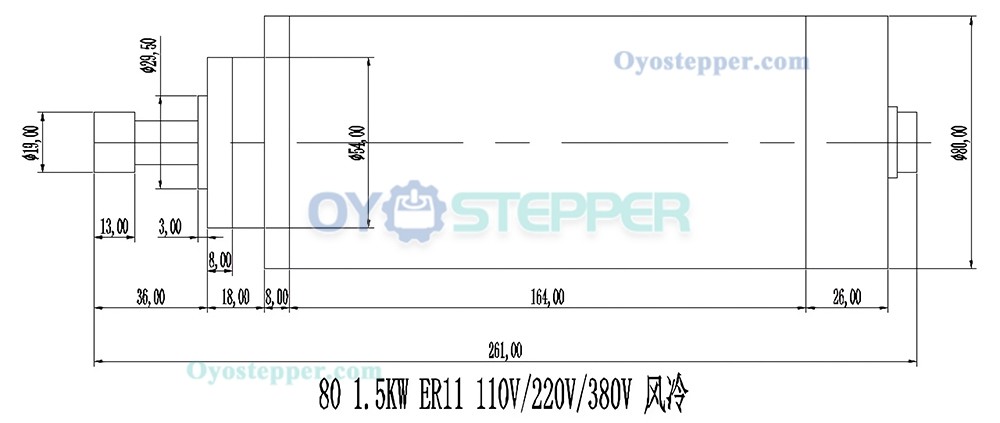

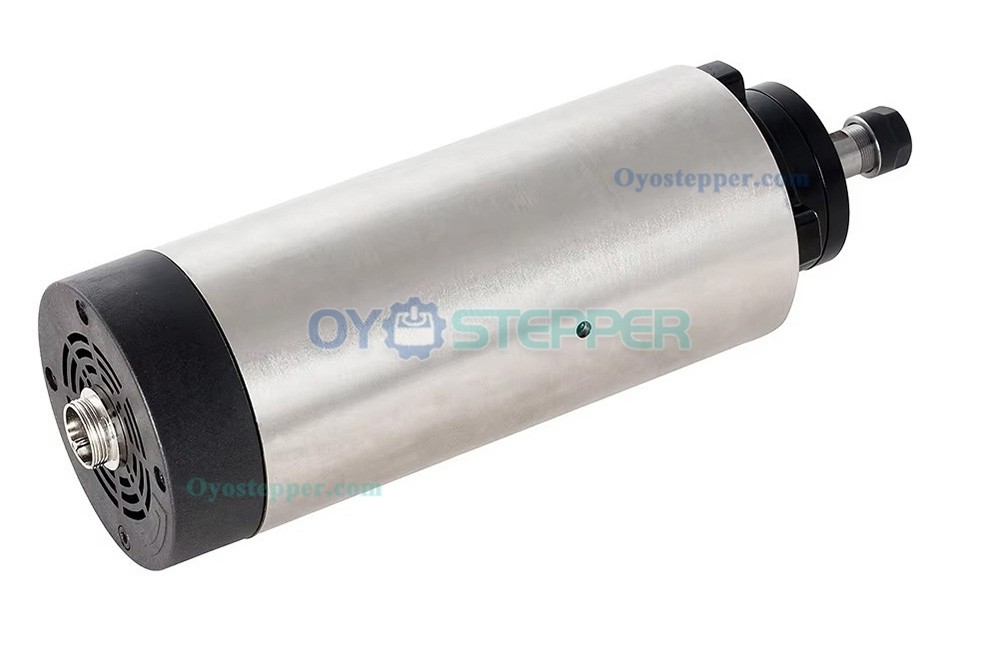

Spindle Motor Specification:

Rated Power: 1.5 KW

Operating Voltage: 110V / 220V

Current: 8A

Frequency: 400 Hz

Collet Type: ER11

Cooling Method: Air Cooling

Weight: 4.3 KG

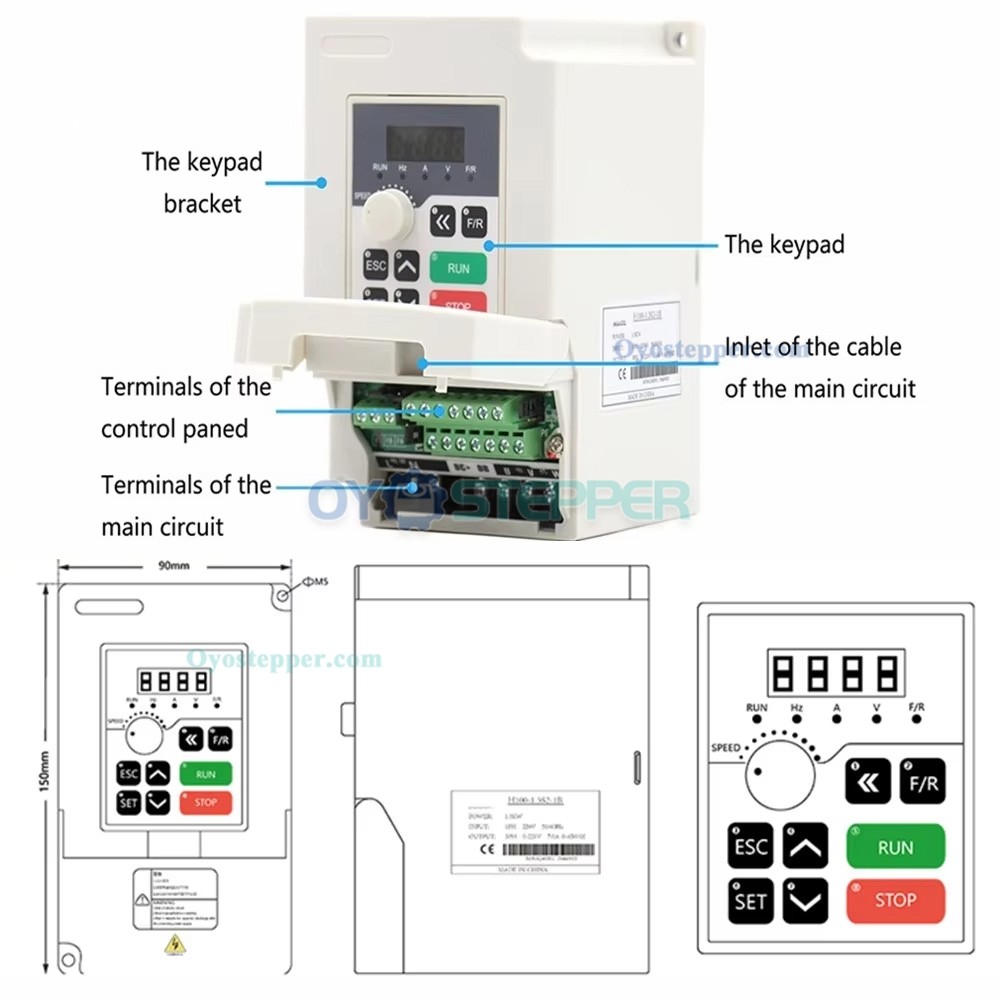

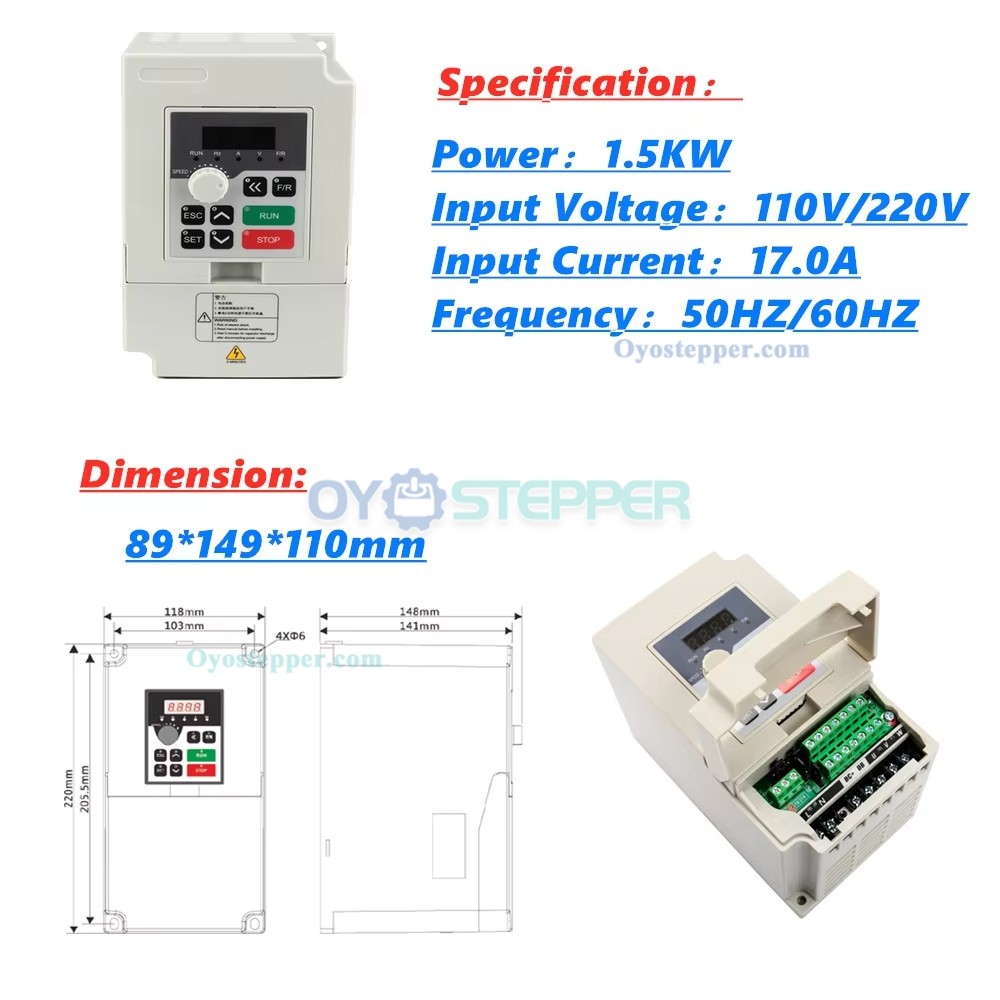

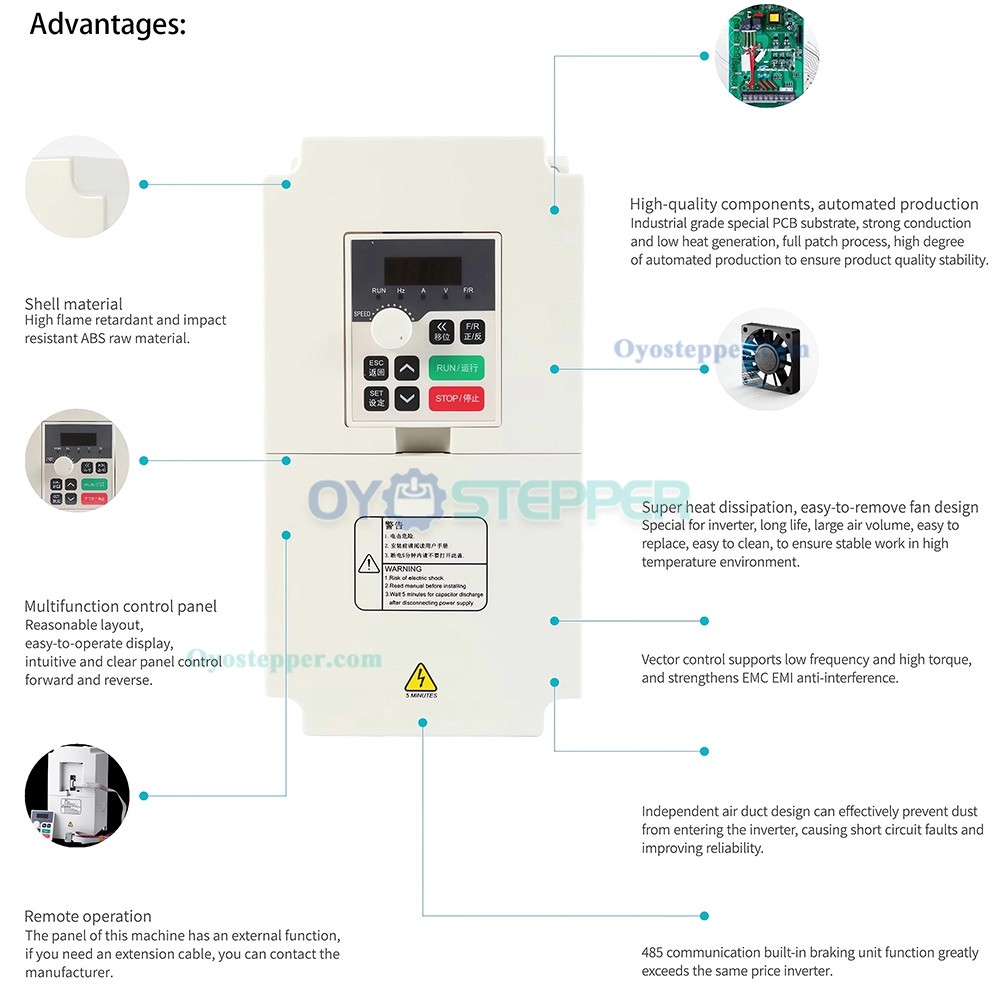

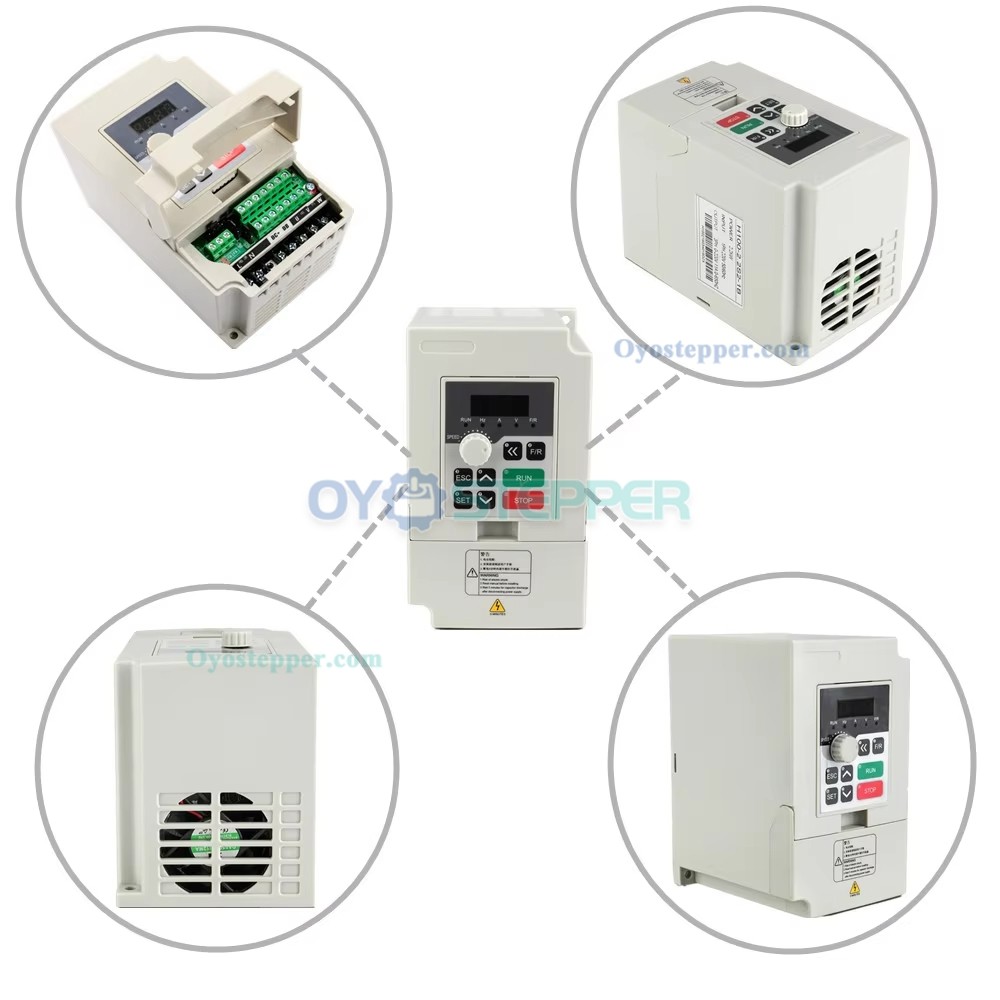

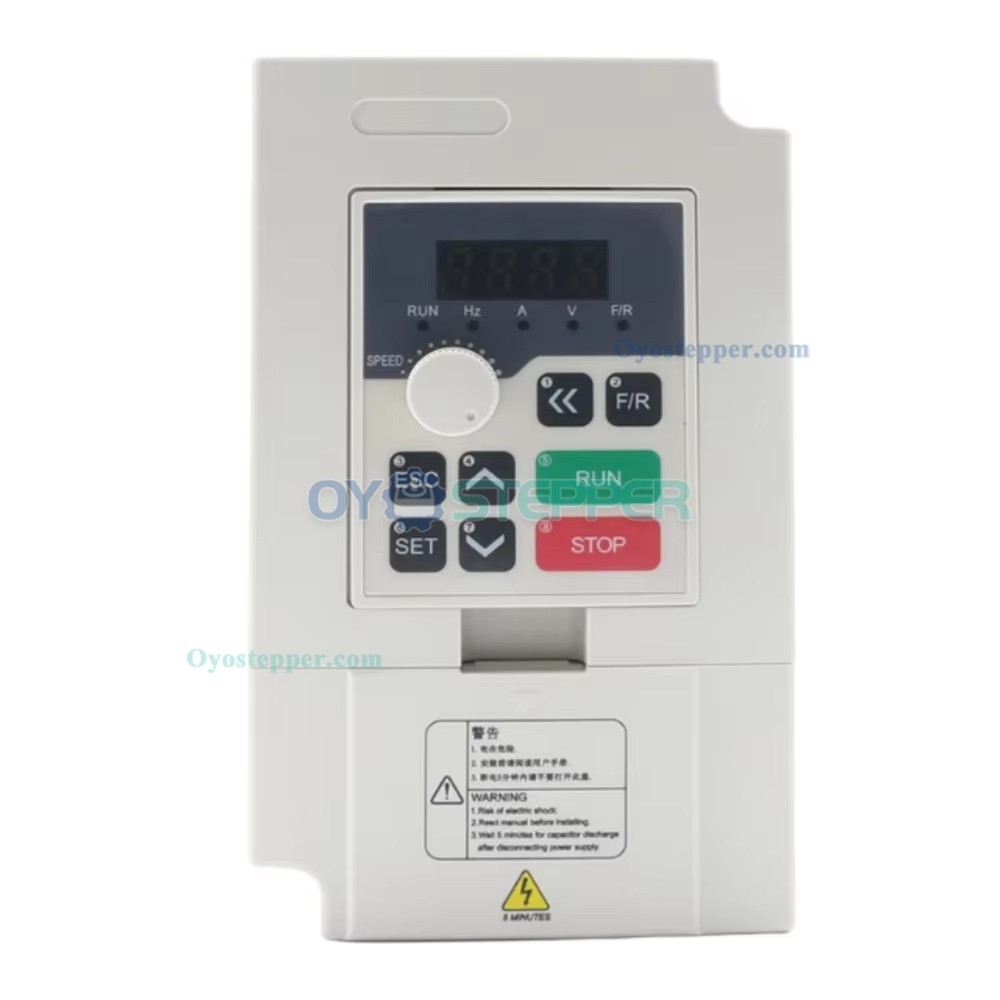

Matching Frequency Inverter (VFD):

Model: H100-1.5C2 / H100-1.5S2

Rated Power: 1.5 KW

Input (Option 1): 1 Phase, 110V, 50/60 Hz

Input (Option 2): 1 Phase, 220V, 50/60 Hz

Output (Option 1): 3 Phase, 110V, 0-1000 Hz

Output (Option 2): 3 Phase, 220V, 0-1000 Hz



Included Accessories:

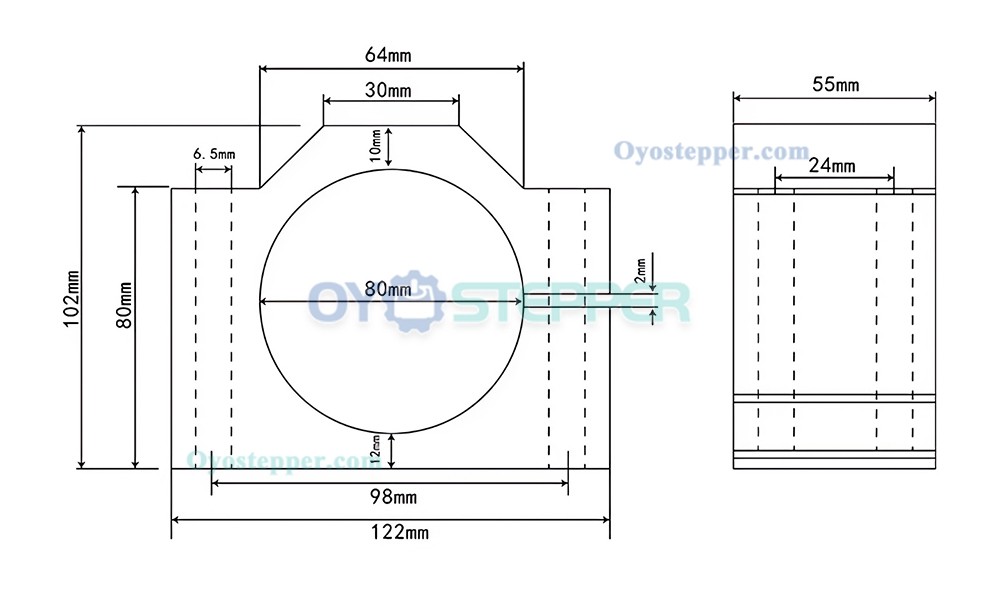

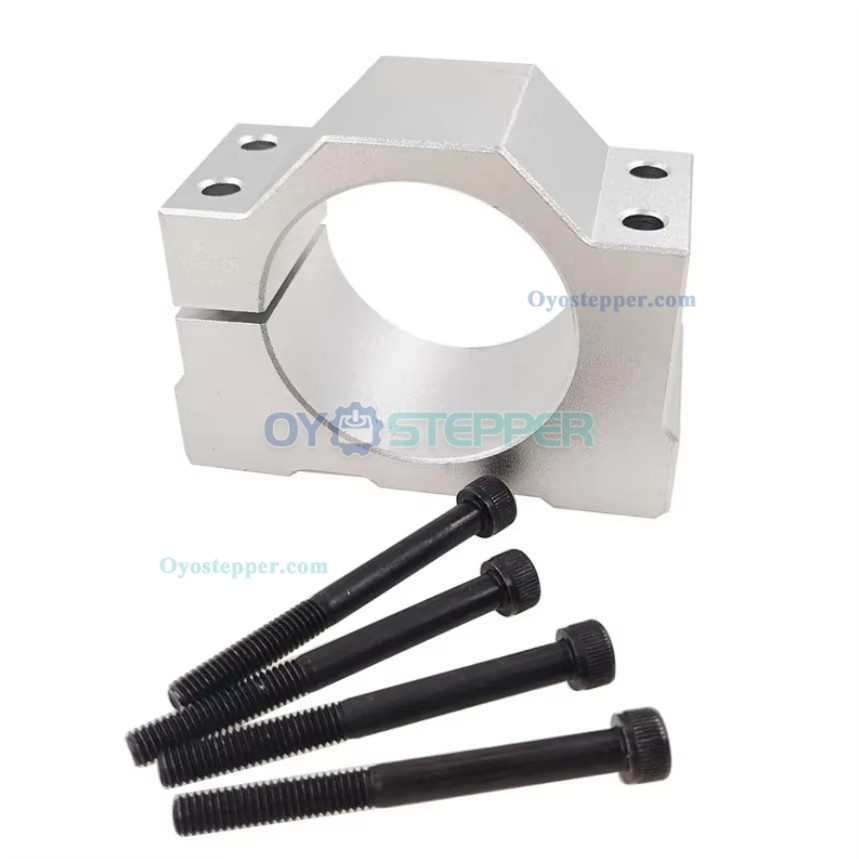

Spindle Clamp: 80MM Clamp with 4 Screws

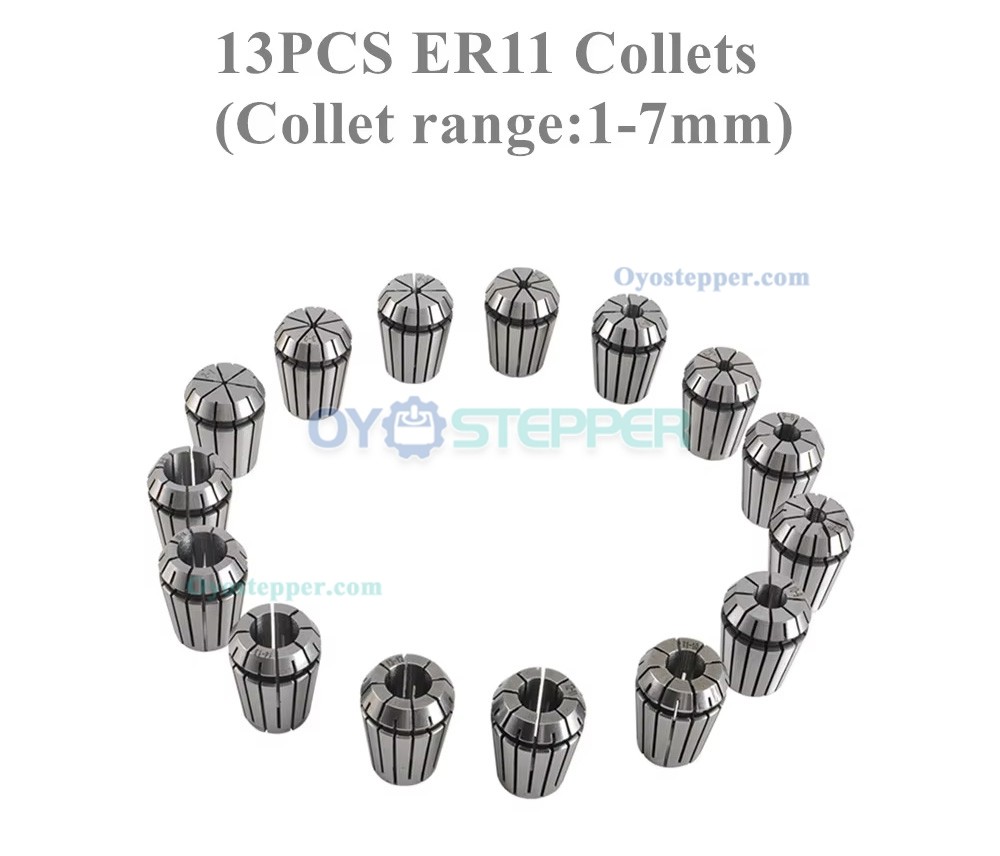

Collet Set: 13-Piece ER11 Collet Set

Collet Sizes: 1mm, 2mm, 3mm, 3.175mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.35mm, 6.5mm, 7mm;
