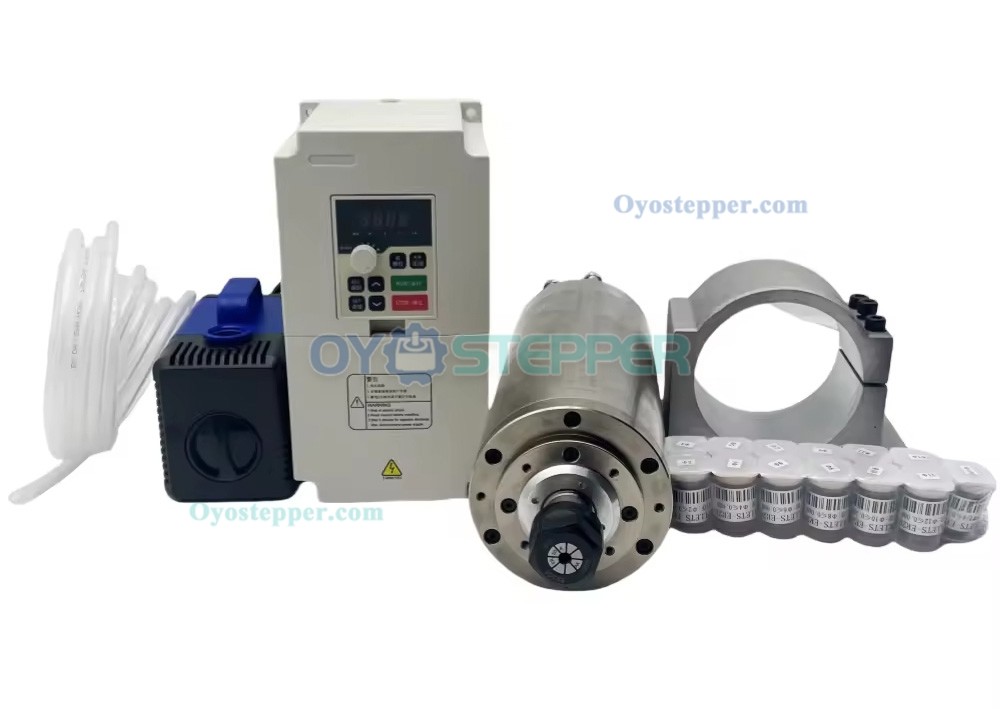

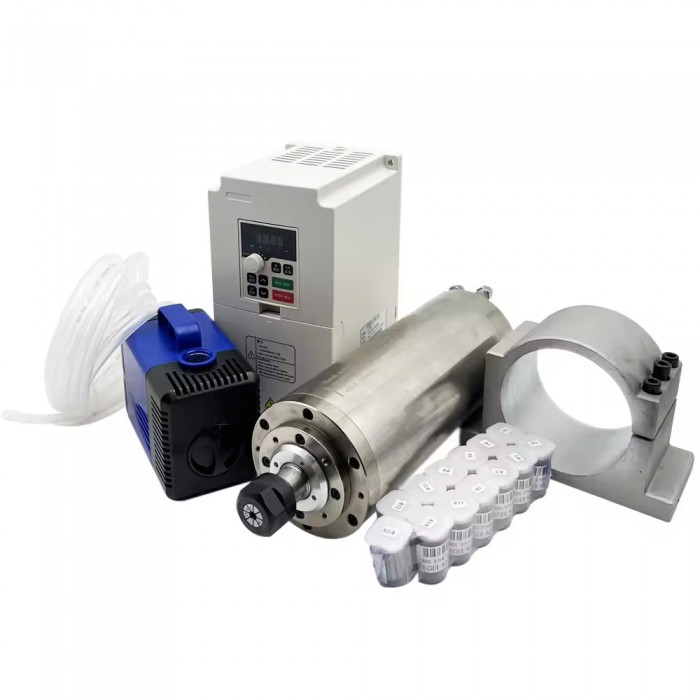

3KW Water Cooling Spindle Motor Kit 220/380V ER20 24000RPM with 3.7KW VFD Variable Frequency Drive

3KW Water Cooling Spindle Motor Kit 220/380V ER20 24000RPM with 3.7KW VFD Variable Frequency Drive

Specification:

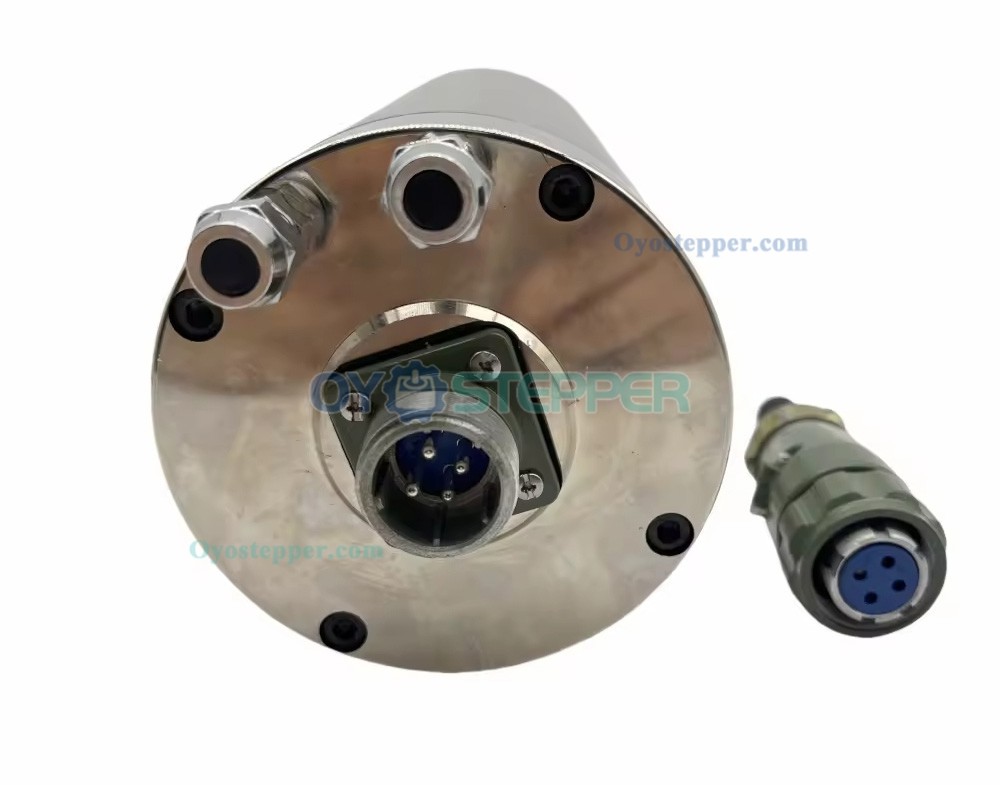

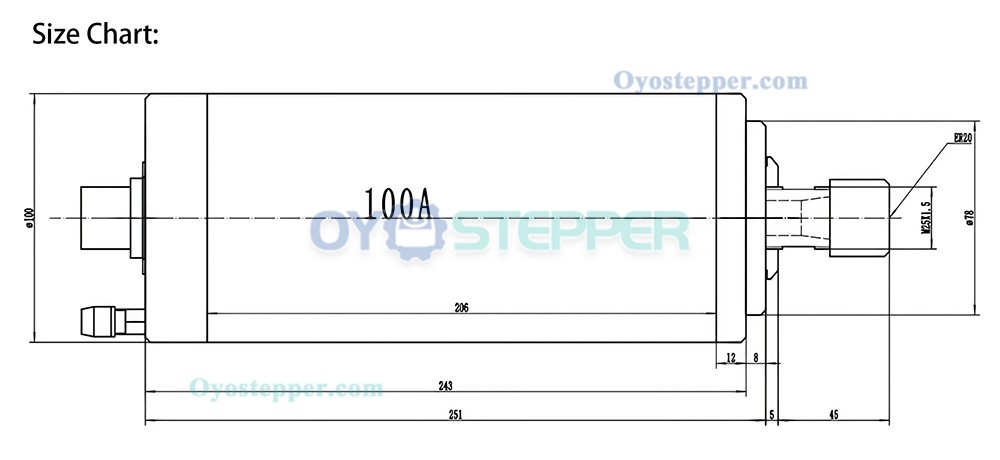

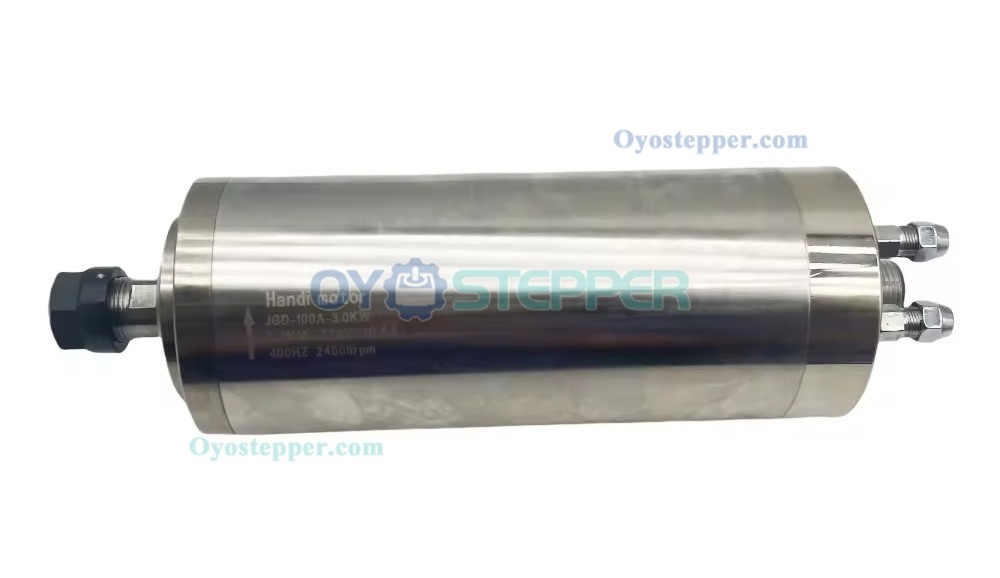

Spindle Motor Parameters:
Model:JGD-100A-3.0KW
Rated Power: 3 KW
Voltage: 220V / 380V
Rated Speed:1-24000r/min
Rated Current:10.5A
Operating Frequency:400 Hz
Cooling Type: Water Cooling

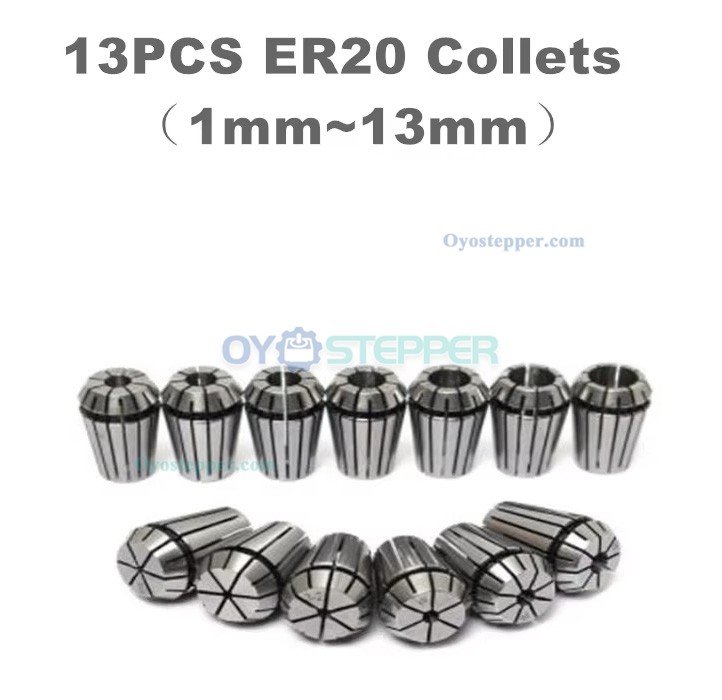

Collet System: ER20
Connection Type: Water cooling ports;
Net Weight: 10 KG

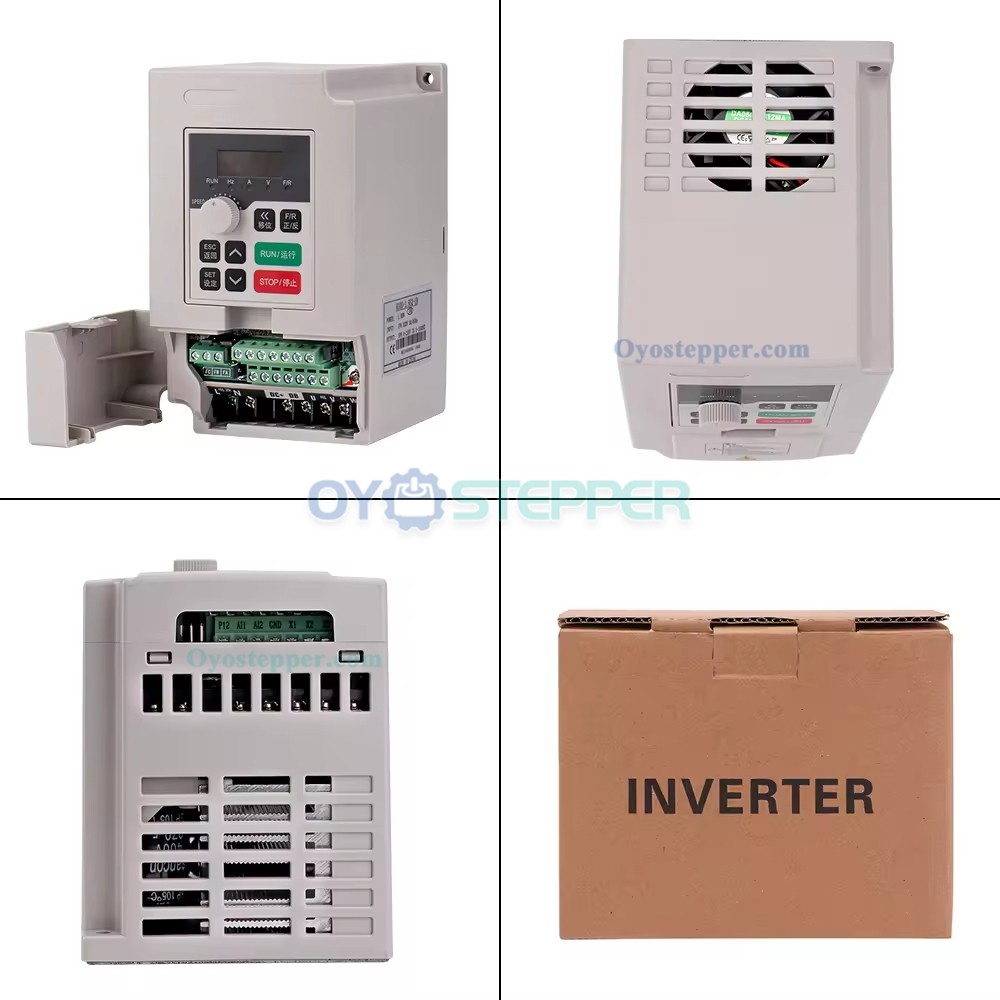

VFD Inverter Parameters:
Model: H100-3.7S2/H100-3.7T4
Rated Power: 3.7 KW
Input Voltage: 220V / 380V
Rated Input Current: 17A (for 220V) / 8.5A (for 380V)
Input Power Frequency: 50 Hz / 60 Hz;

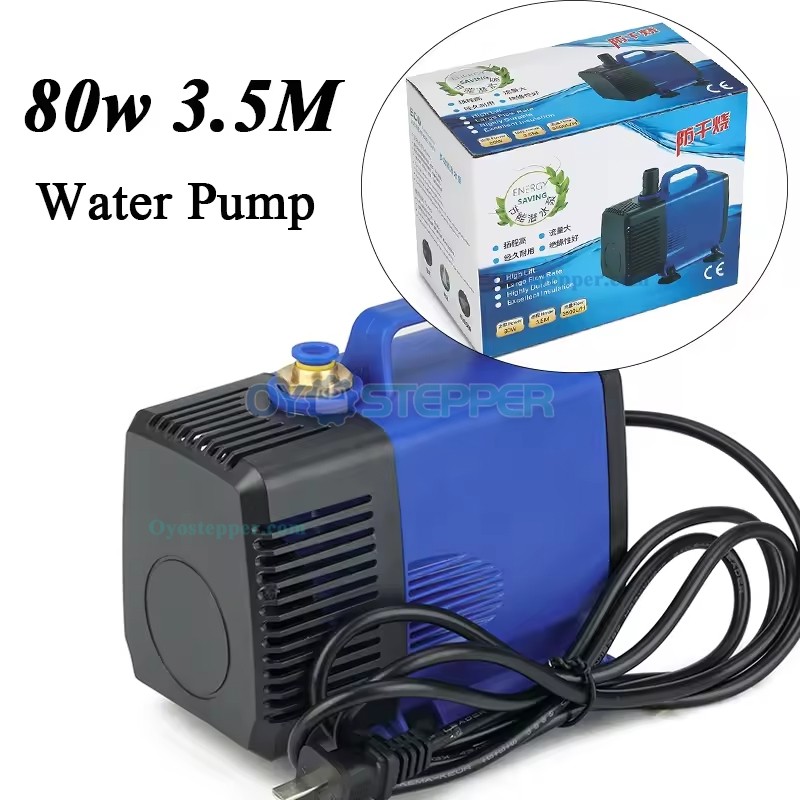

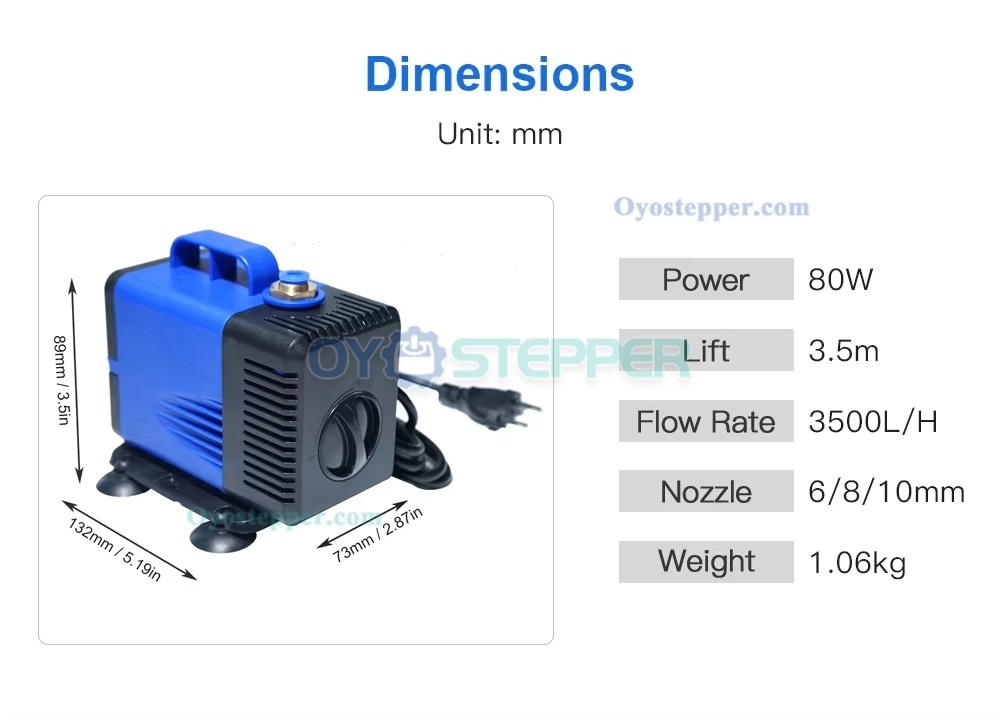

Water Pump Parameters:
Pump Power: 80 W
Water pipe length: 5 meters
Inner Diameter 6mm
Outer Diameter 8mm
