Nema 17 High Temperature Resistant Stepper Motors 59Ncm/84oz.in Insulation Class H 180C

Nema 17 High Temperature Resistant Stepper Motors 59Ncm/84oz.in Insulation Class H 180C
NO.:17HS19-2004S1-H
Review: Post a review
Black Friday Special Offer 2022:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 30th, 2022
  • Note:No coupon code needed, please place order directly!
Latest price:$25.98
Buy It Now:$17.32
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $16.63 4%
10 $15.93 8%
50 $15.24 12%
100 $13.85 20%
Add To Cart

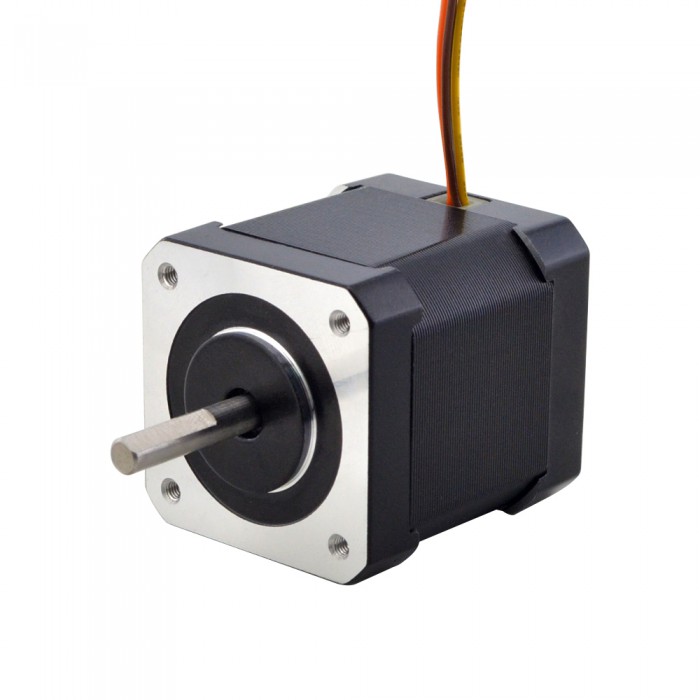

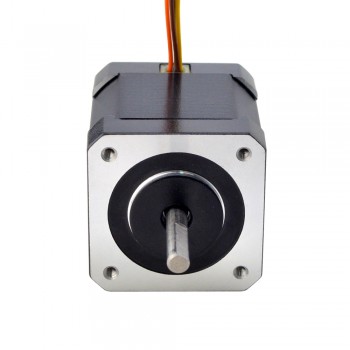

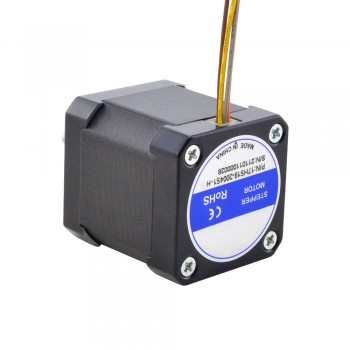

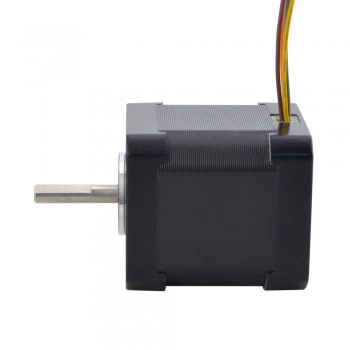

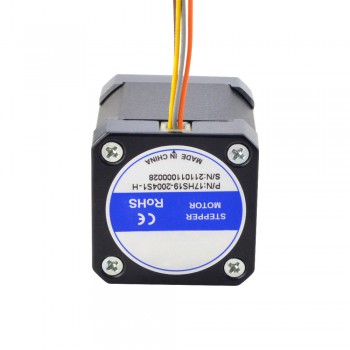

Nema 17 High Temp Stepper Motor 59Ncm/84oz.in Insulation Class H 180C



This motor is desighed for high temperature application. We have customed motor's winding, bearing, magnetic steel and also the plastic skeleton to achivel insulation class of H, the teprature reach up to 180C degree. This motor is widely used in 3D Printer.



Electrical Specification

Manufacturer Part Number: 17HS19-2004S1-H

Motor Type: Bipolar Stepper

Step Angle: 1.8deg

Holding Torque: 59Ncm(83.6oz.in)

Rated Current/phase: 2.0A

Phase Resistance: 1.5ohms

Inductance: 3.0mH ± 20%(1KHz)

Insulation Class: H 180C(356F)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 48mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 1000mm

Weight: 350g

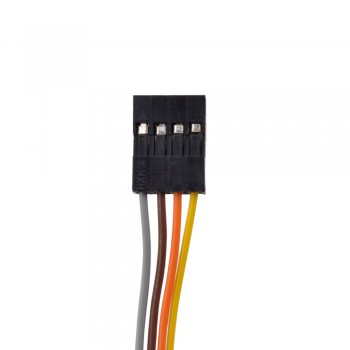

Connection

A+ A- B+ B-
GRY BRN ORG YEL



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 High Temp Temperature Stepper Motor 13Ncm/18.4oz.in Insulation Class H 180C
Next: Nema 17 High Temp Stepper Motor 65Ncm/92oz.in Insulation Class H 180C
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 59
Holding Torque (oz.in) 83.6
Inductance(mH) 3
Phase Resistance(ohm) 1.5
Rated Current (A) 2
Step Angle(deg.) 1.8
Insulation Class H 180C(356F)
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Single Shaft/Dual Shaft Single Shaft
Weight(g) 350
Product Type HYBRID STEPPER MOTOR
Output Shaft Type D-Cut
IP Rating 40
