5 Axis Manual Pulse Generator MPG Pendant Handwheel+15-pin plug For CNC Controller DDCSV4.1

5 Axis Manual Pulse Generator MPG Pendant Handwheel+15-pin plug For CNC Controller DDCSV4.1

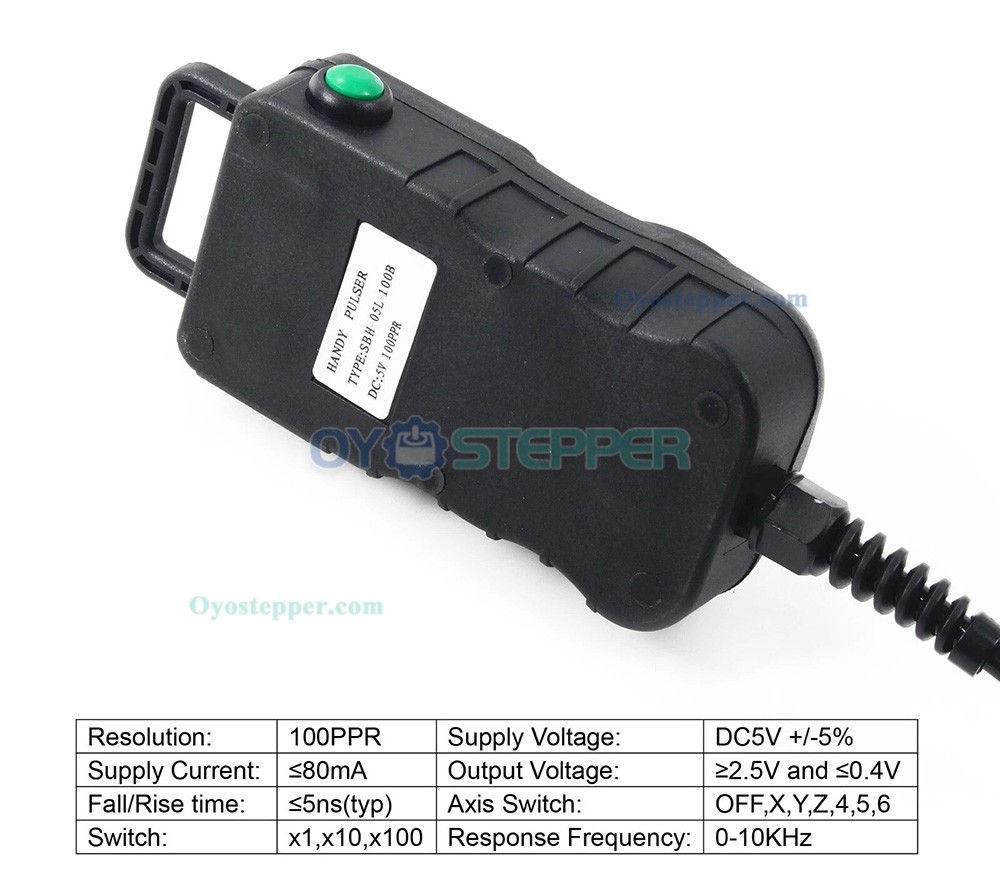

Specifications:

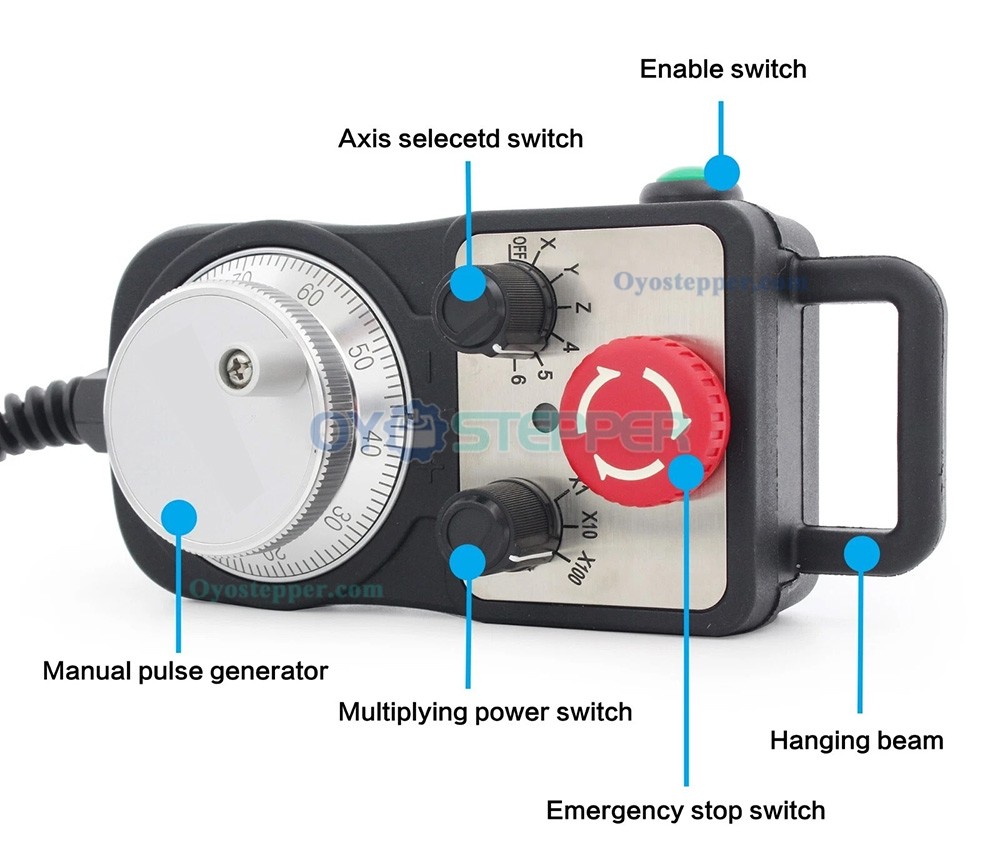

Function: 5-axis manual pulse generator with integrated emergency stop;

Multiplication factors: x1, x10, x100 via selector switch;

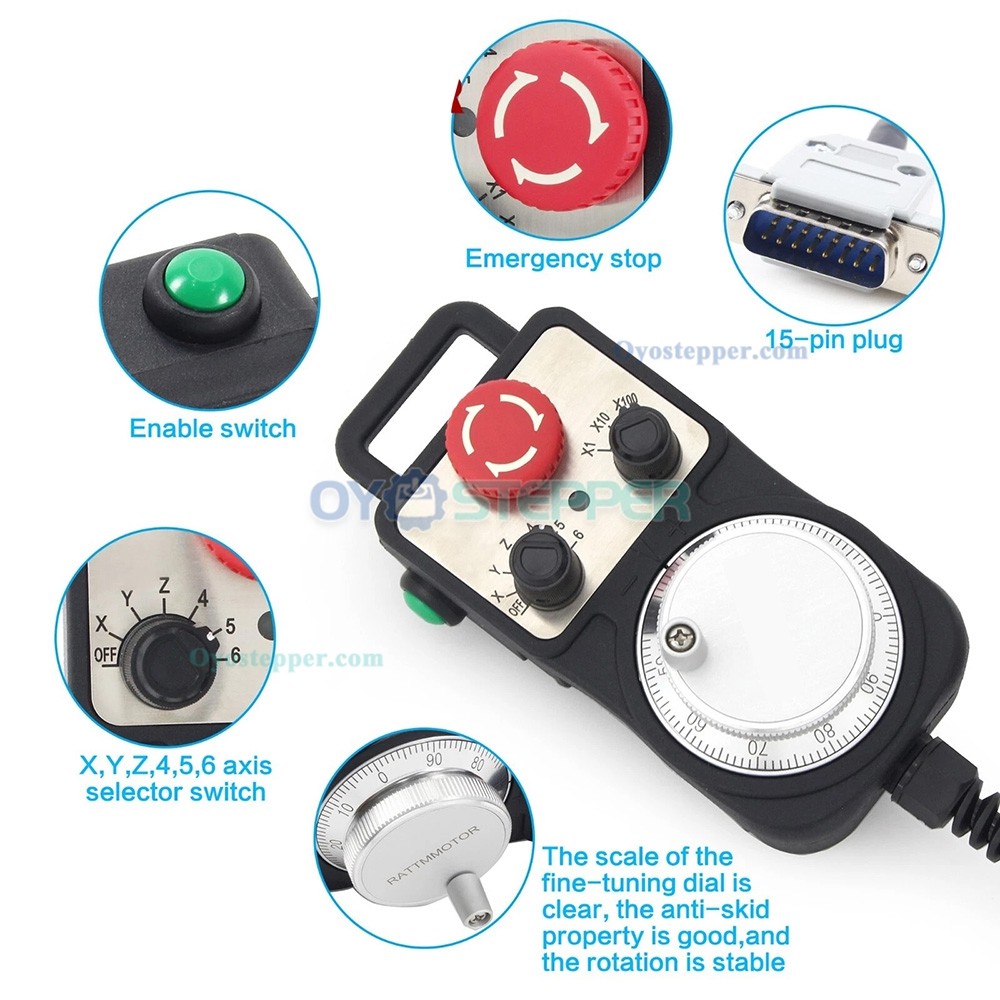

Axis selection: OFF, X, Y, Z, 4, 5;

Encoder frequency response: 0–10kHz;

Encoder type: Metal code disc;

Supply voltage: DC 5V ±5%;

Supply current: ≤80mA;

Output signal voltage: High ≥2.5V, Low ≤0.4V;

Output current: <40mA;

Signal rise/fall time: ≤5µs;

Connection: 15-pin plug;

Controller compatibility: DDCSV4.1, DDCS-Expert, Taiwan Pou Yuan

M500/M600 series, Higerman (verify with specific system requirements);

Package Includes:

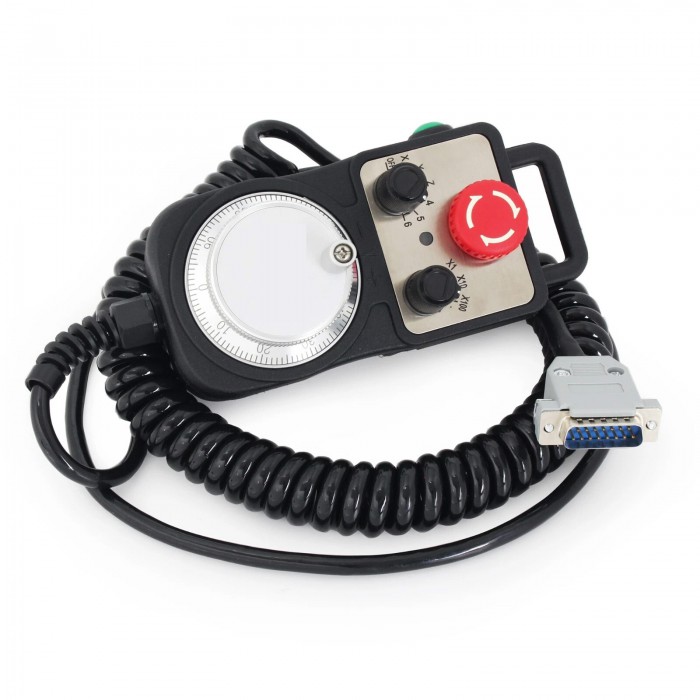

1×5-Axis MPG Pendant Handwheel with emergency stop button (15-pin plug).
