XWGP-ETS 6 Axis Electronic CNC Wireless MPG Handwheel Manual Pulse Generator

XWGP-ETS 6 Axis Electronic CNC Wireless MPG Handwheel Manual Pulse Generator

This manual pulse generator (MPG) is designed for use with CNC machine tools. It utilizes wireless transmission technology, eliminating the need for a traditional coiled cable connection between the handwheel and the machine.


Support & Compatibility:

Communication Protocol: Supports the Siemens S7 protocol.

Compatible Controllers: Can interface with various Siemens PLCs (e.g., S7-200, S7-300, S7-1200 series) and Siemens virtual PLCs.

Example Systems: Adapted for use with controls such as Siemens 808D, 828D, and 840Dsl.



Features:

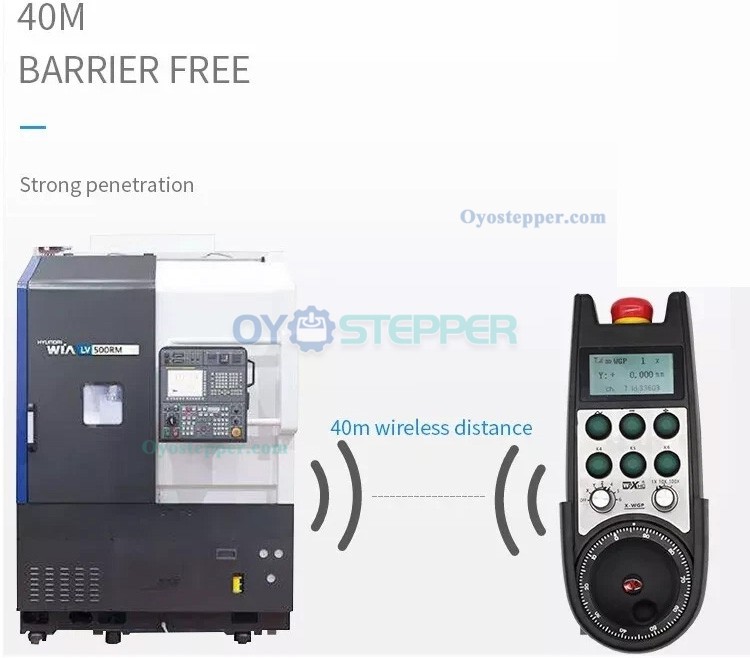

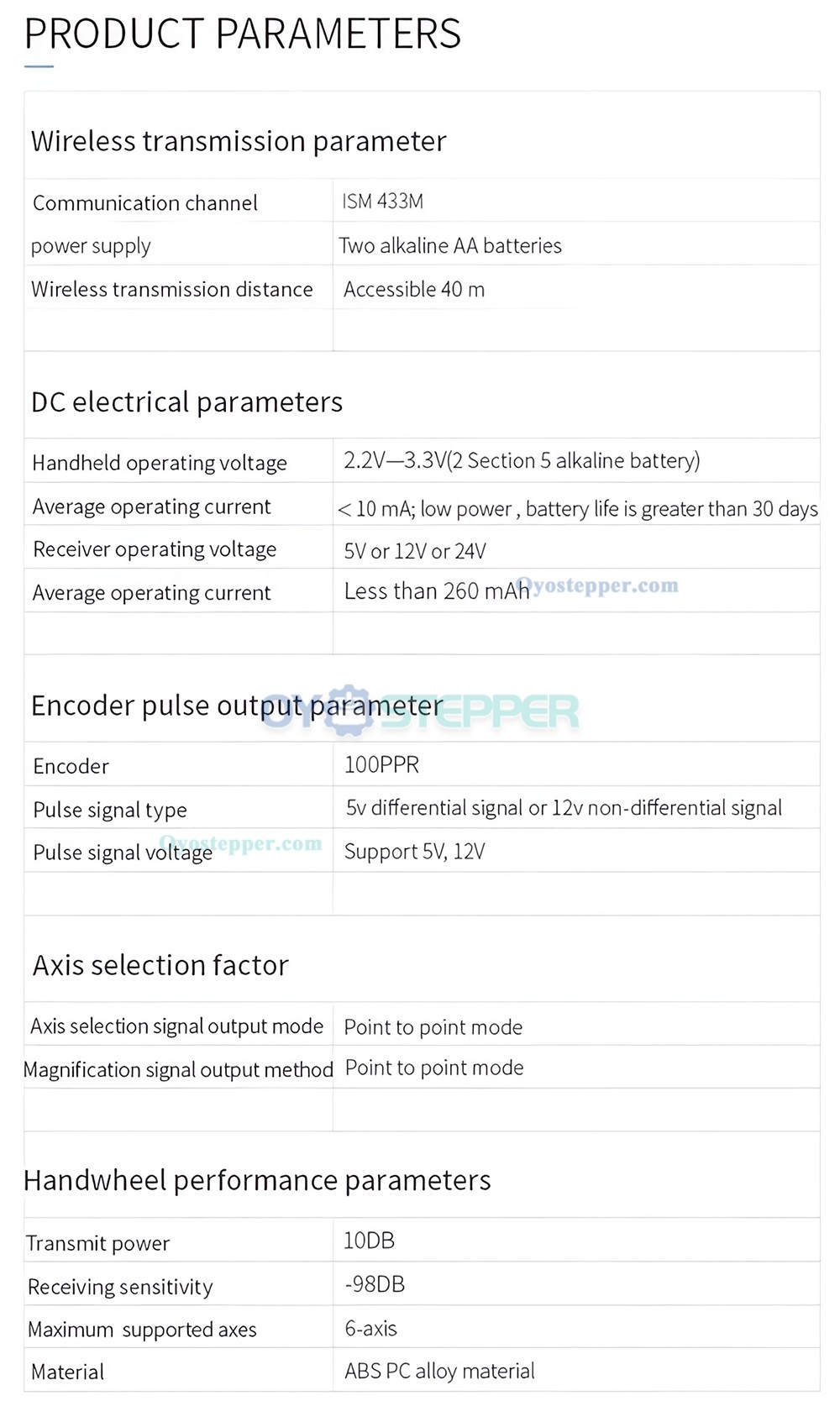

Wireless Operation: Uses 433MHz frequency band with an operating range of approximately 40 meters.

Multi-Unit Operation: Features automatic frequency hopping, supporting the simultaneous use of up to 32 handwheels without interference.



Control & Interface:

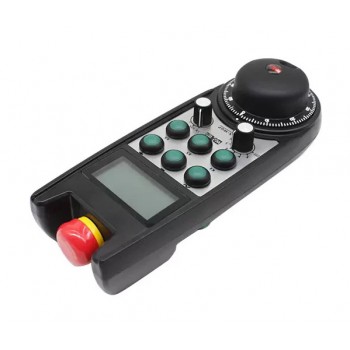

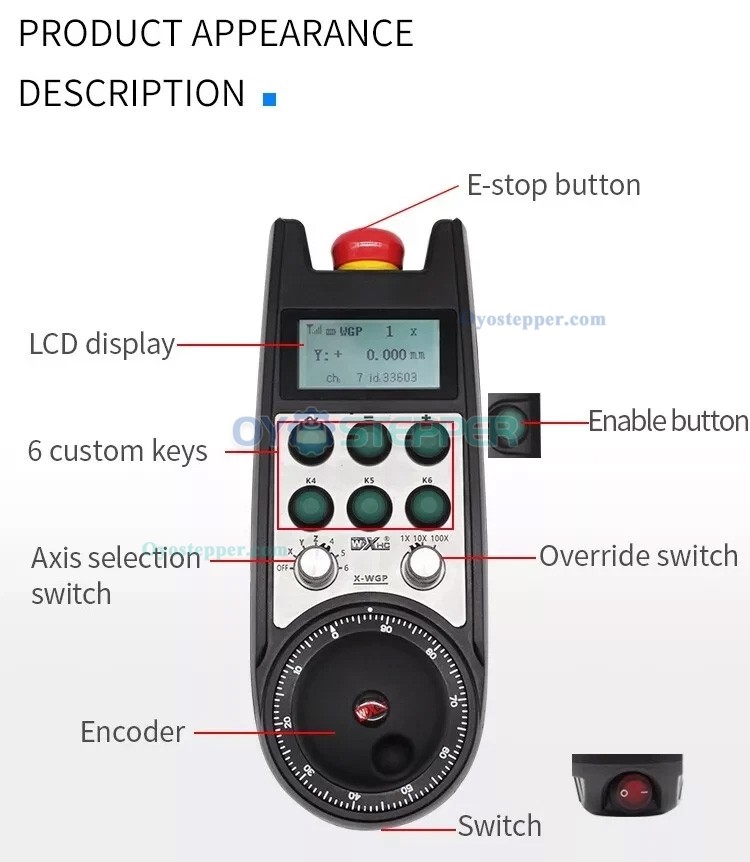

Equipped with an emergency stop button.

Provides 6 programmable button switch outputs.

Axis selection (6-speed) and magnification selection (3-speed) can be controlled via the handwheel or through Ethernet PLC read/write commands.

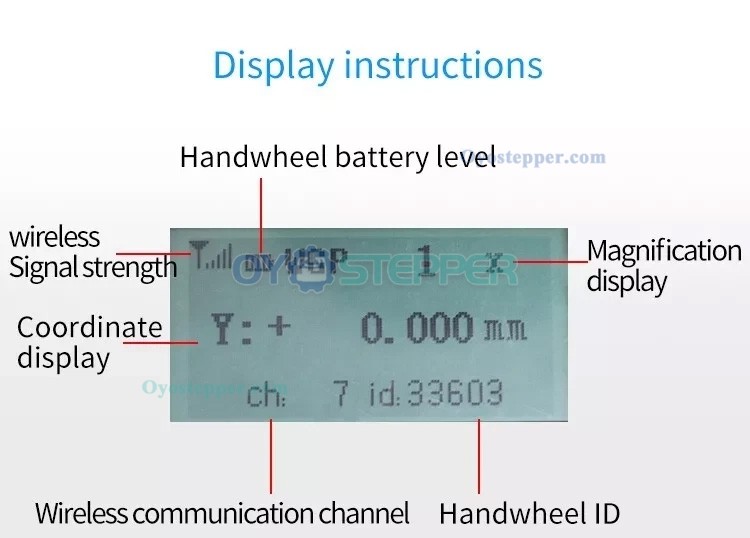

Data Display: Can read and display Siemens system data (e.g., workpiece/machine coordinates, feed rate, connection status) in real-time via Ethernet connection.

Signal Output: Supports multiple pulse signal types, including 5V differential and 24V pulses.

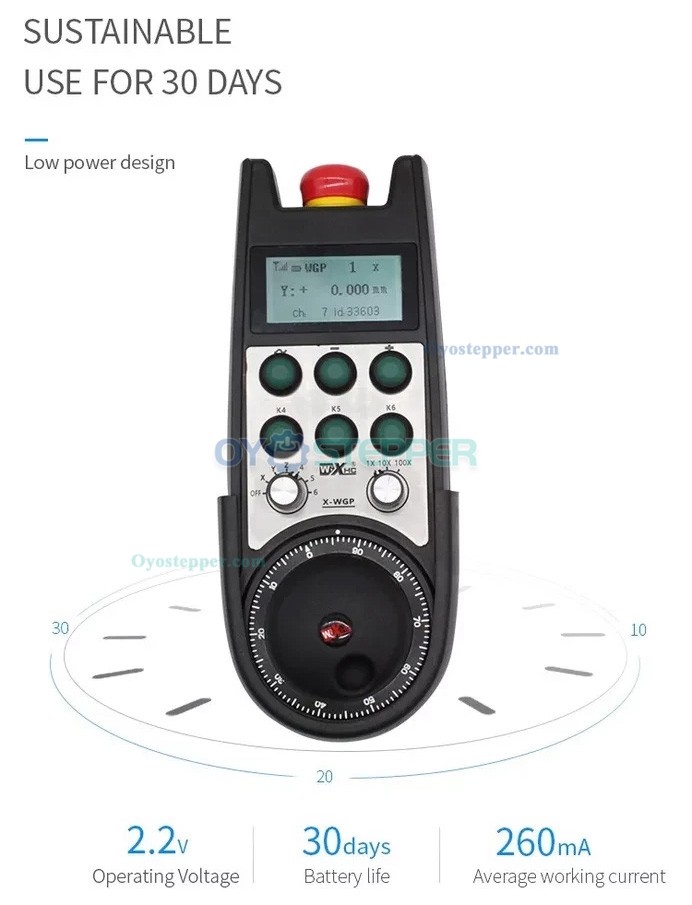

Power: Low-power design operates on 2 x AA batteries (batteries not included).



Package Includes

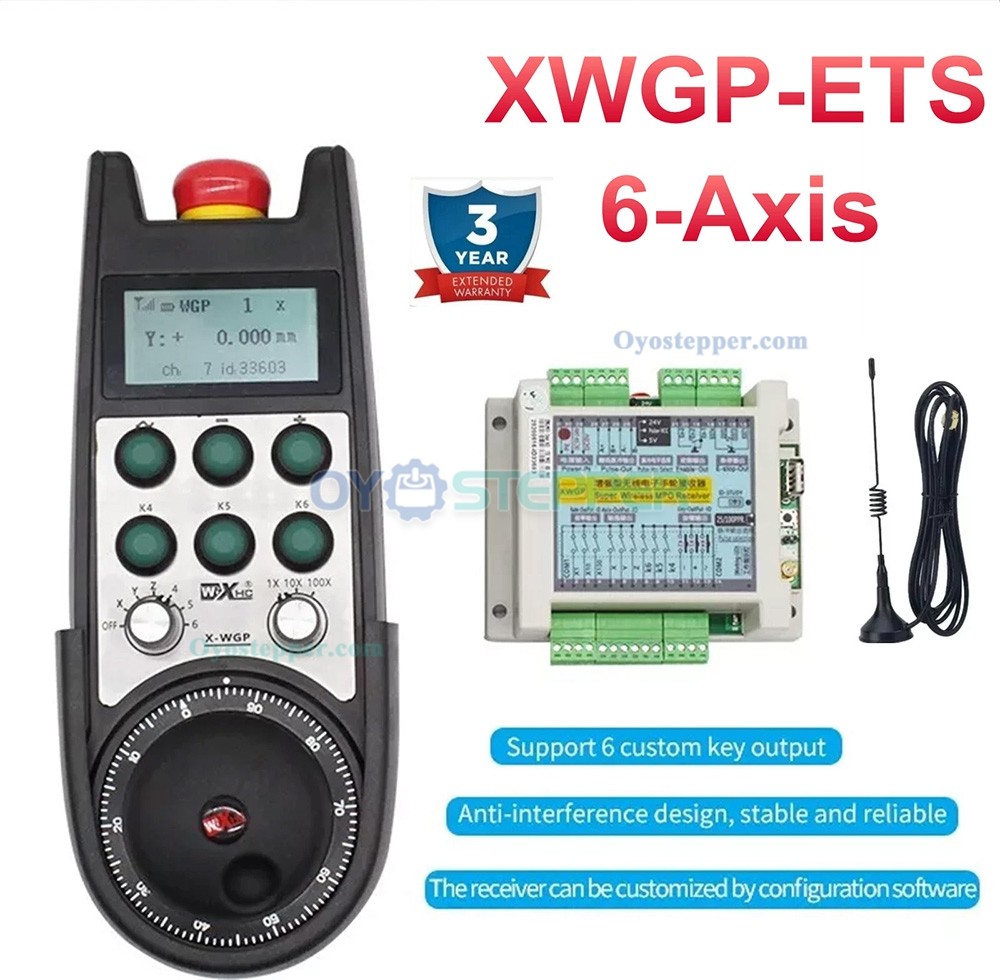

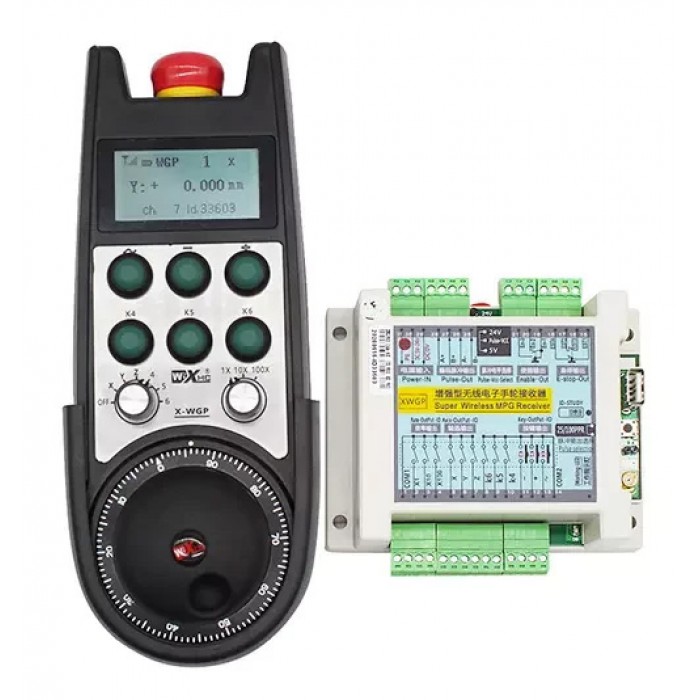

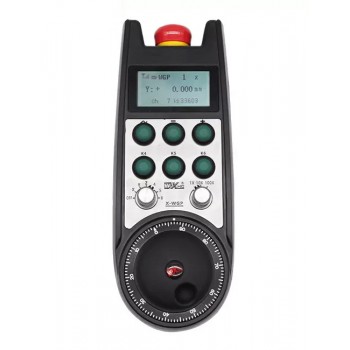

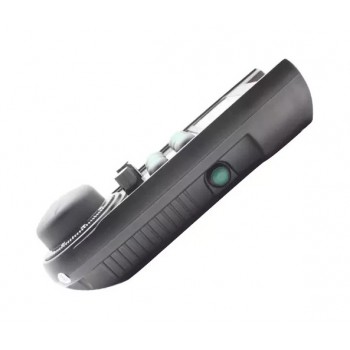

1 x XWGP-ETS 6-Axis Wireless MPG Handwheel

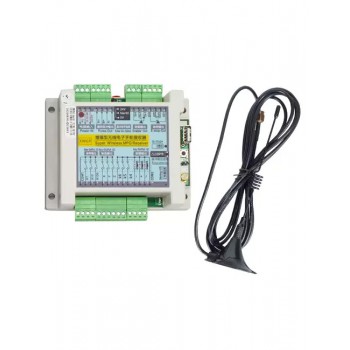

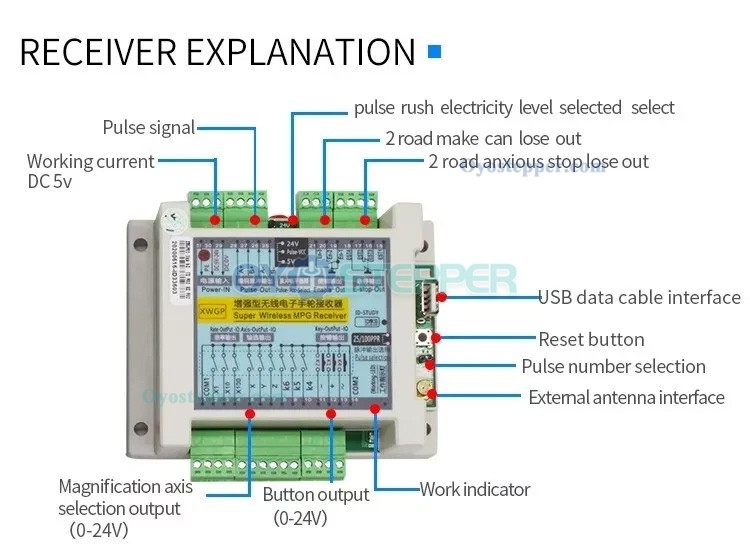

1 x Receiver Unit
