6 Axis / 4 Axis CNC Handwheel MPG Pendant 100 PPR with E-Stop For CNC Router Machine

6 Axis / 4 Axis CNC Handwheel MPG Pendant 100 PPR with E-Stop For CNC Router Machine

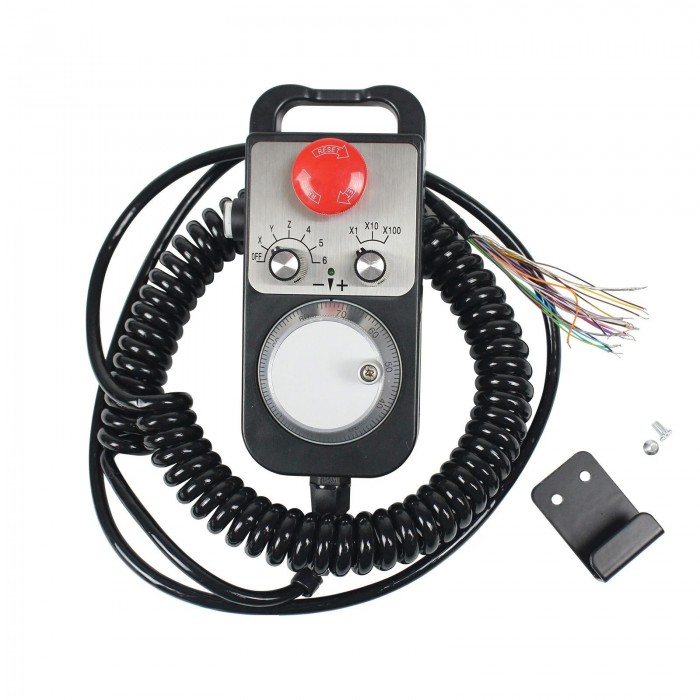

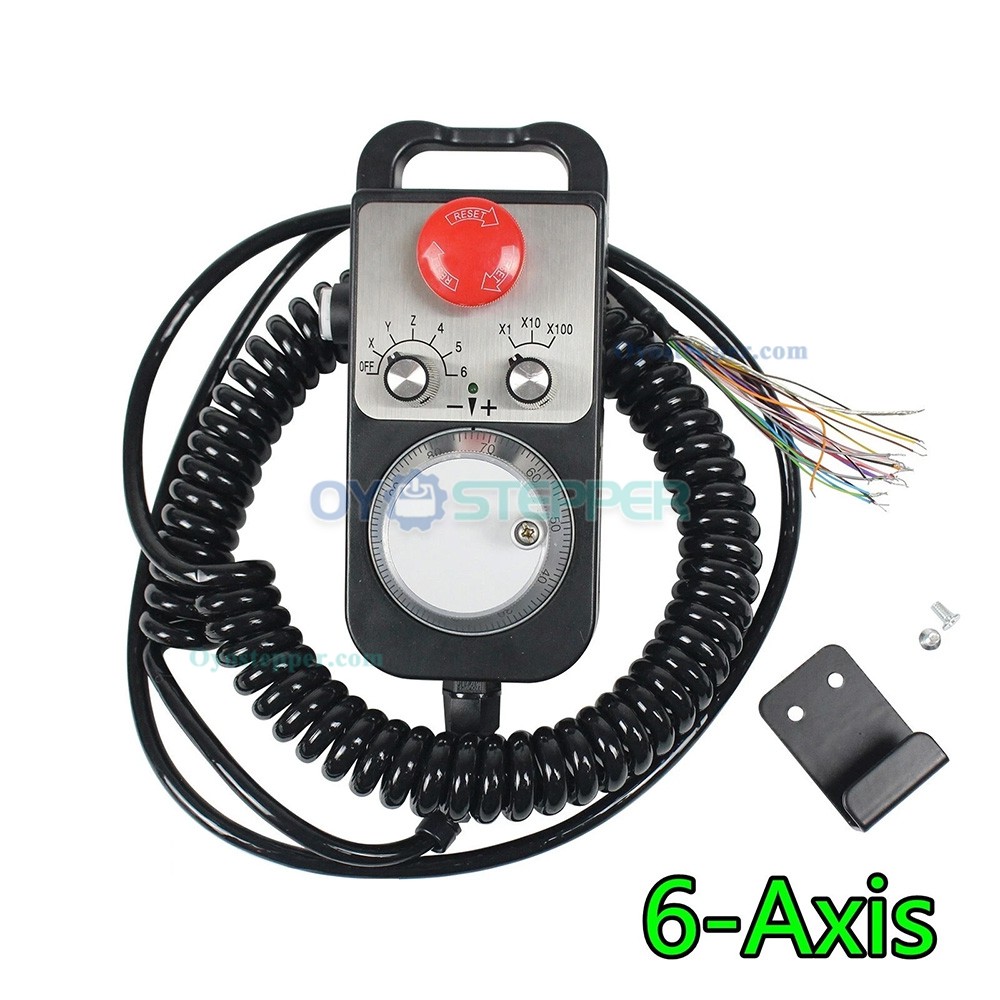

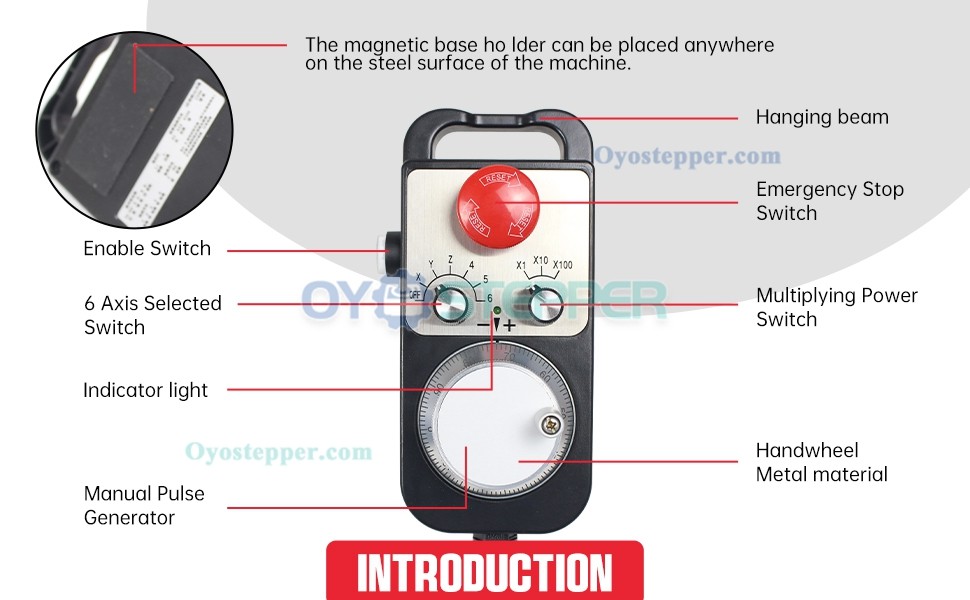

This is a handheld MPG (Manual Pulse Generator) pendant designed for CNC machine control. It features an integrated emergency stop button and a magnetic base for mounting.


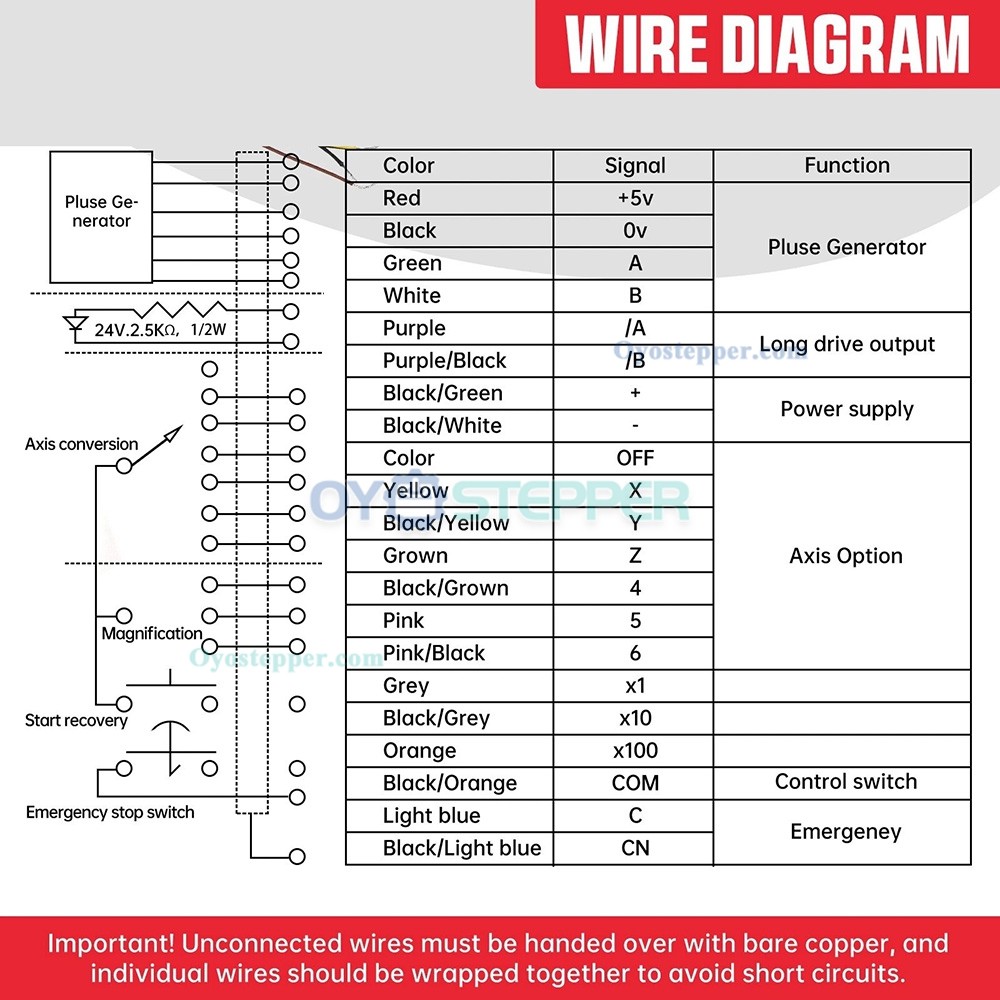

Specifications:

Axes & Control:

Compatible Axis Modes: 3, 4, 5, or 6-axis operation (selectable).

Axis Selection Switch: OFF, X, Y, Z, 4, 5, 6.

Pulse Multiplier Switch: x1, x10, x100.


Encoder Performance:

Resolution: 100 PPR (Pulses per Revolution).

Response Frequency: 0 - 10 kHz.


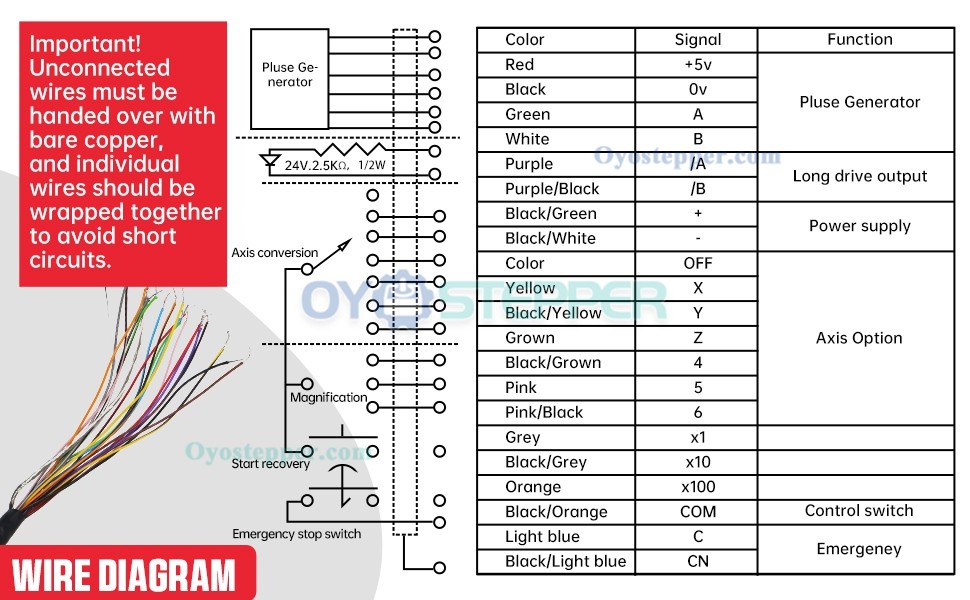

Electrical Parameters:

Supply Voltage: DC 5V ±5%.

Power supply: 150mA (driver draws ≤80mA).

Output Signal: High level ≥2.5V, Low level ≤0.4V.

Output Current: < 40mA.

Signal Rise/Fall Time: ≤ 5µs (typical).


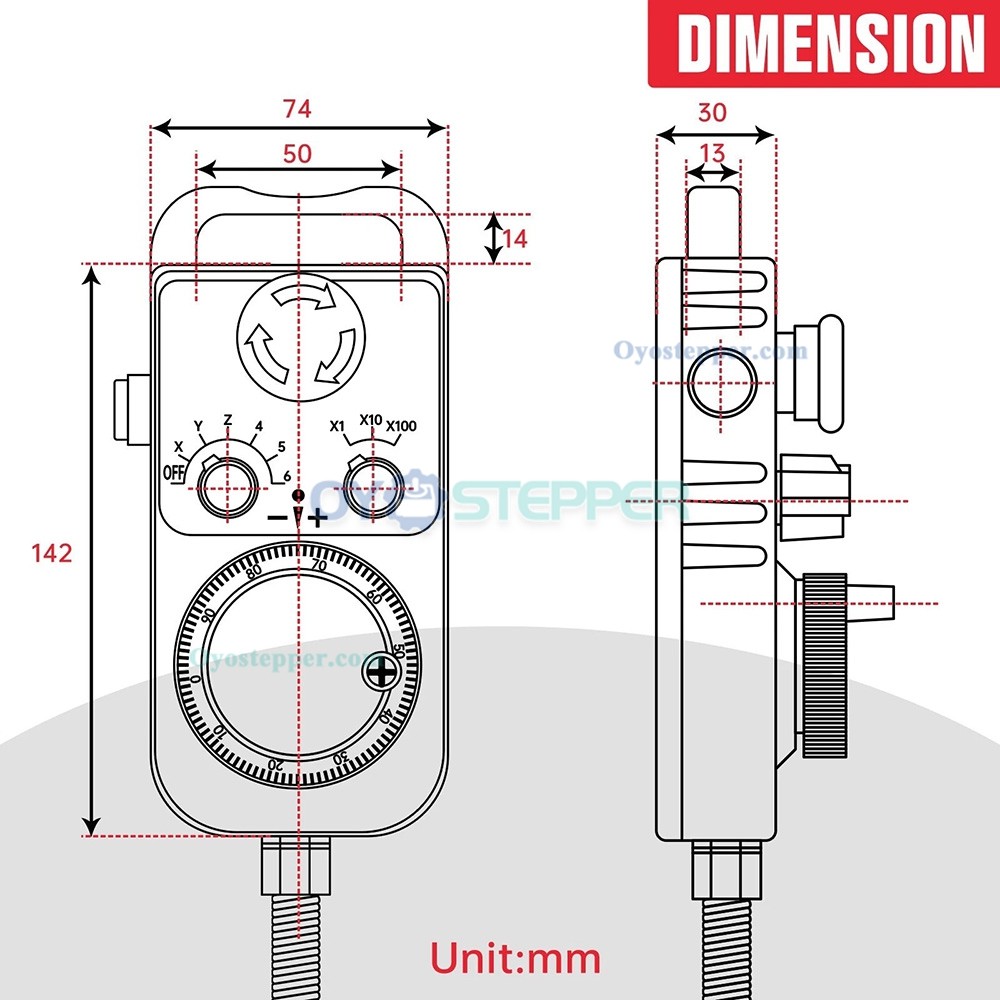

Physical Features:

Includes an LED status indicator.

Equipped with an extendable shielded cable.

Magnetic base allows mounting on ferromagnetic machine surfaces.


Package Includes:

1 x 6-Axis MPG Pendant Handwheel with Emergency Stop Button.
