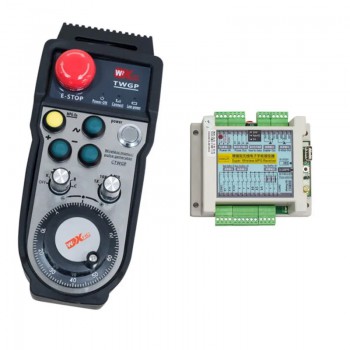

CTWGP 6 Axis CNC Wireless MPG 100 Pulse Generator Manual Handwheel

CTWGP 6 Axis CNC Wireless MPG 100 Pulse Generator Manual Handwheel

Specifications:

Model: CTWGP

Encoder: 100 pulses per revolution;

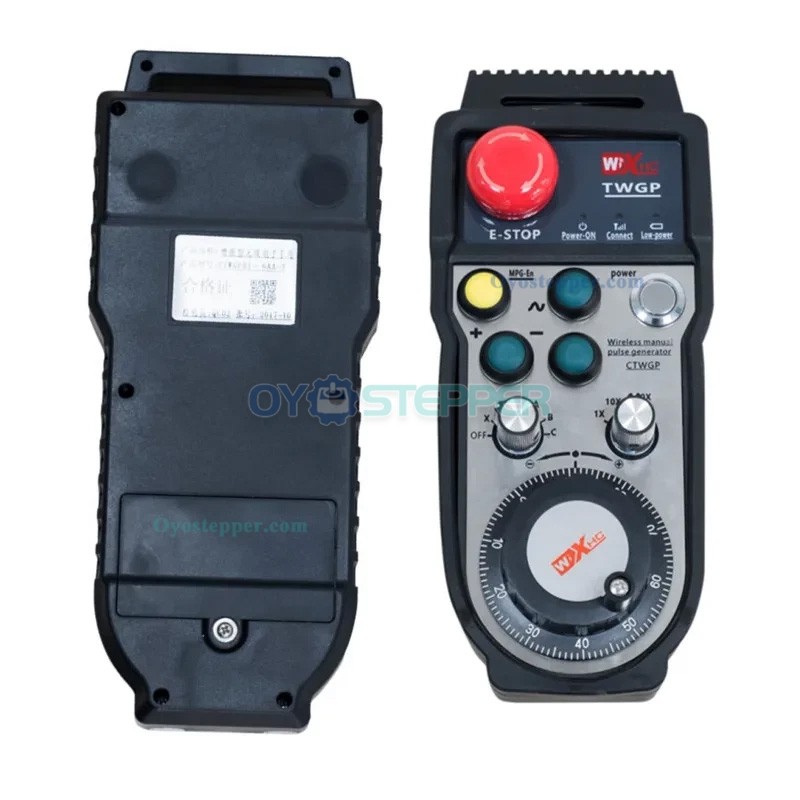

Controls:

1 Emergency Stop (E-stop) button

1 Axis selection switch (6 positions)

1 Multiplier (feed rate override) selection switch (3 positions)

3 User-defined function buttons ("-", "~", "+") providing switch signal output

1 Enable button (must be pressed for encoder signal output)


Output Signals:

Pulse Signal: 5V/24V differential (A, A̅, B, B̅)

Axis Selection Signal: Binary code or point-to-point signal

Multiplier Signal: Binary code or point-to-point signal

Maximum Supported Axes: 6 axes

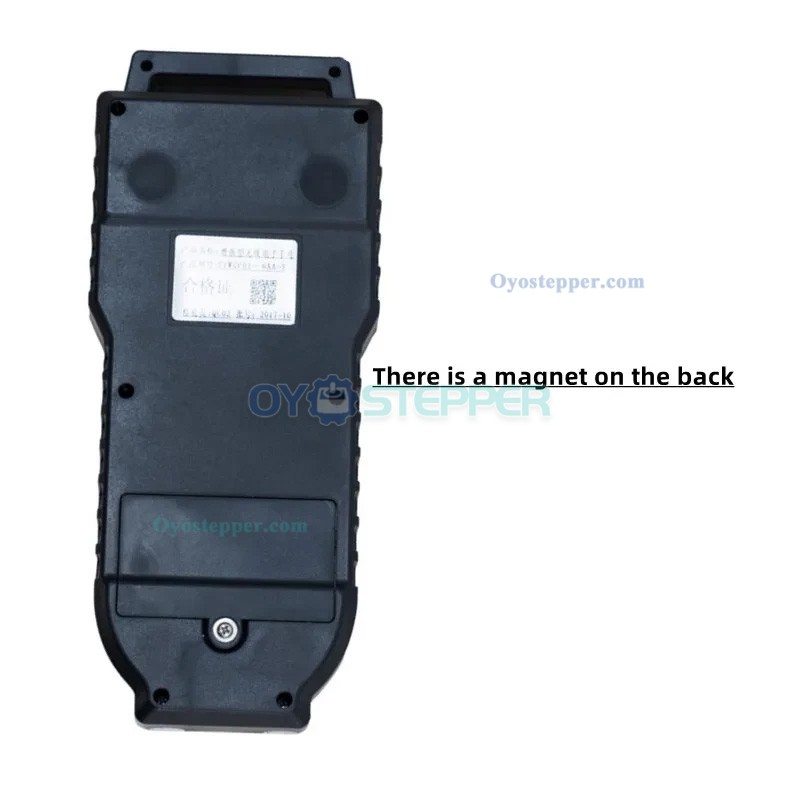

Power Supply: 2 x AA batteries

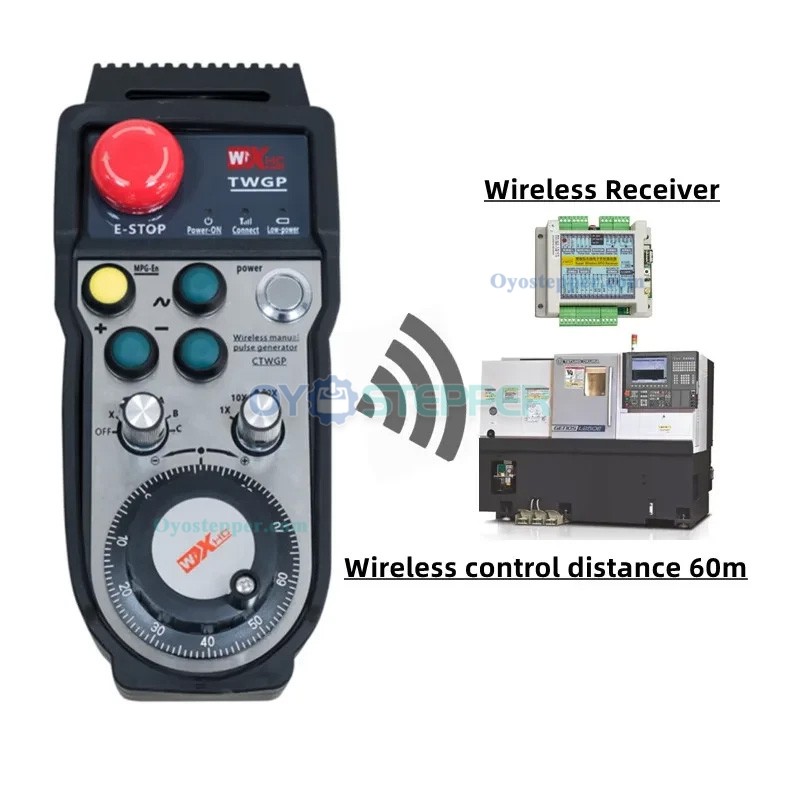

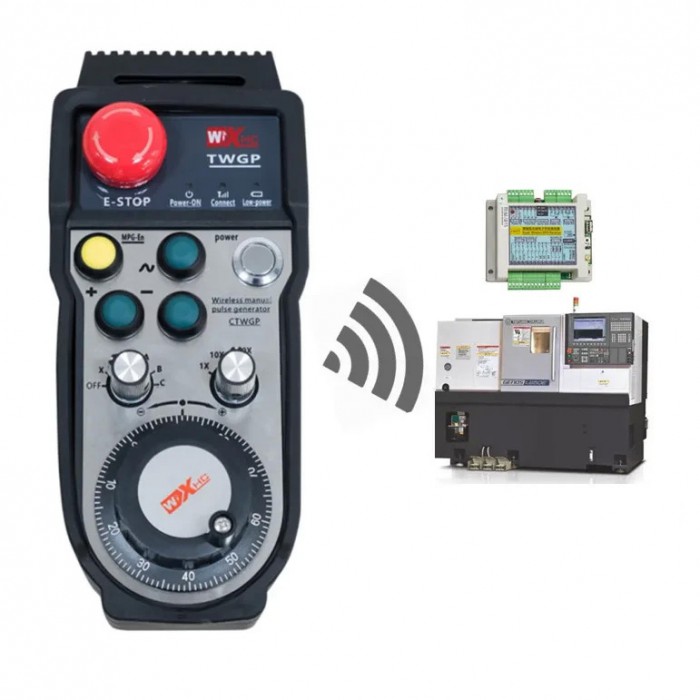

Receiver: Equipped with an external antenna


Compatibility:
Compatible with common CNC system protocols, including but not limited to: SIEMENS, MITSUBISHI, FANUC, FAGOR, NUM, Syntec.

Package Contents

1 x CTWGP 6-Axis Wireless MPG Handwheel;
