Nema 11 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 0.42A 5V Lead Revolution 0.635mm/0.025" Lead Screw 150mm
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$76.75

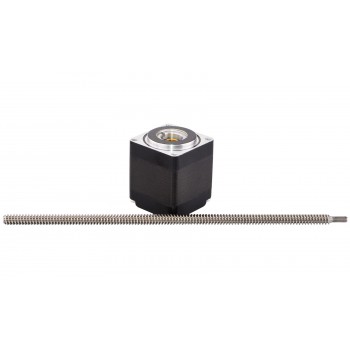

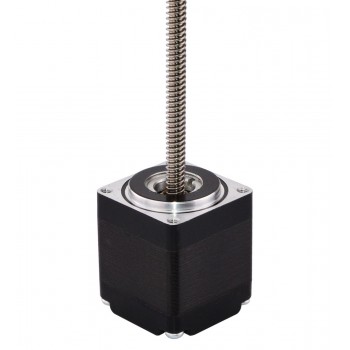

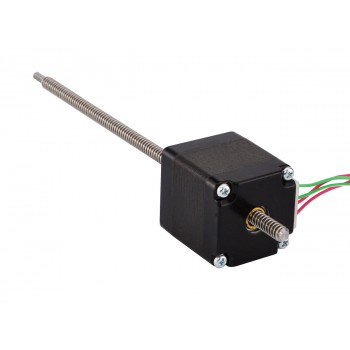

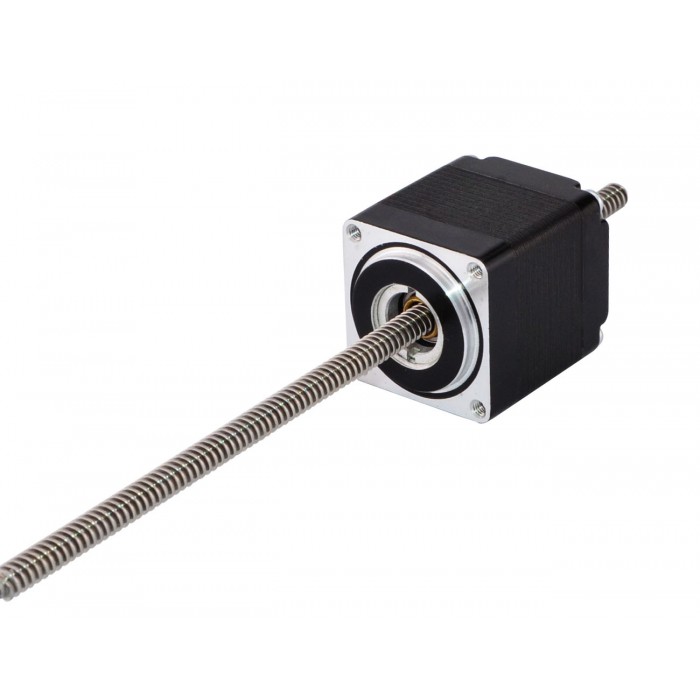

This model is almost exactly same as Haydon Kerk 28000 series size 11 non-captive stepper motor linear actuator. The motor part is 32mm body 1.8 degree 0.42A Nema 11 stepper motor, and it works with a 4.76mm (0.1874") diameter 150mm (5.9055") length lead screw, the linear travel is 0.635mm(0.025") per revolution.
Electrical Specification
- Manufacturer Part Number: 11LS13-04247-150N
- Motor Type: Non-captive Linear Stepper
- Step Angle: 1.8°
- Minimal Thrust: 57N (300pps)
- Rated Current/phase: 0.42A
- Phase Resistance: 11.9ohms
- Voltage: 5V
- Inductance: 6.7mH±20%(1KHz)
Physical Specification
- Frame Size: 28 x 28mm
- Body Length: 32mm
- Lead Screw Length: 150mm(5.9055")
- Lead Screw Diameter: Φ4.76mm(0.1874")
- Lead/Step: 0.003175mm(0.000125" )
- Lead Travel/Revolution: 0.635mm(0.025")
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 119g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
- Full Datasheet: 11LS13-04247-150N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 6 |
| Minimal Thrust(N) | 57 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 11.4 |
| Rated Current (A) | 0.42 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 32.2 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 0.635 |
| Linear Travel / Step(mm) | 0.003175 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 11 (28 x 28) |
