Nema 8 External Linear Stepper Motor Bipolar 1.8 Deg 0.24A 5V Lead Revolution 4mm/0.15748" Lead Screw 150mm

Nema 8 External Linear Stepper Motor Bipolar 1.8 Deg 0.24A 5V Lead Revolution 4mm/0.15748" Lead Screw 150mm
NO.:8LS11-0244AD-150E
Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$104.65
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $99.42 5%
5 $97.32 7%
10 $94.19 10%
50 $91.05 13%
Add To Cart

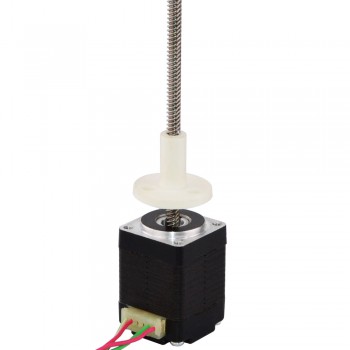

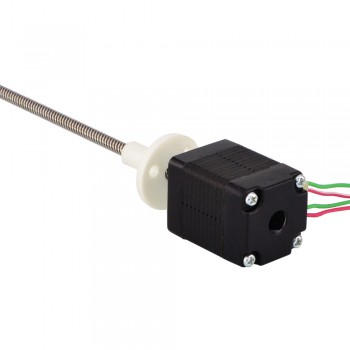

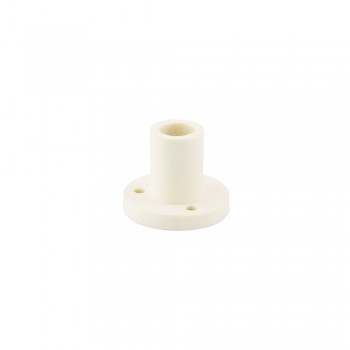

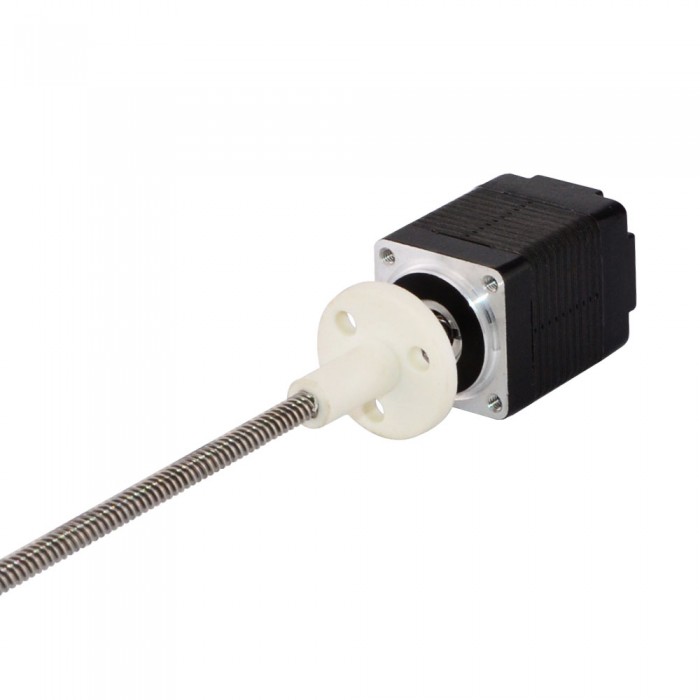

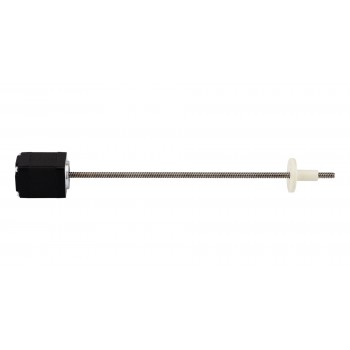

This model is almost exactly same as Haydon Kerk 21000 series size 8 external stepper motor linear actuator. The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it has integrated with a 3.5mm (0.1378") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 4mm (0.15748") per revolution.

Electrical Specification

Manufacturer Part Number: 8LS11-0244AD-150E

Motor Type: Non-captive Linear Stepper

Step Angle: 1.8°

Minimal Thrust: 10N (300pps)

Rated Current/phase: 0.24A

Phase Resistance: 20.4ohms

Voltage: 5V

Inductance: 3.88mH±20%(1KHz)



Physical Specification

Frame Size: 20 x 20mm

Body Length: 30mm

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ3.5mm(0.1378")

Lead/Step: 0.02mm(0.0007874" )

Lead Travel/Revolution: 4mm(0.15748")

Number of Leads: 4

Lead Length: 300mm

Weight : 43g



Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Full Datasheet: 8LS11-0244AD-150E.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 8 External Linear Stepper Motor Bipolar 1.8 Deg 0.24A 5V Lead Revolution 2mm/0.07874" Lead Screw 150mm
Next: Nema 11 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 0.42A 5V Lead Revolution 0.635mm/0.025" Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 3.83
Minimal Thrust(N) 10
Motor Type External
Phase Resistance(ohm) 21.3
Rated Current (A) 0.24
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 30
Lead Screw Diameter(mm) 3.5
Lead Screw Length(mm) 150
Lead Revolution(mm) 4
Linear Travel / Step(mm) 0.02
No. of Lead 4
Lead Length(mm) 300
Frame Size(mm) Nema 08 (20 x 20)
