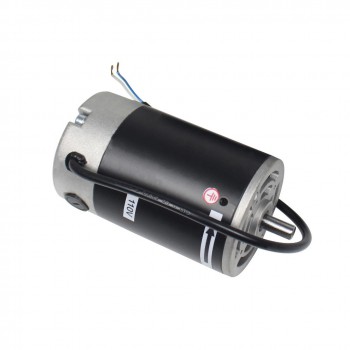

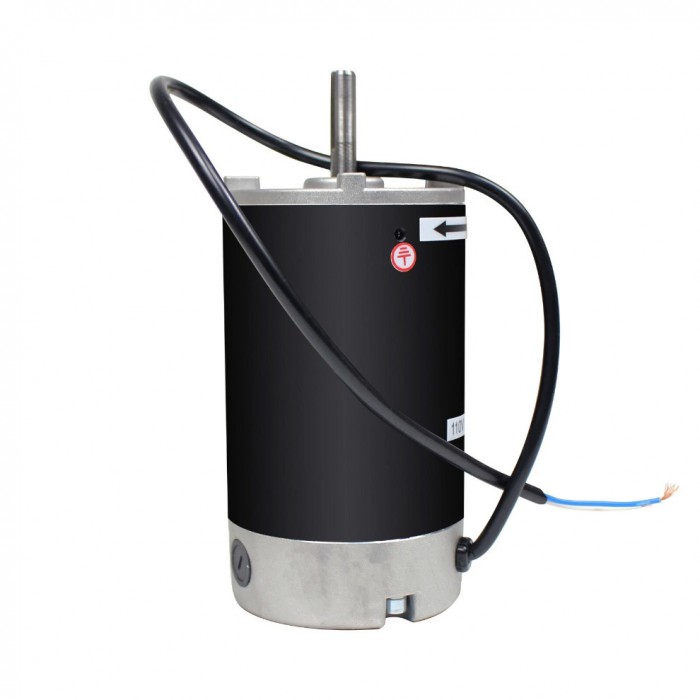

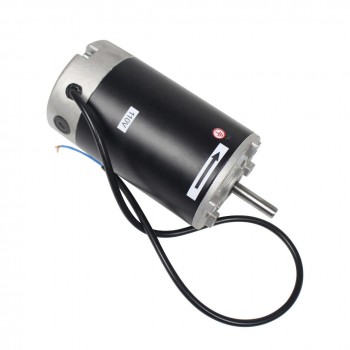

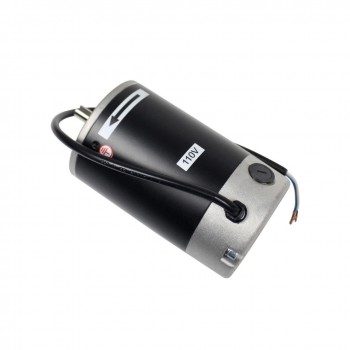

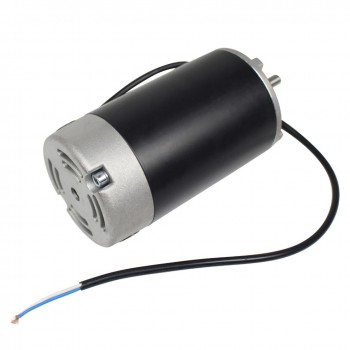

550W/750W Mini Lathe Motor 6000rpm For CJ0618 WM210V CD210V Lathe

550W / 750W Mini Lathe Motor 6000rpm For CJ0618 WM210V CD210V Lathe 110V

This 550W mini lathe motor is designed for use with small benchtop lathes. It is compatible with models such as 210, MX210, CD-210V, and lathes with working dimensions of 8x16, 220x400, 220x600, and 220x750.

Please be noted that:
The motor operates on 110V DC and must not be connected directly to a 110V AC mains supply. It requires a lathe speed controller to provide the correct DC power.


Specifications:

Type: Mini Lathe Motor

Material: Iron;

Rated Power: 550W/750W

Operating Voltage: 110V DC;

Note: The motor cannot be connected directly to 110V AC mains. It must be powered via the dedicated controller board which converts AC to DC.

Maximum Speed: 6000 RPM;

Motor Diameter: ~83 mm / 3.3 inches;

Total Length: ~158 mm / 6.2 inches;

Shaft Diameter: M10 (10mm metric thread);

Shaft Length: ~20 mm / 0.8 inches;

Mounting Hole Distance (Center-to-Center): ~50 mm / 1.96 inches;


Package List:
1 x Mini Lathe Motor
