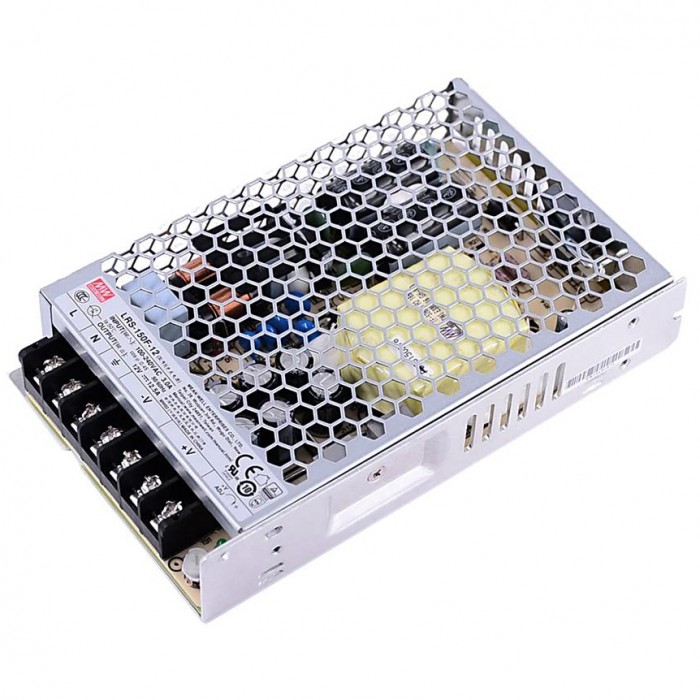

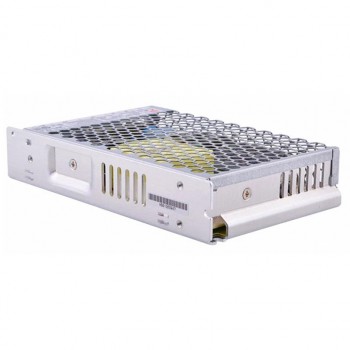

Mean Well LRS-150f-12 150W 12VDC 12.5A 115/230VAC Enclosed Switching Power Supply

Mean Well LRS-150f-12 150W 12VDC 12.5A 115/230VAC Enclosed Switching Power Supply
NO.:LRS-150f-12
Review: Post a review
Latest price:$26.83
Buy It Now:$17.89
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $17.52 2%
10 $17.14 4%
50 $16.77 6%
100 $16.39 8%
Add To Cart

LRS-150f-12 MEAN WELL 150W 12VDC 12.5A 115/230VAC Enclosed Switching Power Supply



MEANWELL LRS-150F series is a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30℃ through 70℃ under air convection without a fan.Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement.

LRS-150F has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV BS EN / EN62368-1, BS EN / EN60335-1,BS EN / EN61558-1/-2-16, UL62368-1 and GB4943. LRS-150F series serves as a high price-to-performance power supply solution for various industrial applications.



Features

Brand MEANWELL

12V DC 12.5A output

AC input voltage range: 85 ~ 264VAC

Rated power: 150W

Universal AC input / Full range

Withstand 300VAC surge input for 5 second

No load power consumption < 0.5W

Miniature size and 1U low profile

High operating temperature up to 70℃

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Compliance to IEC / BS EN / EN 60335-1(PD3) and IEC / BS EN / EN61558-1, 2-16 for household appliances

Operating altitude up to 5000 meters

Withstand 5G vibration test

High efficiency, long life and high reliability

LED indicator for power on

Over voltage category Ⅲ

100% full load burn-in test

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus

Household appliances



Resources

Full Datasheet: LRS-150F-12.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Meanwell LRS-150-48 150W 48VDC 3.3A 115/230VAC Enclosed Switching Power Supply
Next: Mean Well LRS-200-12 200W 12VDC 17A 115/230VAC Enclosed Switching Power Supply
Power Supply Specification
Max. Output Current(A) 12.5
Power(W) 150
Brand MEANWELL
Output Voltage(VDC) 12
Input Voltage(VAC/VDC) 85 - 264
PFC Function No
Dim.(LxWxH)(mm/in.) 159 x 97 x 30 / 6.26 x 3.82 x 1.18
Input Frequency(Hz) 47 - 63
Efficiency(%) 87.5%
Physical Specification
Product Type POWER SUPPLY
