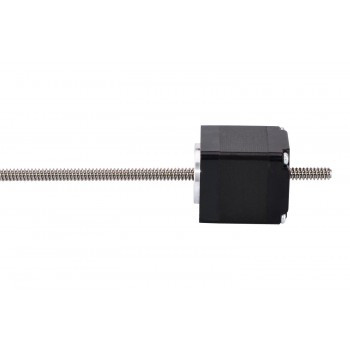

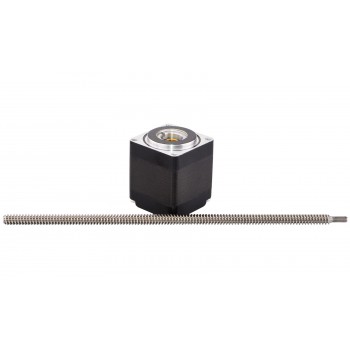

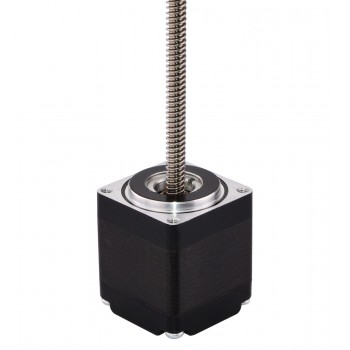

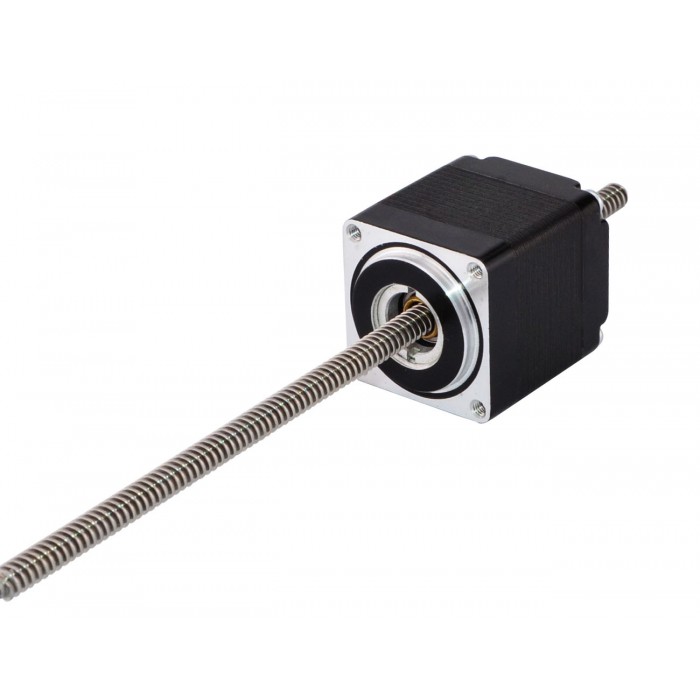

Nema 11 Non-captive 32mm Stack 0.42A Lead 2.54mm/0.1" Length 150mm

NO.:SKU:11LS13-04243-150N
Review: Post a review
Latest price:$80.34
Buy It Now:$61.80
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$59.86 $57.93 $56.00 $54.07
Add To Cart

This model is almost exactly same as Haydon Kerk 28000 series size 11 non-captive stepper motor linear actuator. The motor part is 32mm body 1.8 degree 0.42A Nema 11 stepper motor, and it works with a 4.76mm (0.1874") diameter 150mm (5.9055") length lead screw, the linear travel is 2.54mm(0.1") per revolution.

Electrical Specification

  • Manufacturer Part Number: 11LS13-04243-150N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 29N (300pps)
  • Rated Current/phase: 0.42A
  • Phase Resistance: 11.9ohms
  • Voltage: 5V
  • Inductance: 6.7mH±20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 32mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.0127mm(0.0005" )
  • Lead Travel/Revolution: 2.54mm(0.1")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 119g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 11 Non-captive 32mm Stack 0.42A Lead 1.27mm/0.05" Length 150mm
Next: Nema 11 Non-captive 32mm Stack 0.42A Lead 5.08mm/0.2" Length 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 6
Minimal Thrust(N) 29
Motor Type Non-Captive
Phase Resistance(ohm) 11.4
Rated Current (A) 0.42
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 32.2
Frame Size(mm) 28x28
Lead Screw Diameter(mm) 4.76
Lead Screw Length(mm) 150
Lead Revolution(mm) 2.54
Linear Travel / Step(mm) 0.0127
No. of Lead 4
Lead Length(mm) 300
