Nema 11 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 0.42A 5V Lead Revolution 5.08mm/0.2" Lead Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till October 7th, 2024
- Note:No coupon code needed, please place order directly!

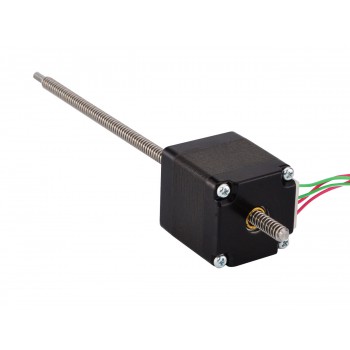

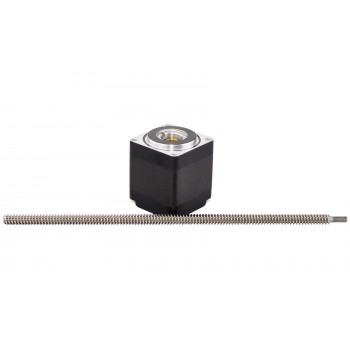

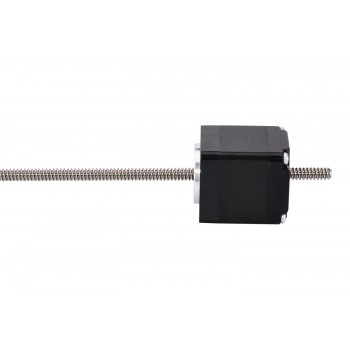

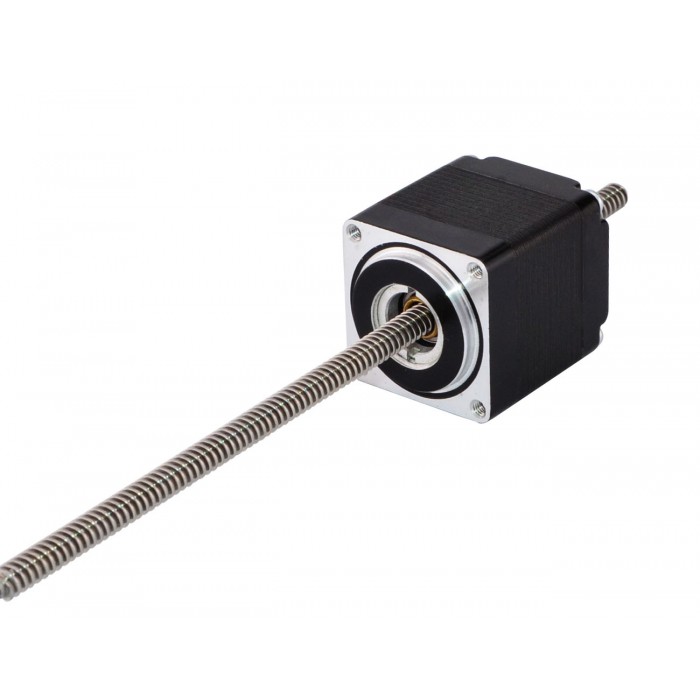

This model is almost exactly same as Haydon Kerk 28000 series size 11 non-captive stepper motor linear actuator. The motor part is 32mm body 1.8 degree 0.42A Nema 11 stepper motor, and it works with a 4.76mm (0.1874") diameter 150mm (5.9055") length lead screw, the linear travel is 5.08mm (0.2") per revolution.
Electrical Specification
Manufacturer Part Number: 11LS13-04241-150N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 10N (300pps)
Rated Current/phase: 0.42A
Phase Resistance: 11.9ohms
Voltage: 5V
Inductance: 6.7mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 32mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ4.76mm (0.1874")
Lead/Step: 0.0254mm(0.001" )
Lead Travel/Revolution: 5.08mm (0.2")
Number of Leads: 4
Lead Length: 300mm
Weight : 119g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 11LS13-04241-150N.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 6 |
| Minimal Thrust(N) | 10 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 11.4 |
| Rated Current (A) | 0.42 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 32.2 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 5.08 |
| Linear Travel / Step(mm) | 0.0254 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 11 (28 x 28) |
