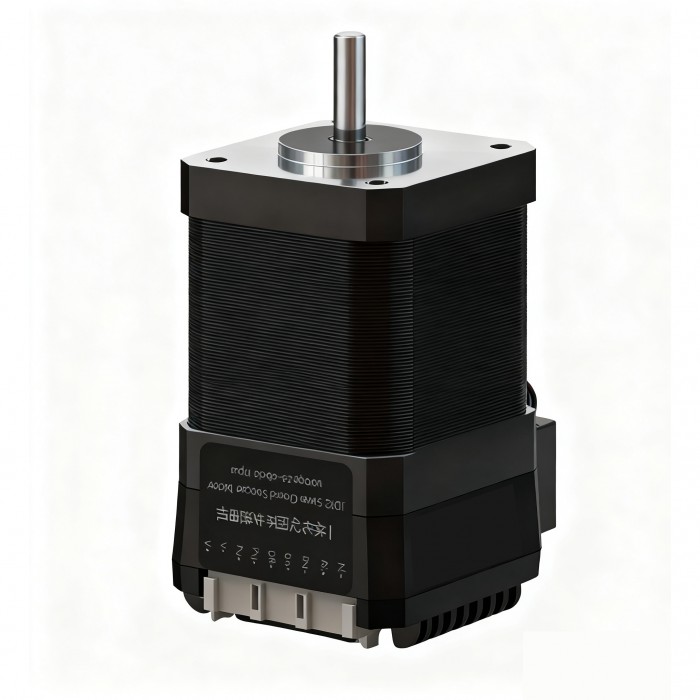

HBT42 Series Nema 17 Closed-loop Integrated Servo Stepper Motor with Drive 1000 Line Encoder

HBT42 Series Nema 17 Closed-loop Integrated Servo Stepper Motor with Drive 1000 Line Encoder

This product is an integrated motor and driver unit. It incorporates a position encoder and vector control technology, designed to address the issue of lost steps common in traditional stepper motors.


Technical parameters:
Model:HBT4240C
Body Length(mm):40mm /48mm / 60mm
Holding Torque(N.m):0.4
Flange Size (mm):NEMA17 42mm
Shaft Dia(mm):5
Phase Current(A):1.5
Phase Resistance (Ω):0.43
Moment Of inertia(g.cm²):57
Weight(kg):0.45
