12V Small Mini Micro Electric Linear Actuator 64N-188N 0.4" 0.8" 1.2" 2" 4" 6" 8"Stroke

12V Small Mini Micro Electric Linear Actuator 64N-188N 0.4" 0.8" 1.2" 2" 4" 6" 8"Stroke

Description
12V DC linear actuator with customizable stroke (10–200 mm) and load capacity (64–188 N). Includes integrated limit switches and is rated IP54. Used for automation, furniture adjustment, and DIY applications.


Features:

Available in load capacities of 64N, 96N, and 188N, with corresponding speeds of 15 mm/s, 9.5 mm/s, and 5 mm/s.

Built-in travel limit switches provide automatic stopping at stroke ends.

Includes two U-type brackets for installation.

IP54-rated housing.

Designed to operate below 50dB during use.



Specifications:

Input Voltage: 12 V DC

Load Capacity Options: 64 N / 96 N / 188 N

Speed Options: 15 mm/s / 9.5 mm/s / 5 mm/s

Stroke Range: 10–200 mm (customizable)

Reduction Ratio: 1:298

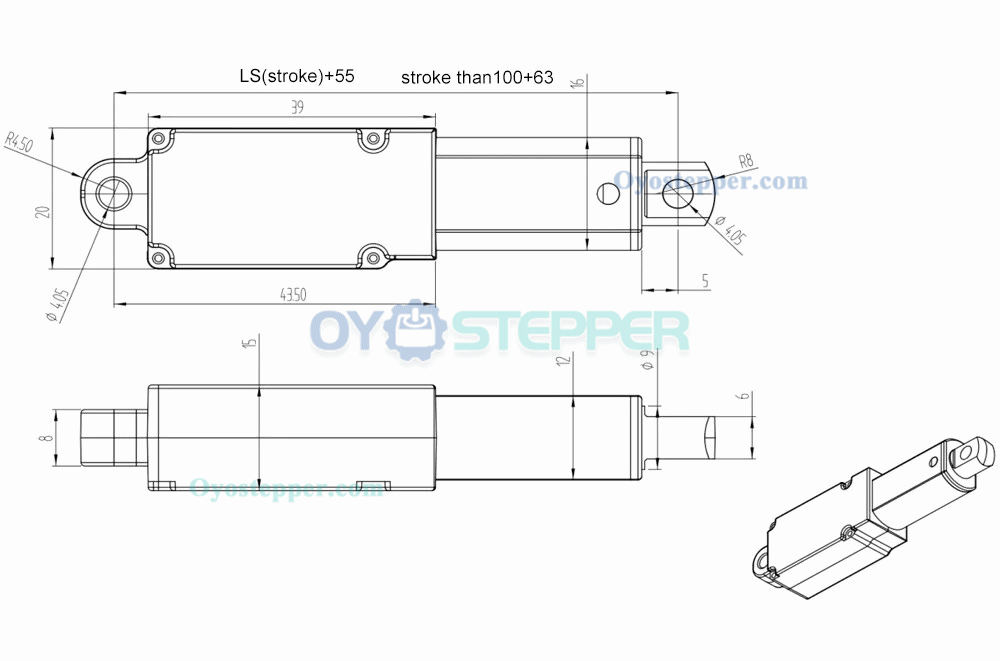

Mounting Length (L):

If stroke ≤ 100 mm: L = Stroke + 57.5 mm

If stroke > 100 mm: L = Stroke + 63 mm

Protection Rating: IP54

Duty Cycle: 15%

Noise Level: < 50 dB

Rated Life Cycle: 30,000 cycles

Limit Switches: Built-in, factory-set according to stroke

No-Load Current: 0.05–0.1 A

Rated Load Current: 0.2–0.7 A

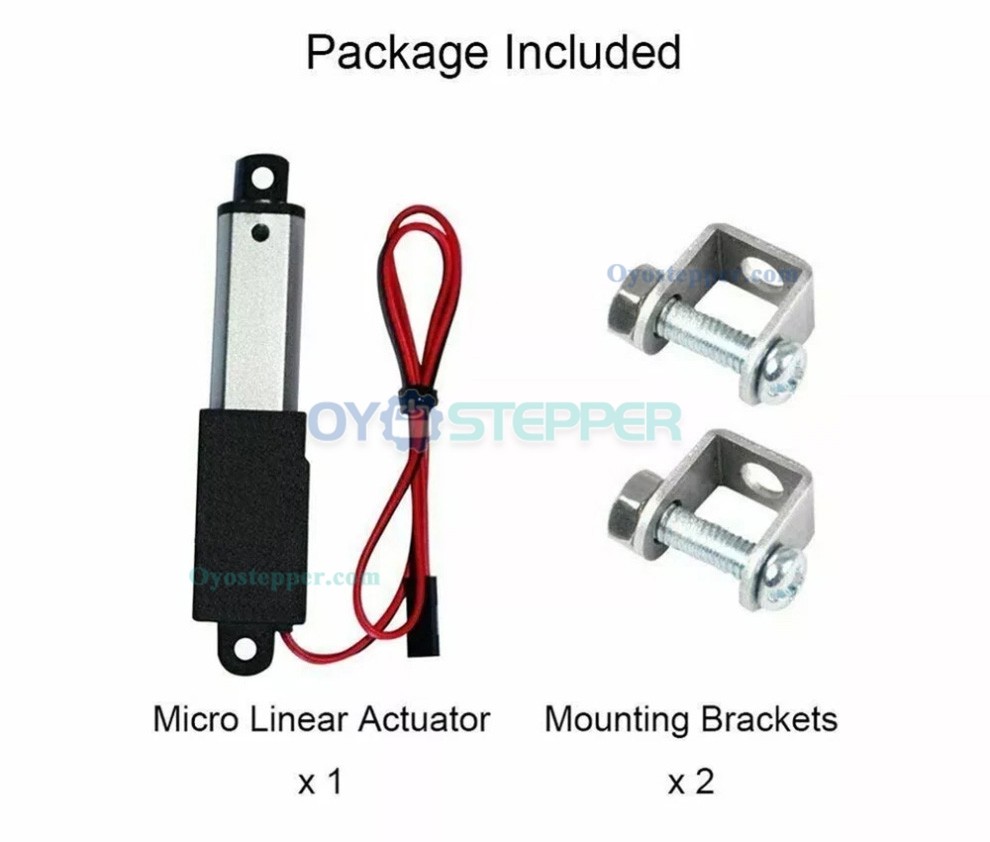

Package Includes
1 × Linear Actuator with Pre-attached U-brackets
