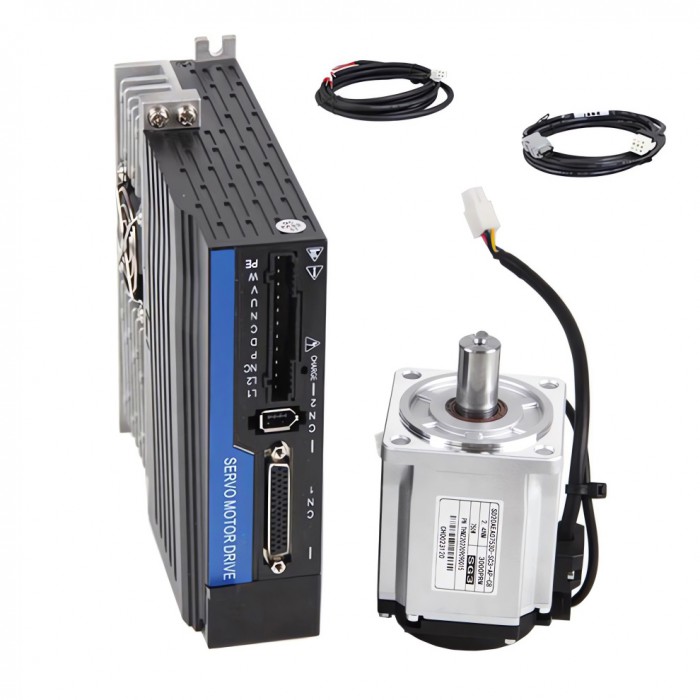

100W-1000W AC Servo Motor EtherCAT Drive CNC Kit 0.318-3.18 N.m with 21 Bit Magnetic Encoder

100W-1000W AC Servo Motor EtherCAT Drive CNC Kit 0.318-3.18 N.m with 21 Bit Magnetic Encoder

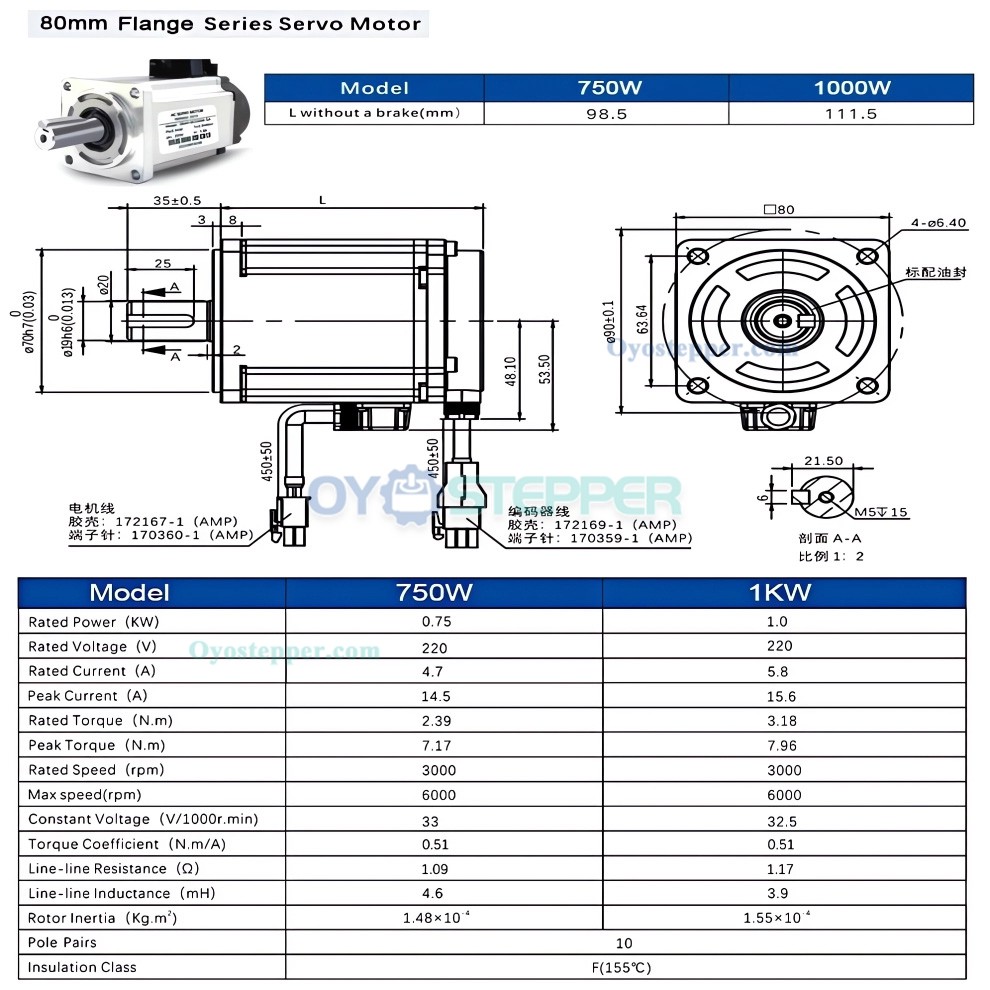

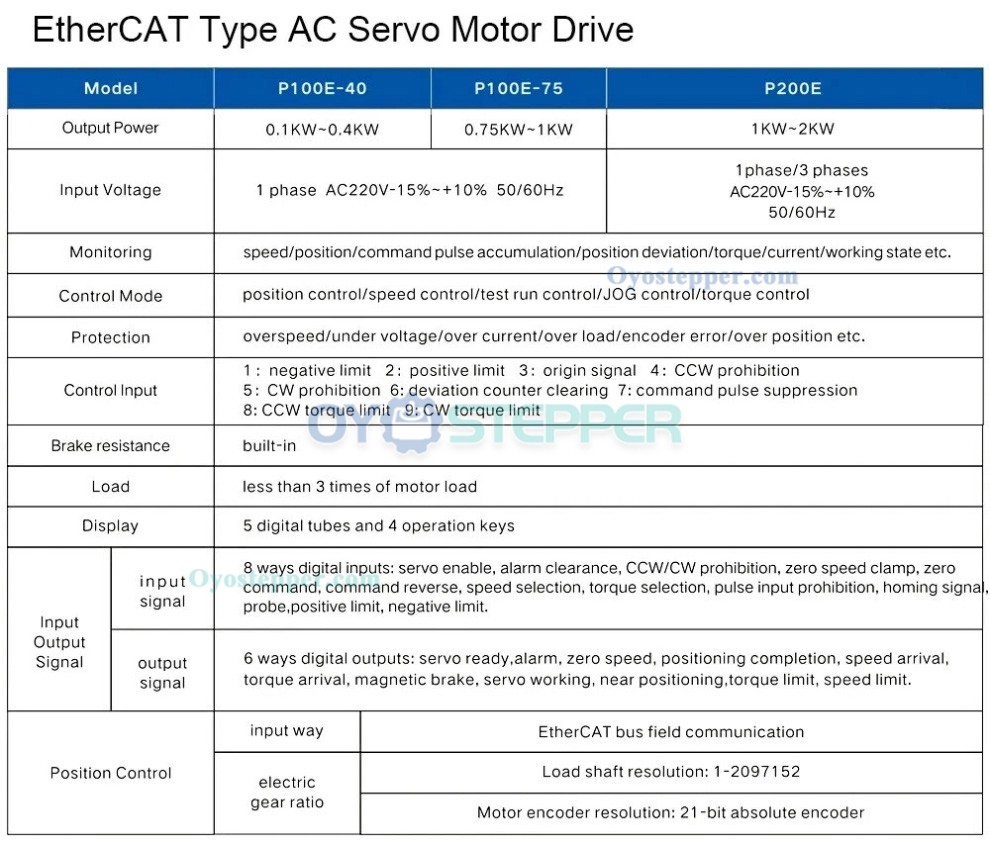

Specifications:
Magnetic Encoder: 21-bit, single-turn.
Rated Power Range: 100W to 1000W (0.1KW to 1KW).
Rated Torque: 0.318- 3.18 N.m.

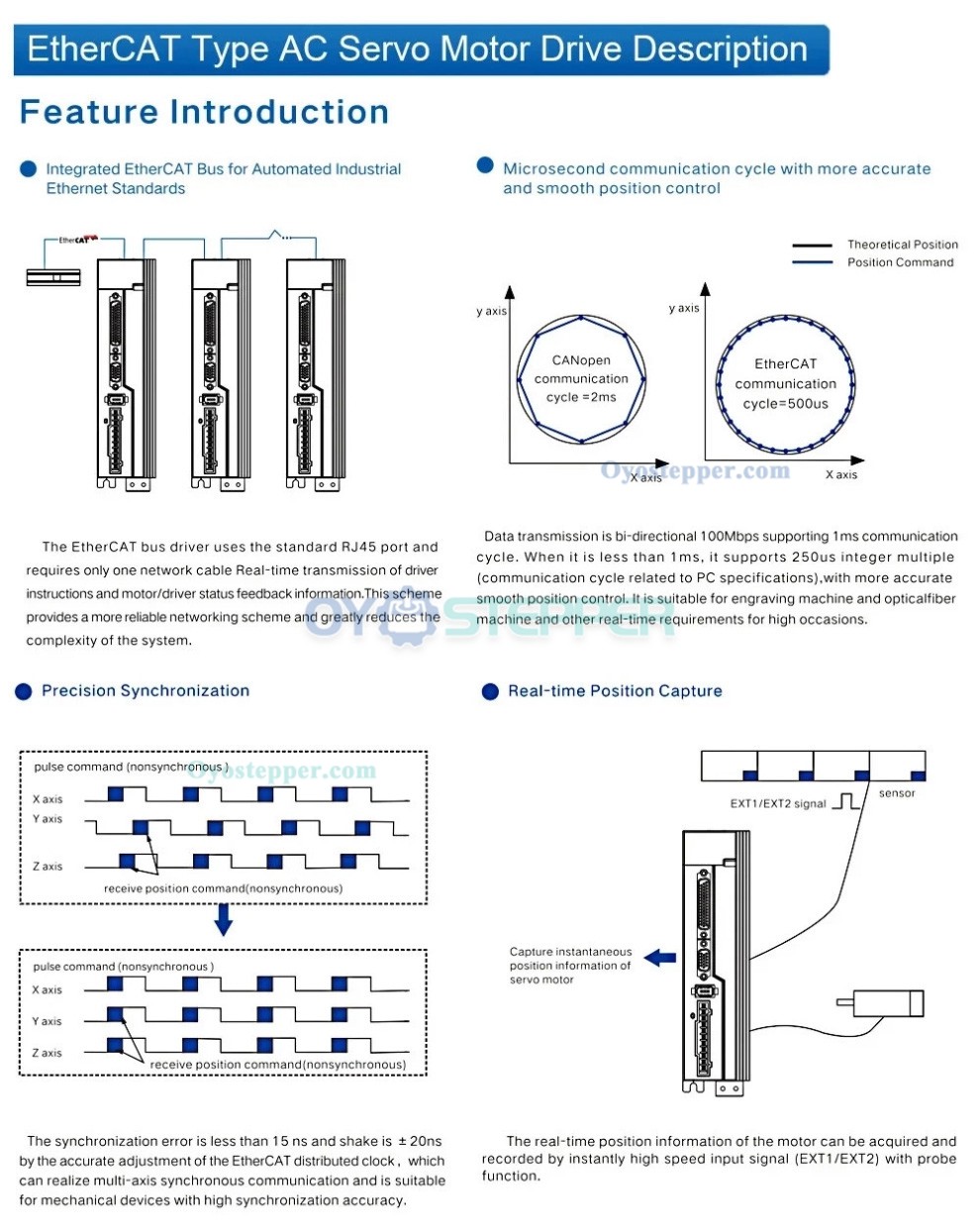

Communication Interface: EtherCAT bus protocol.
Rated Voltage: AC 220V.
Rated Speed: 3000 RPM (6000 RPM maximum).
Motor Insulation Class: F (155°C).
Maximum Allowable Load Inertia: 3 times the motor inertia.
Control Modes: Position, speed, torque, and hybrid control modes.
Feedback: Servo drive provides alarm status signals.
Braking Method: Dynamic energy braking resistor.
I/O Signals: User-configurable input and output signals.
Protection Functions: Overspeed and overcurrent protection.
Torque Accuracy: 0.29–0.53 N.m/A.

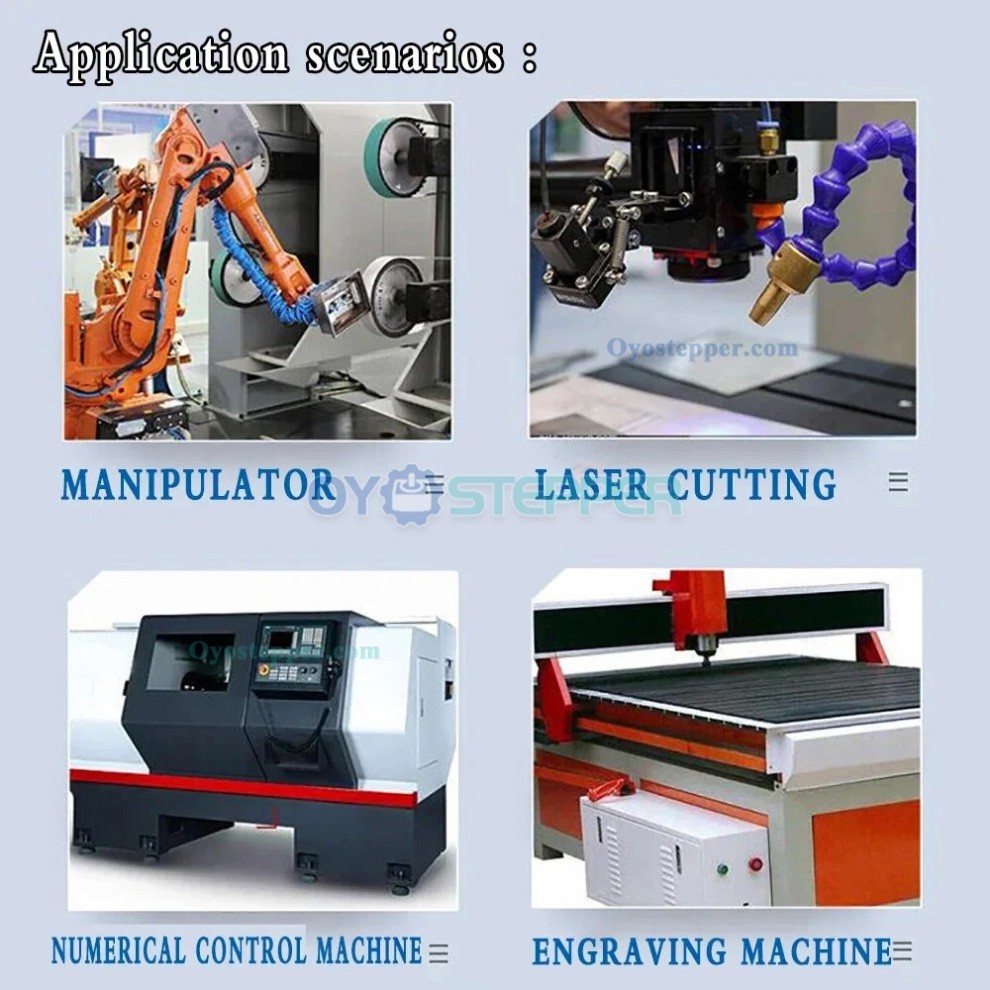

Typical Applications:
Automation systems (e.g., robotic arms, conveyors, pick-and-place units).
CNC machinery (e.g., lathes, milling machines).
Packaging and textile equipment (e.g., labelers, cutters, winders).

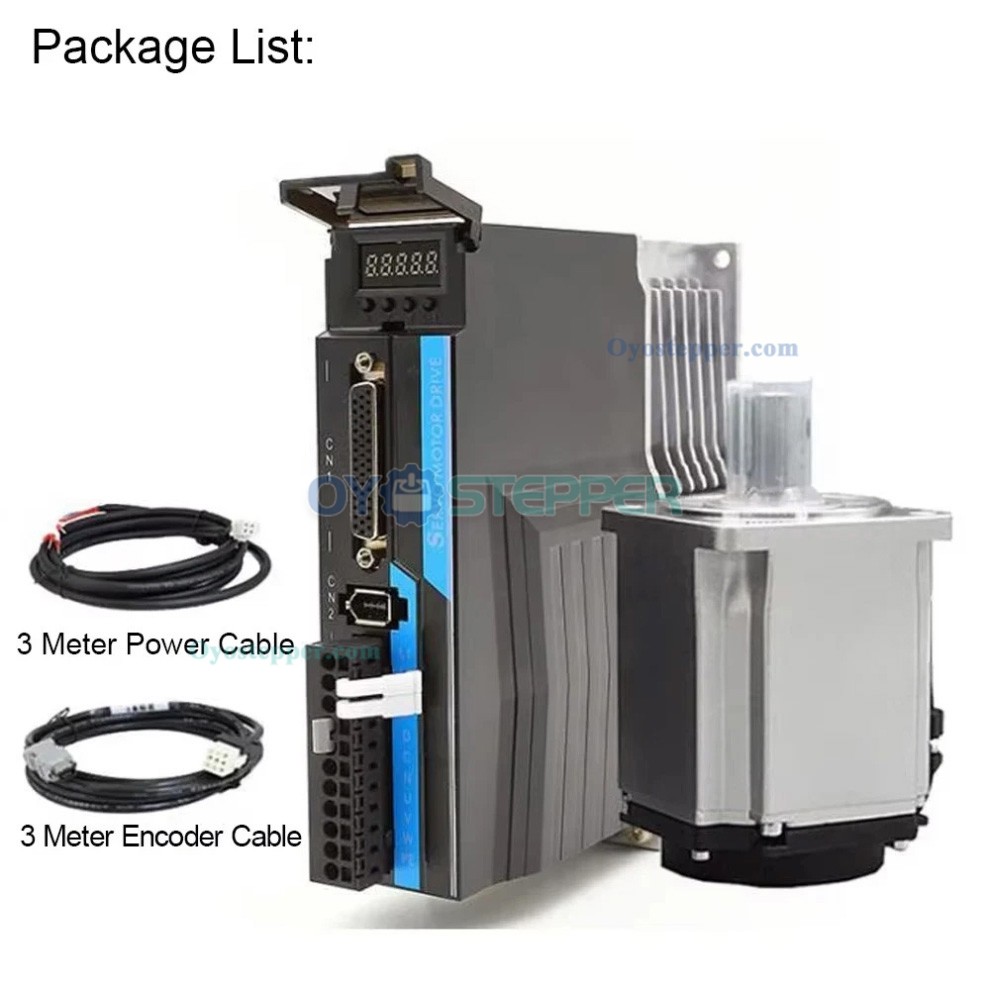

Package list
1 X Servo Motor
1 X Driver (EtherCAT Type 21 Bit Single Magnetic Encoder)
1 X 3M Encoder Cable
1 X 3M Power Cable
Note:(If you want 23 bit Encode, you can contact us before purchasing);
