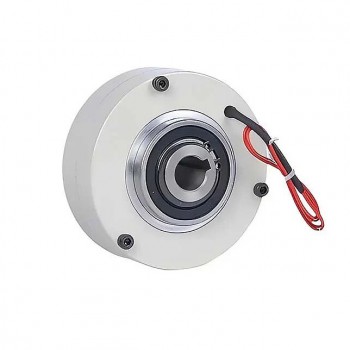

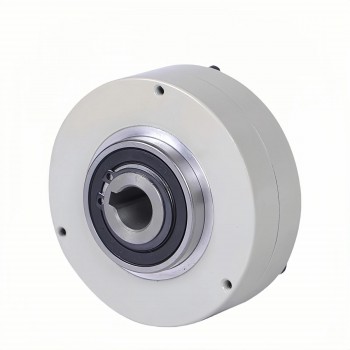

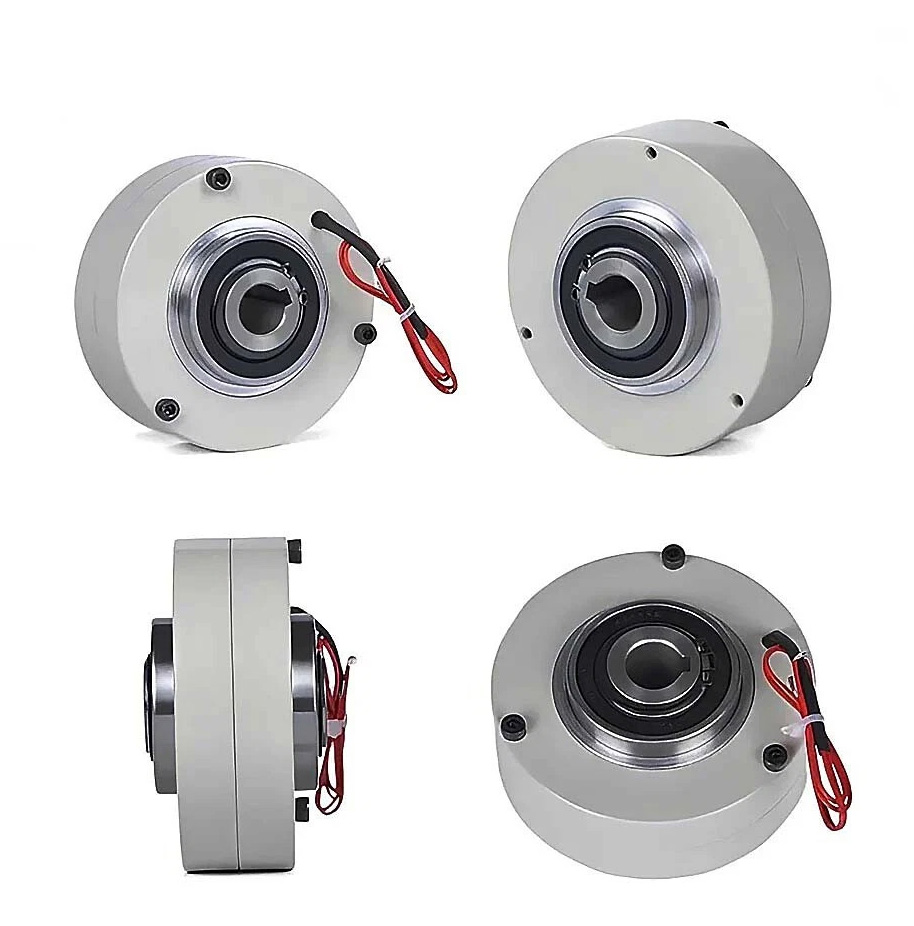

Mini Magnetic Particle Brake Hollow Shaft 3-100Nm with Manual Tension Controller Kit

Mini Magnetic Particle Brake Hollow Shaft 3-100Nm with Manual Tension Controller Kit

The Mini Magnetic Particle Brake provides adjustable braking torque from 3Nm to 100Nm for winding, unwinding and tension control applications. It can be used in printing, packaging, textile, paper, wire and other industrial machinery.

Features:
Stepless Torque Control
3–100Nm adjustable torque via current regulation for winding and unwinding tension control.

Braking Control
Adjustable braking torque for film, paper, yarn, wire and other continuous materials.

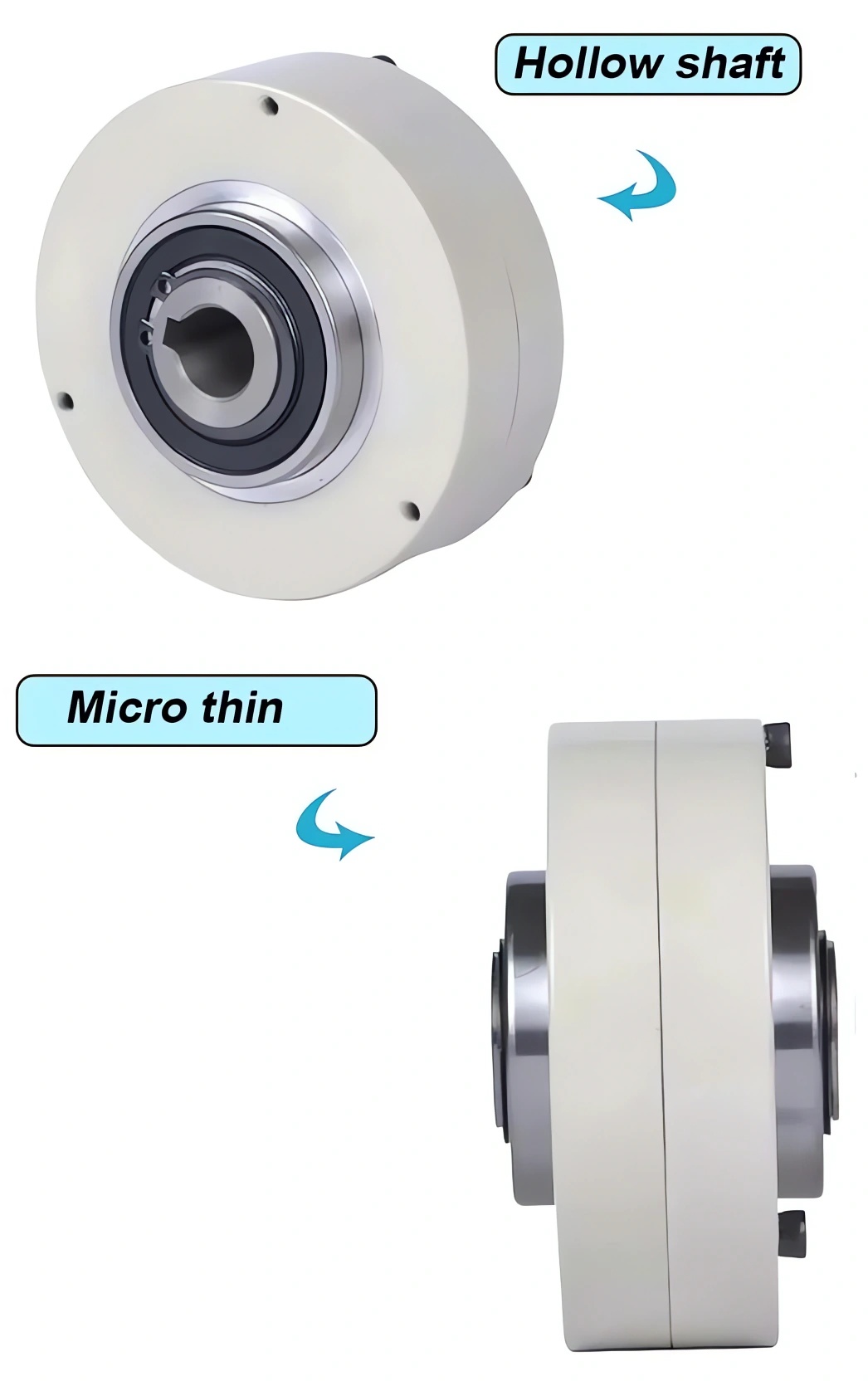

Hollow Shaft Design
Thin structure for integration into winding equipment and space-limited machinery.

24V DC Operation
Designed for use with compatible tension controllers and control systems.

Response Control
Torque output responds to changes in control current during operation.

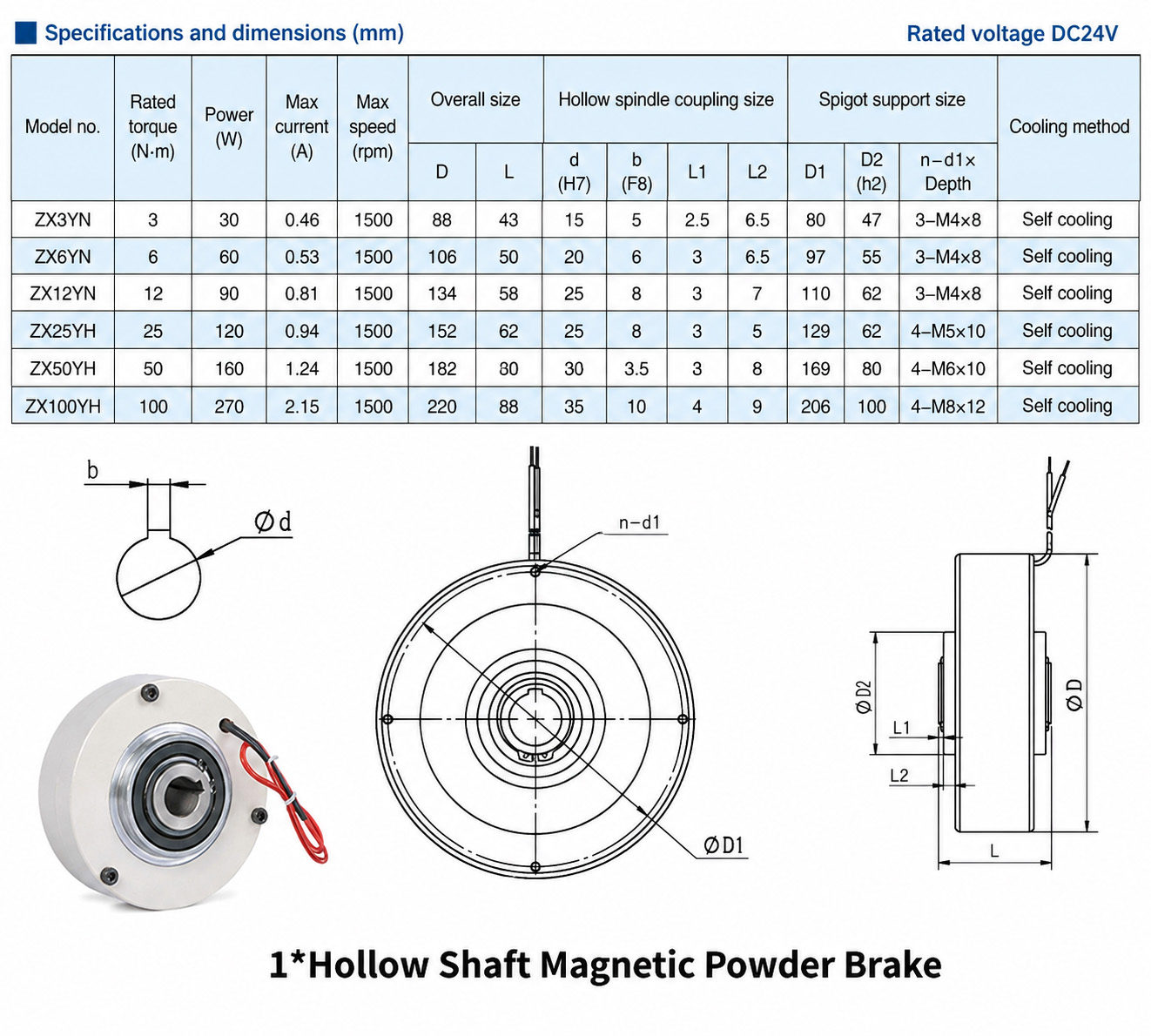

Specifications:
Torque Range: 3–100Nm
Rated Voltage: 24V DC
Torque Adjustment: Stepless Current Control
Shaft Type: Hollow Shaft
Main Function: Braking / Tension Control
Application: Winding / Unwinding Systems

Applications
Printing and converting machinery
Film and paper winding systems
Textile and yarn equipment
Packaging machinery
Wire and cable winding
Roll-to-roll tension control

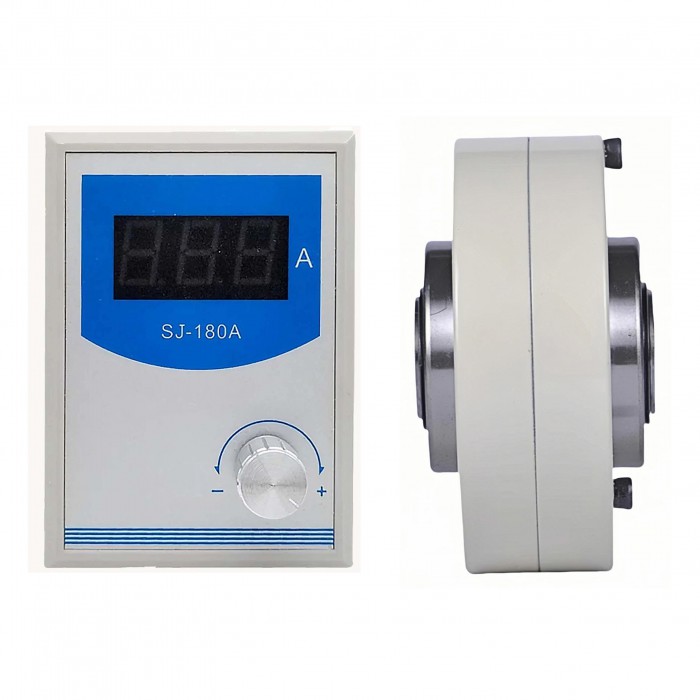

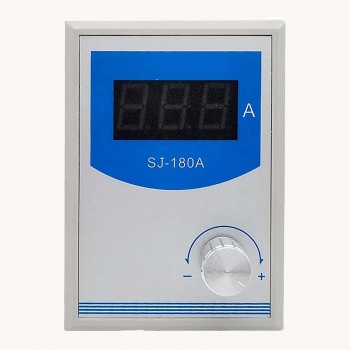

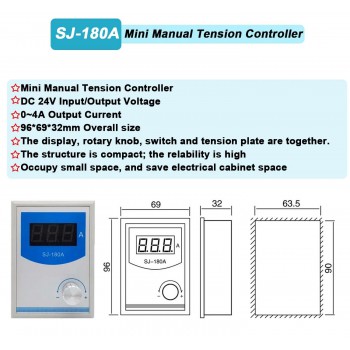

SJ-180A Manual Magnetic Powder Tension Controller 24V 0-4A Magnetic Particle Brake / Clutch

Parameters:
Model: SJ-180A
Input Voltage: DC24V
Output Voltage: DC24V
Out Current: 0~4A
Overall size: 96X69X32MM
Type: Manual controller / PLC / Potentiometer
