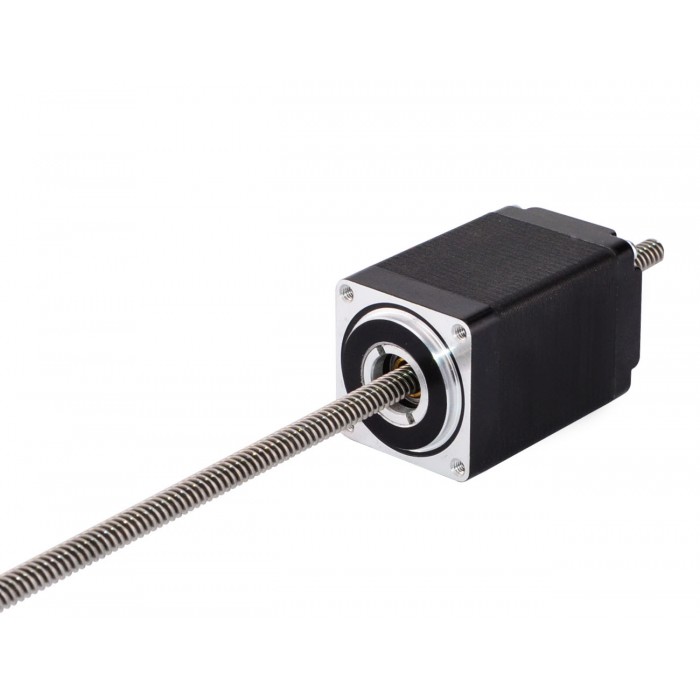

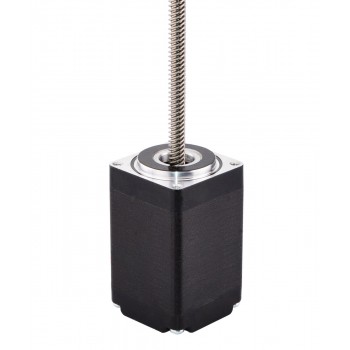

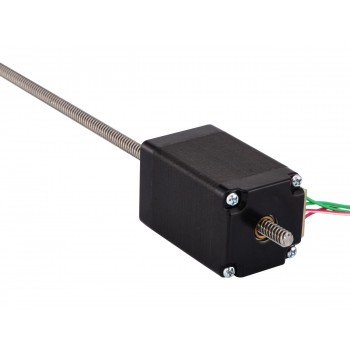

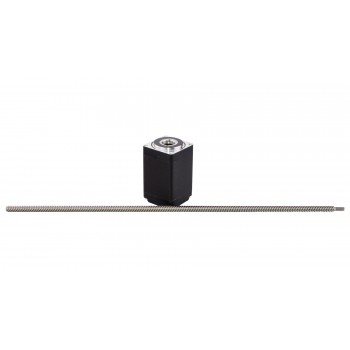

Nema 11 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 0.75A 5V Lead Revolution 1.27mm/0.05" Lead Screw 250mm
- Manuals and Documentation: Full Datasheet:
Our Price:$99.07

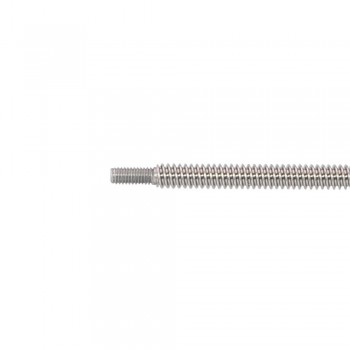

Nema 11 stepper motor with 46 mm body, 1.8° step angle, and 0.75 A. Compatible with 4.76 mm (0.1874") diameter, 250 mm (9.8425") length lead screw. Linear travel: 1.27 mm (0.05") per revolution.
Electrical Specification
Manufacturer Part Number: 11LS18-07549-250N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 59N (300pps)
Rated Current/phase: 0.75A
Phase Resistance: 6.7ohms
Voltage: 5V
Inductance: 5.8mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 46mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.00635mm(0.00025")
Lead Travel/Revolution: 1.27mm(0.05")
Number of Leads: 4
Lead Length: 300mm
Weight: 180g
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green/White | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 5.8 |
| Minimal Thrust(N) | 59 |
| Motor Type | Non-Captive |
| Phase Resistance(ohm) | 6.7 |
| Rated Current (A) | 0.75 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 46 |
| Lead Screw Diameter(mm) | 4.76 |
| Lead Screw Length(mm) | 250 |
| Lead Revolution(mm) | 1.27 |
| Linear Travel / Step(mm) | 0.00635 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 11 (28 x 28) |
