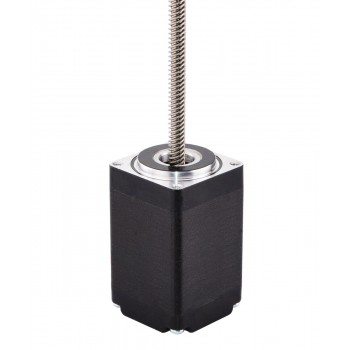

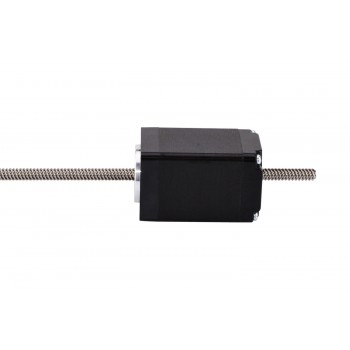

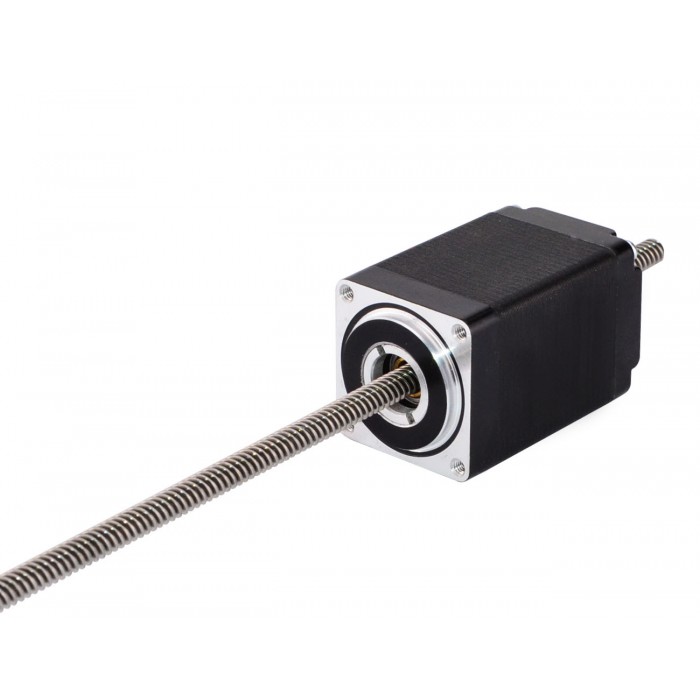

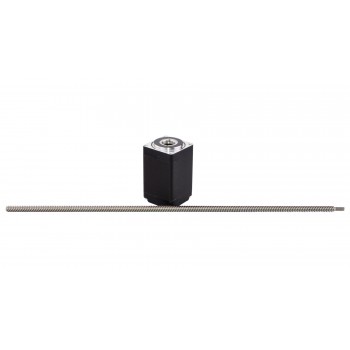

Nema 11 Non-captive Stepper Motor Linear Actuator Bipolar 1.8 Deg0.75A 5V Lead Revolution 2.54mm/0.1" Lead Screw 250mm

NO.:11LS18-07543-250N
Post a review

Special Offer in April 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till April 30th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$99.07

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$94.12	5%
10	$92.14	7%
50	$89.16	10%
100	$86.19	13%

Affiliate Link

Description Specification Custom Options Review

This model is almost exactly same as Haydon Kerk 28000 series size 11 double stack non-captive stepper motor linear actuator. The motor part is 46mm body 1.8 degree 0.75A Nema 11 stepper motor, and it works with a 4.76mm (0.1874") diameter 250mm (9.8425") length lead screw, the linear travel is 2.54mm(0.1") per revolution.

Electrical Specification

Manufacturer Part Number: 11LS18-07543-250N
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 40N (300pps)
Rated Current/phase: 0.75A
Phase Resistance: 6.7ohms
Voltage: 5V
Inductance: 5.8mH±20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 46mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.0127mm(0.0005" )
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Lead Length: 300mm
Weight : 180g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Resources

Full Datasheet: 11LS18-07543-250N.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 11 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 0.75A 5V Lead Revolution 1.27mm/0.05" Lead Screw 250mm
Next: Nema 11 Non-captive Linear Stepper Motor Bipolar 1.8 Deg 0.75A 5V Lead Revolution 5.08mm/0.2" Lead Screw 250mm

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	5.8
Minimal Thrust(N)	40
Motor Type	Non-Captive
Phase Resistance(ohm)	6.7
Rated Current (A)	0.75
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	46
Lead Screw Diameter(mm)	4.76
Lead Screw Length(mm)	250
Lead Revolution(mm)	2.54
Linear Travel / Step(mm)	0.0127
No. of Lead	4
Lead Length(mm)	300
Frame Size(mm)	Nema 11 (28 x 28)
