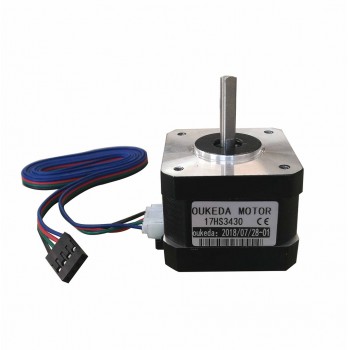

OUKEDA NEMA 17 Stepper Motor 2 Phase 1.8° 28Ncm D-cut 0.4A 12V 42 × 42mm
- Manuals and Documentation:
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2026
- Note:No coupon code needed, please place order directly!
OUKEDA NEMA 17 Stepper Motor 2 Phase 1.8° 28Ncm D-cut 0.4A 12V 42 × 42mm
Electrical Specification
Manufacturer Part Number: 17HS3430
Number of Phase: 2
Step Angle: 1.8° ± 5%
Holding Torque: 28 Ncm (39.65 oz.in)
Detent Torque: 12 mN·m
Rated Voltage: 12 VDC
Rated Current/phase: 0.4 A
Phase Resistance: 30 ohms ± 10% (at 20°C)
Inductance: 37 mH ± 20%
Rotor Inertia: 38 g·cm²
Insulation Resistance: 100 MΩ min. (500 V DC)
Insulation Class: Class B

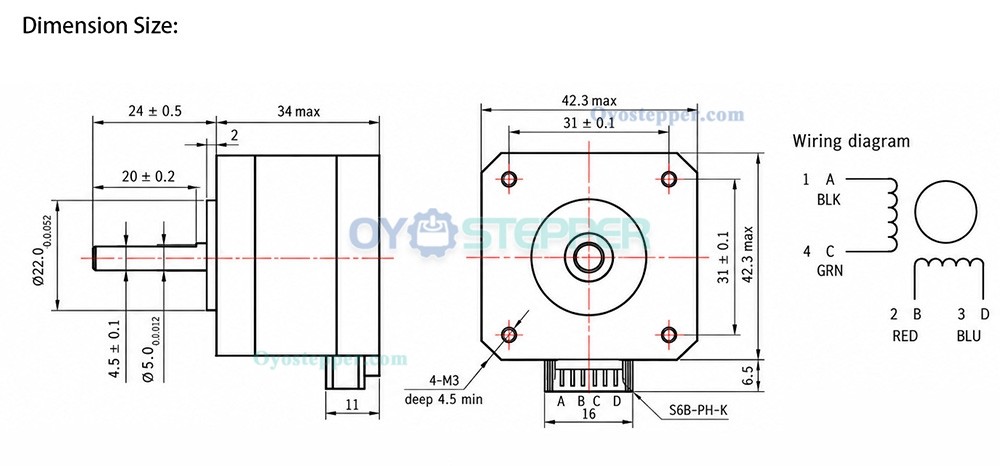

Physical Specification
Frame Size: 42 × 42mm
Body Length: 34mm
Shaft Diameter: Φ5 mm (0/-0.012 mm)
Shaft Length: 24 ± 0.5 mm
D-cut Length: 20 ± 0.2 mm
D-cut Depth: 4.5 ± 0.1 mm (shaft flat height)
Lead Length: 1000 ± 20 mm
Lead Wire: UL1007 AWG26
Weight: 0.2 kg
Mounting Holes: 4-M3 (4.5 mm min. depth)
Mounting Hole Spacing: 31 ± 0.1 mm
.jpg)
.jpg)
| Physical Specification | |
|---|---|
| D-cut Length | 20 |
| Frame Size(mm) | 42 × 42 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 400 |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 28 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| No. of Phase | 4 |
| Rated Voltage(V) | 12 |
