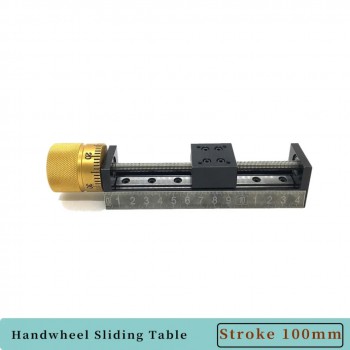

T-Type Mini Manual Linear Slide Table with Handwheel 50-300mm Stroke

T-Type Mini Manual Linear Slide Table with Handwheel 50–300mm Stroke

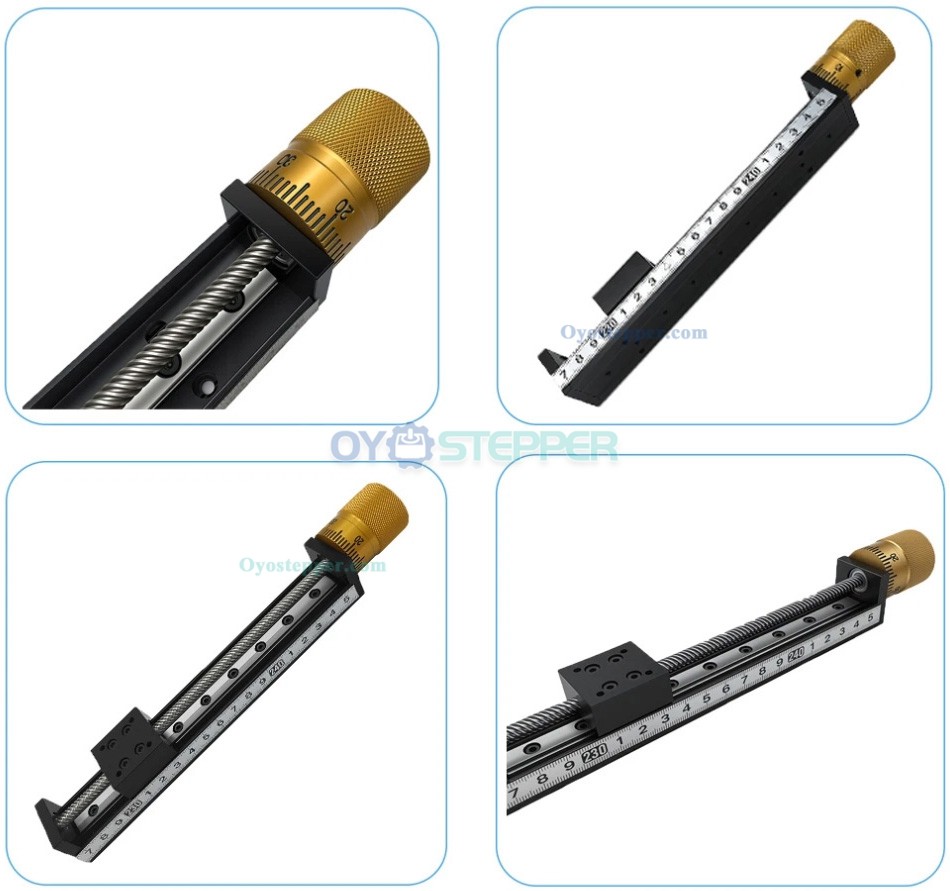

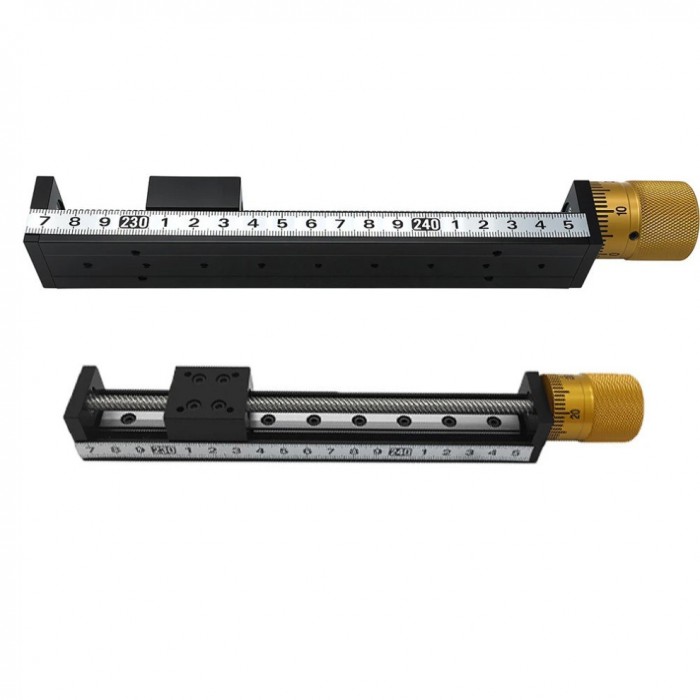

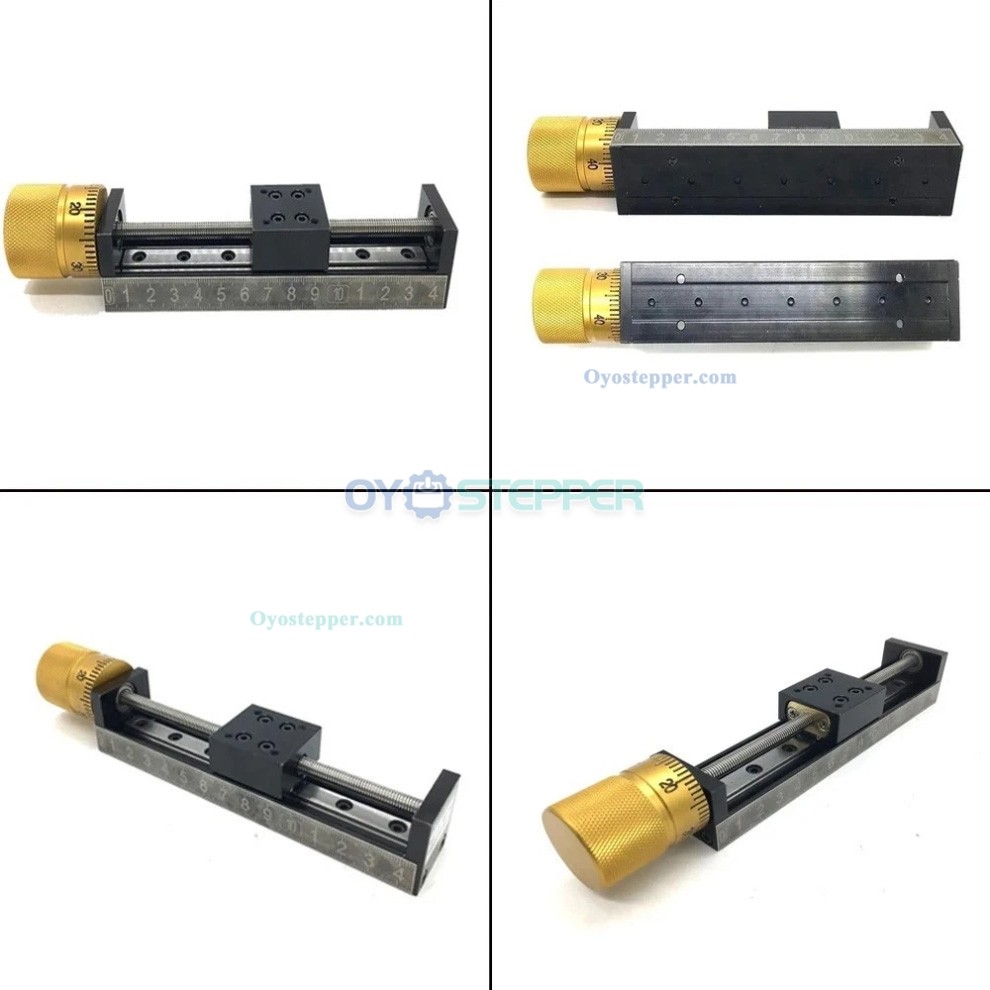

This T-type mini manual linear slide table features a T6 trapezoidal lead screw, MGN8H linear guide block, and handwheel operation.

Features:

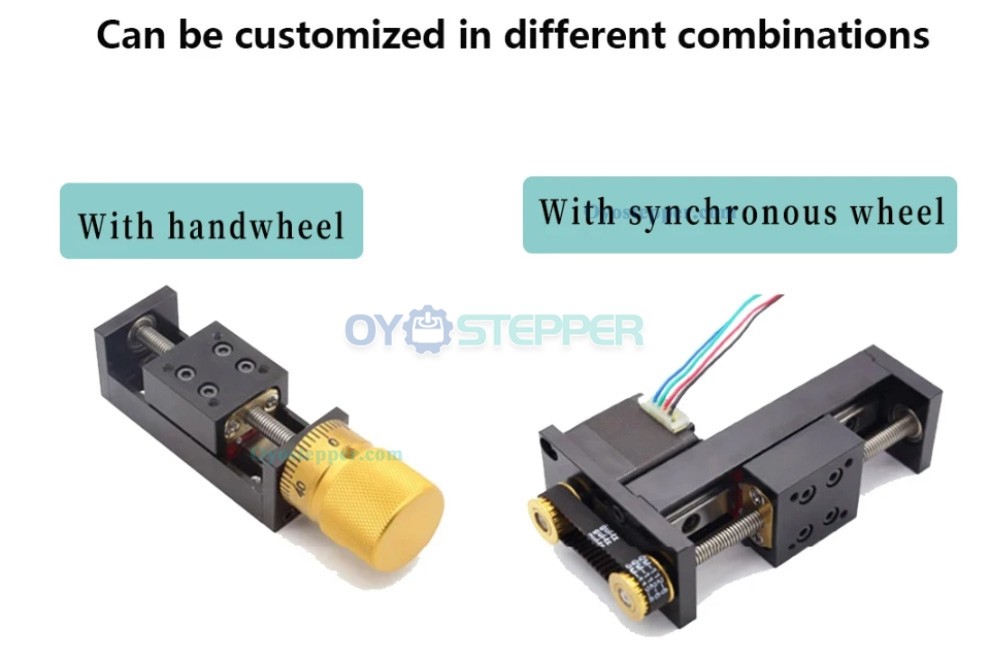

Manual Handwheel Operation: Adjusts the slide position through manual rotation.

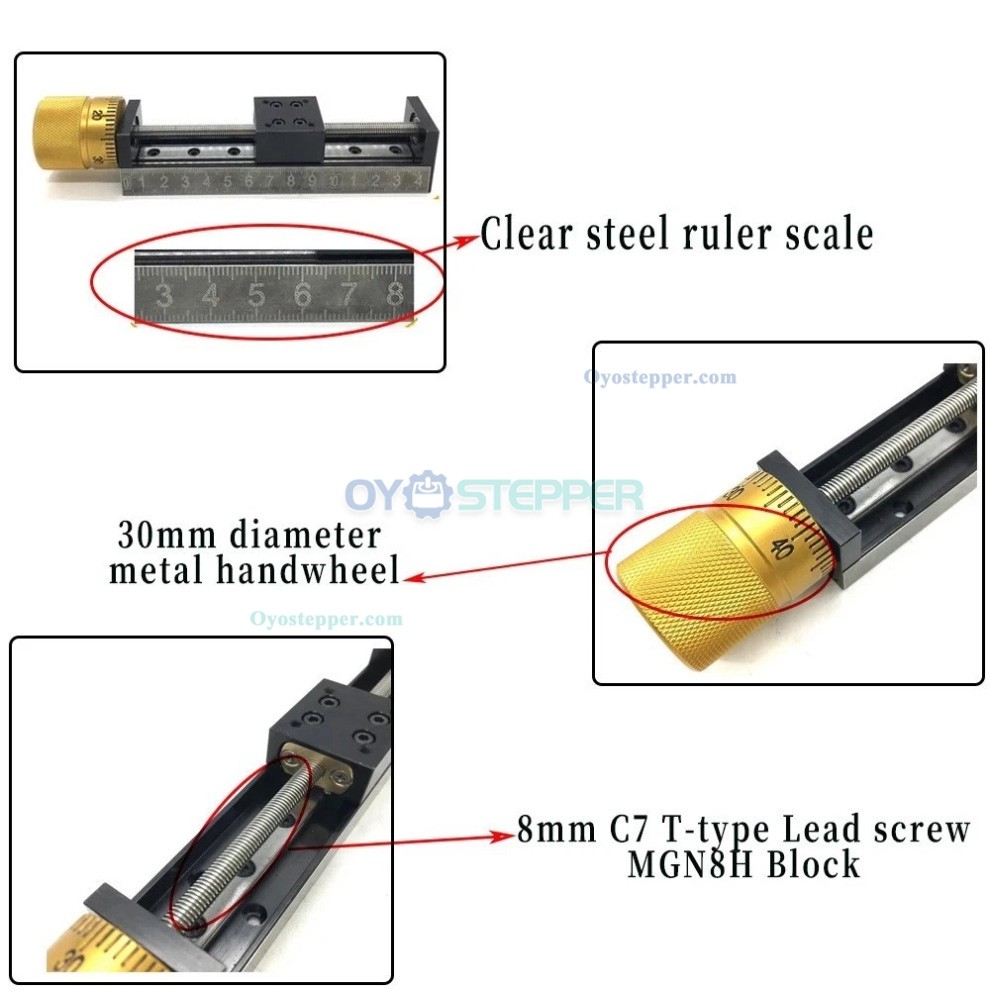

T6 Trapezoidal Lead Screw: 6mm screw diameter with multiple lead options.
MGN8H Linear Guide Block: Integrated linear guide mechanism.

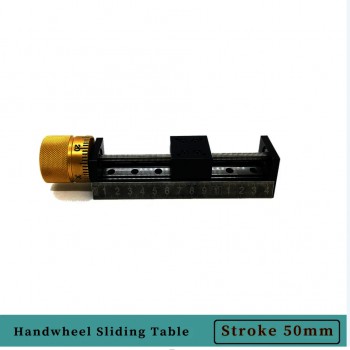

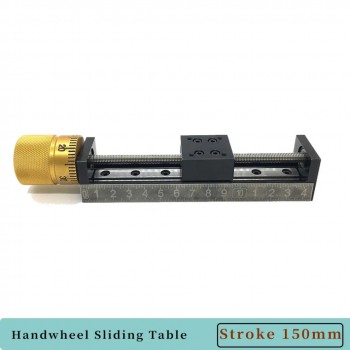

Multiple Stroke Options: Available from 50mm to 300mm.
Moving Platform: 30×32mm mounting surface.

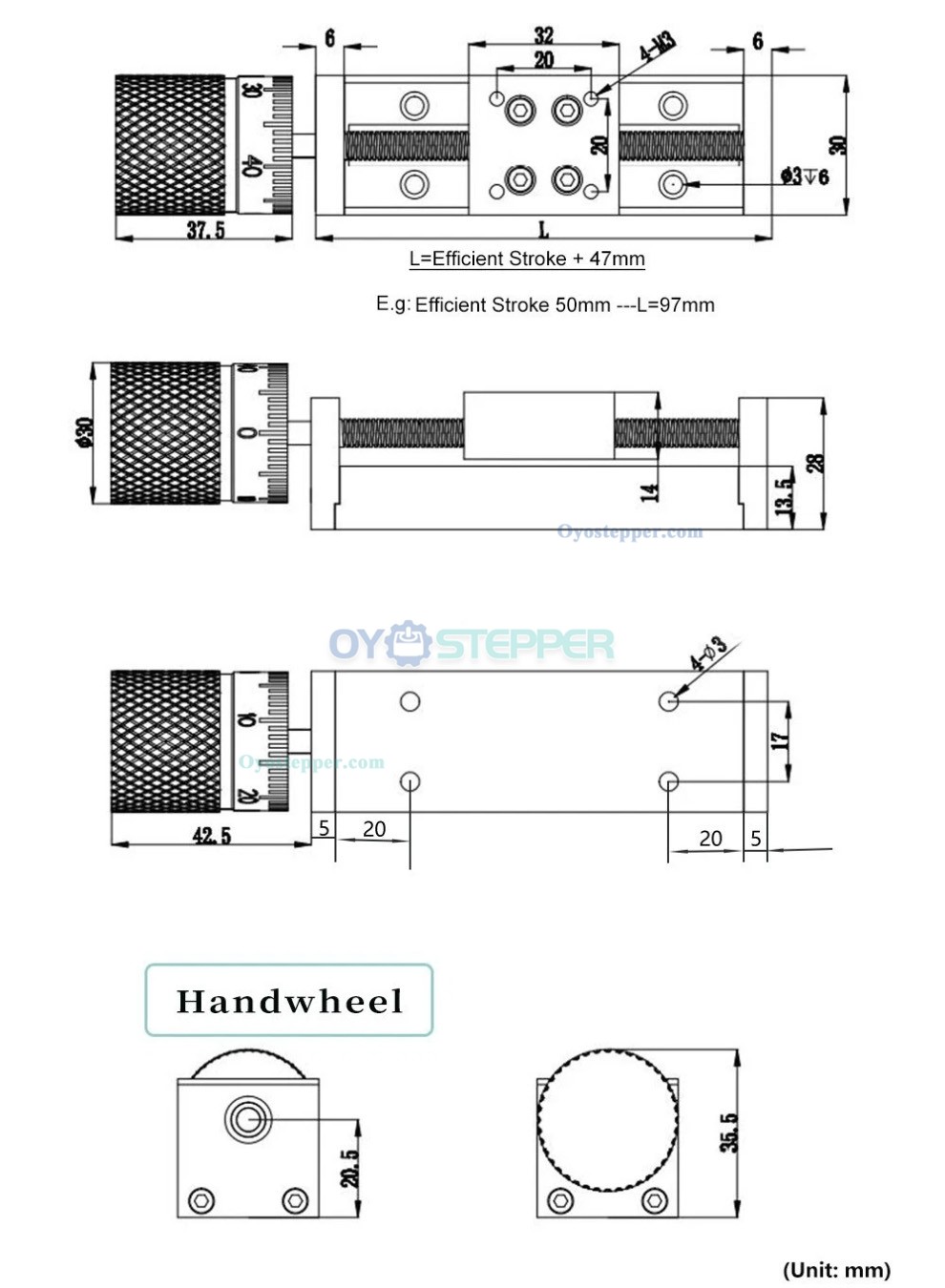

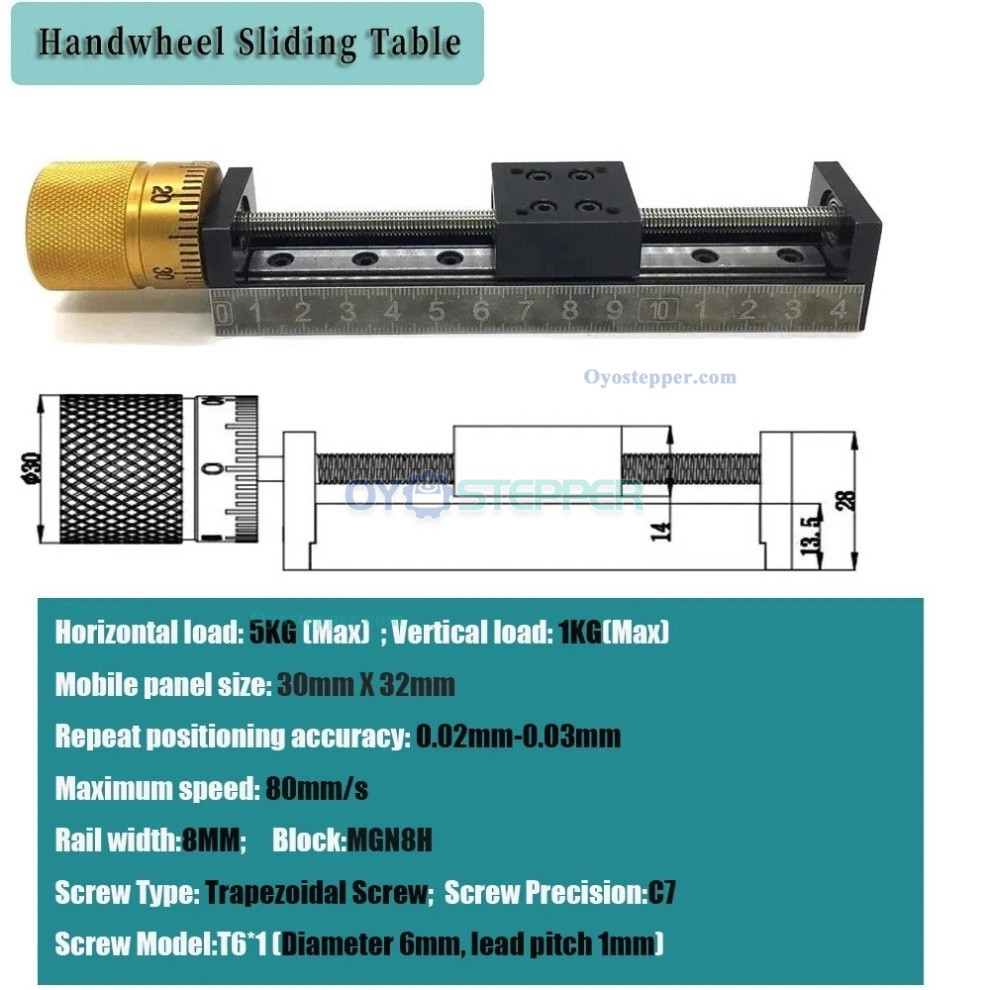

Technical Specifications:
Type: T-Type Manual Linear Slide Table
Operation: Manual Handwheel
Drive System: T6 Trapezoidal Lead Screw
Screw Diameter: 6mm
Lead Options: 1/2/4/6/12mm

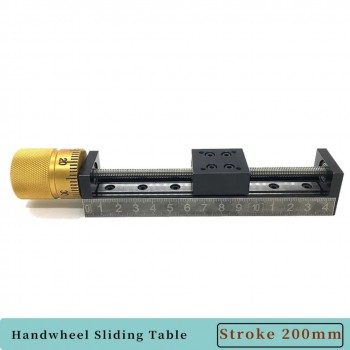

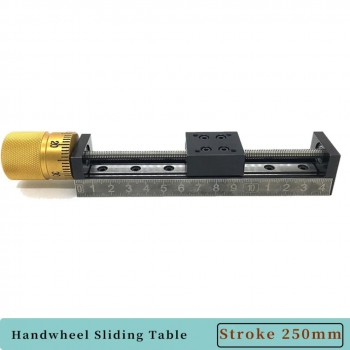

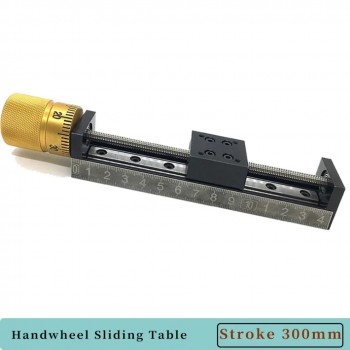

Effective Stroke Options: 50/100/150/200/250/300mm
Guide Rail Width: 8mm
Linear Guide Block: MGN8H
Moving Platform Size: 30×32mm
Maximum Horizontal Load: 5kg

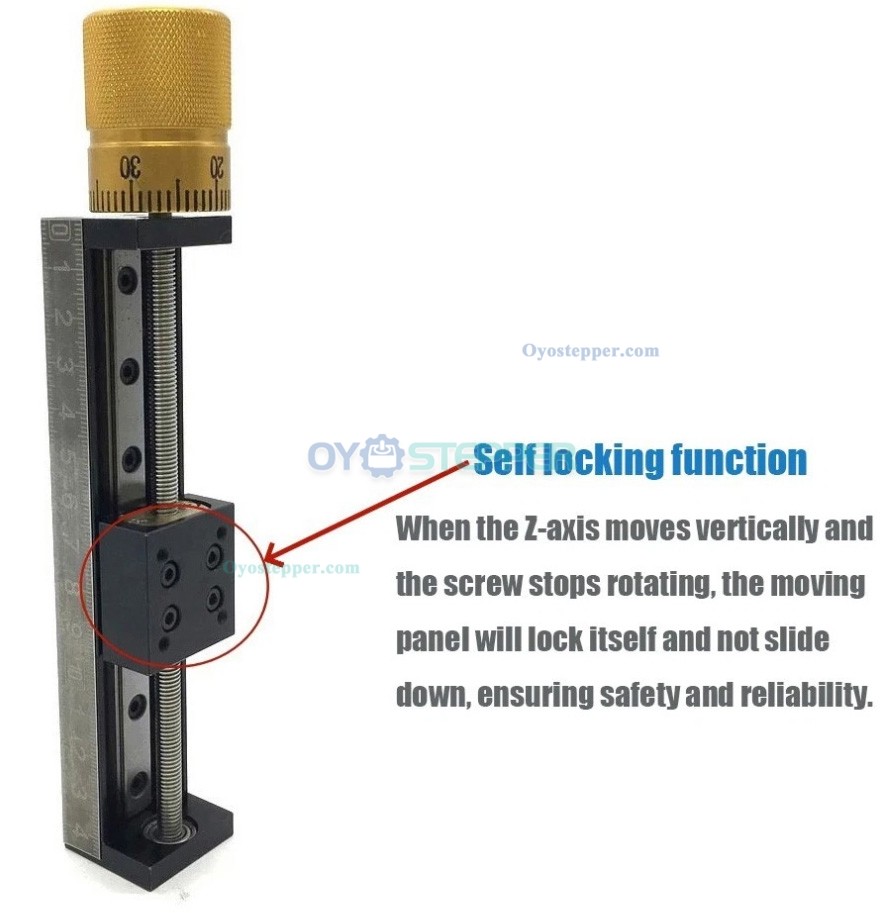

Maximum Vertical Load: 1kg
Repeat Positioning Accuracy (Manufacturer-Stated): 0.02–0.03mm

Package Includes:
1 × T-Type Manual Linear Slide Table with Handwheel
