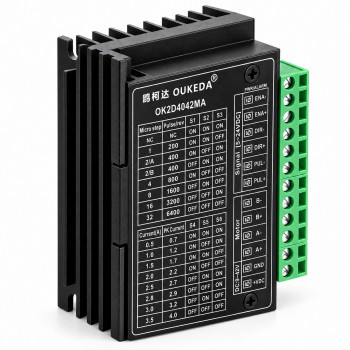

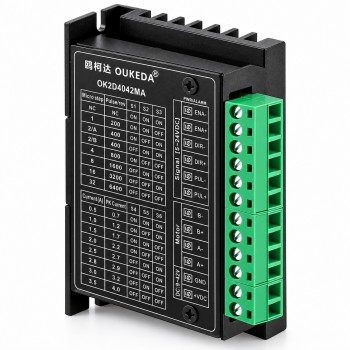

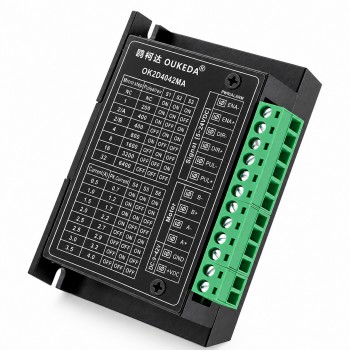

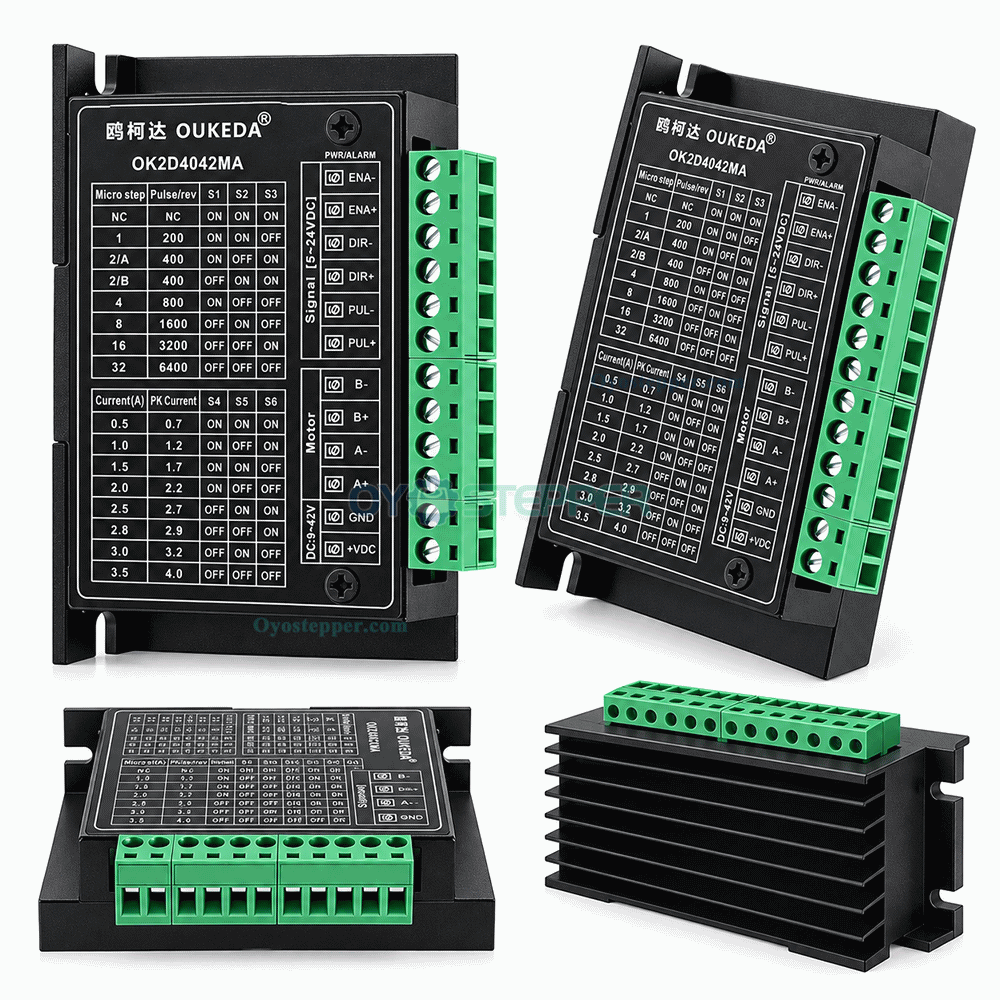

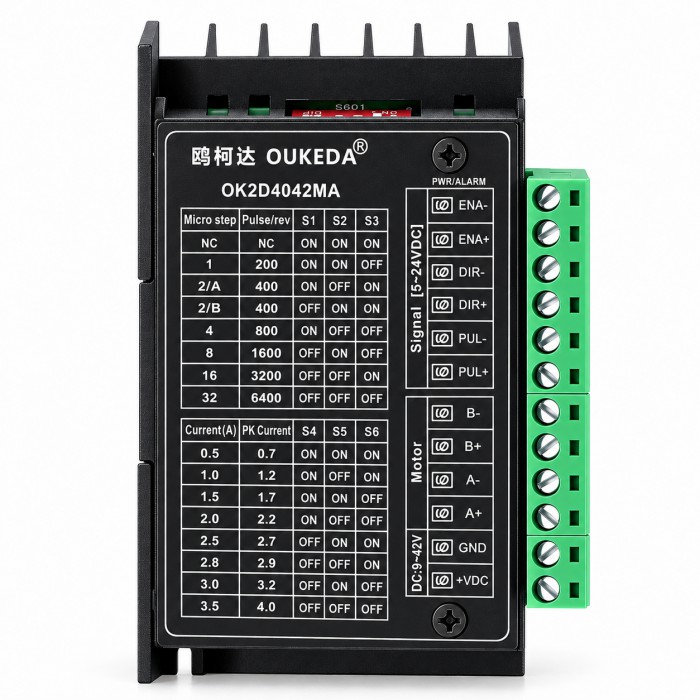

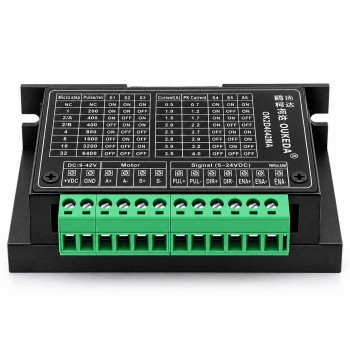

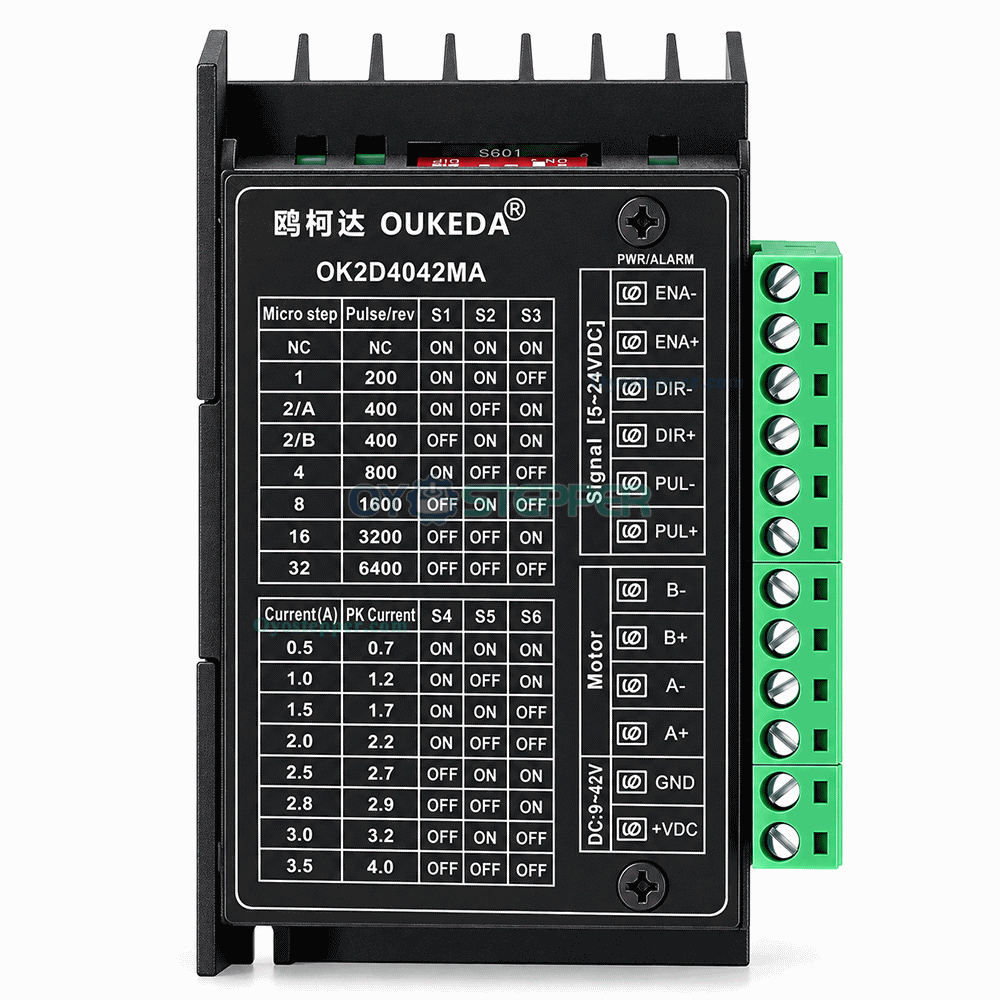

OK2D4042MA Digital Stepper Motor Driver 9-42V 20-50V 4.0A Microstep 2-Phase Controller

OK2D4042MA Digital Stepper Motor Driver 9-42V 20-50V 4.0A Microstep 2-Phase Controller
NO.:OK2D4042MA
Post a review
Halloween Special Offer 2026:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$34.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $33.24 5%
10 $32.89 6%
50 $32.54 7%
100 $32.19 8%
Add To Cart
Add To My Favorites
  • Share:

OK2D4042MA Digital Stepper Motor Driver 9-42V 20-50V 4.0A Microstep 2-Phase Controller


Electrical Specifications:

Model: OK2D4042MA

Input voltage: 9–42VDC

Control signal voltage: 5–24VDC

Output current: 0.5–3.5A adjustable

Output peak current: 0.7–4.0A

Microstep resolution: 1, 2, 4, 8, 16, 32

Pulse resolution: 200–6400 pulses/rev

Control inputs: Pulse, Direction, Enable

Motor type: 2-phase bipolar stepper motor



















Prev: Oukeda NEMA 34 Stepper Motor and Driver Kit 4.5Nm/8.5Nm/12Nm 1.8deg Keyway 86mm
Next: OUKEDA NEMA 17 Closed Loop Stepper Motor 70Ncm 1.8° 1.8A with Encoder and Planetary Gearbox
Stepper Driver Specification
Driving Voltage(V) 9–42
Microstep(Steps/rev.) 200–6400
Output Current(A) 0.5–3.5
Input Voltage(V) 9–42
