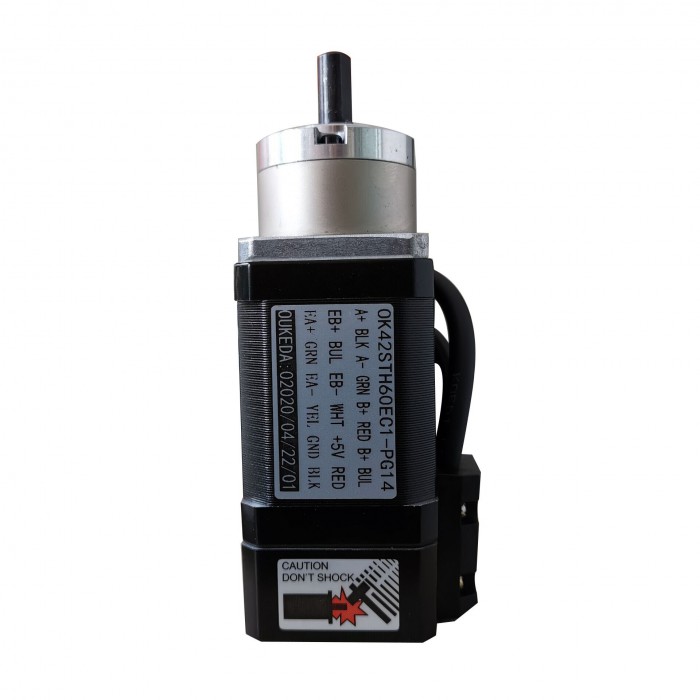

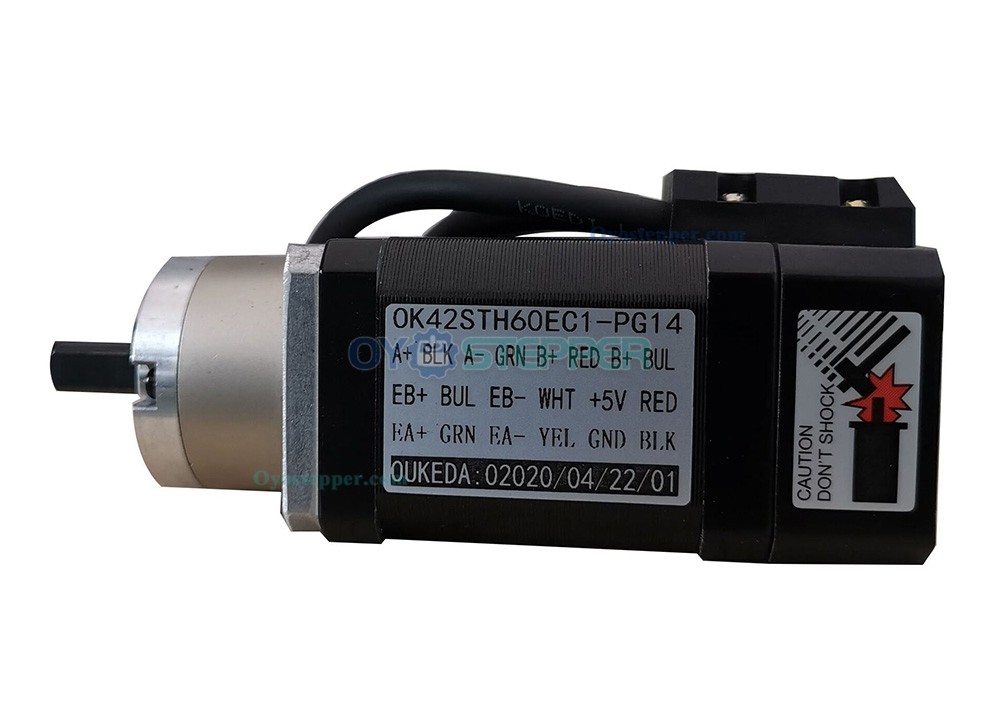

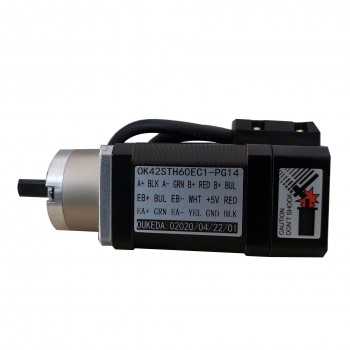

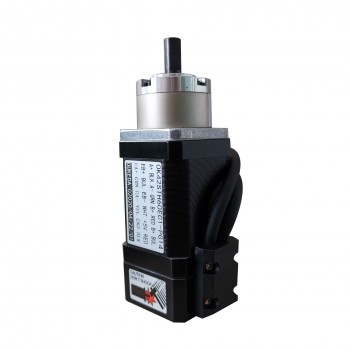

OUKEDA NEMA 17 Closed Loop Stepper Motor 70Ncm 1.8° 1.8A with Encoder and Planetary Gearbox

OUKEDA NEMA 17 Closed Loop Stepper Motor 70Ncm 1.8° 1.8A with Encoder and Planetary Gearbox


Electrical Specifications

Model: OK42STH60EC-1000

Phase:2-Phase

Step Angle: 1.8°±5%

Holding Torque (Motor): 70Ncm

Rated Current/Phase: 1.8A

Rated Voltage: 3.3VDC

Phase Resistance: 1.85Ω±10%

Phase Inductance: 5.2mH±20%

Insulation Resistance: 100MΩ (500VDC)

Insulation Class: Class B;

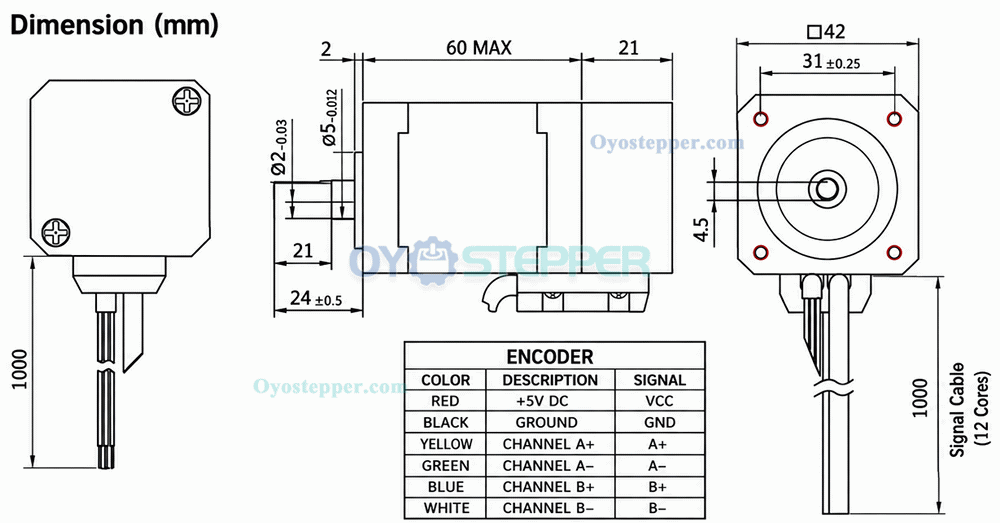

Physical Specifications

Frame Size: 42×42mm (NEMA17)

Motor Body Length: 60mm

D-cut Lenght:21mm

Motor Shaft Diameter: Φ5mm

Motor Shaft Length: 24±0.5mm

Mounting Hole Spacing: 31±0.25mm

Motor Cable Length: 1000mm

Encoder Cable Length: 1000mm

Motor Weight: Approx.0.4kg

Operating Temperature: -10°C to +50°C


Encoder Specifications:

Encoder Supply Voltage: 5VDC

Encoder Output Signals: A+, A-, B+, B-

Encoder Cable: 6-Wire;
