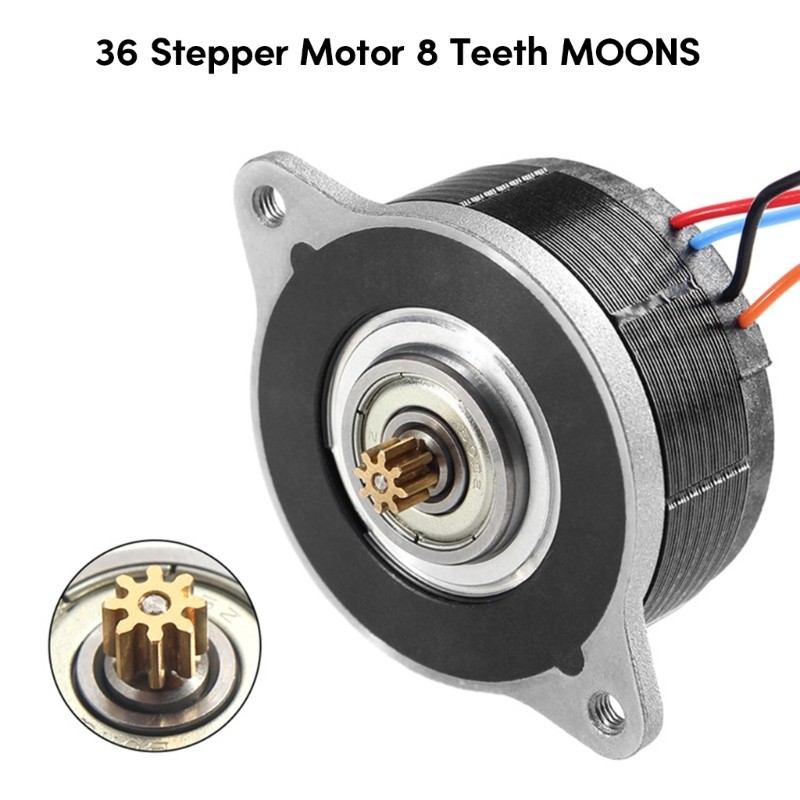

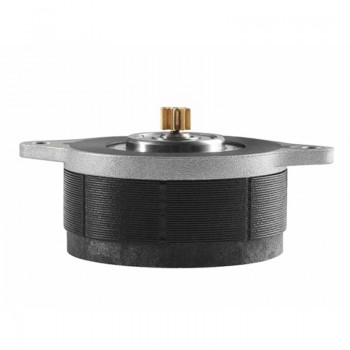

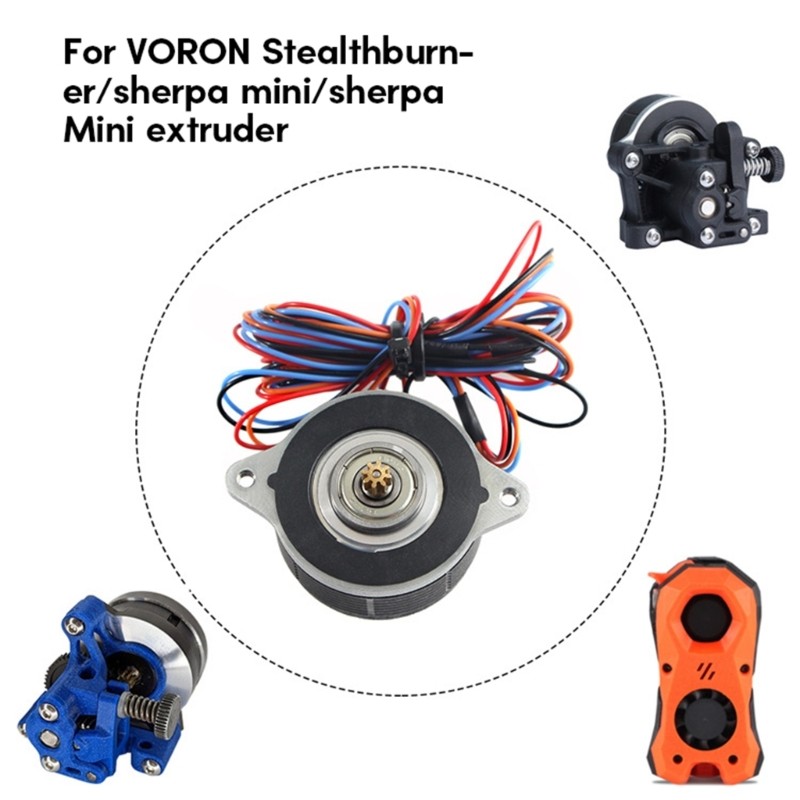

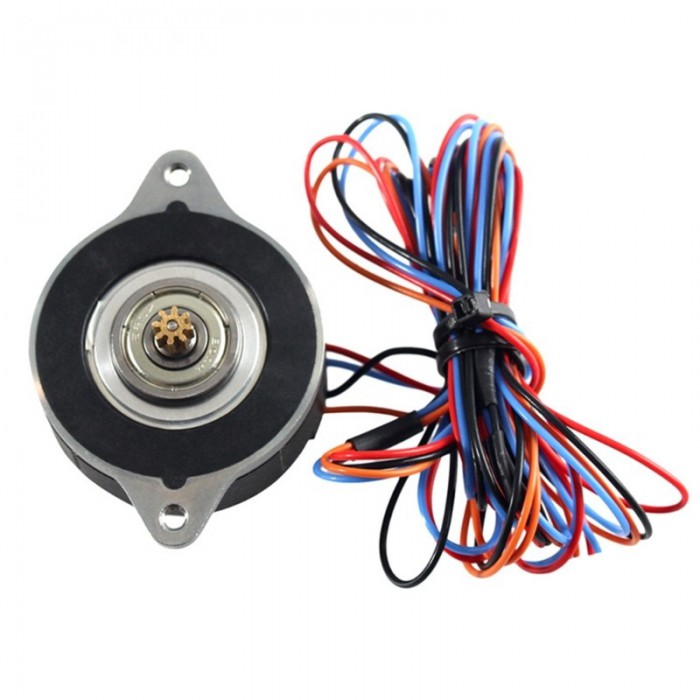

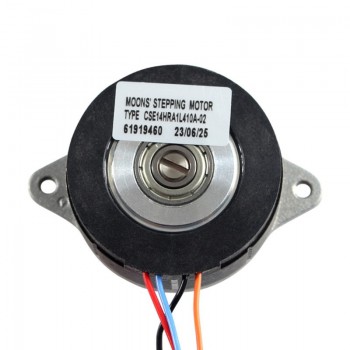

MOONS NEMA14 Stepper Motor 1.8° 1.9V 10Ncm 36mm for Extruder and 2.4 3D Printer

NO.:CSE14HRA1L410A-01
Post a review

Halloween Special Offer 2026:

All Treats No Tricks
6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till November 4th, 2026
Note:No coupon code needed, please place order directly!

Our Price:$25.99

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$24.69	5%
10	$24.43	6%
50	$24.17	7%
100	$23.91	8%

Add To My Favorites

Description Specification Custom Options Review

MOONS NEMA14 Stepper Motor 1.8° 1.9V 10Ncm 36mm for Extruder and 2.4 3D Printer

Electrical Specifications:
Model:CSE14HRA1L410A-01
Number of Phases: 2
Step Angle: 1.8°
Rated Voltage:1.9 VDC
Rated Current: 1A
Holding Torque:10Ncm
Phase Resistance: 1.9 Ω ±10% (at 20°C)
Phase Inductance: 1.41 mH ±20%
Insulation Class: Class B (130°C)

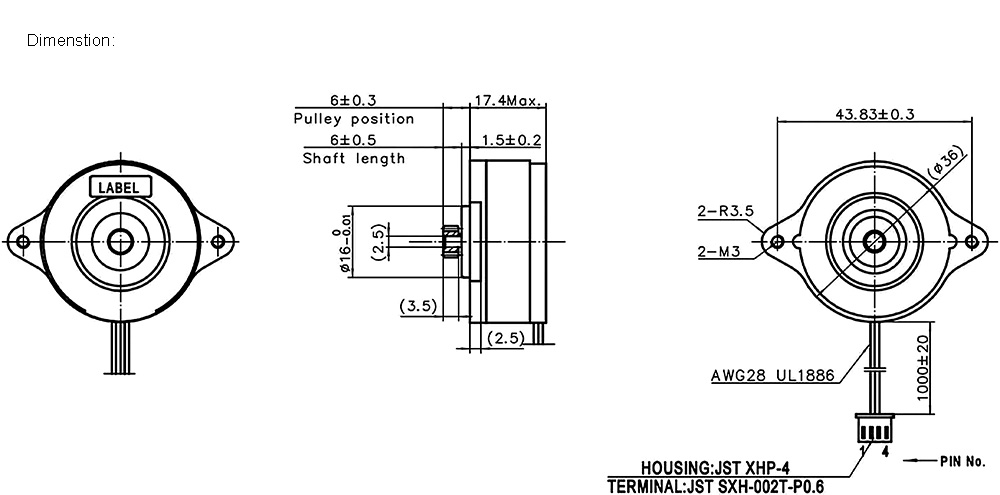

Mechanical Specifications:

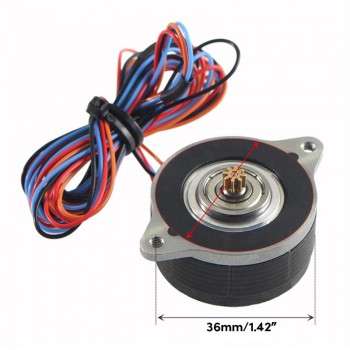

Housing Diameter: Ø36 mm
Overall Mounting Flange Width: 43.83 ± 0.3 mm
Mounting Holes: 2 × M3
Mounting Ear Radius: 2 × R3.5 mm
Body Depth: 17.4 mm
Front Cylindrical Diameter: Ø16 mm
Shaft Diameter: 2.5 mm
Shaft Length: 6 ± 0.5 mm
Pulley Position: 6 ± 0.3 mm
Front Step Thickness: 1.5 ± 0.2 mm
Cable Specification: AWG28, UL1886
Cable Length: 1000 ± 20 mm
Motor Weight: 370g

Package Includes:
1 Pc Stepper Motor
1 Pc Cable
