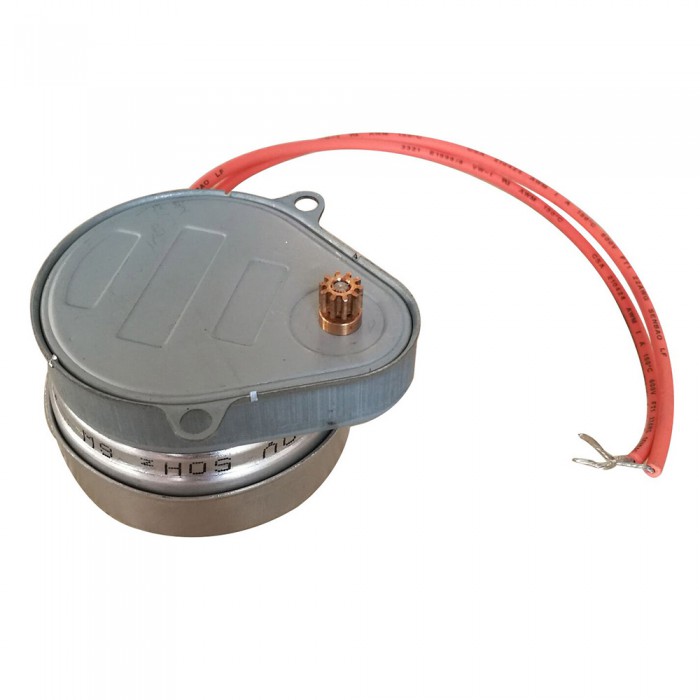

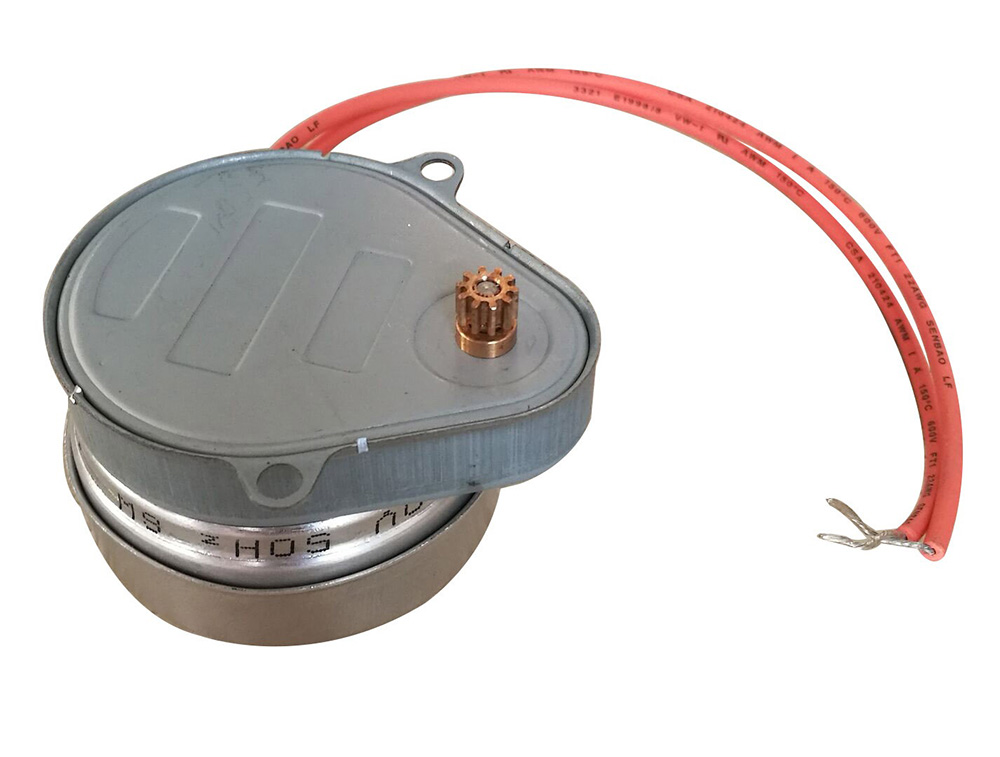

Oudeka IP-QC01 AC Synchronous Gear Motor 230V AC 50Hz 6W 4RPM CCW Rotation IP20

Oudeka IP-QC01 AC Synchronous Gear Motor 230V AC 50Hz 6W 4RPM CCW Rotation IP20

Application:
Synchronous drive mechanisms, timing systems, household appliances, and other low-speed rotary applications, subject to application requirements.

Electrical Specifications:
Product Model: IP-QC01
Motor Type: AC Synchronous Motor
Rated Voltage: 230V AC
Rated Frequency: 50Hz
Rated Power: 6W ±10%
Output Speed: 4 RPM
Output Shaft Rotation Direction: CCW (Counterclockwise)
Stall Torque: >800 gf·cm at 230V AC, 50Hz
Return Torque: <300 gf·cm when de-energized
Insulation Class: Class F (155°C)
Protection Rating: IP20
Wire Gauge: AWG18
Lead Wire Specification: UL3271
Lead Wire Temperature Rating: 125°C
Lead Wire Voltage Rating: 600V
Lead Wire Length: 175 mm
Output Gear Type: Spur Gear
Number of Gear Teeth: 10

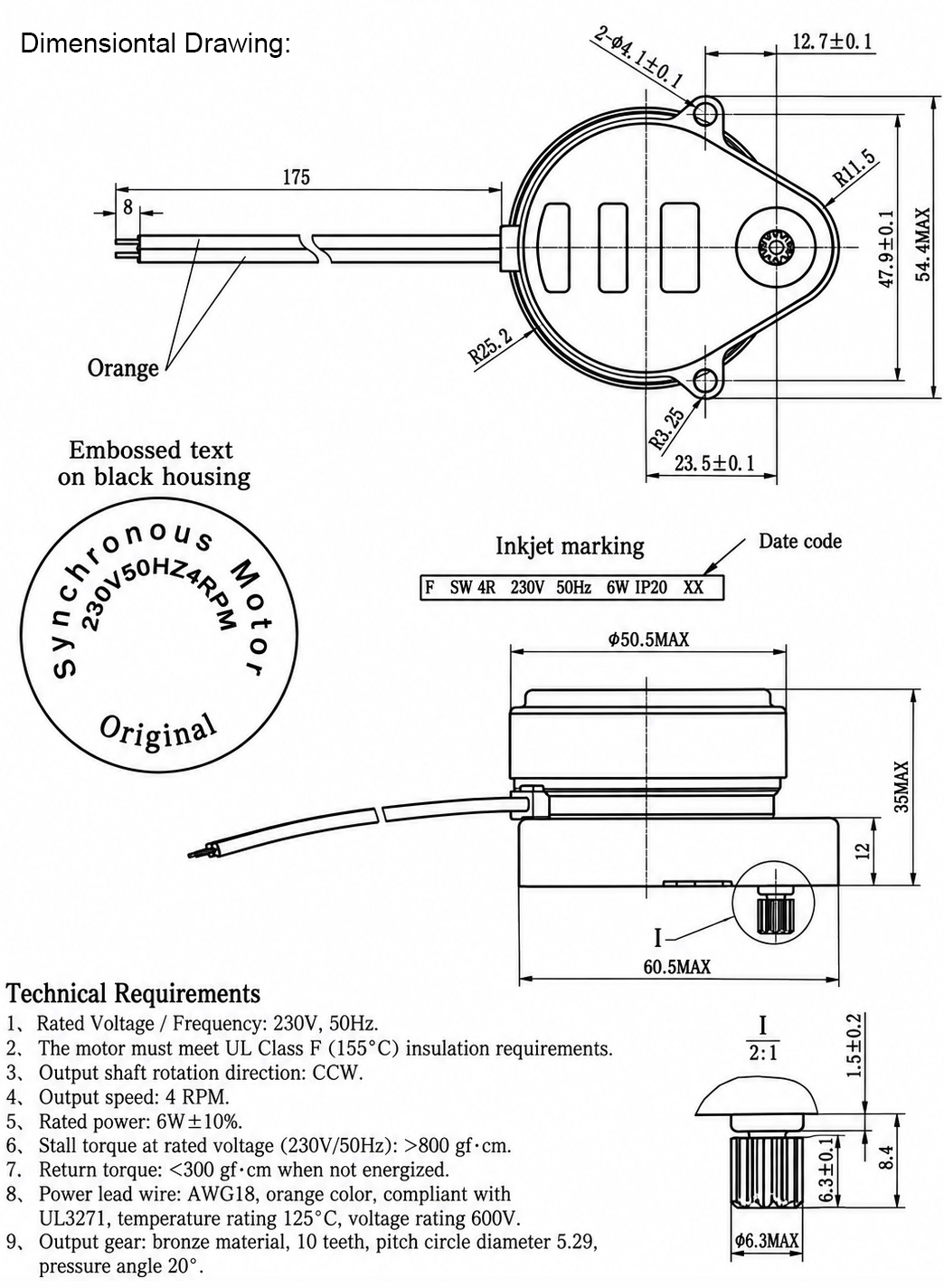

Physical Specifications::
Gear Pitch Circle Diameter: 5.29 mm
Gear Pressure Angle: 20°
Maximum Motor Diameter: Ø50.5 mm
Maximum Overall Height: 35 mm
Maximum Overall Length: 60.5 mm
Mounting Holes: 2 × Ø4.1 ±0.1 mm
Mounting Hole Center Distance: 47.9 ±0.1 mm
