Nema 11 Non-captive 46mm Stack 0.75A Lead 5.08mm/0.2" Length 250mm

NO.:SKU:11LS18-07541-250N
Review: Post a review
Latest price:$103.70
Buy It Now:$79.77
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$77.28 $74.78 $72.29 $69.80
Add To Cart

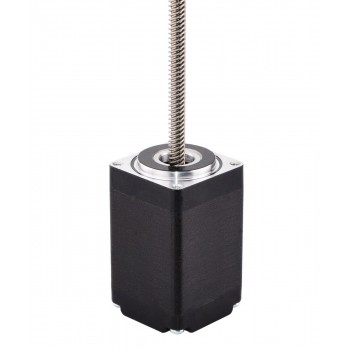

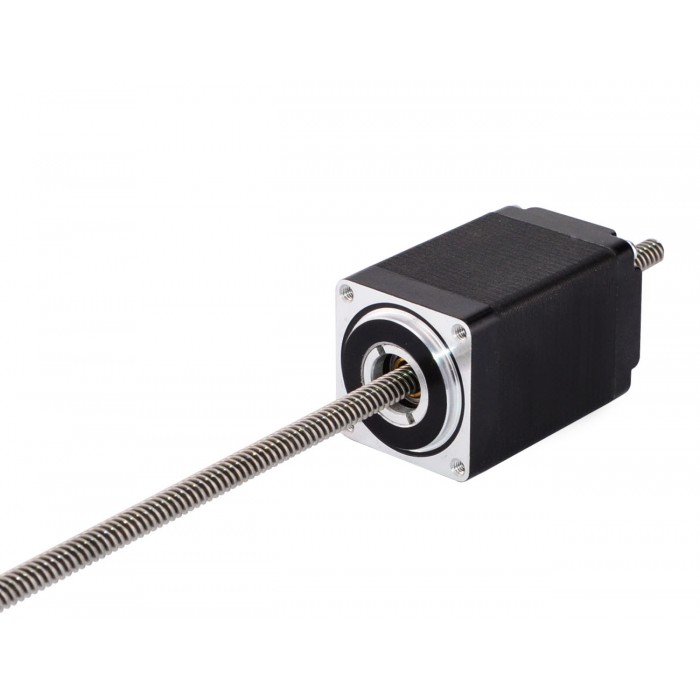

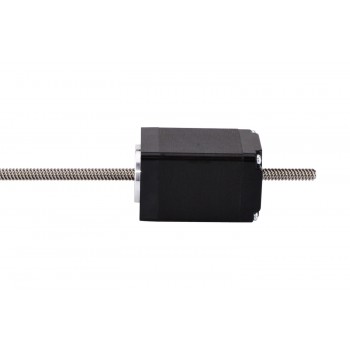

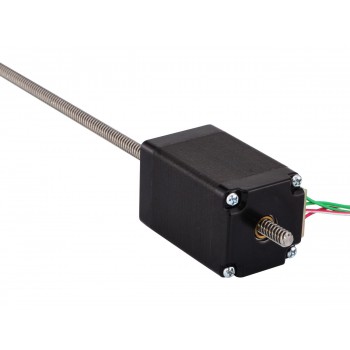

This model is almost exactly same as Haydon Kerk 28000 series size 11 double stack non-captive stepper motor linear actuator. The motor part is 46mm body 1.8 degree 0.75A Nema 11 stepper motor, and it works with a 4.76mm (0.1874") diameter 250mm (9.8425") length lead screw, the linear travel is 5.08mm(0.2") per revolution.

Electrical Specification

  • Manufacturer Part Number: 11LS18-07541-250N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 15N (300pps)
  • Rated Current/phase: 0.75A
  • Phase Resistance: 6.7ohms
  • Voltage: 5V
  • Inductance: 5.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 46mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.0254mm(0.001" )
  • Lead Travel/Revolution: 5.08mm(0.2")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 180g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 11 Non-captive 46mm Stack 0.75A Lead 2.54mm/0.1" Length 250mm
Next: Nema 11 External 46mm Stack 0.75A Lead 0.635mm/0.025" Length 250mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 5.8
Minimal Thrust(N) 15
Motor Type Non-Captive
Phase Resistance(ohm) 6.7
Rated Current (A) 0.75
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 46
Frame Size(mm) 28x28
Lead Screw Diameter(mm) 4.76
Lead Screw Length(mm) 250
Lead Revolution(mm) 5.08
Linear Travel / Step(mm) 0.0254
No. of Lead 4
Lead Length(mm) 300
