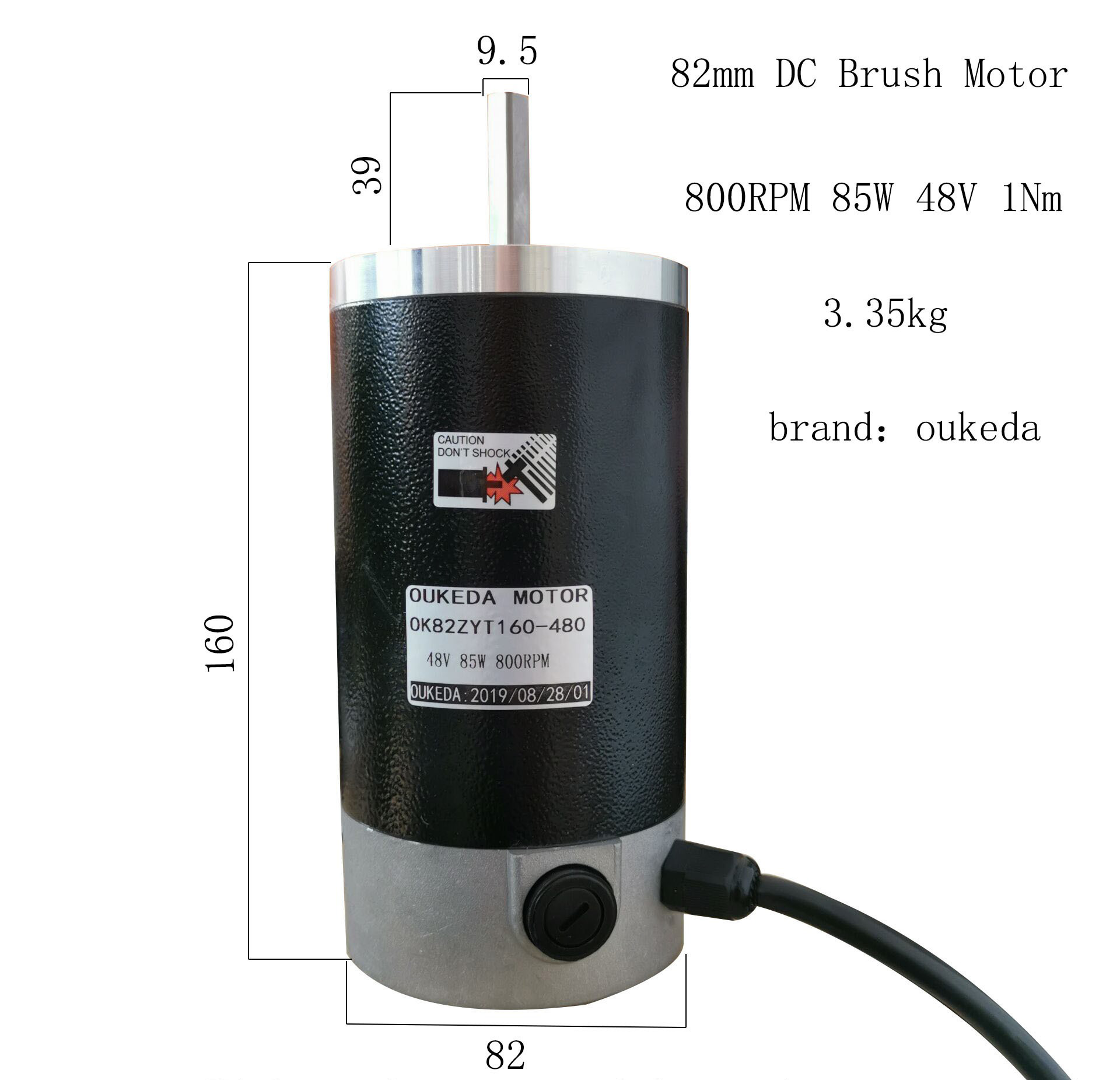

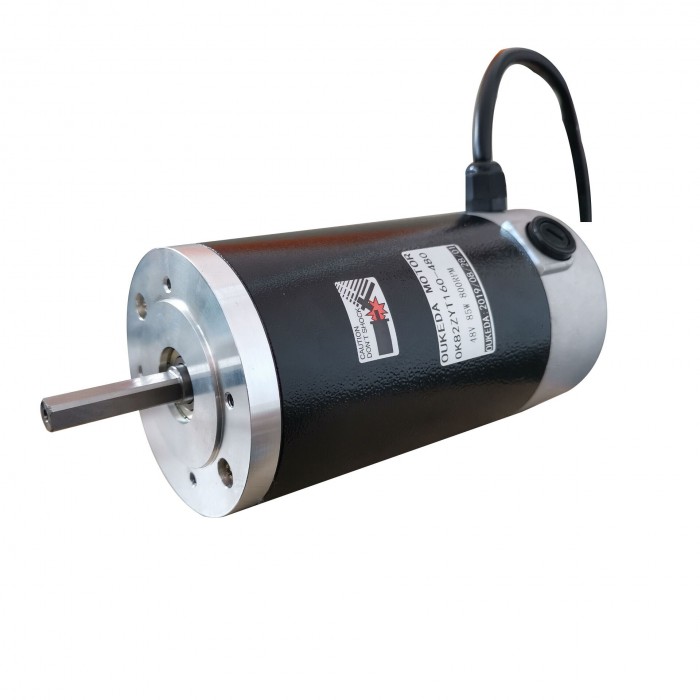

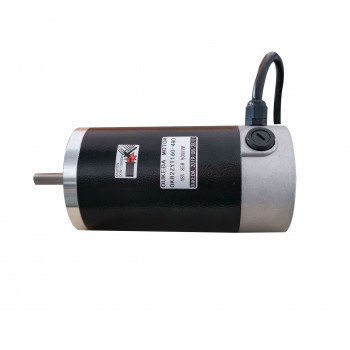

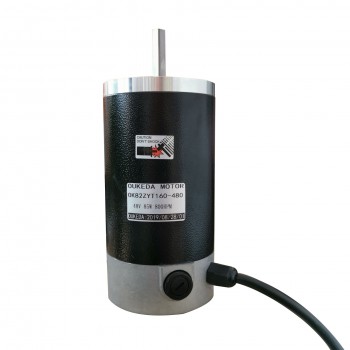

OUKEDA OK82ZYT160-480 82mm Brushed DC Motor 48V 1Nm 2.6A 85W 800RPM

OUKEDA OK82ZYT160-480 82mm Brushed DC Motor 48V 1Nm 2.6A 85W 800RPM

Electrical Specifications
Model: OK82ZYT160-480
Motor Type: DC Motor
Rated Voltage: 48 VDC
Rated Power: 85 W
No-Load Speed: 1200 RPM
Rated Speed: 800 RPM
Rated Torque: 1.01 N·m
Rated Current: 2.6 A

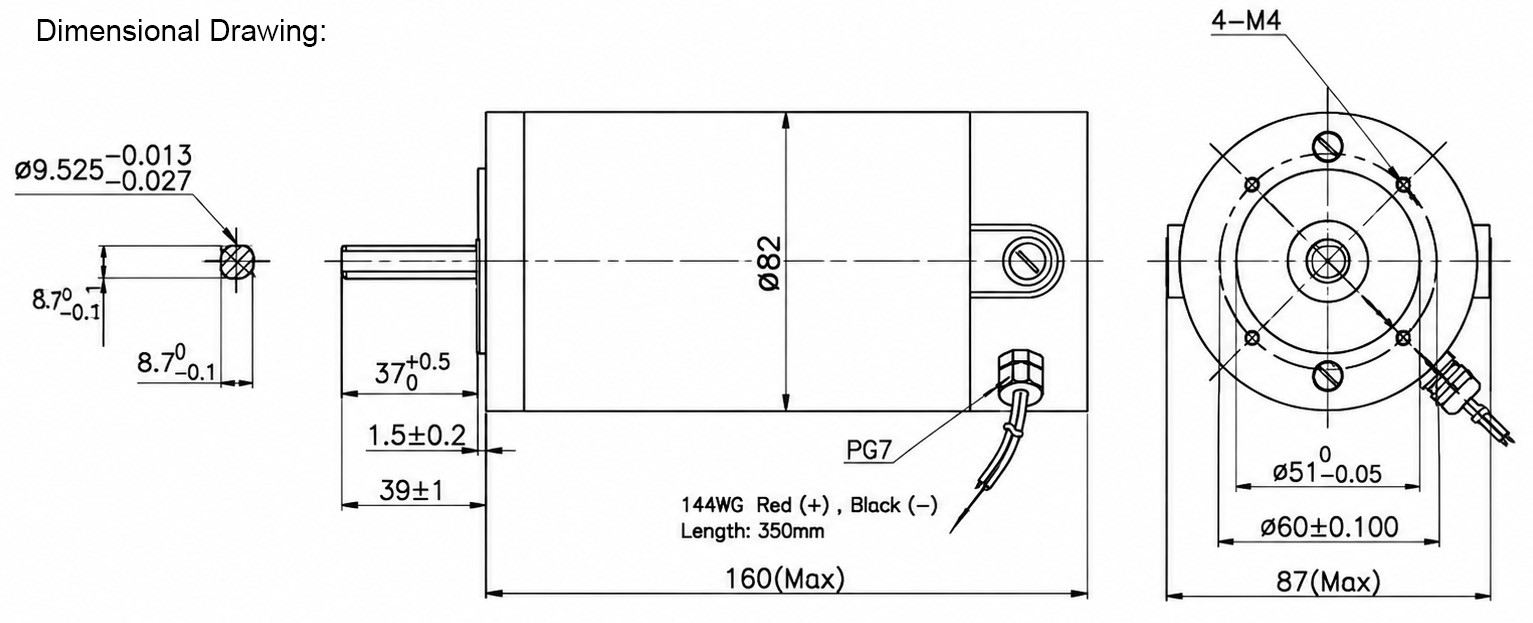

Physical Specifications:
Motor Body Diameter: Ø82 mm
Motor Body Length: 160 mm
Output Shaft Diameter: Ø9.525 mm
Output Shaft Length: 37 mm
Overall Shaft Projection: 39 ±1 mm
Shaft Flat Dimension: 8.7 mm
Shaft Collar / Step Length: 1.5mm
Front Flange Diameter: Ø60
Mounting Holes: 4 × M4
Number of Leads: 2
Lead Wire Length: 350 mm
Weight: Approx. 3.4 kg
