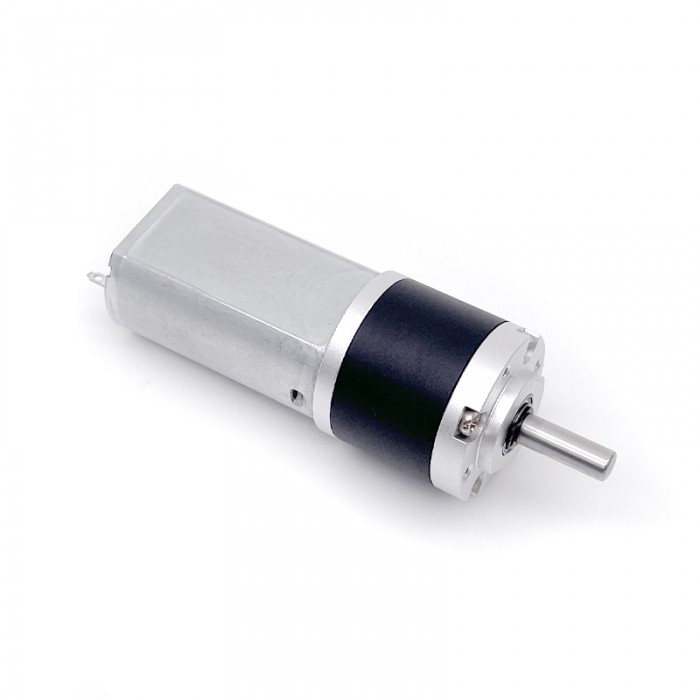

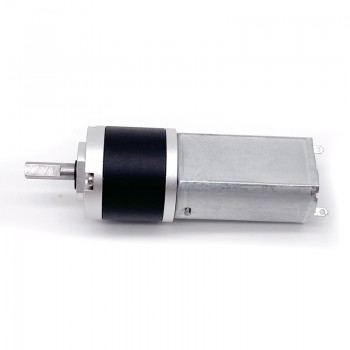

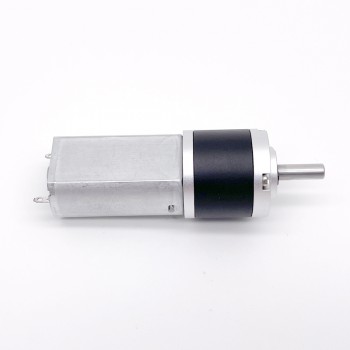

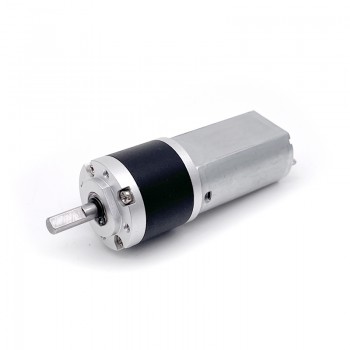

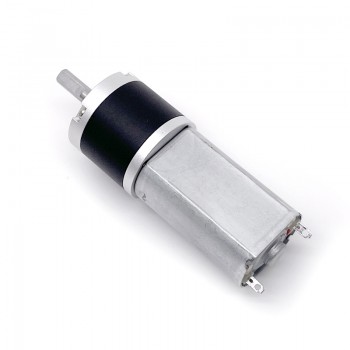

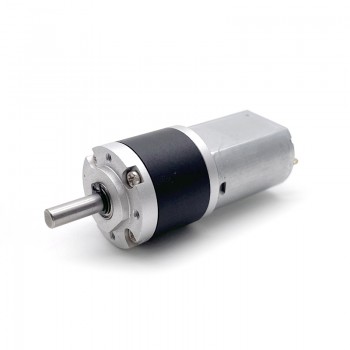

2Pcs 6V 12V Waterproof Brush Gear DC Motor with Planetary Reduction Gearbox 3kg.cm 10-200RPM
Features:
1. Small size dc gear motor with low speed and big torque.
2. 22mm gear motor provide 0.8Nm torque and more reliable.
3. Suitable to small diameter, low noise and big torque application.
4. Dc Gear motors can match encoder, 3ppr.
5. Reduction Ratio: 16、64、84、107、224、304、361、428.7、1024.
2 stages: 16:1
3 stages: 64:1 / 84:1/107:1
4 stages: 224:1 / 304:1/361:1/428.7:1
5 stages: 1024:1
Application:
Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, Electrical Lock, Optic Equipment.

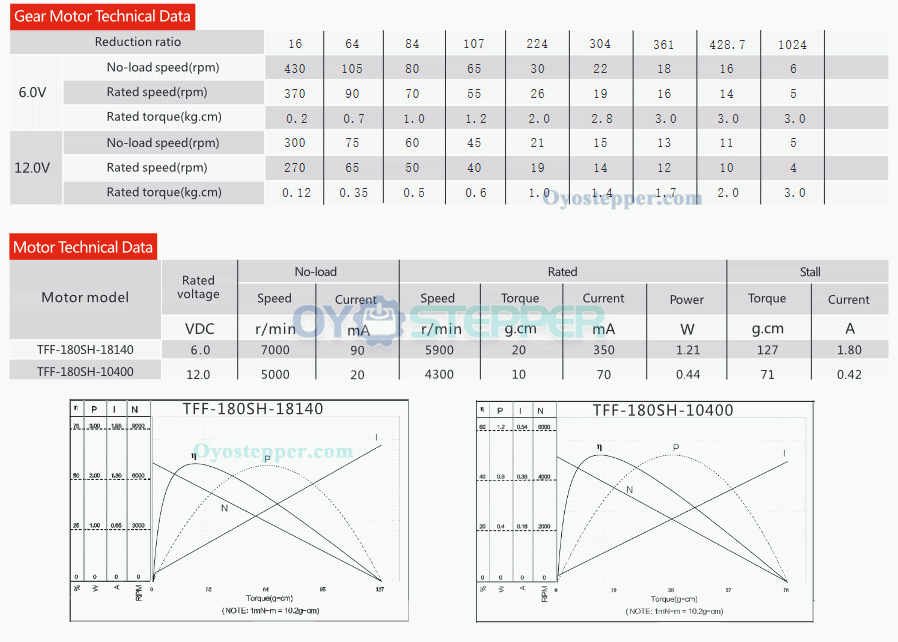

Electrical Specification：
Part Number:GMP22-180SH
Rated Voltage:6V/12VDC
Rated Torque:3.0Kg.cm max
Max momentary tolerance torque: 6.0kg.cm
Rated current:350mA(6V)/70mA(12V)
No Load Speed W/O Gearbox: 7000RPM(6V)/5000RPM(12V)
Rated Speed W/O Gearbox: 5900RPM(6V)/4300RPM(12V)
No Load Speed W Gearbox: 4-430 RPM
Rated Speed W/ Gearbox:3-370 RPM
Rated Power:1.21W(6V) / 0.44W(12V)
Gear type:Planetary gearbox
Motor type:Brushed
Rotation Direction:CW/CCW
Efficiency:IE 4
Efficiency:65%
Axial play:0.05-0.3
Noise:30cm.40-50db

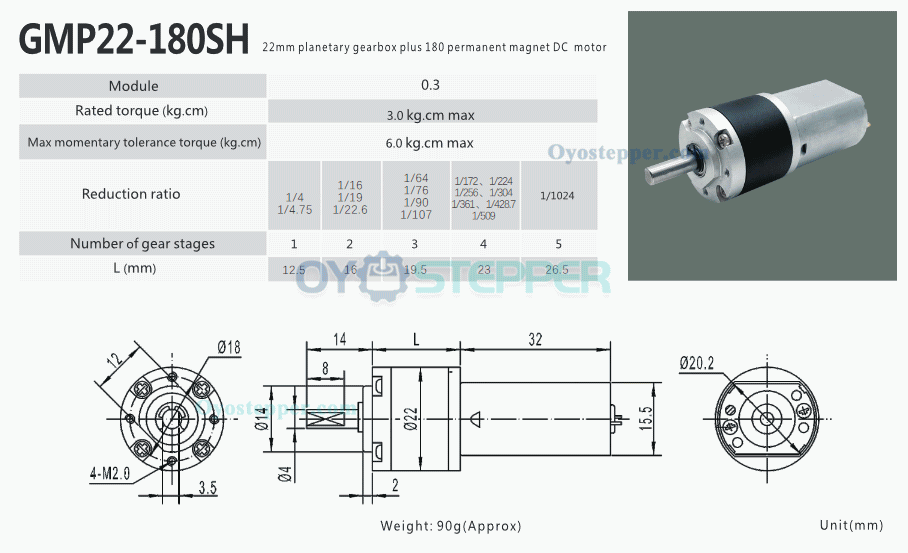

Physical Specification:
Motor Size:Φ15.5x32mm
Flange size:Φ22mm
Gearbox Length:12.5mm/16mm/19.5mm/23mm/26.5mm
Shaft Type:D-cut
D-cut Diameter:3.5mm
D-cut Length:8mm
Shaft Diameter:4mm
Shaft Length:12mm
Weight:90g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Body Length(mm) | 32+gearbox |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 14 |
| Weight(g) | 90 |
| Frame Size(mm) | Φ22 |
| Gearbox Length(mm) | 12.5 / 16 / 19.5 / 23 / 26.5 |
| Gearbox Type | Planetary gearbox |
| Gear Ratio | 16:1 / 64:1 / 84:1 / 107:1 / 224:1 / 304:1 / 428.7:1 / 1024:1 / 361:1 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Electrical Specification | |
| Rated Power(W) | 1.21 / 0.44 |
| Rated Voltage(V) | 6 / 12 |
| Rated Torque(kg.cm) | 3 |
| Rated Speed(rpm) | 3-370 |
| Rated Current (A) | 0.35 / 0.07 |
