OUKEDA OK63ZYT95-230 63mm Brushed DC Motor 24V 3000RPM 14Ncm 2.7A

OUKEDA OK63ZYT95-230 63mm Brushed DC Motor 24V 3000RPM 14Ncm 2.7A


Electrical Specifications
Model: OK63ZYT95-230
Motor Type: DC Motor
Rated Voltage: 24 VDC
Rated Speed: 3000 RPM
Rated Current: 2.7A
Rated Torque:14 Ncm
Stall Torque: 108 Ncm
Rotation Direction:CCW

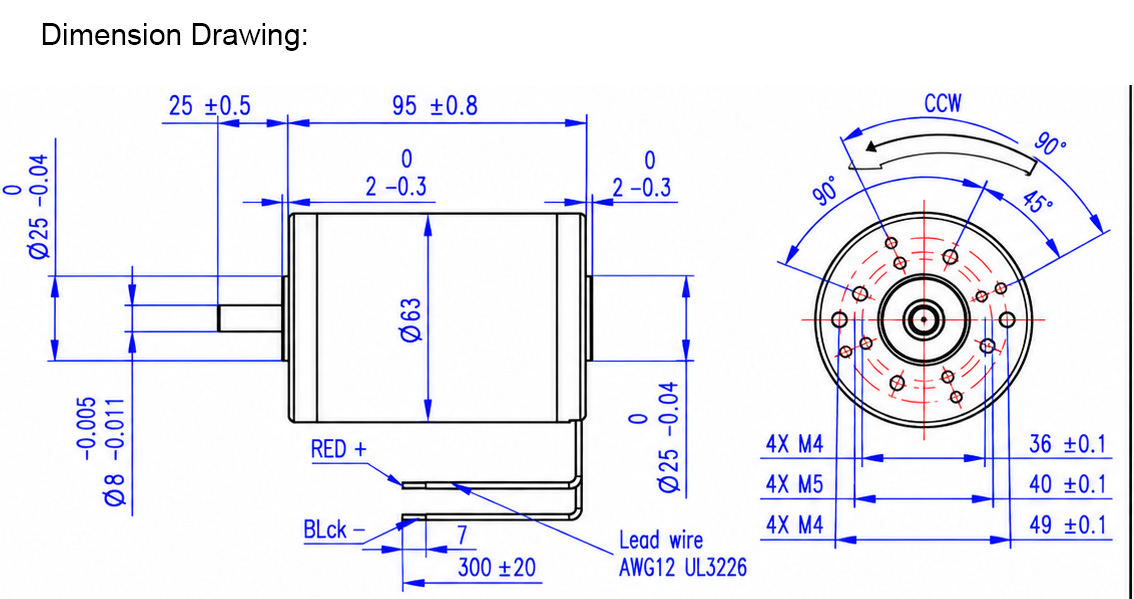

Physical Specifications:
Motor Body Diameter: Ø63 mm
Motor Body Length: 95 ±0.8 mm
Output Shaft Diameter: Ø8 mm
Output Shaft Length: 25 ±0.5 mm
Shaft Collar Diameter: Ø25 mm
Lead Wire Length: 300 ±20 mm
Wire Stripping Length: 7 mm;
