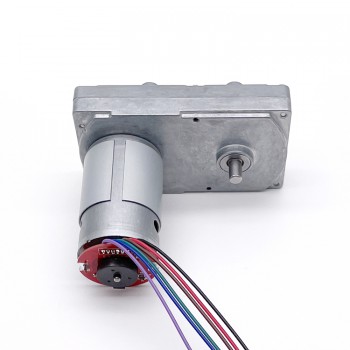

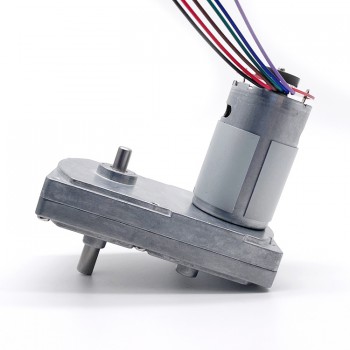

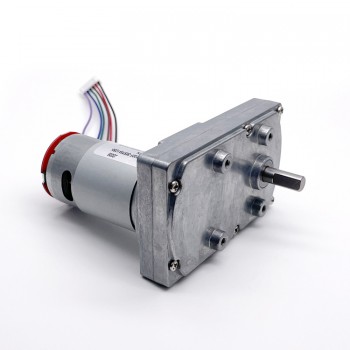

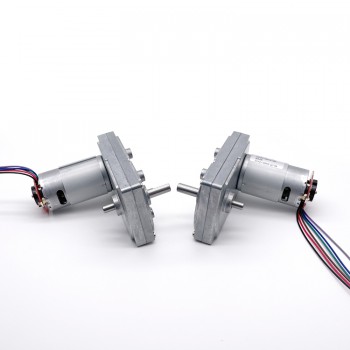

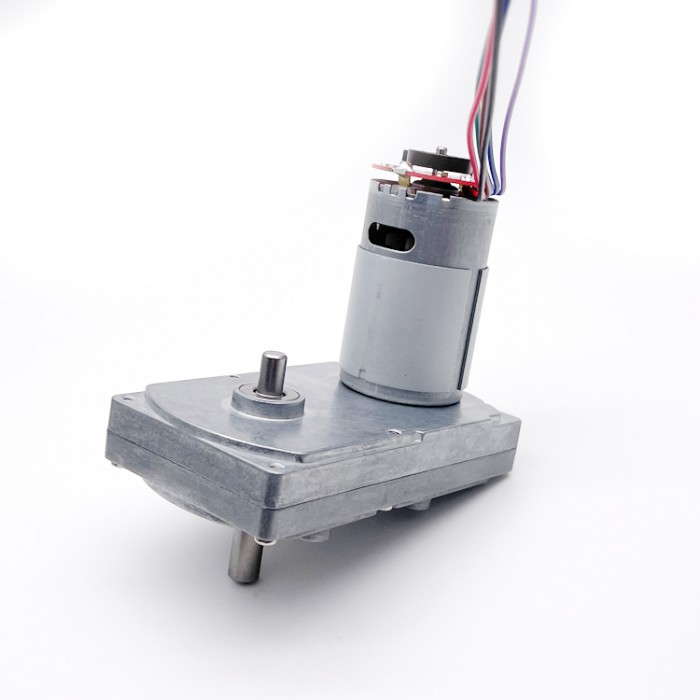

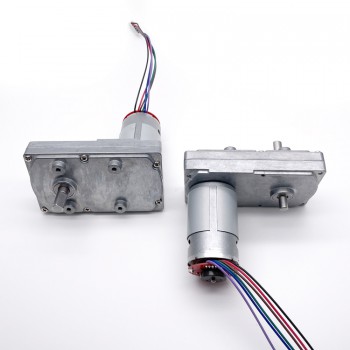

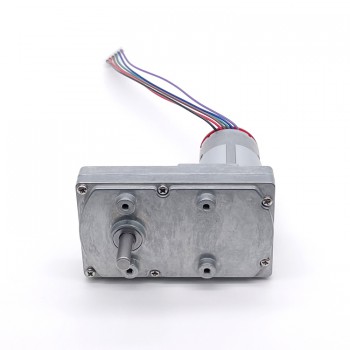

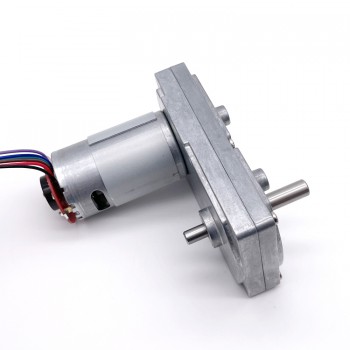

2Pcs 12V 24V Brushed DC Gear Motor with Encoder Reduction DC Motor 50kg.cm

2Pcs 12V 24V Brushed DC Gear Motor with Encoder Reduction DC Motor 50kg.cm
NO.:GM100F-555PM
Post a review
Our Price:$79.98

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $75.98 5%
10 $74.38 7%
50 $71.98 10%
100 $67.98 15%
Add To Cart



Features:
1. Small size dc gear motor with low speed and big torque
2. 42mm gear motor provide 12.0Nm torque max and more reliable
3. Suitable to small diameter, low noise and big torque application
4. Dc Gear motors can match encoder,11ppr
5. Reduction Ratio:60、110、200、365;

3 stages: 60:1/110:1
4 stages: 200:1/365:1

Application:
BOAT, Electric Bicycle, Home Appliance

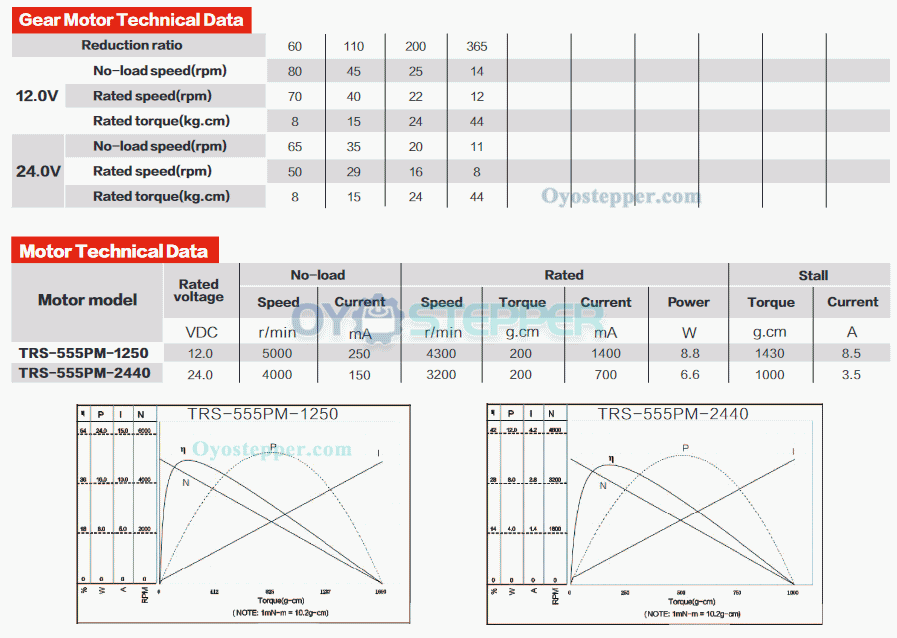

Electrical Specification:
Part Number:GM100F-555PM
Rated Voltage:12/24VDC
Rated Torque:20.0kg.cm
Max momentary tolerance torque: 40.0kg.cm
Rated current:1400mA(12V)/700mA(24V)
No Load Speed W/O Gearbox: 5000RPM(12V)/4000RPM(24V)
Rated Speed W/O Gearbox: 4300RPM(12V)/3200RPM(24V)
No Load Speed W Gearbox: 14-80 RPM
Rated Speed W/ Gearbox:8-70 RPM
Rated Power:8.8W(6V) / 6.6W(12V)
Gear type:Spur gearbox
Motor type:Brushed
Efficiency: 75%
Axial play:0.05-0.3
Noise:30cm.40-50db

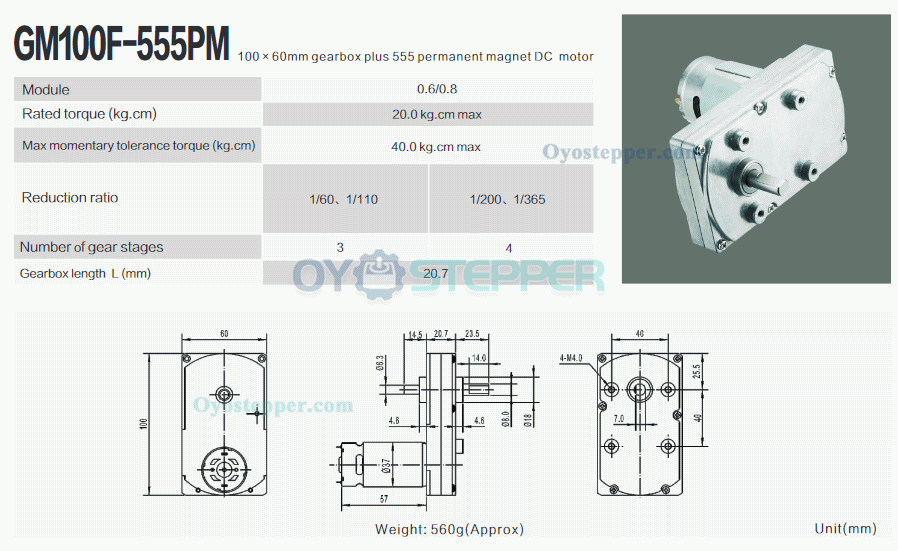

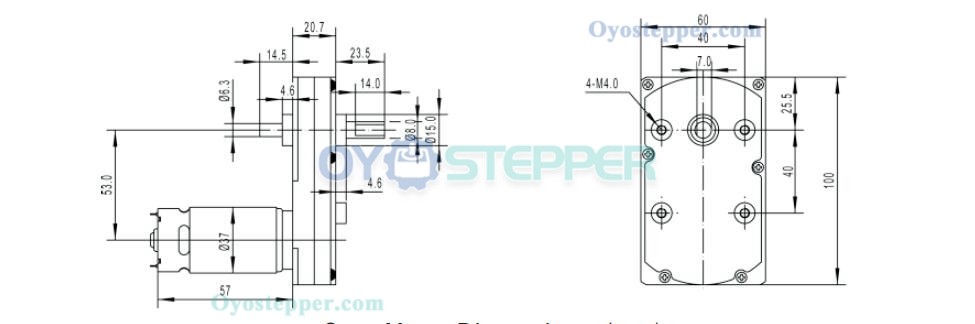

Physical Specification:
Motor Size:Φ37.5x57mm
Gearbox Length:20.7mm
Front Shaft Type:D-cut
Rear Shaft Type:O
Front Shaft Length:18.9.8mm
Front Shaft Diameter:8mm
Front Shaft D-cut Diameter:7mm
Front Shaft D-cut Length:14mm
Rear Shaft Length:9.9mm
Rear Shaft Diameter:6.3mm
Weight:560g;



2Pcs 12V 24V Brushed DC Gear Motor with Encoder Reduction DC Motor 50kg.cm

2Pcs 12V 24V Brushed DC Gear Motor with Encoder Reduction DC Motor 50kg.cm

2Pcs 12V 24V Brushed DC Gear Motor with Encoder Reduction DC Motor 50kg.cm



Resources

GM100F-555PM.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 2Pcs 12V 24V Brushed DC Gear Motor Reduction DC Motor 10kg.cm 37*57mm
Next: 2Pcs 24V High Torque DC Planetary Gear Motor with Brake 1.0kg.cm 58RPM 45mm Diameter
Physical Specification
Shaft Diameter(mm) 8
Shaft Length(mm) 18.7
Shaft Type D-cut
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 560
Gearbox Type Spur gearbox
Gear Ratio 60:1 / 110:1 / 220:1 / 356:1
Electrical Specification
Rated Current (A) 1.4 / 0.7
Rated Power(W) 8.8 / 6.6
Rated Voltage(V) 12 / 24
Peak Speed(rpm) 8-70
Rated Torque(kg.cm) 20
