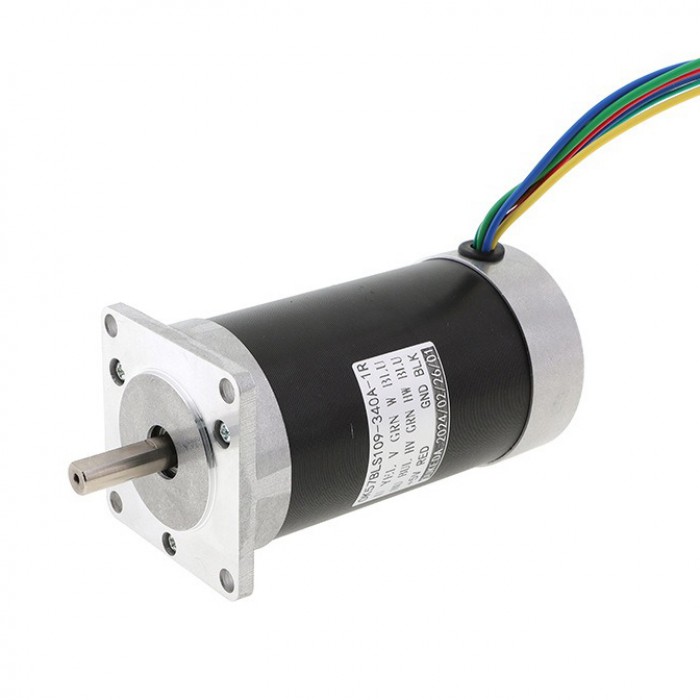

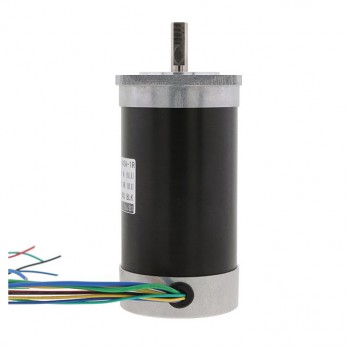

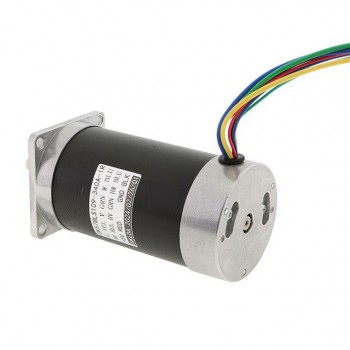

OUKEDA Brushless DC Motor 57mm 0.44Nm 36V 184W 4000RPM 3 Phase D-cut

NO.:OK57BLS109-340A-1R
Post a review

Halloween Special Offer 2026:

All Treats No Tricks
6% OFF on Total Order Amount!
Enjoy Discount at Checkout!
Valid Till November 4th, 2026
Note:No coupon code needed, please place order directly!

Our Price:$44.99

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$42.74	5%
10	$42.29	6%
50	$41.84	7%
100	$41.39	8%

Add To My Favorites

Description Specification Custom Options Review

OUKEDA Brushless DC Motor 57mm 0.44Nm 36V 184W 4000RPM 3 Phase D-cut

Electrical Specification:

Manufacturer Part Number:OK57BLS109-340A-1R

Phase: 3

Poles: 4

Rated Voltage: 36VDC

Rated Speed: 4000±10%RPM

No Load Speed: 4700±10%RPM

Rated Torque: 0.44Nm (62.31oz.in)

Rated Current:7.3A (Max.)

Rated Power: 184W

Insulation Class: B

Insulation Resistance: ≥100MΩ (500VDC)

Operating Temperature: -20°C to +50°C

Operating Humidity: 15% to 95%RH

Physical Specification:

Frame Size: 57×57mm

Body Length: 109±1mm

Shaft Diameter: 8mm (0/-0.015mm)

Shaft Length: 25±1mm

Shaft Type: D-Cut Shaft

D-cut Length: 20mm

D-cut Flat Dimension: 7mm

Number of Leads: 8

Lead Length: 1000mm

Weight: Approx. 1.1kg
