OUKEDA NEMA 34 Stepper Motor 1.8° 8.5Nm 5.2V 6.0A 2 Phase 86mm Keyway Shaft

OUKEDA NEMA 34 Stepper Motor 1.8° 8.5Nm 5.2V 6.0A 2 Phase 86mm Keyway Shaft
NO.:86HS118-6004A14-B34
Post a review
Halloween Special Offer 2026:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$59.99
Quantity:- +

Add To Cart
Add To My Favorites
  • Share:

OUKEDA NEMA 34 Stepper Motor 1.8° 8.5Nm 5.2V 6.0A 2 Phase 86mm Keyway Shaft


Electrical Specification:

Manufacturer Part Number:86HS118-6004A14-B34

Number Of Phase:2

Step Angle:1.8°±5%

Holding Torque:8.5N·m(1203.80oz.in)

Rated Voltage:5.2V

Rated Current/phase:6.0A

Phase Resistance:0.6Ω±10%

Inductance:6.0mH±20%

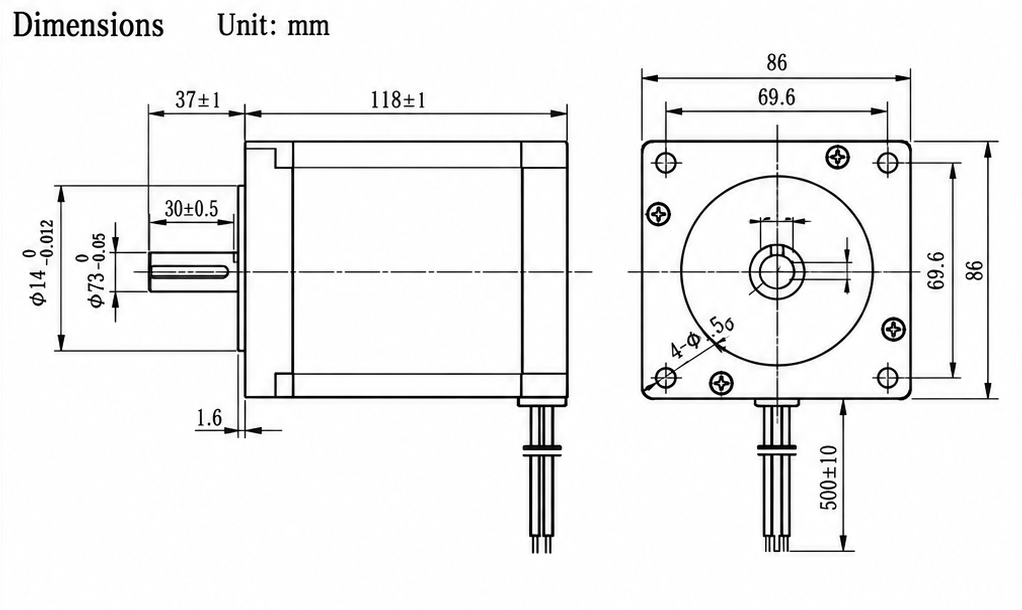

Physical Specification:

Frame Size:86×86mm

Body Length:118mm(Max)

Shaft Diameter:14mm

Shaft Length:34±0.5mm

Keyway Shaft Length:31mm

Number of Leads:4

Lead Length:500±10mm

Weight:3.6kg

OUKEDA NEMA 34 Stepper Motor 1.8° 8.5Nm 5.2V 6.0A 2 Phase 86mm Keyway Shaft





OUKEDA NEMA 34 Stepper Motor 1.8° 8.5Nm 5.2V 6.0A 2 Phase 86mm Keyway Shaft
