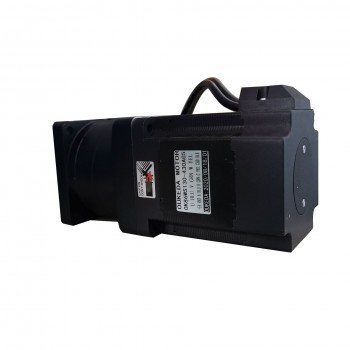

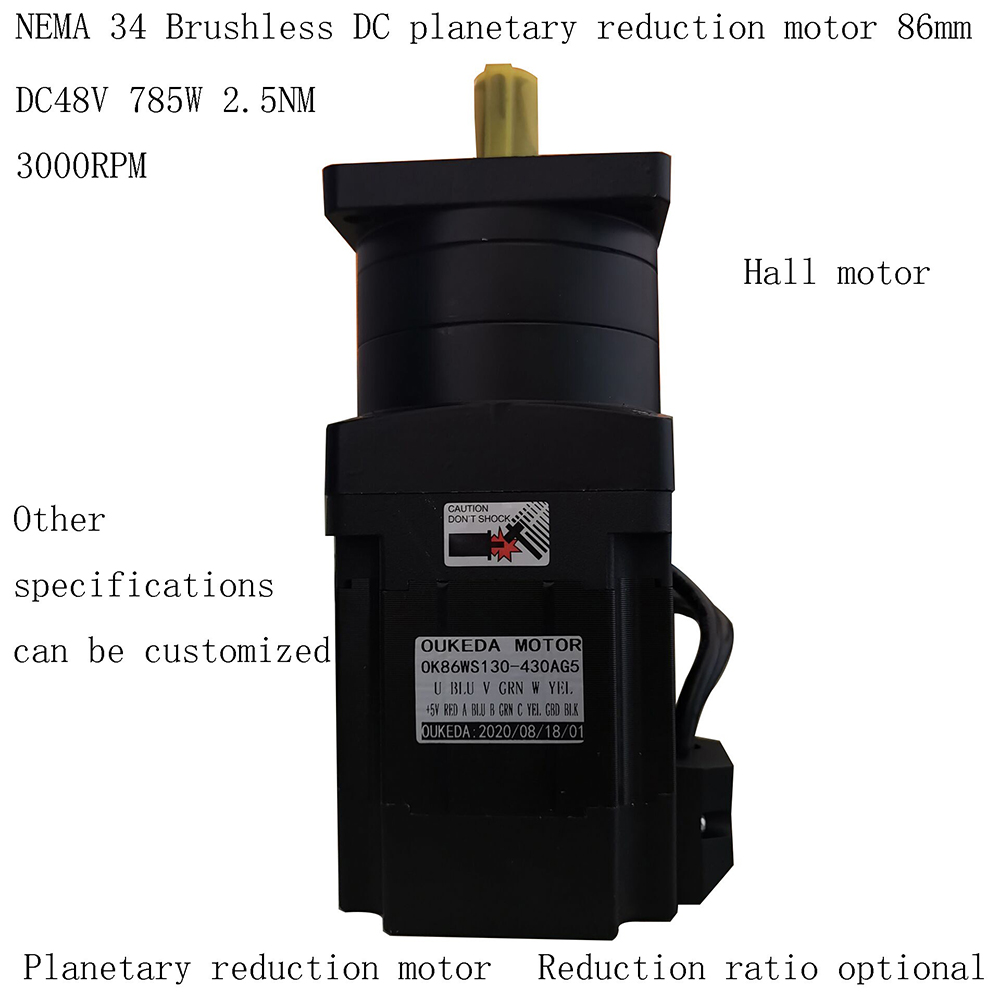

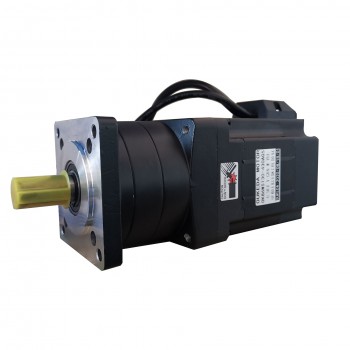

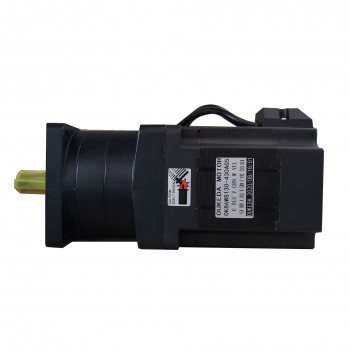

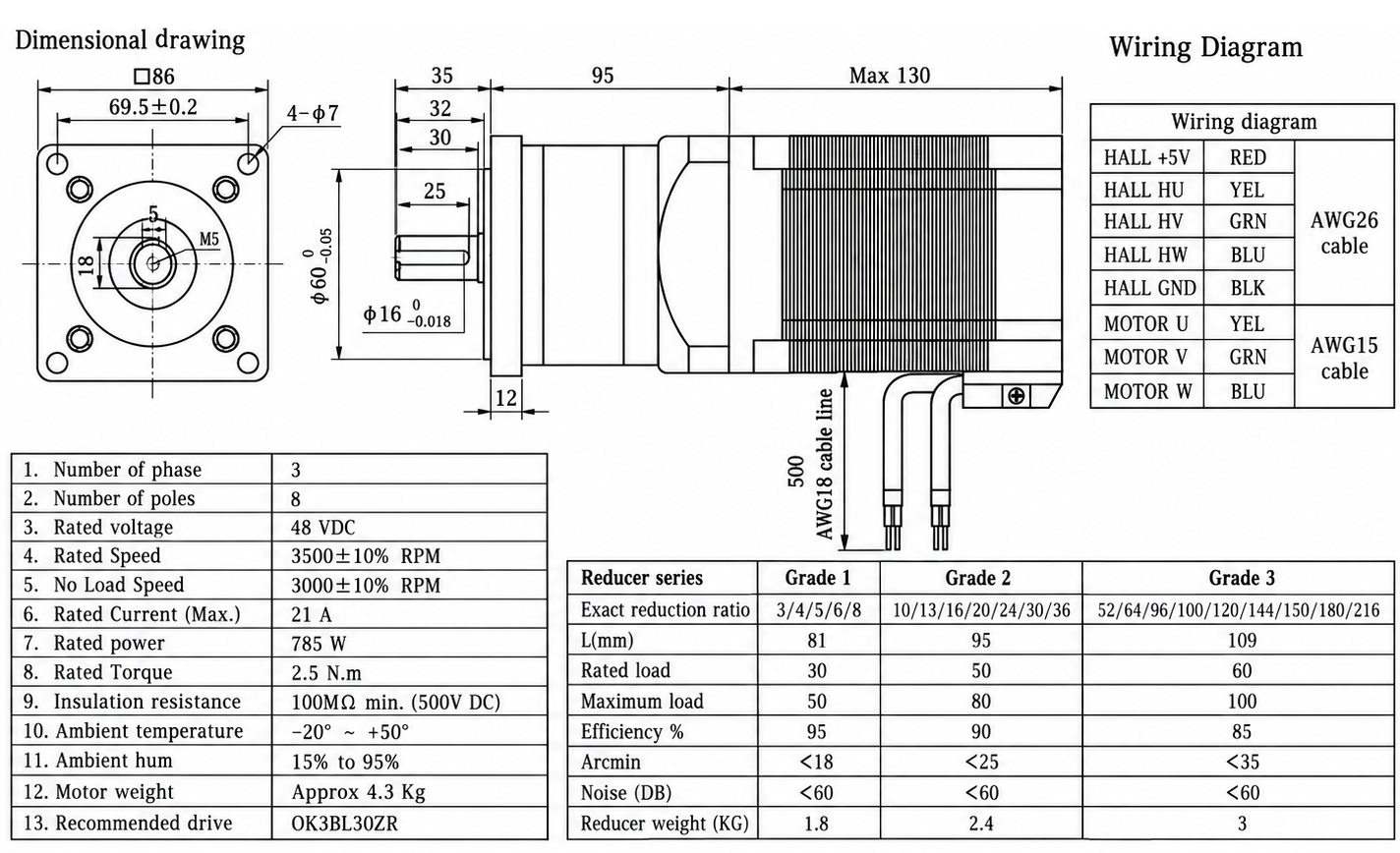

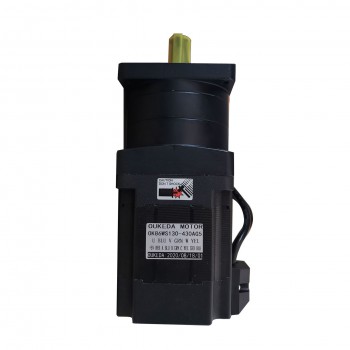

OUKEDA Brushless DC Motor with BLDC Driver Kit Planetary Gearbox 3:1-216:1 48V 2.5Nm 3500RPM 86mm

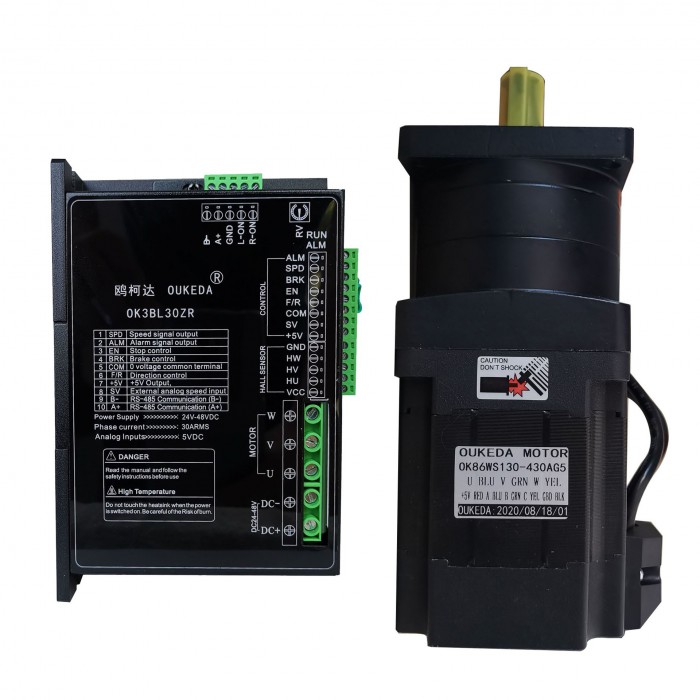

Oukeda OK3BL30ZR Brushless DC Motor Driver Controller DC24-48V 30A 800W Support RS-485 Communication

This brushless DC motor driver uses a DSP-based digital control platform with multiple speed control modes and software/hardware protection functions. It supports parameter adjustment via RS-485 communication interface, including protection parameters, motor parameters, and acceleration/deceleration time.

Speed Control Modes:

0–5VDC analog input

0–100% PWM input (frequency range: 1kHz–20kHz)

External potentiometer

RS-485 communication

Electrical Specifications:

Rated voltage: 24–48V

Rated current: 30A

Input voltage range: 14–60VDC (typical 24V)

Output current range: 3A–30A (typical 30A)

Motor speed range: 100–30000rpm (typical 3000rpm)

Protection: Over-voltage, over-current

Certification: CE, RoHS

Operating Environment:

Cooling: Natural or forced

Ambient temperature: 0°C to 65°C

Operating temperature: 0°C to 50°C

Humidity: 40%RH–90%RH

Vibration: 10–55Hz / 0.15mm

Storage temperature: –20°C to 65°C

Avoid dust, oil fog, and corrosive gases

Physical Specifications:

Dimensions: 151 × 97.5 × 52.6mm

Weight: Approx. 160g
