OUKEDA JGB37 Eccentric Gearbox Stepper Motor 1.8° 1.0A 0.14Nm 2 Phase 35mm Gear Reducer

OUKEDA JGB37 Eccentric Gearbox Stepper Motor 1.8° 1.0A 0.14Nm 2 Phase 35mm Gear Reducer
NO.:OK35FD34-104A-PX10G
Post a review
Halloween Special Offer 2026:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$20.99

Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $19.94 5%
10 $19.73 6%
50 $19.52 7%
100 $19.31 8%
Add To Cart
Add To My Favorites
  • Share:

OUKEDA JGB37 Eccentric Gearbox Stepper Motor 1.8° 1.0A 0.14Nm 2 Phase 35mm Gear Reducer


Electrical Specification:

Manufacturer Part Number:OK35FD34-104A-PX10G

Number Of Phase:2

Step Angle:1.8°±5%

Phase Voltage:2.7VDC

Rated Current/phase:1.0A

Phase Resistance:2.7Ω±10%(At 20°C)

Inductance:4.3mH±20%

Holding Torque:0.14N·m

Insulation Class B

Insulation Resistance:100MΩ Min.(500V DC)

Operating Voltage:12–24VDC

Ambient Temperature:-20°C to +50°C

Ambient Humidity:15% to 95%

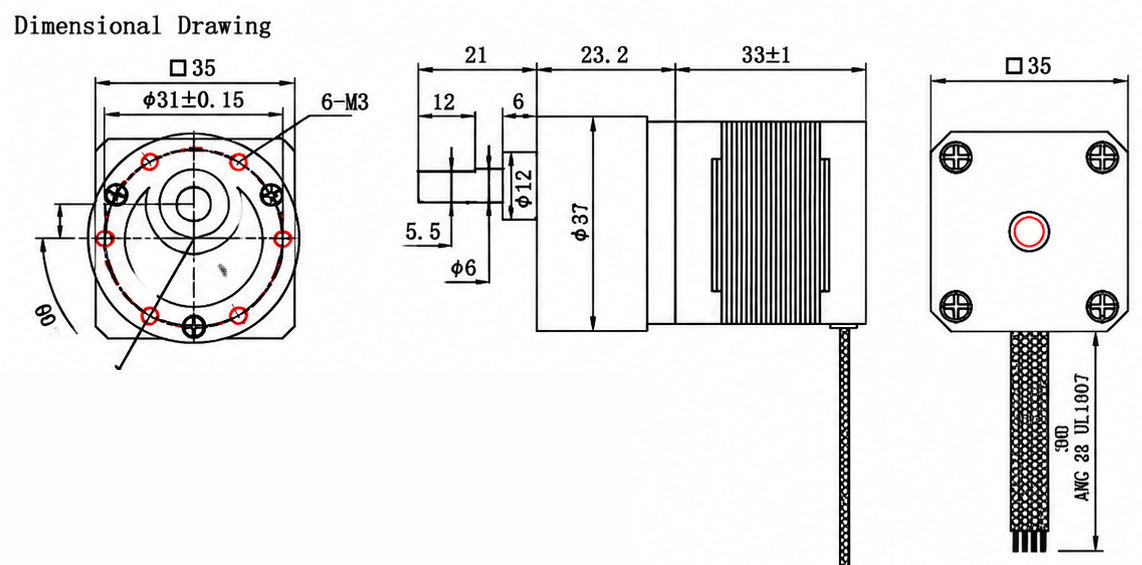

Physical Specification:

Frame Size:35 x 35mm

Body Length:33±1mm

Shaft Length:21mm

Shaft Diameter:6mm

Shaft Type:D-cut

D-cut length:12mm

Mounting Hole:6-M3

Flange Diameter:31±0.15mm

Weight:0.2kg





OUKEDA JGB37 Eccentric Gearbox Stepper Motor 1.8° 1.0A 0.14Nm 2 Phase 35mm Gear Reducer




OUKEDA JGB37 Eccentric Gearbox Stepper Motor 1.8° 1.0A 0.14Nm 2 Phase 35mm Gear Reducer




Prev: NEMA 23 Eccentric Gearbox 5:1 10:1 Gear Reducer for 57mm Stepper Motor
Next: OUKEDA NEMA 17 Planetary Gearbox Stepper Motor 42mm 4:1-139:1 1.8° 1.68A 0.45Nm
