Nema 11 External Linear Stepper Motor Actuator Bipolar 1.8 Deg 0.75A 5V Lead Revolution 2.54mm/0.1" Lead Screw 250mm

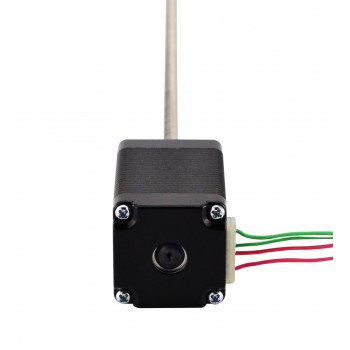

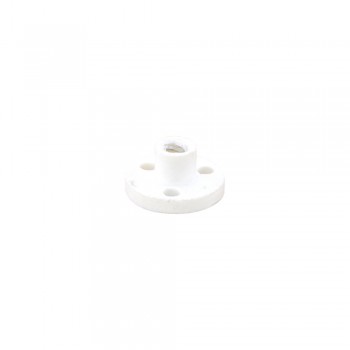

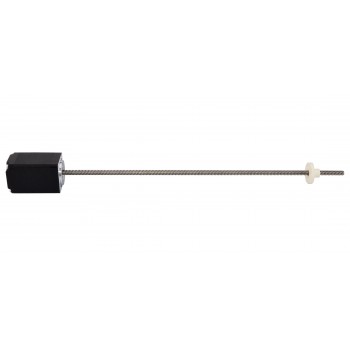

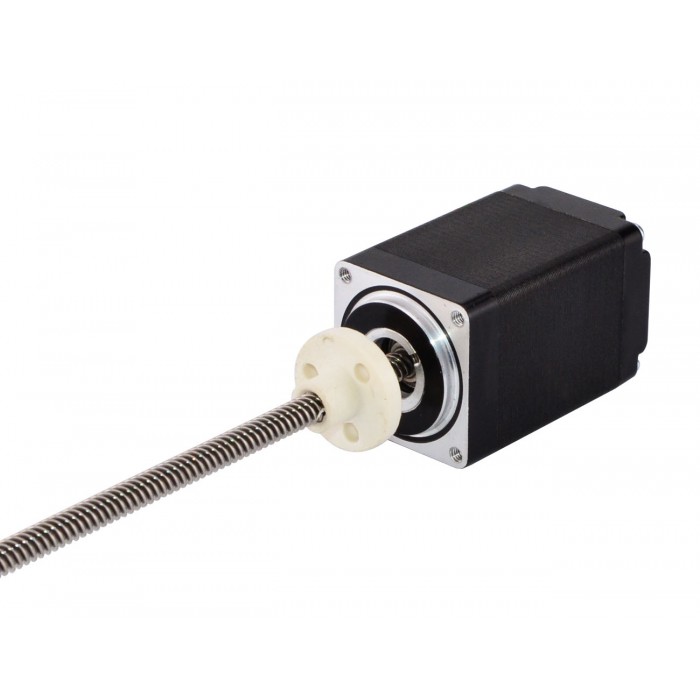

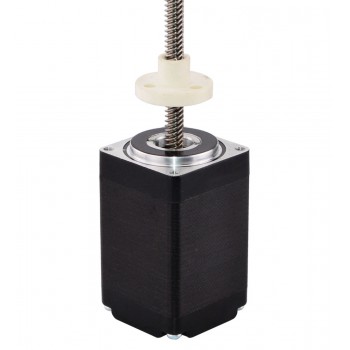

The motor part is 46mm body 1.8 degree 0.75A Nema 11 stepper motor, and it has integrated with a 4.76mm (0.1874") diameter 250mm (9.8425") length lead screw and a POM screw nut, the linear travel is 2.54mm (0.1") per revolution.
Electrical Specification
Manufacturer Part Number: 11LS18-07543-250E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 40N (300pps)
Rated Current/phase: 0.75A
Phase Resistance: 6.7ohms
Voltage: 5V
Inductance: 5.8mH±20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 46mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.0127mm(0.0005" )
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Lead Length: 300mm
Weight : 180g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
Full Datasheet: 11LS18-07543-250E.pdf
